1" Stainless Steel Dual Valve with 1" Hand Point inc Irritrol 2500 Solenoid Valves

1″ Stainless Steel Dual Valve with 1″ Hand Point — Complete with Irritrol 2500 Solenoid Valve

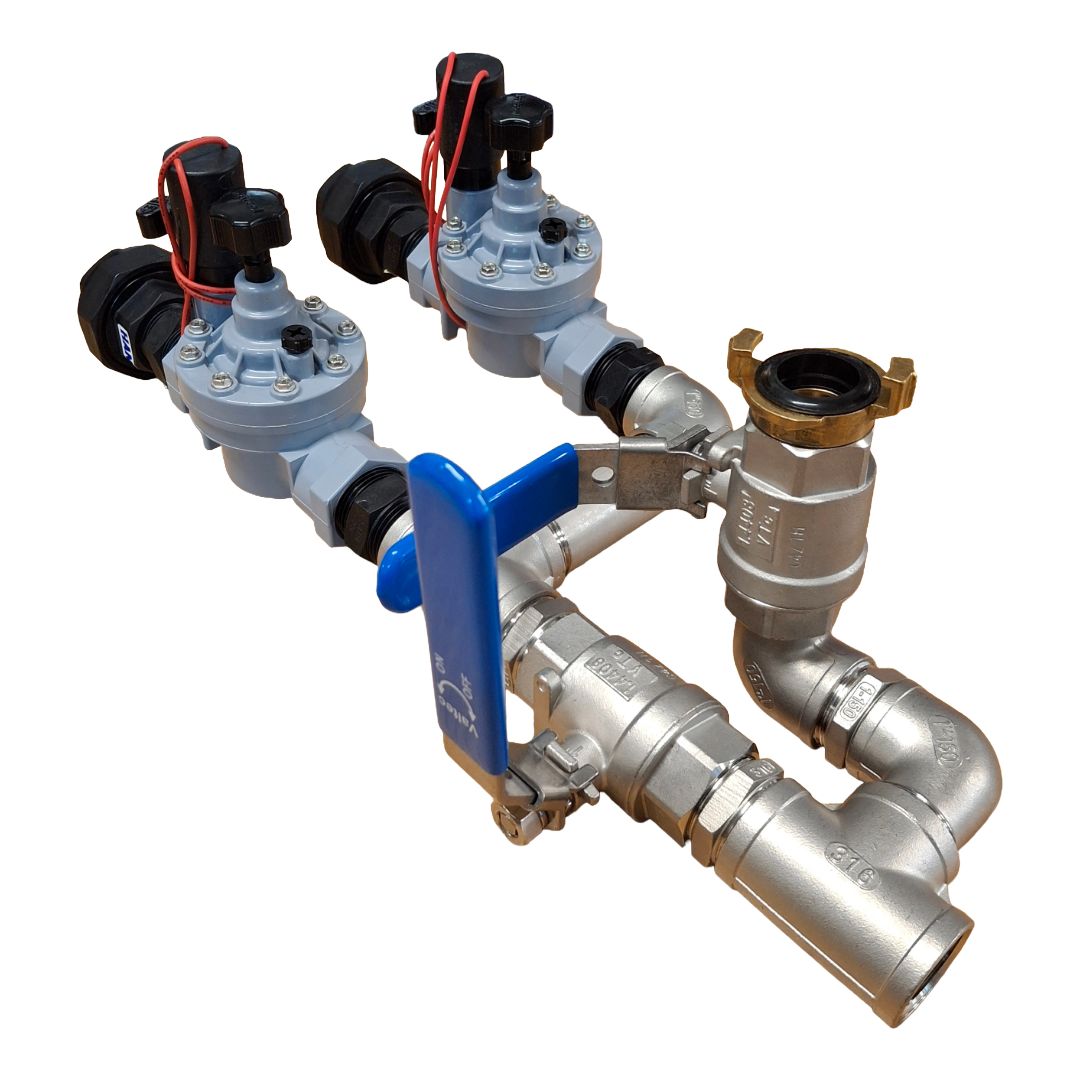

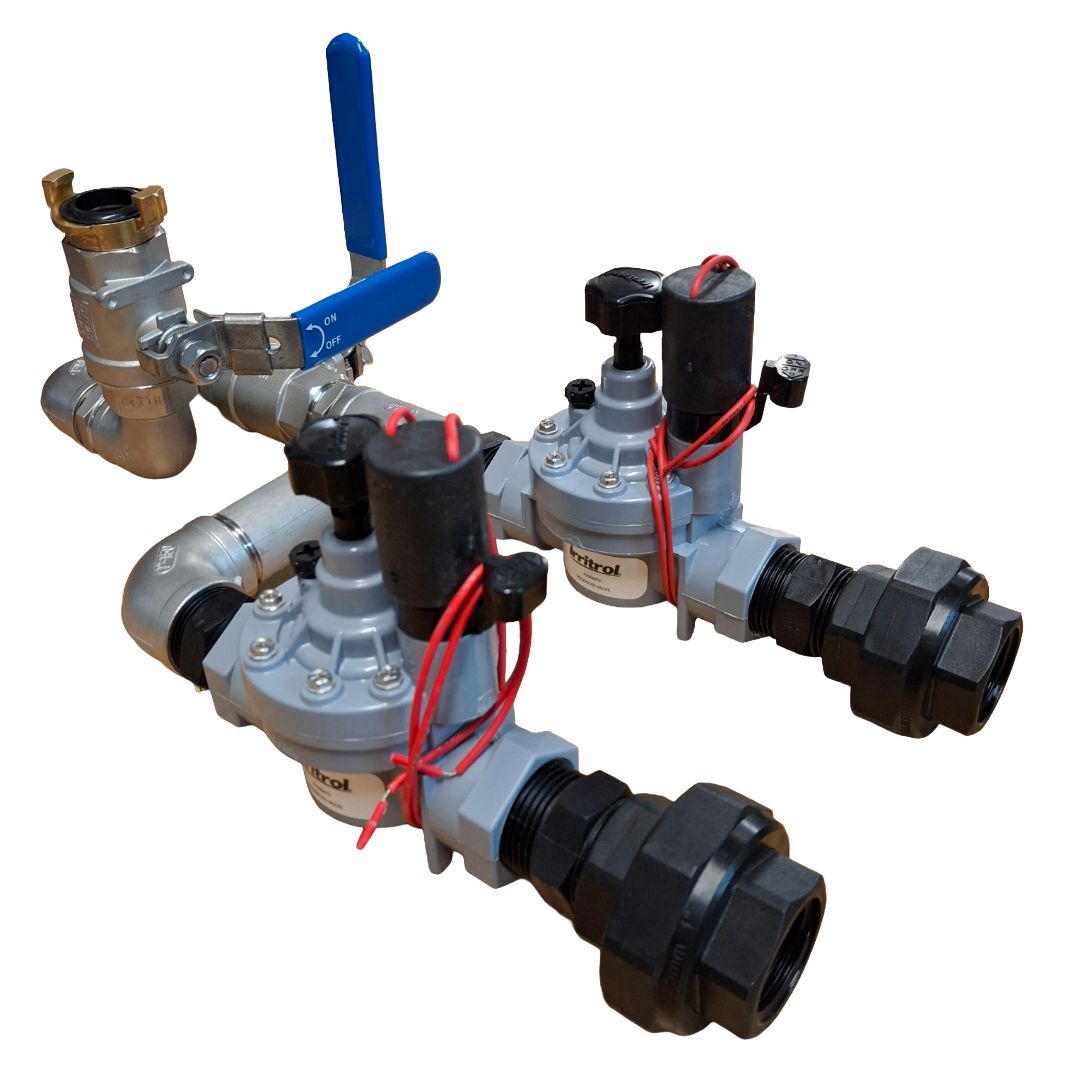

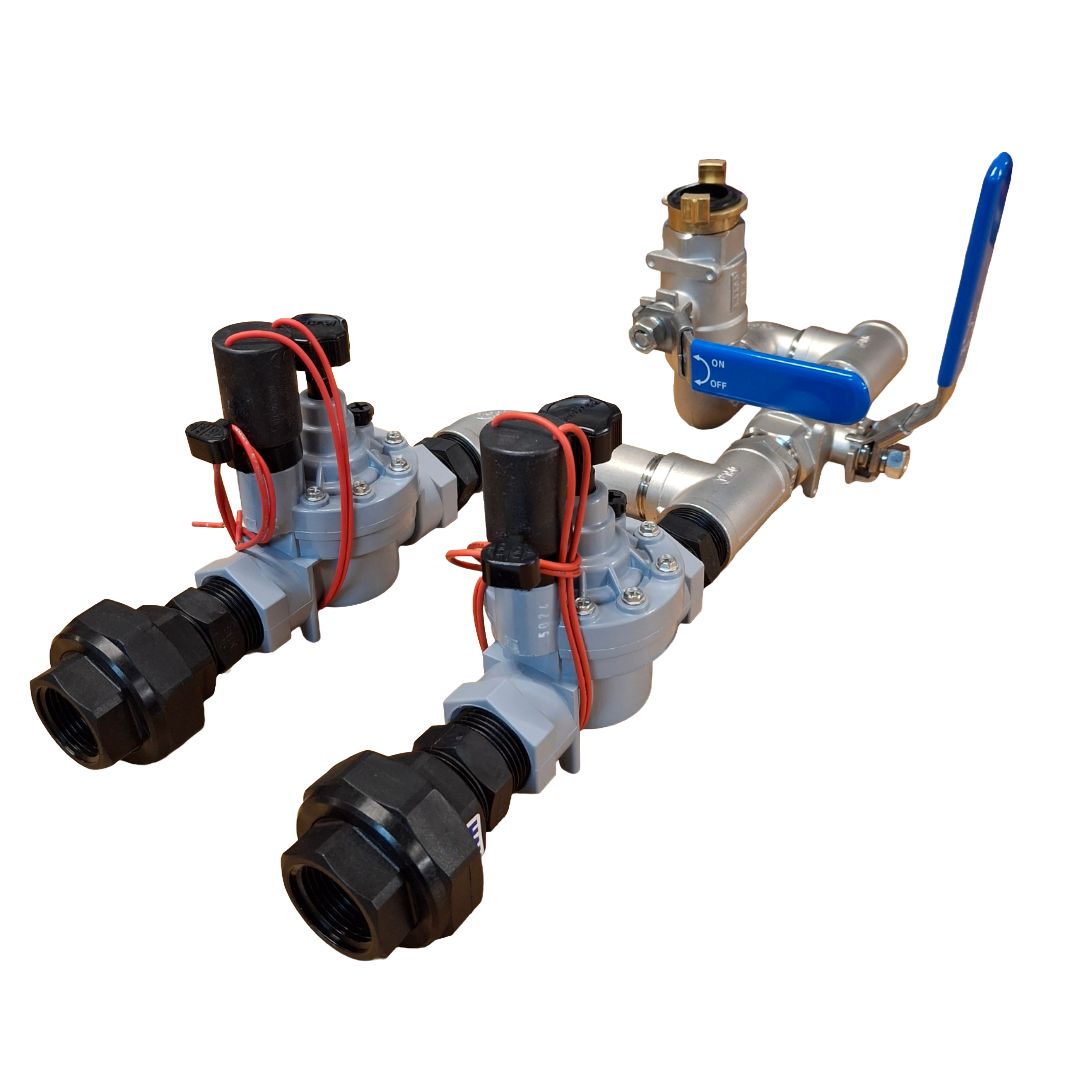

This robust dual assembly combines a stainless steel dual valve with a 1″ hand point and a pre‑mounted Irritrol 2500 solenoid valves. It allows manual control via the hand point and reliable automatic zonal operation through the 2500 — ideal for irrigation systems in commercial, sports, or high‑end residential installations.

Key Features — Stainless Steel Dual Valve:

• Dual 1″ isolation outlets with hand point outlet with Geka connection
• Stainless steel body for excellent corrosion resistance and strength
• Union connection for easy pipe work integration.

Key Features — Irritrol 2500 Series Solenoid Valves:

• Robust glass-filled nylon construction for high strength and UV resistance
• Stainless steel metering system for reliable performance under varying pressures
• External bleed screw for manual operation and system flushing
• Unique clog-resistant design with large water passages
• Optional flow control models for adjustable flow output per zone

Specifications:

• Valve size: 1″ (≈ 25 mm) BSP inlet and outlets
• Pressure rating: up to 10.3 bar
• Flow range: approx. 0.45 to 6.8 m³/h (7.5 to 113 L/min) per valve
• Solenoid voltage: 24 V AC
• Electrical draw: inrush approx. 0.3 A, holding approx. 0.19 A
• Temperature rating: up to 66 °C
