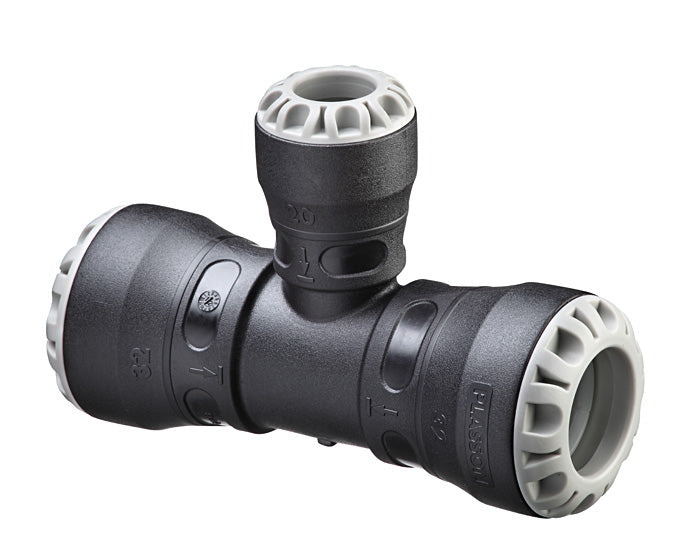

Plasson Push-Fit Reducing Tee
The PLASSON Series 1 push-fit reducing tee creates a 90° reduced branch between two equal-size PE water pipes. It is a compact way to take a smaller PE branch from a larger straight run.
Key specifications
- Connection: push-fit on all three ports
- Water pressure rating: PN 16
- Body and nut: high-grade copolymer polypropylene
- Split ring: polyacetal
- Seal: NBR
- Standards: ISO 17885 for water applications and AS/NZS 4129
Choosing the size
Sizes are shown as run × branch × run. A 32 × 20 × 32 mm tee connects 32 mm PE pipe on the straight run and provides a 20 mm branch.
Installation
Prepare clean, square pipe ends and push each pipe fully into the fitting up to its internal stop. Keep the pipework aligned and supported; do not force mismatched pipe sizes into the fitting. Follow PLASSON installation guidance and the requirements of the water system.
