Plasson Tapper for PVC & PE Pipe

The PLASSON 16540 tapper provides a 25 mm branch connection from a 75 mm PVC or PE pipe. It is suited to installations where a compact tapping tee is required without cutting a full fitting into the main.

Key specifications

• PLASSON family: 16540
• Size: 75 mm main × 25 mm branch
• Suitable pipe materials: PVC and PE
• Body and nut: high-grade polypropylene copolymer
• Split ring: polyacetal
• Seal: NBR
• Bolt material: stainless steel
• Approximate weight: 700 g

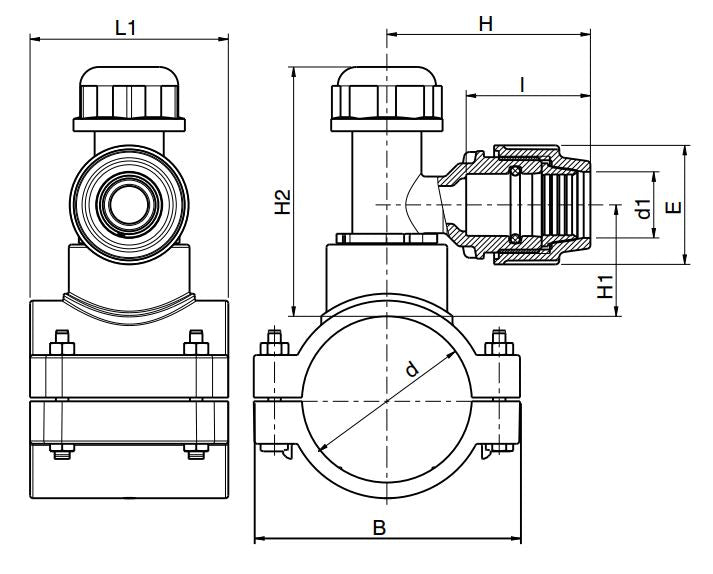

Dimensions

• E: 54 mm
• H: 105 mm
• H1: 57 mm
• H2: 130 mm
• l1: 98 mm
• L: 58 mm

Selection and installation

Select this version only for a 75 mm pipe with a 25 mm branch. Confirm the pipe outside diameter and material before ordering.

Depressurise and drain the pipework before installation. Prepare the pipe and make the branch opening using the correct tools and installation method for the pipe material. Keep the sealing area clean, assemble the components in the correct order and tighten evenly. Commission the system gradually and check the joint for leaks.
