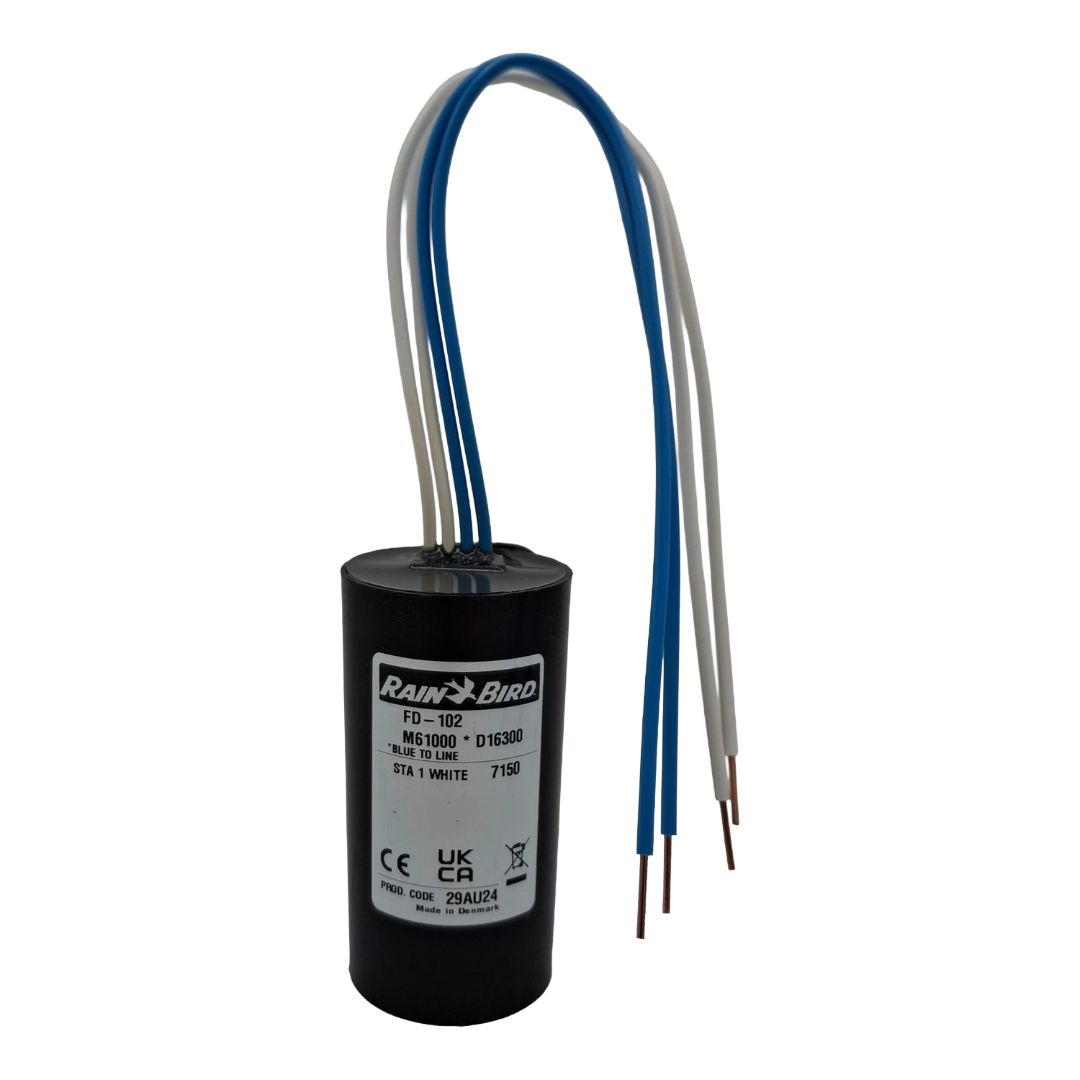

Rain Bird 1 way Field Decoder - operate 2 coils max

One-address decoder for up to two coils

This Rain Bird field decoder operates one or two compatible irrigation solenoid coils simultaneously from a single decoder address. It is designed for compatible Rain Bird SiteControl Decoder or ESP-LXD two-wire systems.

Selection and installation

• One decoder address.
• Operates up to two compatible solenoids at the same time, as stated in this listing.
• Install in a valve box where practical; direct burial is also supported by the Rain Bird decoder family.

Use approved waterproof cable joints and follow the controller's two-wire design and surge-protection requirements.

Check before ordering: Both connected valves operate together rather than as separately addressed stations. Confirm the exact decoder-system and solenoid requirements before installation.
