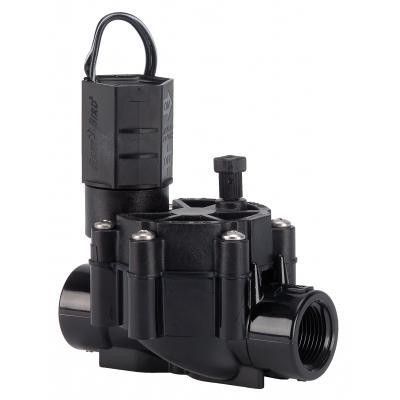

Rain Bird 100-DVF 1" BSP Female 9VDC Solenoid Valve with Flow Control
Regular price
Sale price
£35.63
Regular price
£53.84
Shipping calculated at checkout.
Battery-controller irrigation valve with flow control
This Rain Bird 100-DVF combines a 1 in female BSP valve body, integral flow control and a 9 V DC latching solenoid. It is intended for compatible battery-operated irrigation controllers where a conventional 24 V AC supply is not available.
Key specification
- Model: 100-DVF with pressure-assisted flow control.
- Connection: 1 in female BSP inlet and outlet.
- Solenoid: 9 V DC latching.
- Operating pressure: 1.0 to 10.4 bar.
- Flow range for the 1 in DV/DVF body: 0.05 to 9.08 m³/h.
- Balanced-pressure diaphragm with 200 micron pilot-water filtration.
- Internal and external manual bleed functions.
Selection notes
A latching DC solenoid is not interchangeable with a standard 24 V AC coil. Confirm the controller output before ordering. For flow below 0.68 m³/h or drip irrigation, install a 200-mesh filter upstream. This residential valve is not recommended for conventional two-wire decoder systems.
