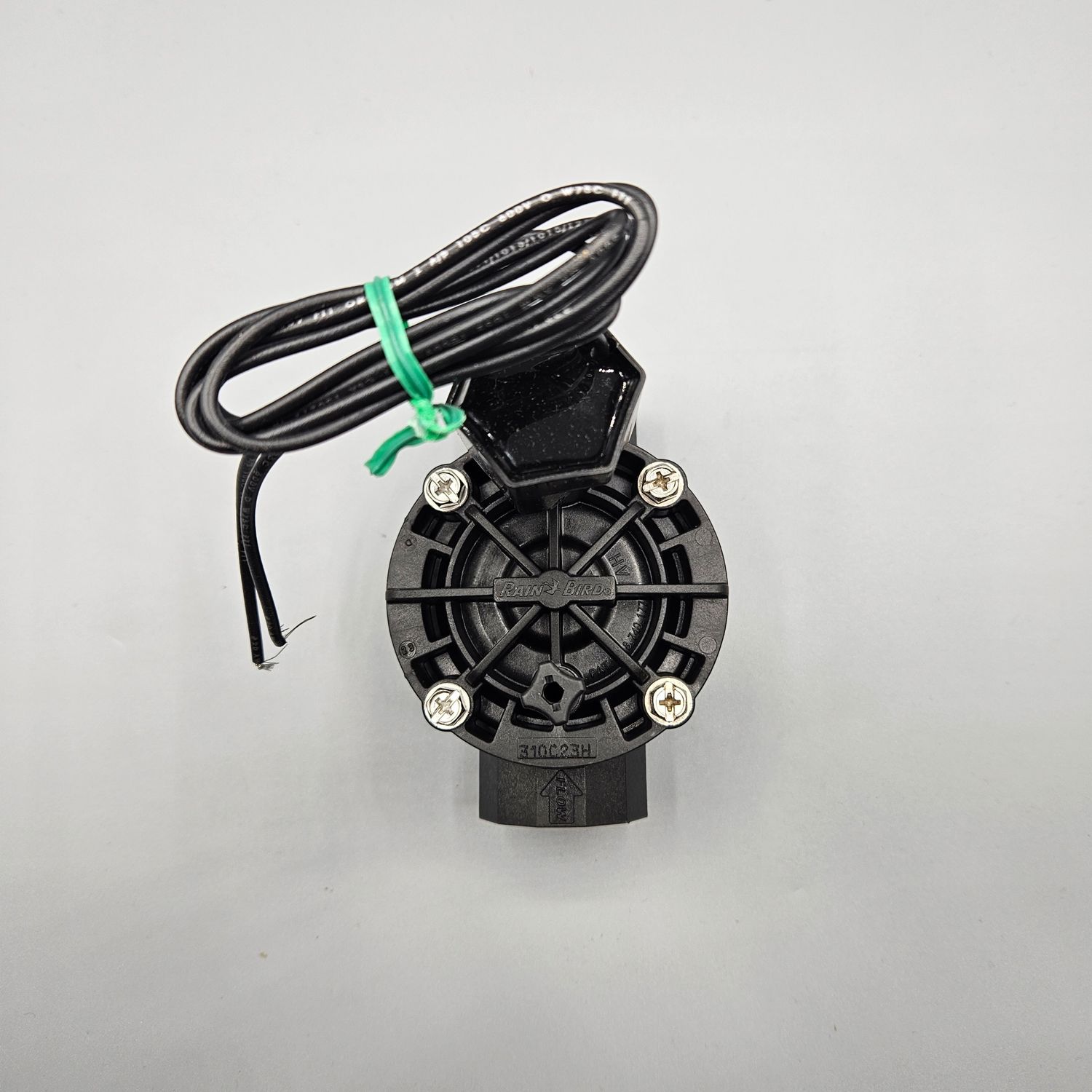

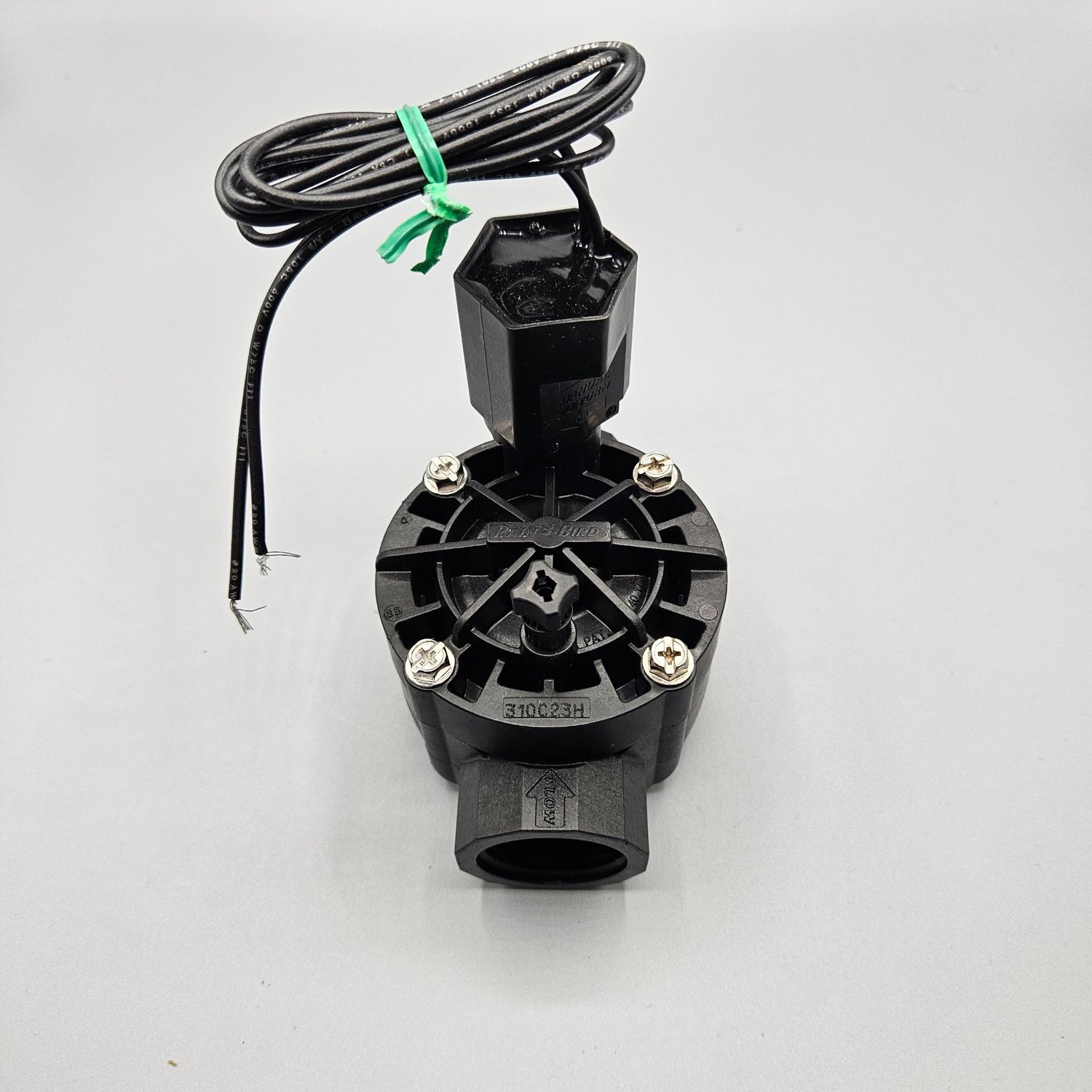

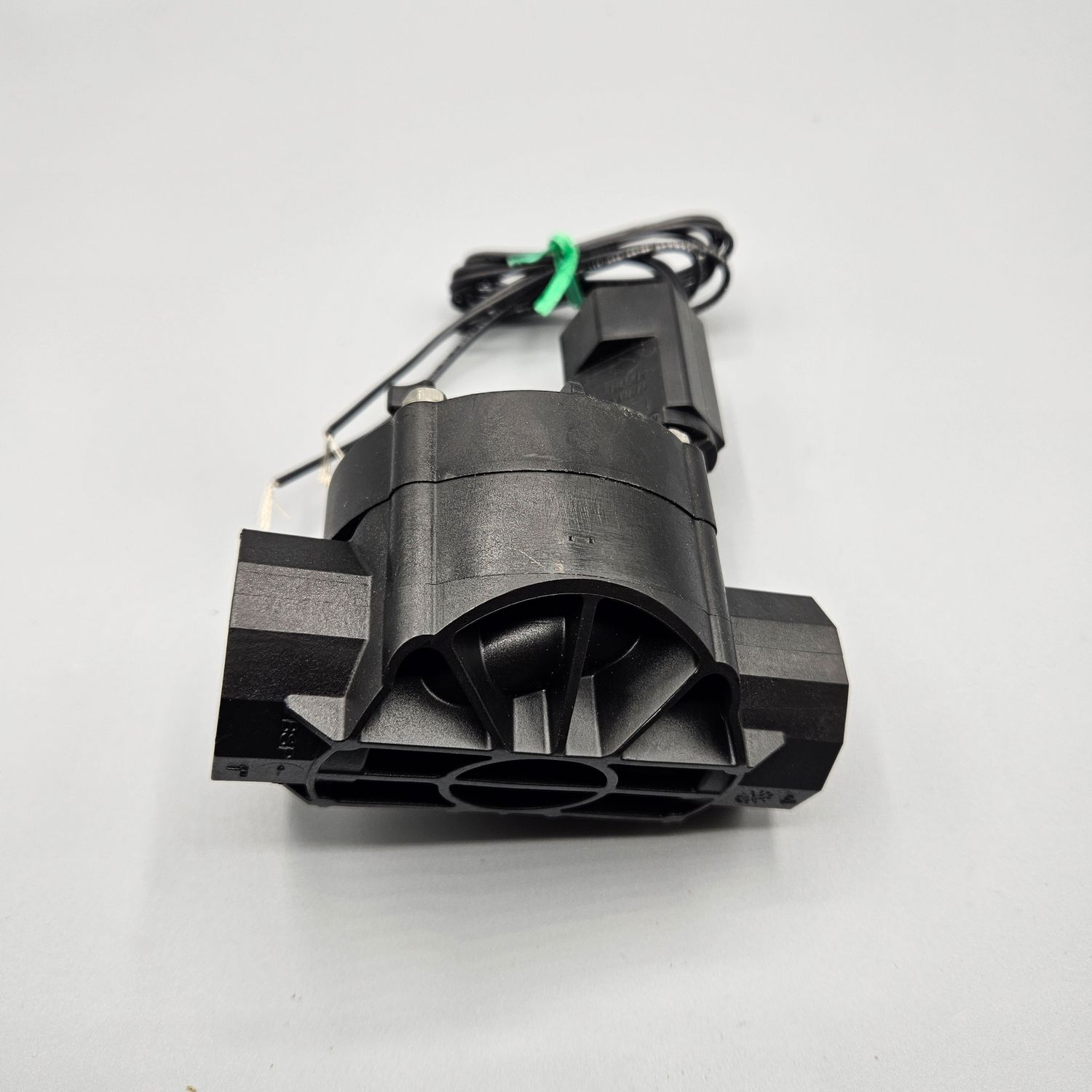

Rain Bird 100-HV 1" BSP female 24VAC solenoid valve

Compact 1 in 24 V AC irrigation valve

The Rain Bird 100-HV is a normally closed inline solenoid valve for residential and light-commercial irrigation. This version has 1 in female BSP connections and a 24 V AC solenoid for compatible mains-powered irrigation controllers.

Key specification

• Connection: 1 in female BSP inlet and outlet.
• Supply: 24 V AC, 50/60 Hz.
• Operating pressure: 1.0 to 10.3 bar.
• Flow range: 0.05 to 6.82 m³/h.
• Glass-filled polypropylene body.
• Balanced-pressure Buna-N diaphragm with self-cleaning 200 micron pilot filter.
• Internal manual bleed and external flushing bleed.

Selection and installation

This HV model does not have integral flow control; choose the 100-HVF where that adjustment is required. For flow below 0.68 m³/h or drip irrigation, Rain Bird requires a 200-mesh filter upstream. Match the 24 V AC coil to the controller output and install in the marked flow direction.
