Rain Bird 100-HVF Valve 1" BSP with flow control 24V

1 in 24 V AC valve with flow control

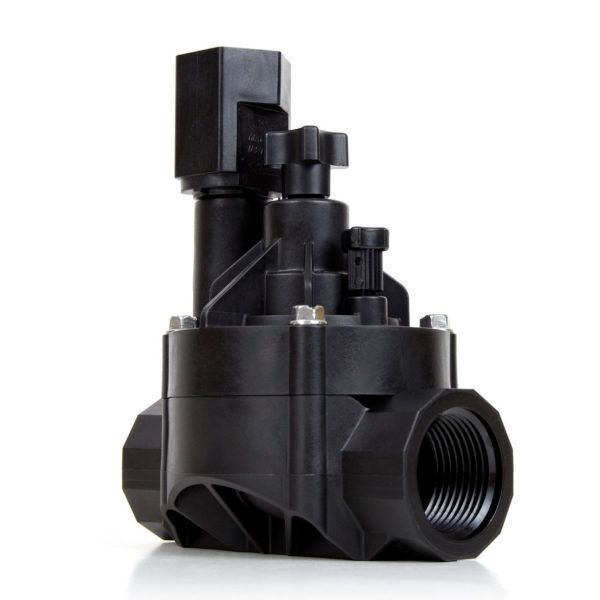

The Rain Bird 100-HVF is a compact, normally closed irrigation solenoid valve with an integral flow-control handle. This version has 1 in female BSP connections and a 24 V AC solenoid for compatible irrigation controllers.

Key specification

• Connection: 1 in female BSP inlet and outlet.
• Supply: 24 V AC, 50/60 Hz.
• Integral pressure-assisted flow control.
• Operating pressure: 1.0 to 10.3 bar.
• Flow range: 0.05 to 6.82 m³/h.
• Glass-filled polypropylene body.
• Balanced-pressure Buna-N diaphragm with self-cleaning 200 micron pilot filter.
• Internal manual bleed and external flushing bleed.

Installation notes

Match the AC solenoid to the controller output and install the valve in the marked flow direction. For flow below 0.68 m³/h or drip irrigation, Rain Bird requires a 200-mesh filter upstream. Do not confuse this HVF flow-control model with the standard HV valve.
