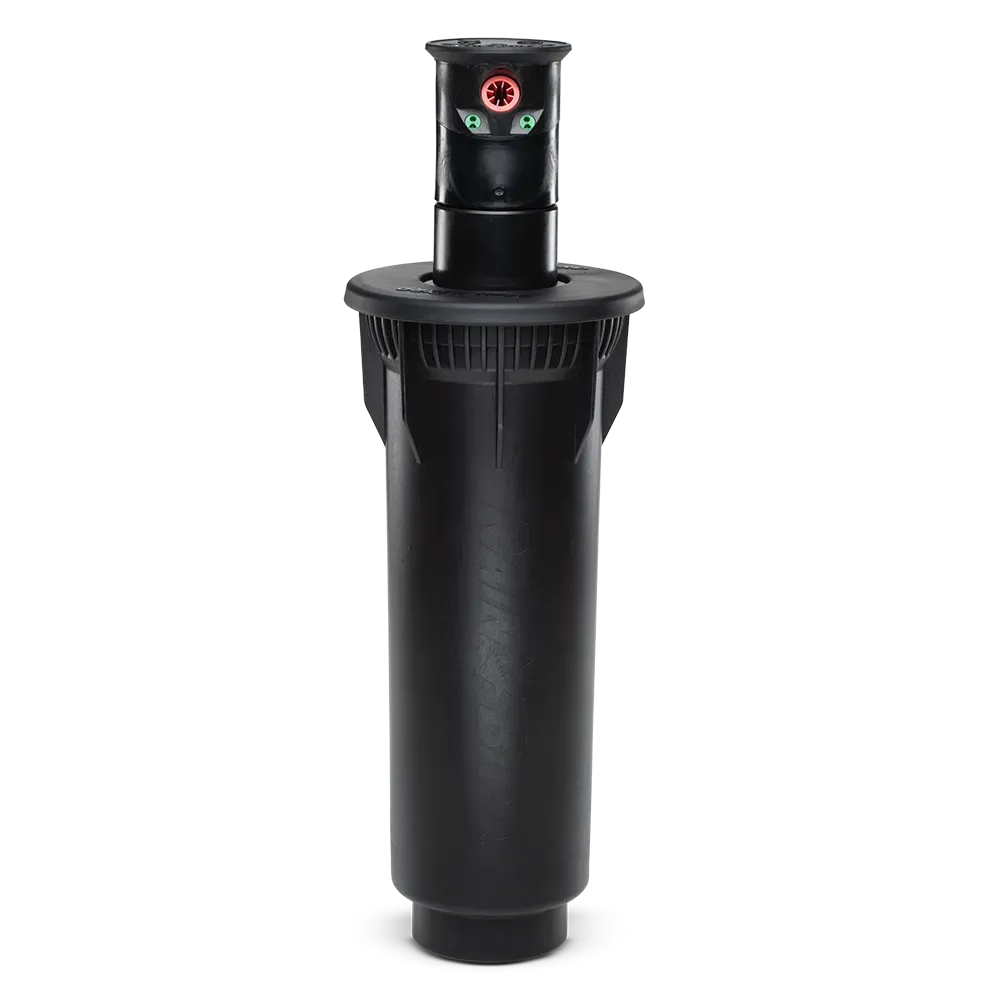

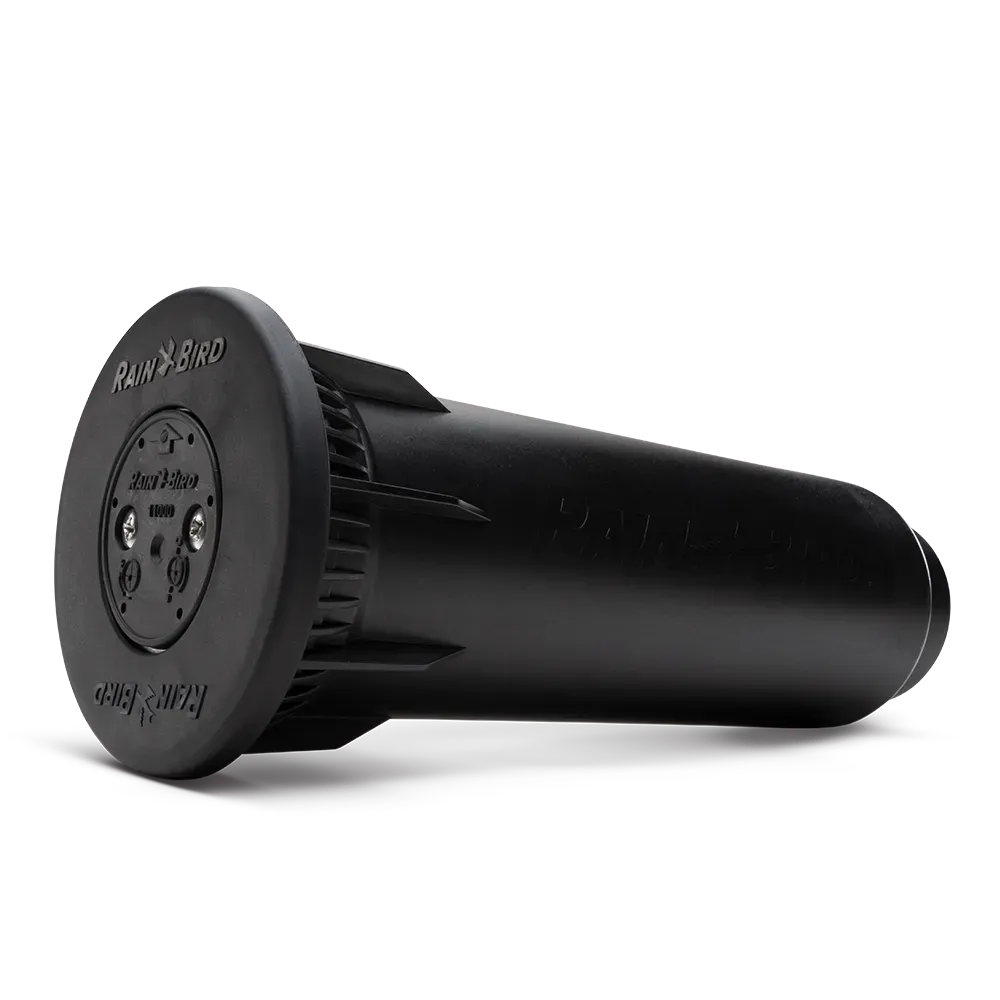

Rain Bird 11000

Large-turf rotor with #52 nozzle

The Rain Bird 11000 Series is a gear-driven pop-up rotor for sports fields and large commercial turf. Its top-serviceable design and small exposed surface are intended for in-field installations where long throw and reliable retraction are important.

This listing

• 1.5 in ACME threaded inlet.
• #52 nozzle configuration.
• Seal-A-Matic check valve to limit low-head drainage.
• Water-lubricated gear drive and heavy-duty retract spring.
• Full-circle or adjustable 30° to 345° part-circle operation.

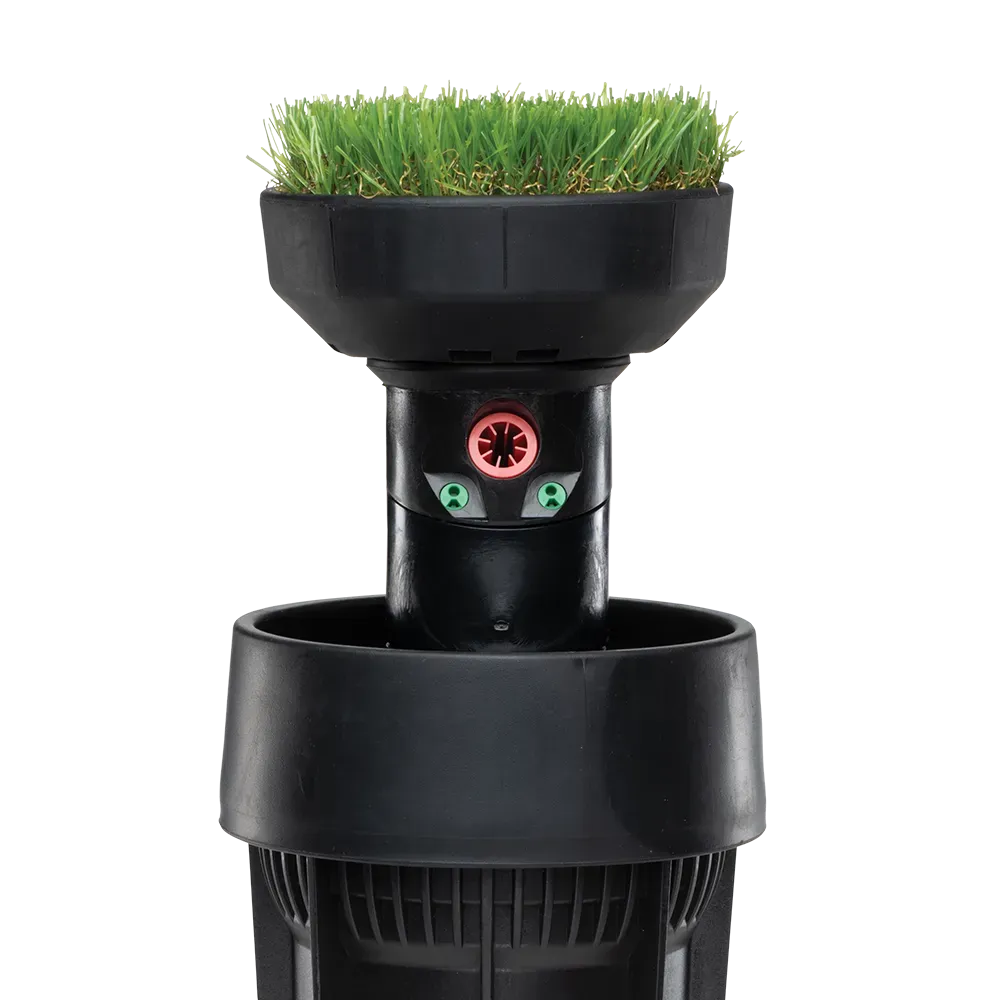

• Sod cup is sold separately.

Family operating range

• Radius: 21.3 to 32.0 m, depending on nozzle and pressure.
• Pressure: 4.1 to 6.9 bar.
• Flow: 76.5 to 211.6 l/min across the 11000 family.
• SAM check-valve holdback: up to 1.5 m elevation.

Selection warning: Verify the available pressure and flow against the #52 nozzle performance data. The 1.5 in ACME inlet is not a BSP pipe thread.
