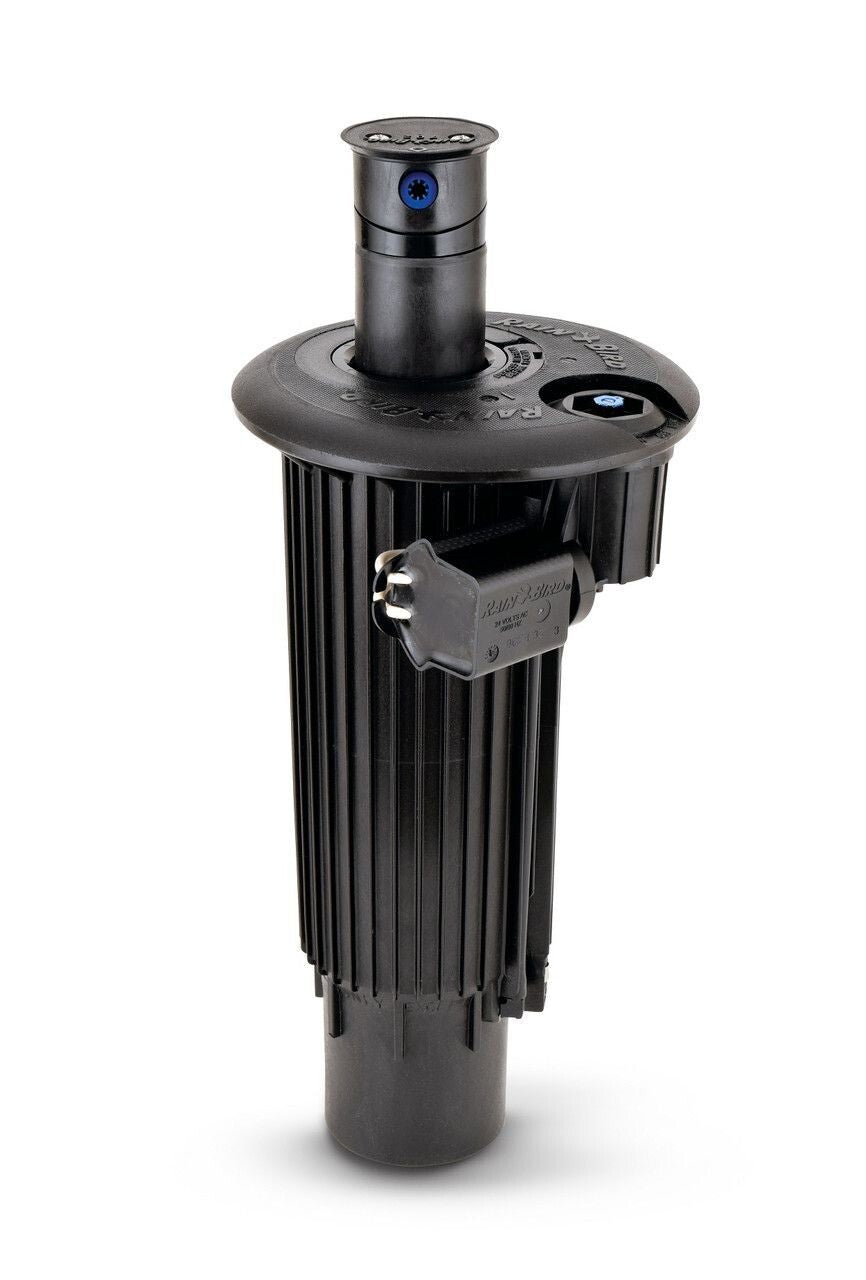

Rain Bird 702E Rotor

The Rain Bird 702E is a full-circle electric valve-in-head golf rotor for fairways, approaches and other large managed-turf areas. It combines a top-serviceable rotor with integral 24 V AC valve control.

702 Series performance

• Full-circle 360° operation
• Radius: 18.0 to 23.5 m, depending on nozzle and pressure
• Flow: 3.83 to 9.73 m³/h
• Maximum inlet pressure: 10.3 bar
• Pressure-regulation range: 4.1 to 6.9 bar
• 1¼-inch ACME female threaded inlet
• 24 V AC solenoid

Selection warning

This E model requires compatible conventional golf-control wiring. Confirm the supplied nozzle and pressure-regulator setting against the hydraulic schedule before ordering; the 702E is full-circle only.
