Rain Bird 75 DV
Regular price
Sale price
£24.64
Regular price
£36.23
Shipping calculated at checkout.

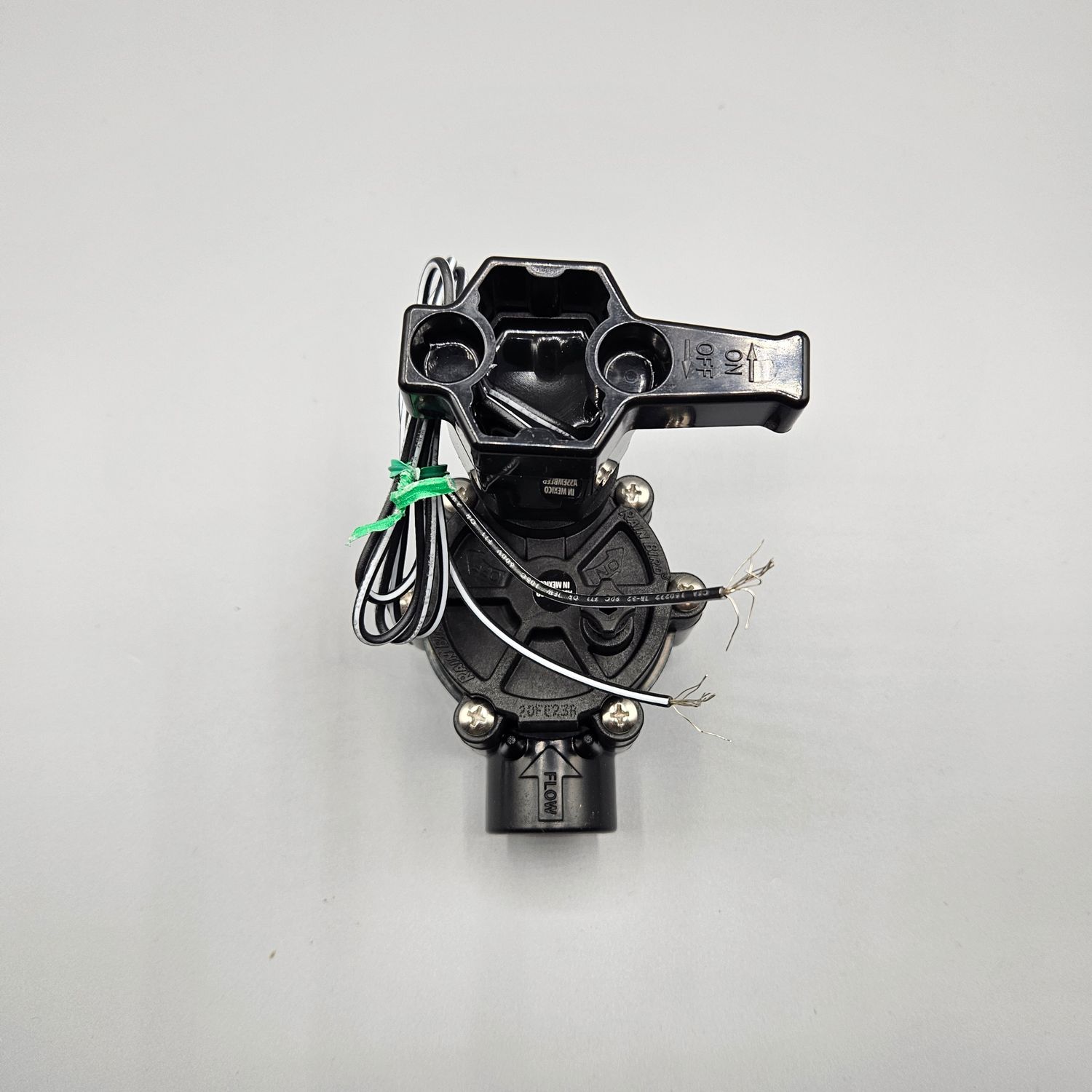

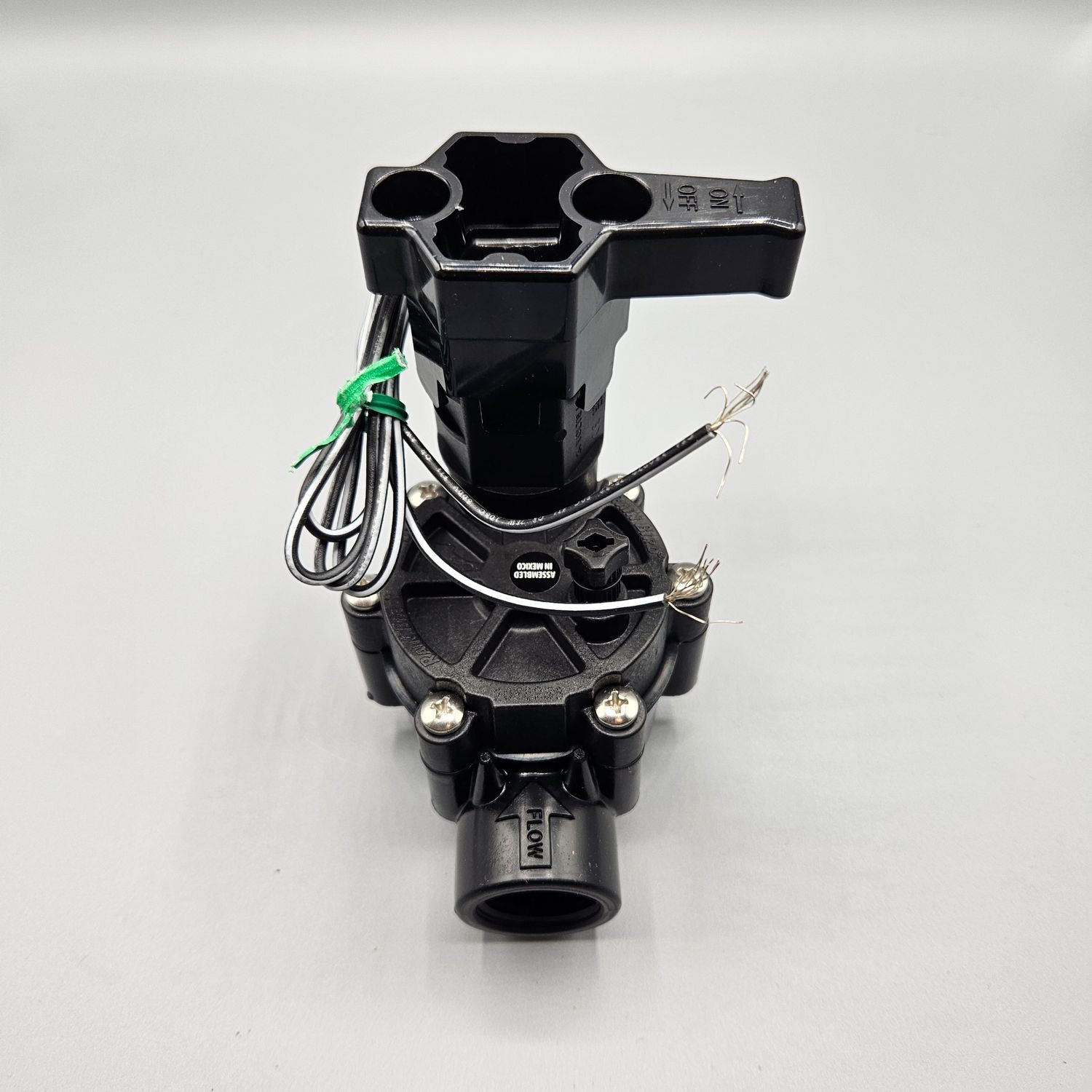

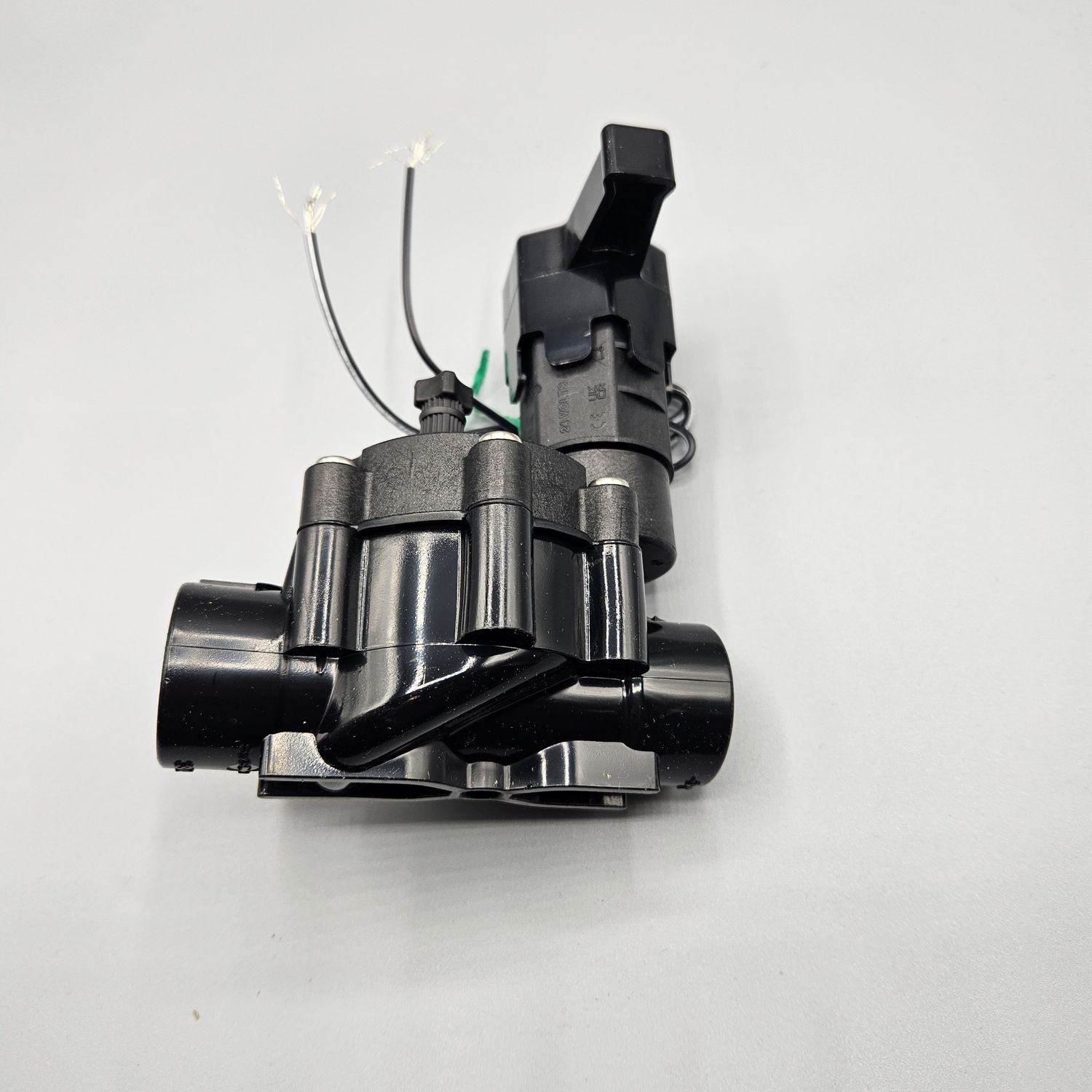

Rain Bird SKU B72110 is the 75DV, a ¾-inch in-line plastic irrigation valve for 24 V AC controllers. It is used to switch an irrigation zone where a separate approved backflow-protection arrangement is provided.
Key specifications
- ¾-inch NPT female inlet and outlet
- Flow range: 0.05 to 5.0 m³/h
- Operating pressure: 1.0 to 10.4 bar
- 24 V AC, 50/60 Hz solenoid
- Balanced-pressure diaphragm
- Internal bleed for manual operation and external bleed for flushing during commissioning
- Plastic valve body
Important connection warning
The exact B72110 product is specified by Rain Bird with NPT female threads, not BSP. Do not connect it directly to BSP fittings. Confirm thread compatibility and provide suitable upstream filtration for flow below 0.75 m³/h or drip-irrigation use.
