Rain Bird 75 DV 9 volt Low Flow

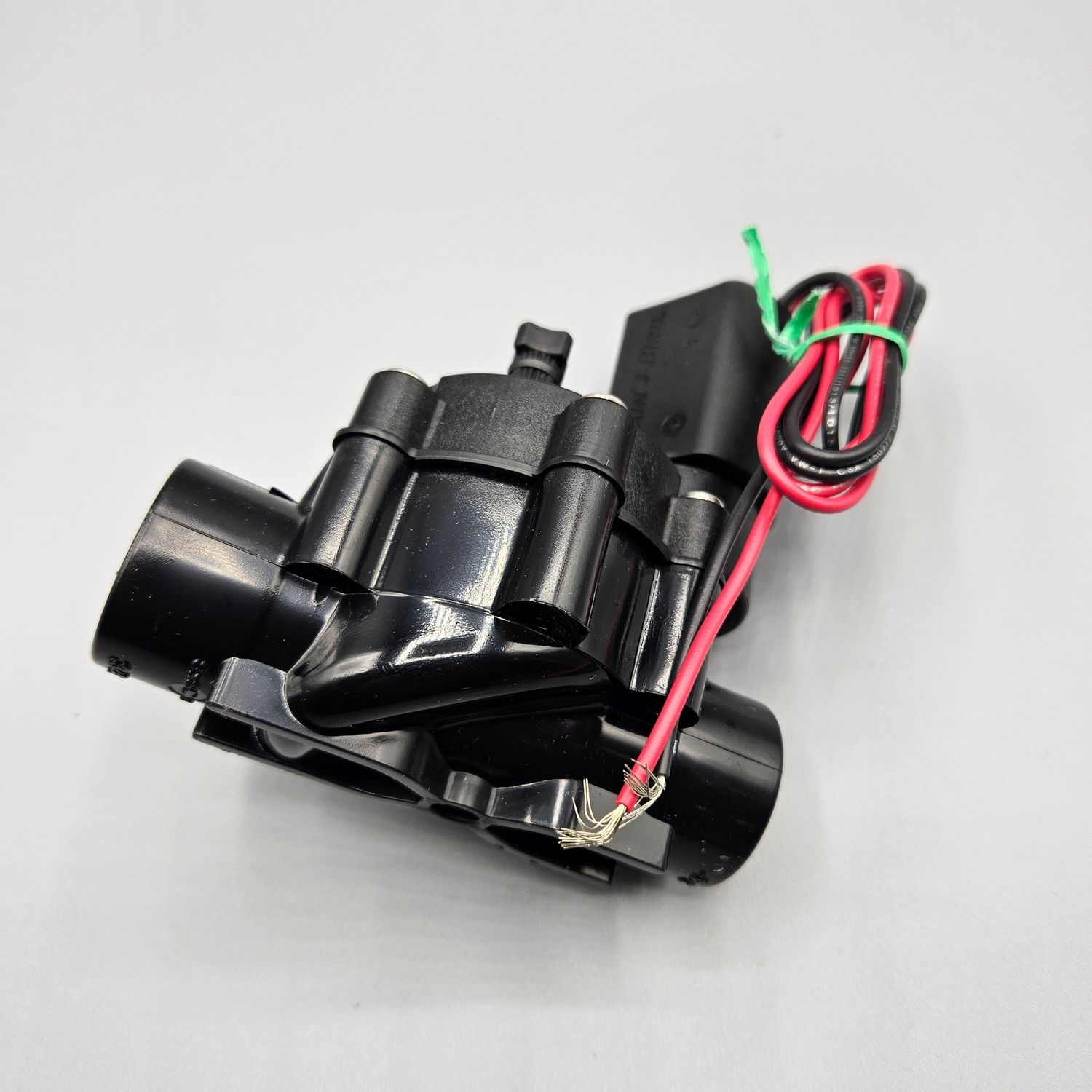

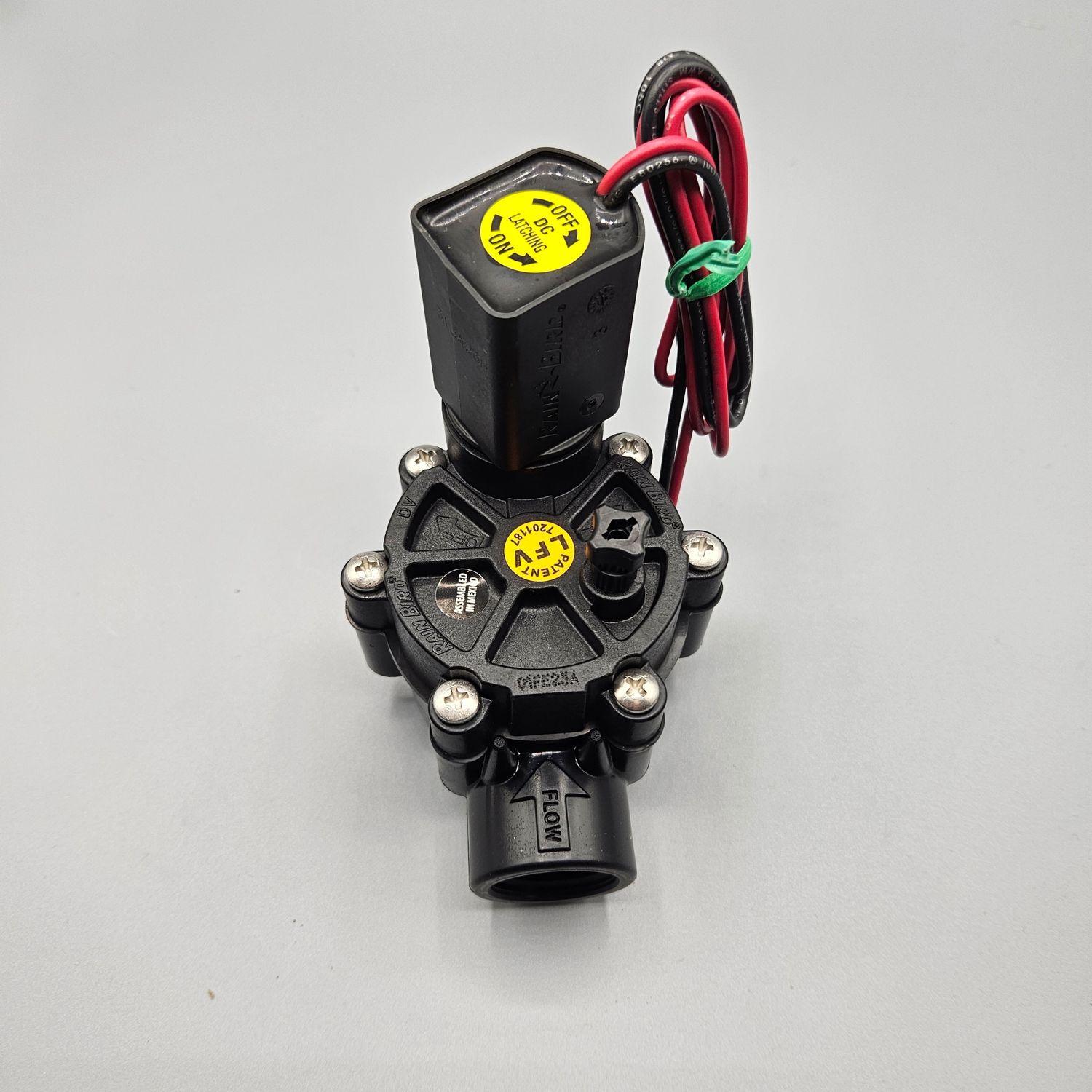

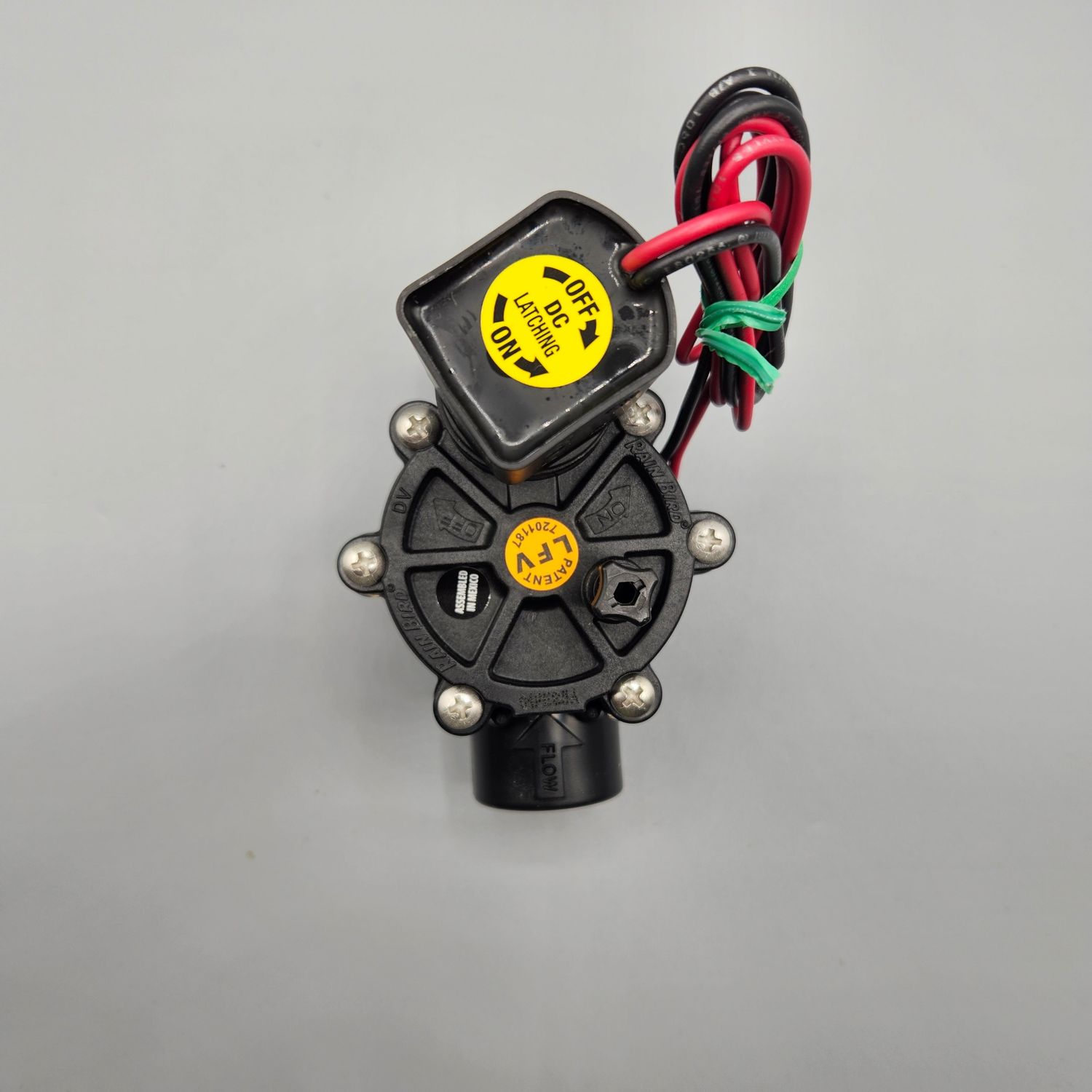

Rain Bird SKU X12105 is the LFV075TBOS low-flow valve, supplied with a 9 V DC latching solenoid for Rain Bird TBOS and TBOS-II battery-operated controllers. It is designed for drip and other low-flow irrigation zones.

Key specifications

• ¾-inch in-line low-flow valve
• Flow range: 0.6 to 30 l/min
• Operating pressure: 1.0 to 10.3 bar
• 9 V DC latching solenoid
• Compatible with Rain Bird TBOS and TBOS-II battery controllers
• Internal bleed for manual operation and external bleed for flushing
• Low-flow diaphragm design helps particles pass without valve weeping

Selection warning

This is an LFV075TBOS low-flow model, despite the protected store title referring to 75 DV. Confirm the controller, latching output and ¾-inch connection standard before ordering.
