Rain Bird Dripline Kit 200m, Timer and Fittings

A tap-fed Rain Bird dripline package for above-ground watering of borders, beds and hedges. The kit combines 200 m of pressure-compensating dripline with a tap timer, supply pipe and installation fittings.

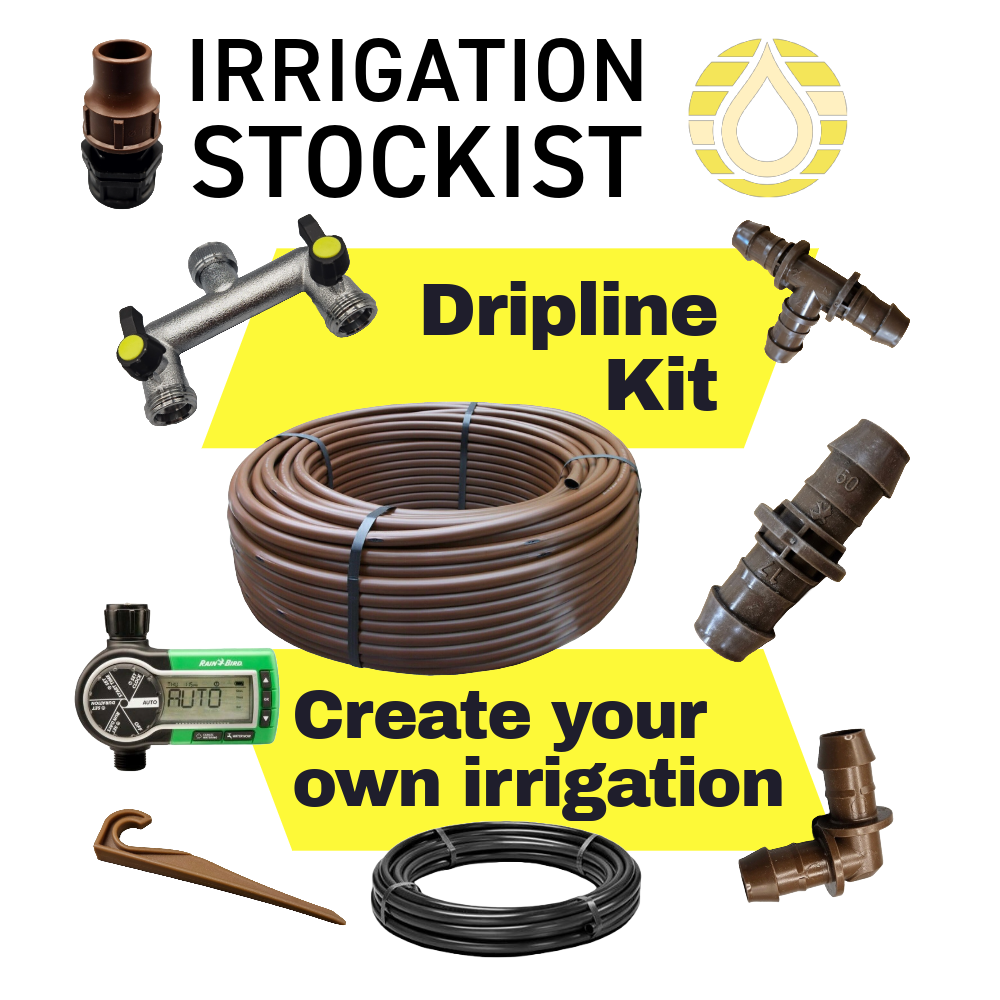

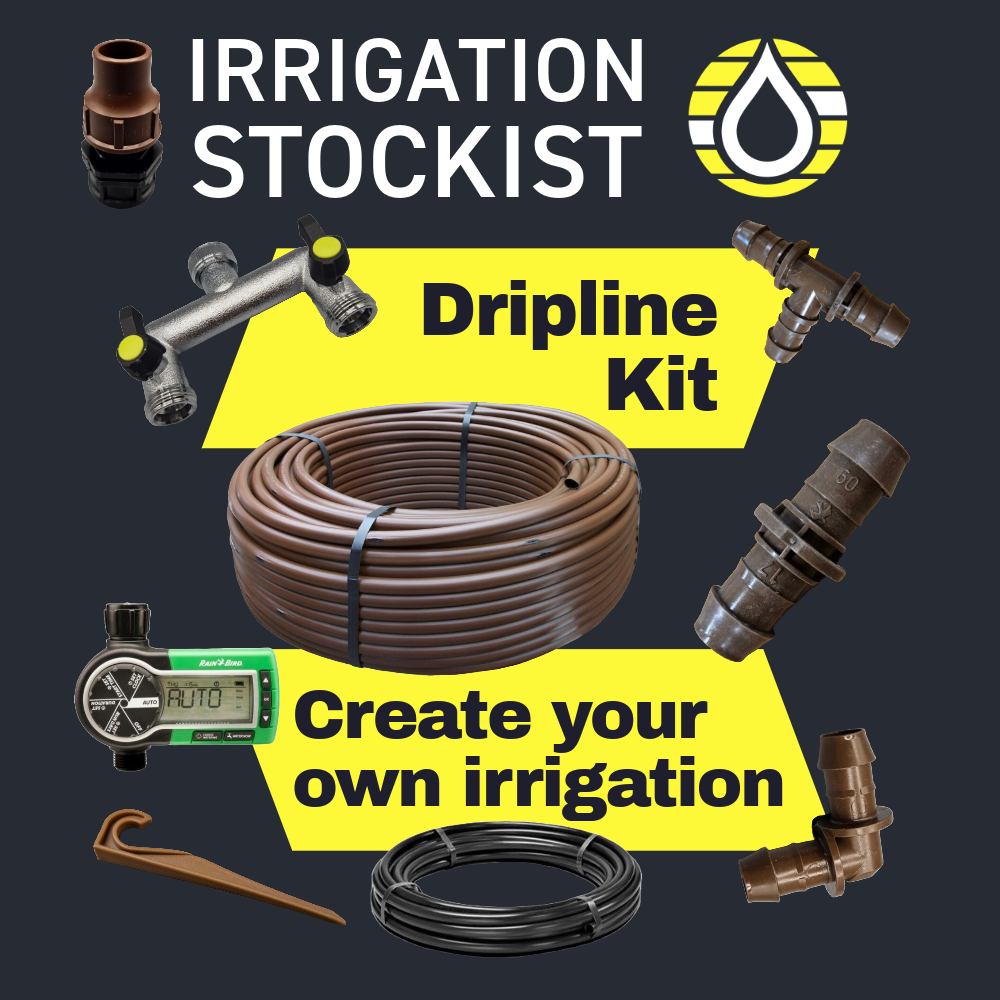

Kit contents

• 1 tap splitter
• 1 Rain Bird tap timer
• 1 connector from the timer to the solid supply pipe
• 1 x 50 m coil of black 16 mm LDPE irrigation pipe, rated 4 bar
• 2 x 100 m coils of brown Rain Bird XF dripline, 16 mm with 33 cm emitter spacing and 1.6 l/h emitters
• 25 Rain Bird XF couplers
• 25 Rain Bird XF elbows
• 25 Rain Bird XF tees
• 100 pipe stakes

Planning and installation

The package is designed to start from an existing ¾ in tap supply. Use the solid pipe to reach the planted area, then lay out the dripline above ground and secure it with the stakes. Additional pipe and fittings are available separately when the site layout requires them.

Selection note: this kit is specified for above-ground installation. Check the available pressure and flow and plan the layout before cutting pipe.
