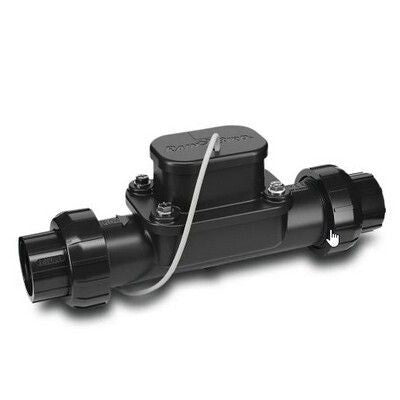

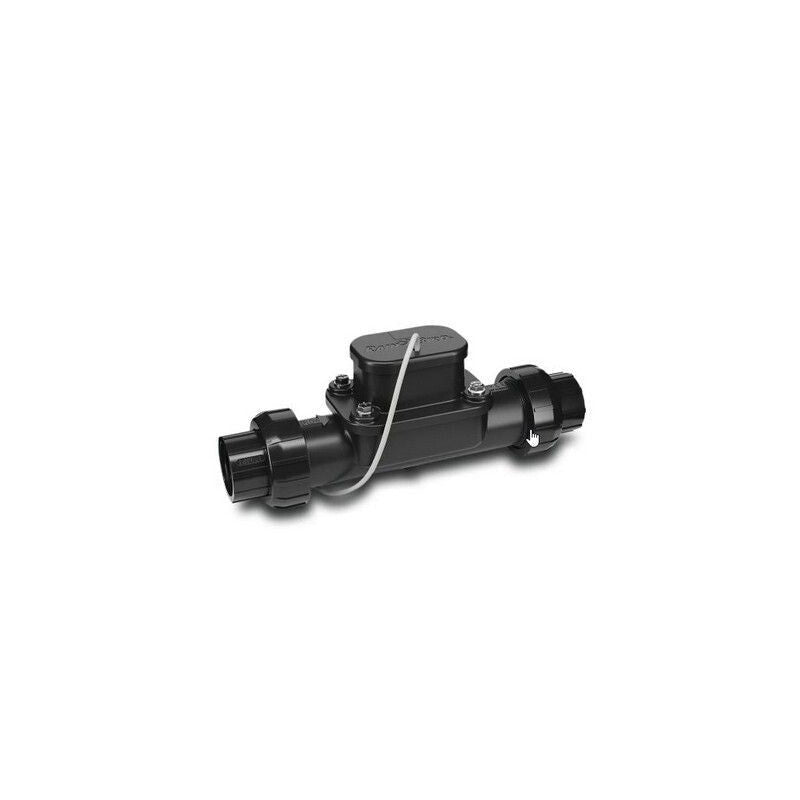

Rain Bird FG100 Flow Sensor

The Rain Bird FG100 is an in-line flow sensor for monitoring irrigation-system flow. When connected to a compatible Rain Bird controller, it can help identify abnormal flow caused by leaks or damaged pipework.

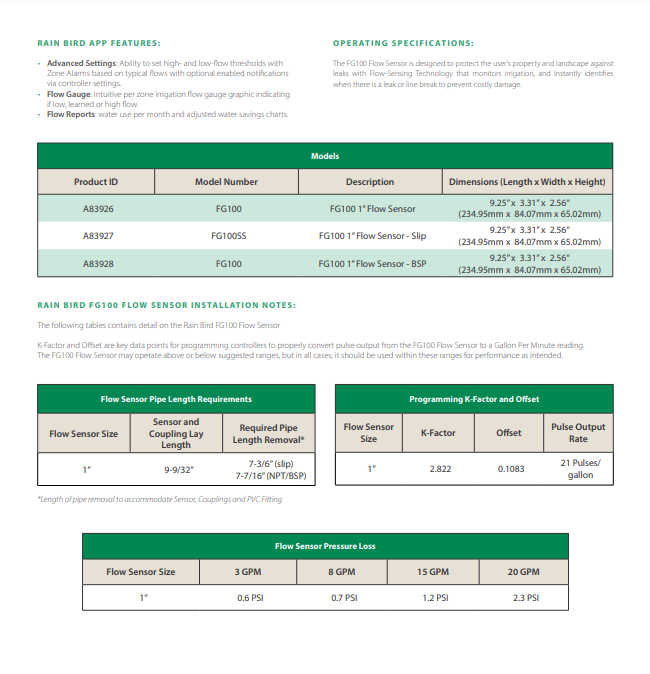

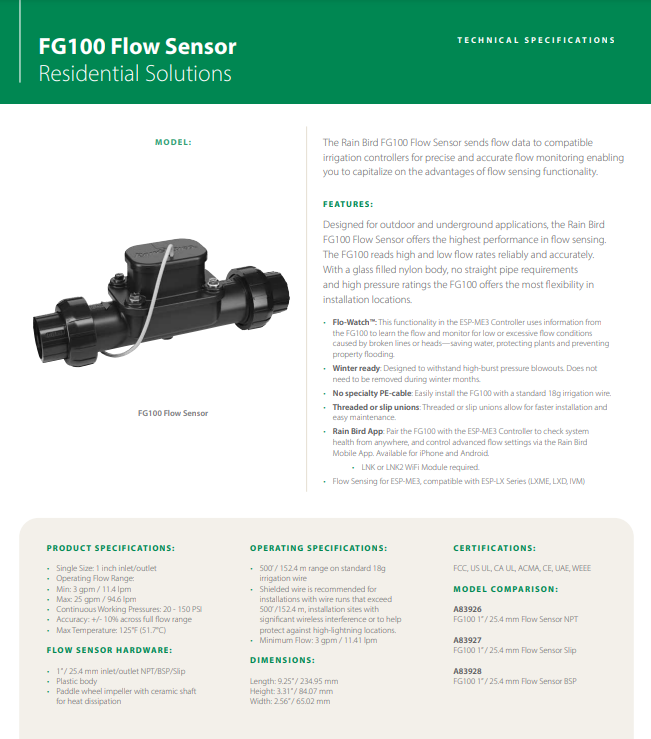

Product details

• Manufacturer code: A83928.
• Connection: 1-inch BSP female inlet and outlet.
• Recommended flow range: 11.4 to 94.6 litres per minute.
• Maximum flow: 132.5 litres per minute.
• Operating pressure: 1.4 to 10.3 bar.
• Maximum water temperature: 51.7°C.
• Construction: glass-filled nylon body with a paddle-wheel sensor and ceramic shaft.
• Published accuracy: ±10% across the recommended flow range.

Compatibility and installation

The FG100 can be used with compatible Rain Bird controllers, including ESP-ME3 installations equipped for flow monitoring and supported LX Series controllers. Standard 18 AWG irrigation wire may be used for runs up to 152.4 m; use shielded cable where electrical interference may be present.

Important: Install in the correct flow direction and confirm controller compatibility before ordering. Size the sensor to the expected system flow, not only the pipe diameter.
