Rain Bird PEB 1 1/2" Valve

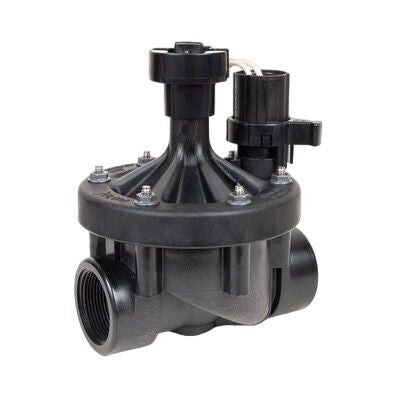

Rain Bird 150-PEB 1½ in BSP Valve

A heavy-duty, normally closed irrigation control valve for commercial landscape systems. Rain Bird part B34083 is the 150-PEB model with 1½ in BSP female connections.

• Body: glass-filled nylon
• Configuration: globe valve
• Operating pressure: 1.4–13.8 bar
• Solenoid: 24 V AC
• Internal and external manual bleed
• Flow-control stem for regulating or shutting off flow
• Maximum water temperature: 66°C

Installation and selection

Install in the direction of flow marked on the valve and provide suitable access for adjustment and servicing. Confirm the 1½ in BSP connection, available pressure and controller output before ordering. A compatible PRS-Dial regulator can be added where downstream pressure control is required.
