Rain Bird SB Series Spiral-Barb Fittings

Acetal fittings for connecting Rain Bird SPX swing pipe between a lateral line and a compatible spray or rotor. The spiral barb twists directly into the pipe without glue or clamps.

Available fittings

• SBE050: ½ in male NPT × ½ in barb elbow

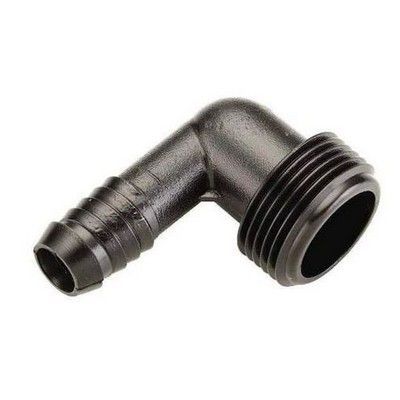

• SBE075: ¾ in male NPT × ½ in barb elbow
• SBCPLG: ½ in barb × ½ in barb coupling

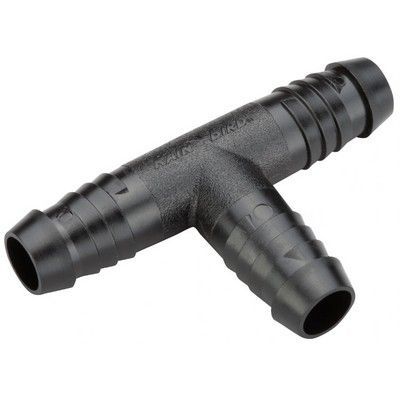

• SBTEE: three-way ½ in barb tee

• Maximum operating pressure: 5.5 bar
• Maximum water temperature: 43°C
• For use with Rain Bird SPX Series swing pipe

Selection warning

The threaded elbows use male NPT connections, not BSP. Confirm the sprinkler inlet and adjoining thread standard before ordering. These fittings are for swing pipe, not drip-irrigation tubing.
