Rain Bird Triple Swing Joint 1" BSP to 1" ACME
Regular price
Sale price
£46.29
Regular price
£64.22
Shipping calculated at checkout.

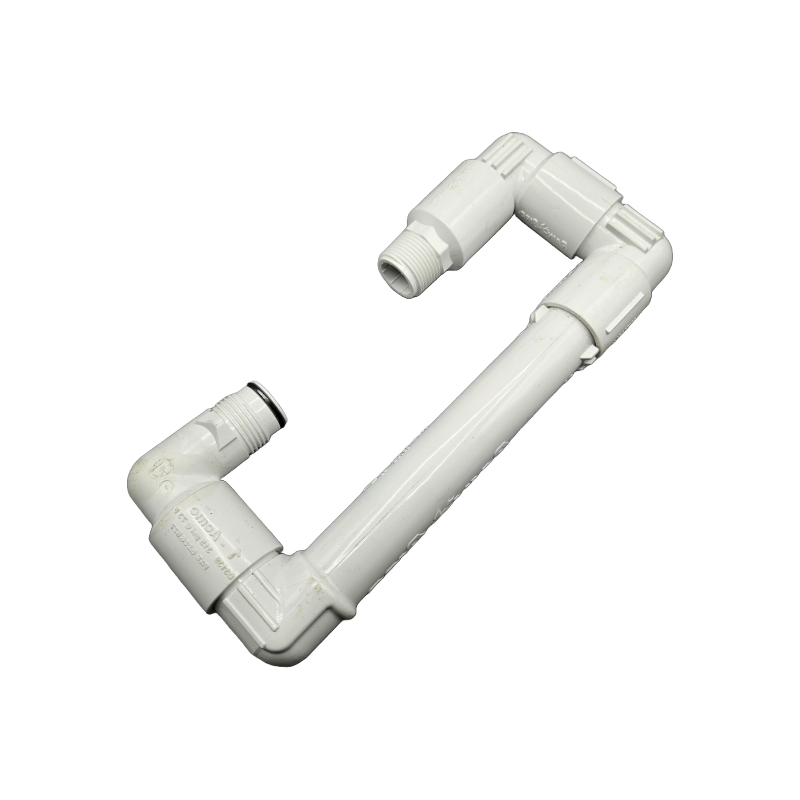

Rain Bird 1 in BSP to ACME Triple Swing Joint
A pre-assembled swing joint for connecting and positioning a compatible golf or large-turf rotor. This listed configuration has an additional inlet elbow for flexibility at the lateral connection.
- Lay-arm diameter: 1 in
- Lay-arm length: 12 in / 30.5 cm
- Inlet: 1 in BSP
- Outlet: 1 in modified ACME
- Additional inlet elbow
- Rigid PVC Type I construction
- Double O-ring seals at rotating joints
- Pressure rating: 21.7 bar at 22.8°C
Selection and installation
Match the complete Rain Bird code and both thread types to the adjoining equipment. Use a suitable seal on the BSP connection; the ACME outlet seals with its O-ring. Hand-tighten and fully depressurise the system before adjustment or removal.
