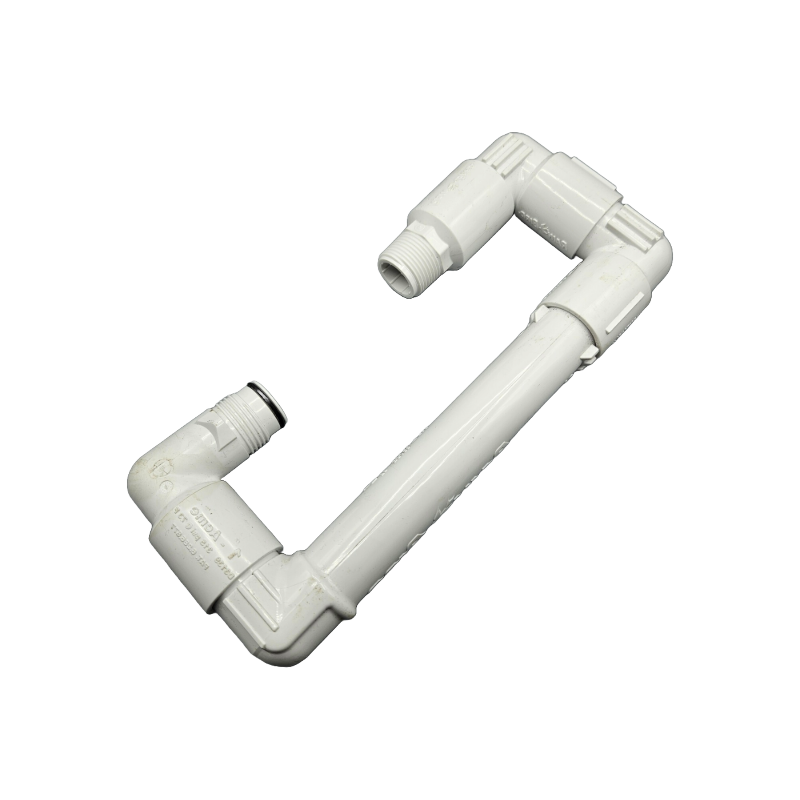

Rain Bird Triple Swing Joint 1" BSP to 1" ACME

Rain Bird Triple Swing Joint 1" BSP to 1" ACME with Extra Inlet Elbow

The Rain Bird Triple Swing Joint is designed for reliable and flexible sprinkler connections in golf courses and commercial irrigation systems. This model features a 1" BSP inlet, a 1" ACME outlet, and an extra inlet elbow, providing versatile installation options.

Key Features:

• Adjustable Sprinkler Positioning – The triple-top outlet design allows for precise adjustments, adapting to turf height changes and settling.
• Durable & Leak-Resistant – Built with high-quality materials, featuring double O-ring seals to prevent leaks and ensure a secure connection.
• Improved Water Flow – The swept elbow design reduces pressure loss by up to 50%, enhancing system efficiency.
• Extra Inlet Elbow – Provides added flexibility, making it easier to connect to lateral pipelines in complex installations.

Specifications:

• Inlet Size – 1" BSP (British Standard Pipe)
• Outlet Size – 1" ACME
• Length Options – Available in 12-inch configurations
• Pressure Rating – Withstands up to 21.7 bar, making it suitable for high-pressure irrigation systems

The Rain Bird 1" Triple Swing Joint with an extra inlet elbow ensures long-lasting, adjustable, and leak-free sprinkler connections, making installation easier and more efficient for professional irrigation setups.

Also known as: Swing Arm, Riser, Swing Joint, Sprinkler Riser, Triple action swing joint

*Elbows as shown in the pictures.

** Note the colours of some of the poly parts have changed over covid times

***When ordering swing joints you need to know what thread type is required to match your sprinklers

BSP = A thread on its own and requires a sealing of tape or thread
ACME = A thread with a O Ring, the O Ring makes the seal
