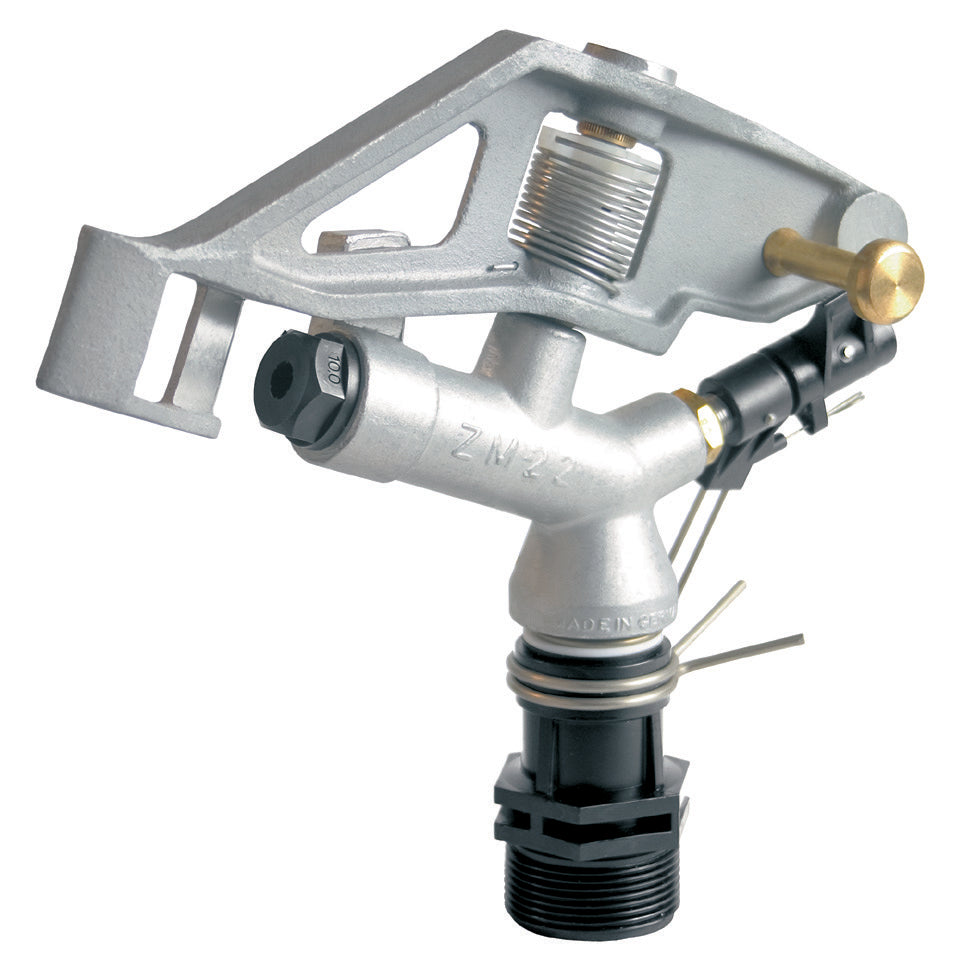

Perrot ZM 22 Part-Circle Impact Sprinkler – 1½ inch BSP Male
PRE-ORDER / SPECIAL ORDER. This range is not held in stock. Dispatch timing is confirmed individually.
The Perrot ZM 22 W is an impact sprinkler for agricultural and horticultural irrigation. Match the connection, watering pattern and nozzle to the area and available water supply.
Specification
- Connection: 1½ inch BSP male.
- Operating pressure at the sprinkler: 3–7 bar.
- Throw radius: 23.2–34.5 m across the model family.
- Flow: 6.16–24.10 m³/h across the model family.
- Trajectory: 22°.
- Nozzle/configuration: Check the supplied nozzle size; the model family covers 10–16 mm.
- Materials: Brass, stainless steel and engineering plastic.
Family ranges cover different nozzles and pressures; they are not the performance of every option. Radius is the distance from the sprinkler, rather than the full watering diameter. Wind, spacing and available pressure affect the installed result.
Choosing the version
The listed item is the part-circle version. Check the sprinkler sector and nozzle requirements before ordering.
Manufacturer documents
Download the ZM 22 W data sheet | Impact sprinkler operating manual
Before ordering
Check pressure and flow while water is running, not just static pressure. The sprinkler head is supplied as the selected option; pipework and mounting equipment are separate unless expressly listed. Manufacturer photographs show the model body and may use a different nozzle.
