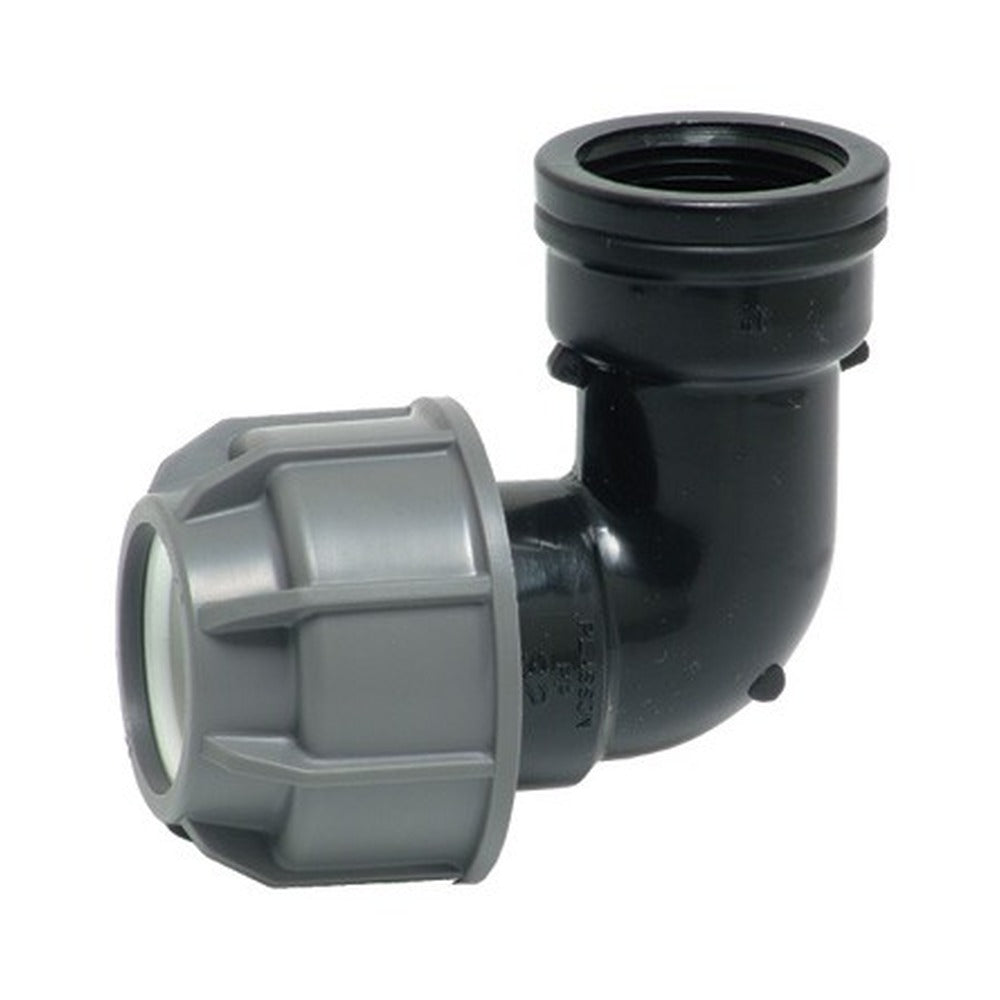

Plasson Agri-Fit 90° Elbow with Female Threaded Offtake
Plasson Agri-Fit 90° Elbow with Female Threaded Offtake is a genuine Plasson mechanical compression fitting from the Agri-Fit range, also known as Plasson Silver Line or Silverline. It is designed to connect metric PE pipe to a female BSP threaded outlet while changing direction through 90°.
Important: This fitting is rated PN10 (maximum 10 bar) and is intended for irrigation, agricultural and other non-potable water systems. It is not WRAS approved and must not be used for drinking-water installations.
Key features
- Pressure rating: PN10 / maximum 10 bar
- Suitable for metric polyethylene (PE/poly) pipe
- High-grade polypropylene body and nut
- Polyacetal split ring and NBR seal
- Manufactured to ISO 17885 and AS/NZS 4129; threaded connection to ISO 7-1
- Plasson product family: 141500
Typical applications
Agricultural irrigation, horticulture, landscape irrigation and non-potable water distribution. Select the required pipe and thread size from the options above.
