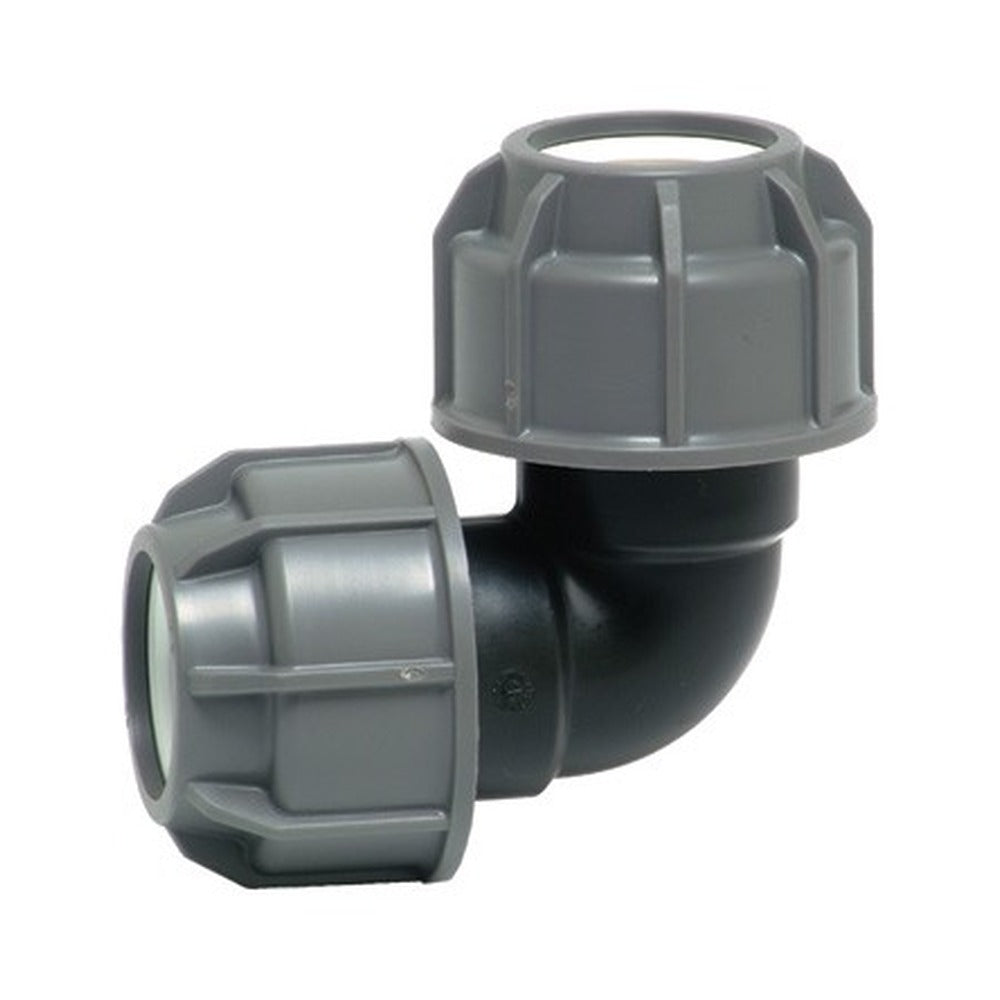

Plasson Agri-Fit Equal 90° Elbow

Plasson Agri-Fit Equal 90° Elbow is a genuine Plasson mechanical compression fitting from the Agri-Fit range, also known as Plasson Silver Line or Silverline. It is designed to change the direction of equal-size metric PE pipework through 90°.

Important: This fitting is rated PN10 (maximum 10 bar) and is intended for irrigation, agricultural and other non-potable water systems. It is not WRAS approved and must not be used for drinking-water installations.

Key features

• Pressure rating: PN10 / maximum 10 bar
• Suitable for metric polyethylene (PE/poly) pipe
• High-grade polypropylene body and nut
• Polyacetal split ring and NBR seal
• Manufactured to ISO 17885 and AS/NZS 4129
• Plasson product family: 140500

Typical applications

Agricultural irrigation, horticulture, landscape irrigation and non-potable water distribution. Select the required pipe and thread size from the options above.
