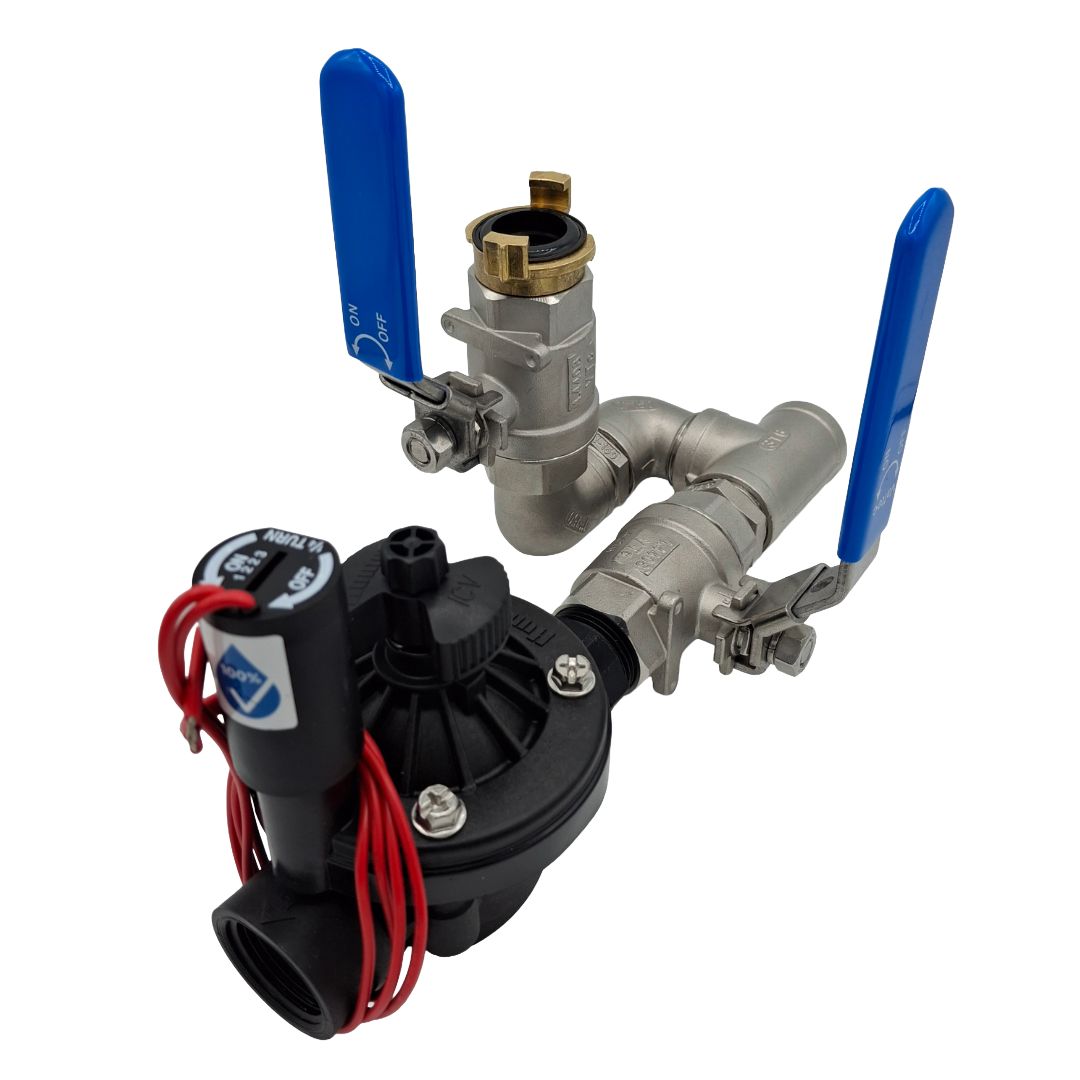

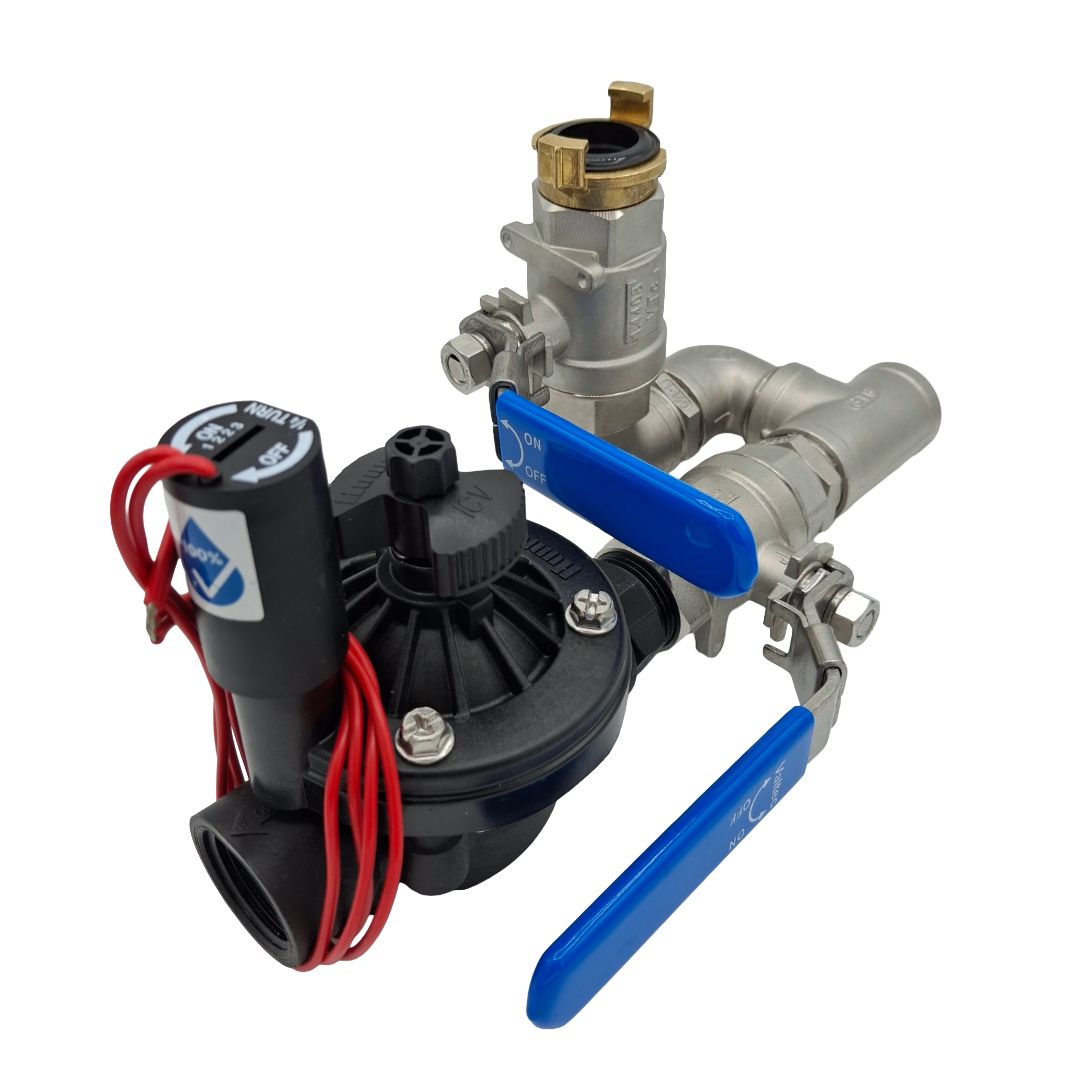

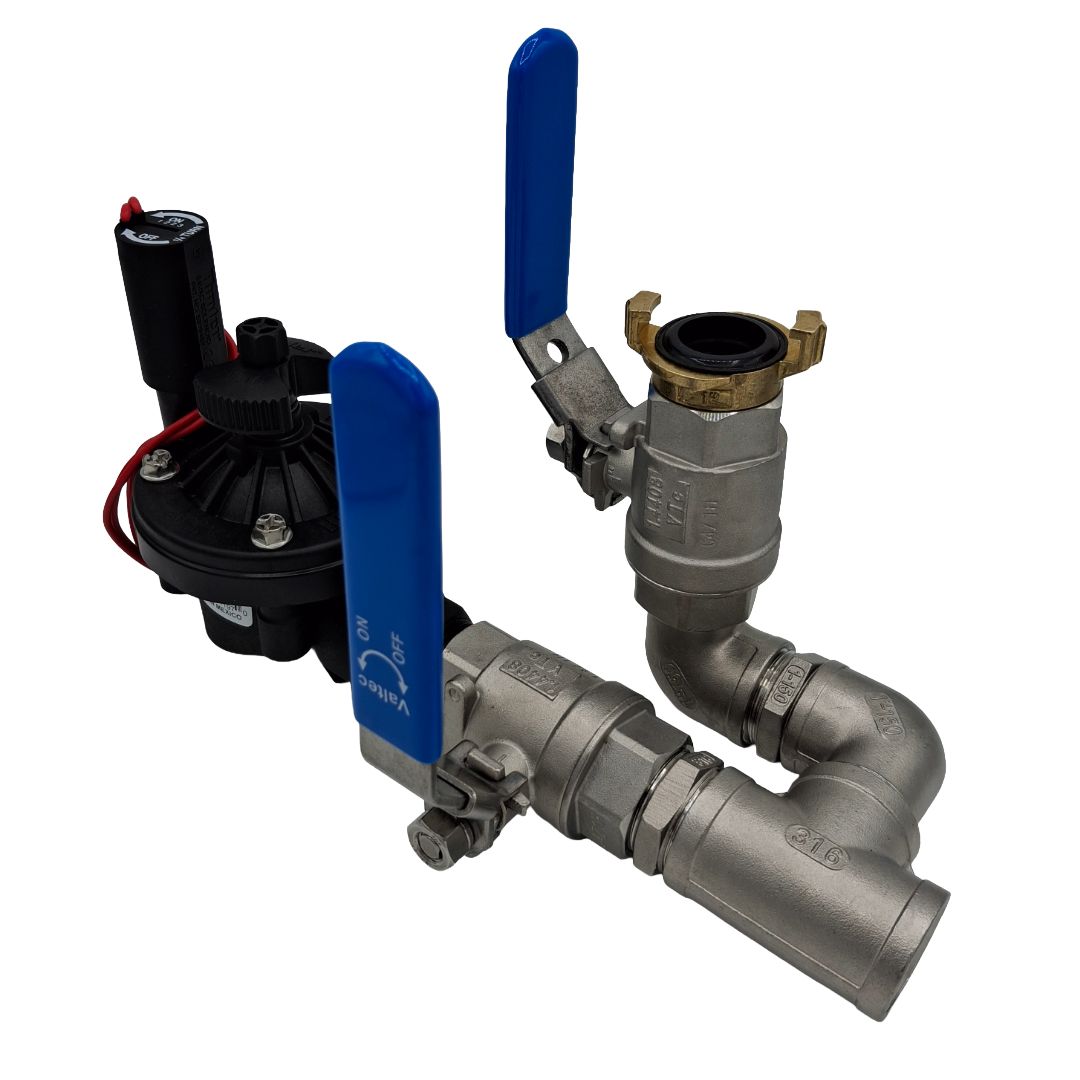

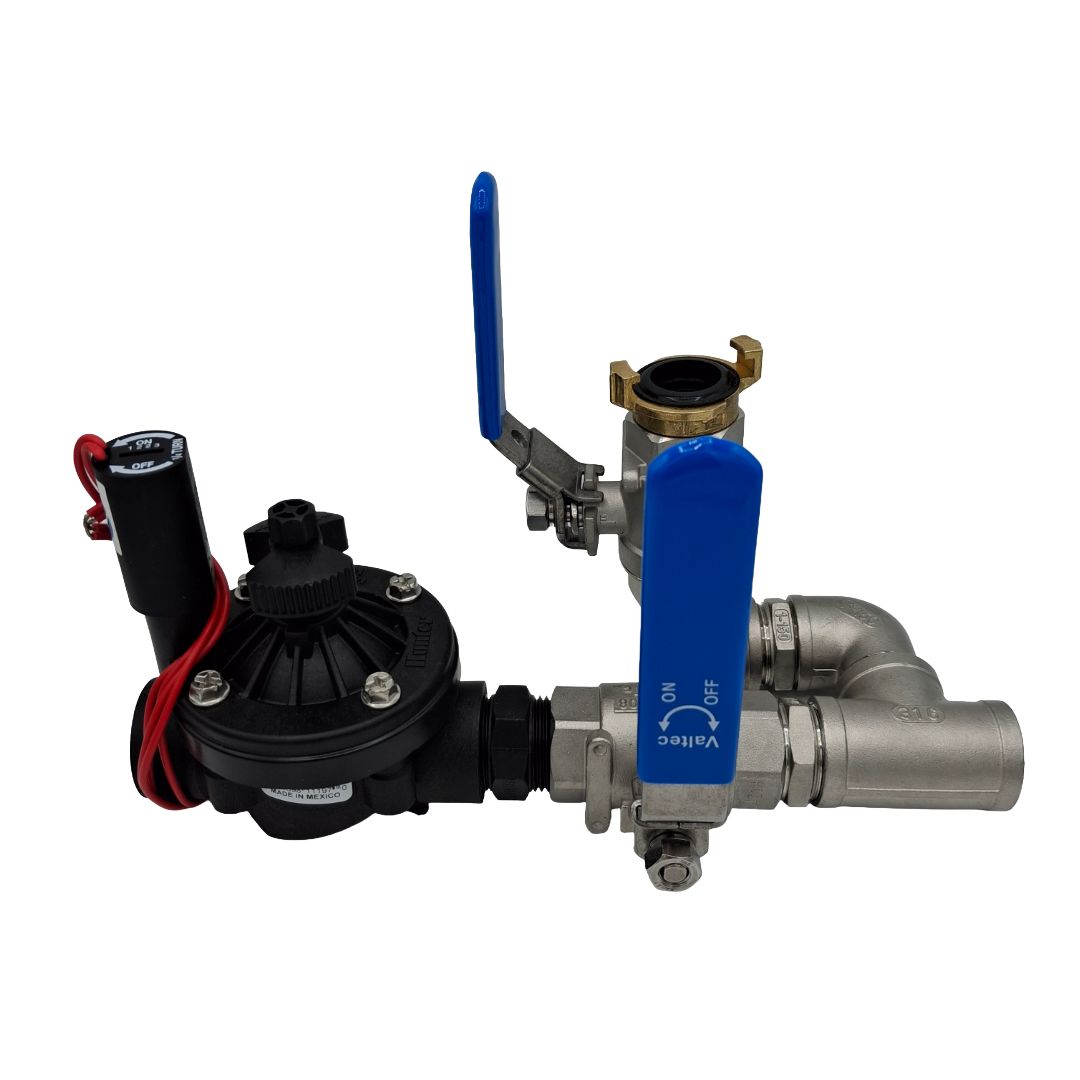

1-inch Stainless Steel Valve with 1-inch Hand Point and Hunter ICV Solenoid Valve

Pre-assembled irrigation valve assembly combining a stainless-steel isolation manifold, a 1-inch GEKA hand-watering point and one Hunter ICV 1-inch solenoid valve. It provides automatic zone control, local isolation and a convenient hose or service connection for golf, sports-turf and commercial irrigation systems.

Valve and assembly features

• One controller-operated irrigation zone
• Union connection helps simplify valve removal and servicing
• 1-inch hand point with GEKA-compatible connection
• Commercial-grade glass-filled nylon valve with flow control, internal and external manual bleed, and reinforced EPDM diaphragm
• 24 V AC valve for compatible mains-powered irrigation controllers

Selection guidance

Hunter specifies the 1-inch ICV for 0.06–9 m³/h and a recommended pressure range of 1.5–15 bar. Confirm the controller output, connection arrangement, design flow, working pressure and available valve-box space before ordering.
