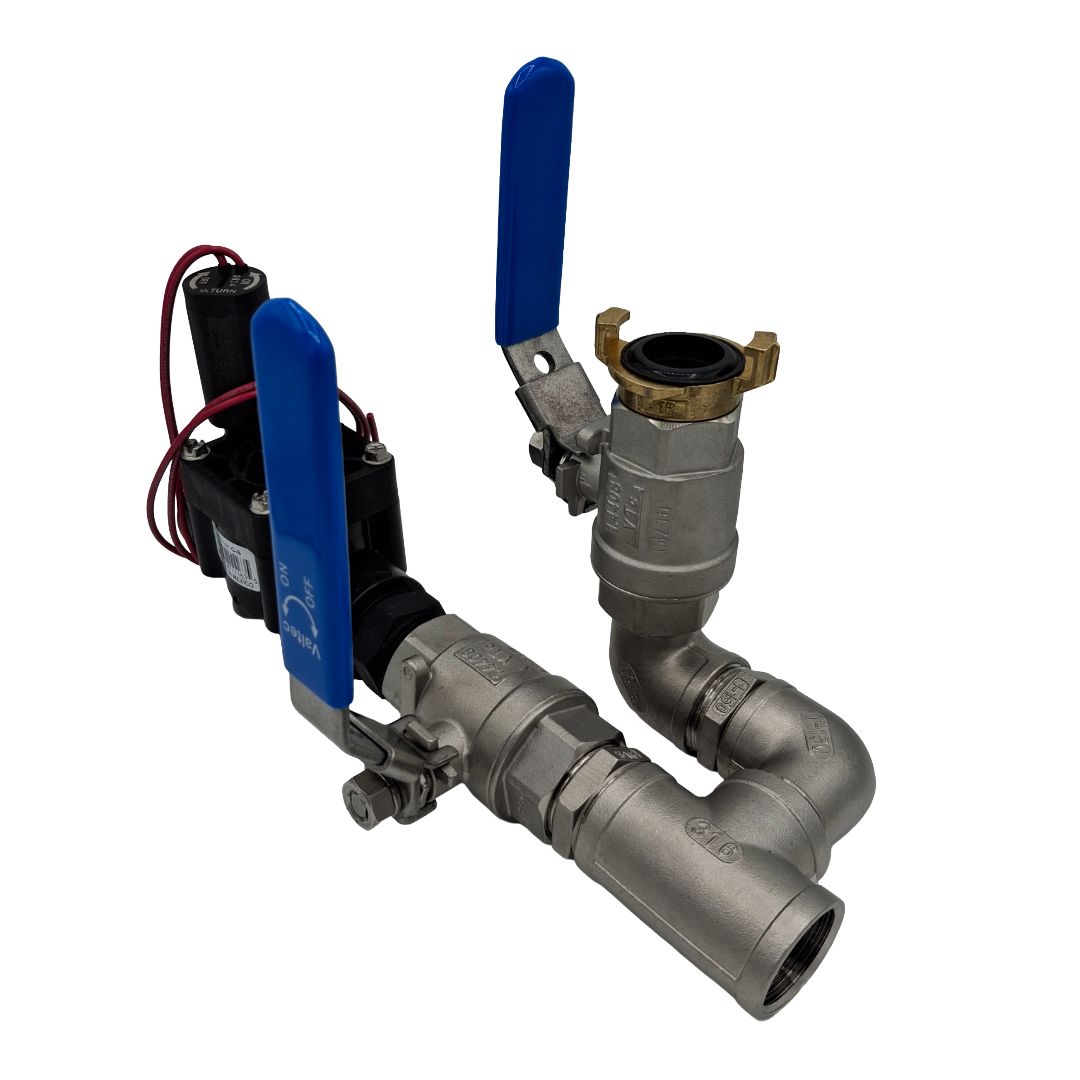

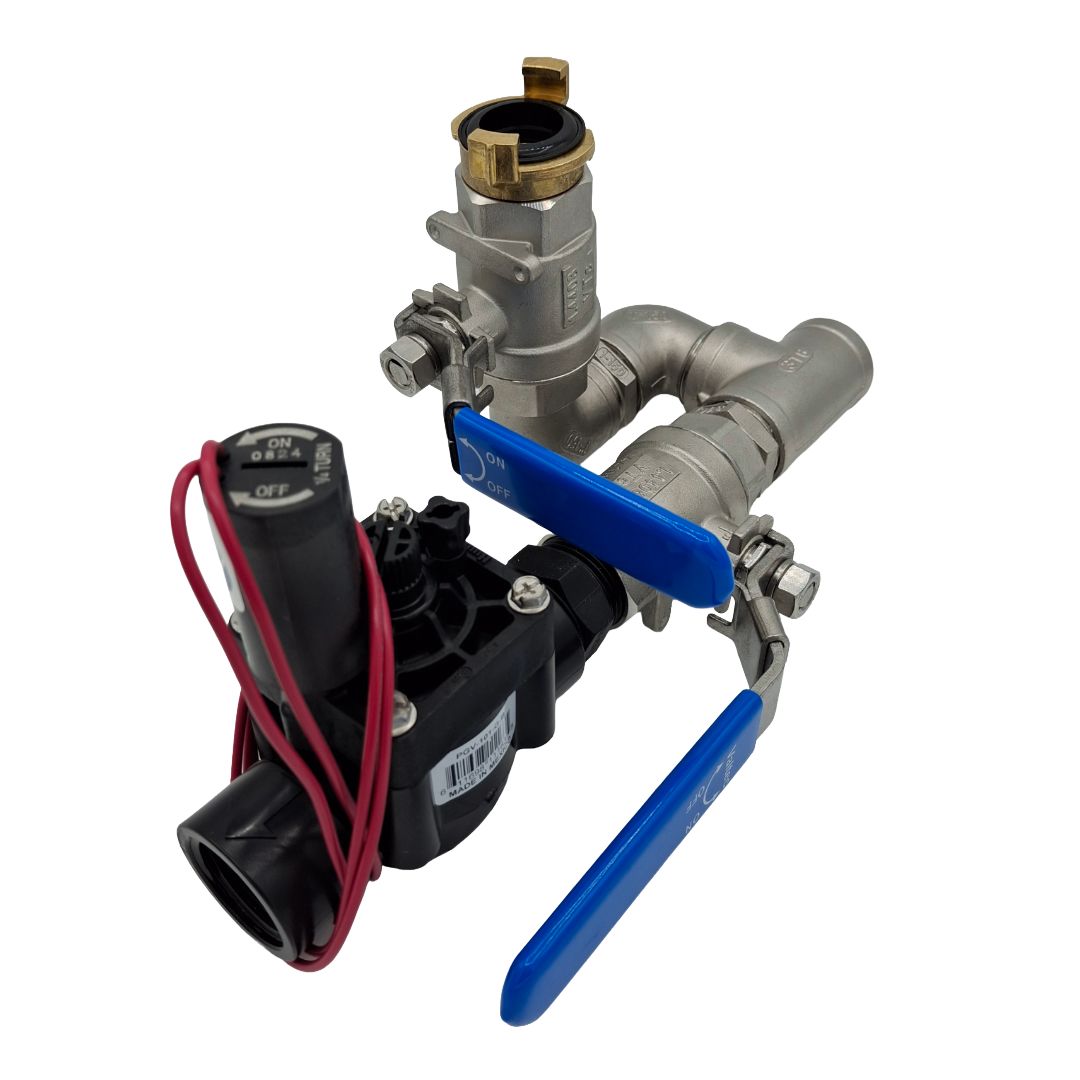

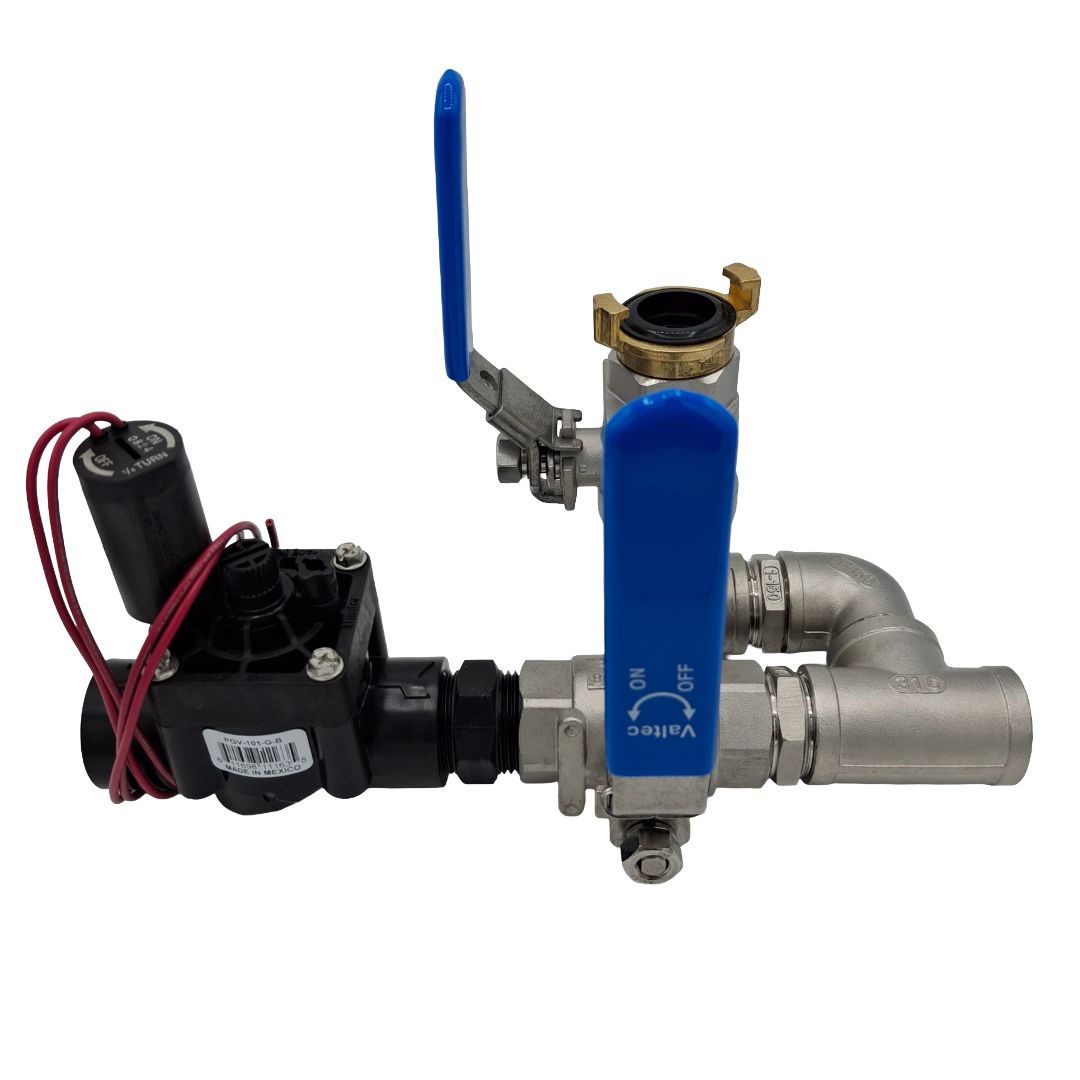

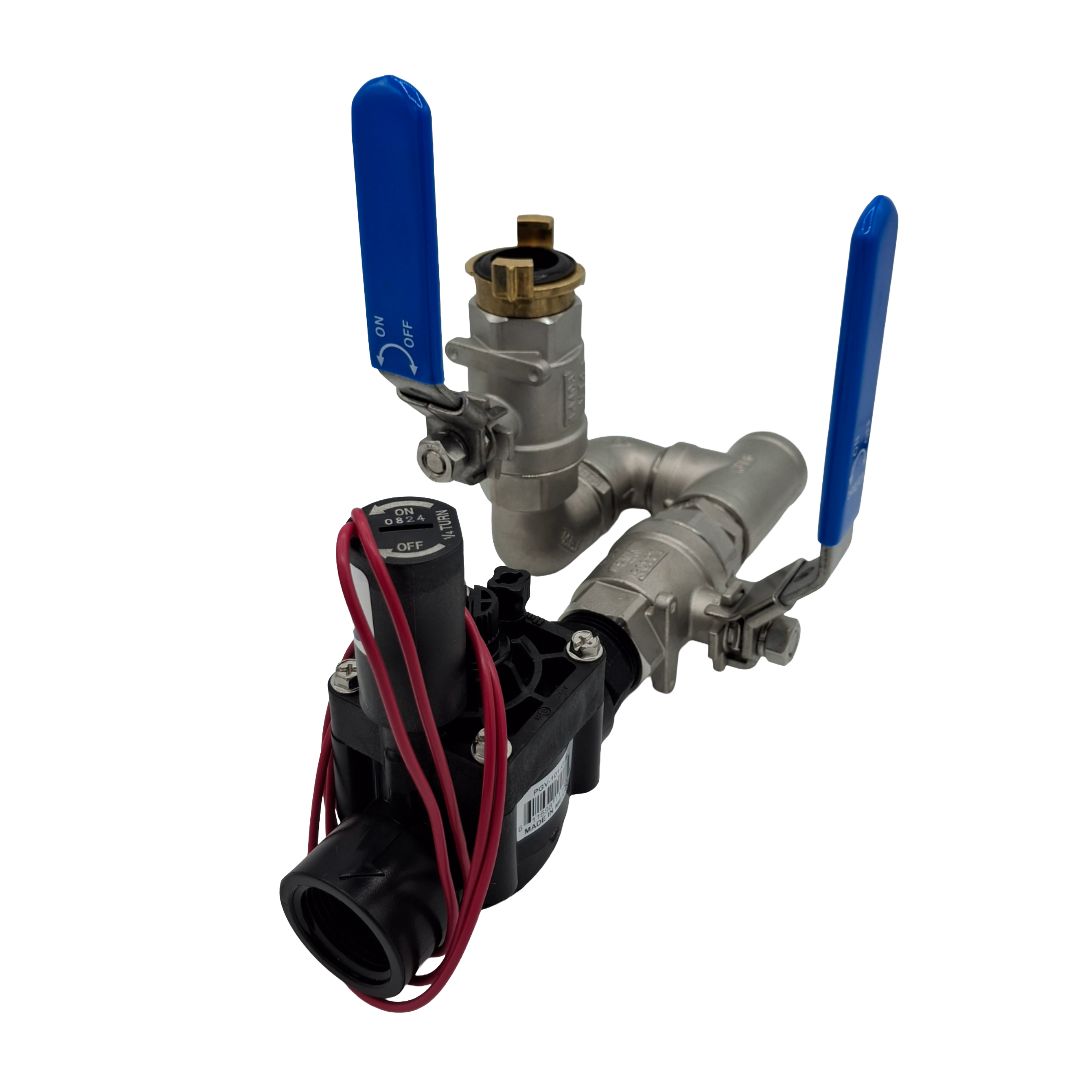

1-inch Stainless Steel Valve with 1-inch Hand Point and Hunter PGV Solenoid Valve

Pre-assembled irrigation valve assembly combining a stainless-steel isolation manifold, a 1-inch GEKA hand-watering point and one Hunter PGV 1-inch solenoid valve. It provides automatic zone control, local isolation and a convenient hose or service connection for golf, sports-turf and commercial irrigation systems.

Valve and assembly features

• One controller-operated irrigation zone
• Union connection helps simplify valve removal and servicing
• 1-inch hand point with GEKA-compatible connection
• Female BSP valve with flow control plus internal and external manual bleed for commissioning and servicing
• 24 V AC valve for compatible mains-powered irrigation controllers

Selection guidance

Hunter lists the 1-inch PGV for irrigation flow rates up to 9 m³/h; size the valve from the system design rather than pipe diameter alone. Confirm the controller output, connection arrangement, design flow, working pressure and available valve-box space before ordering.
