1" Stainless Steel Valve with 1" Hand Point inc Toro P220 AC Solenoid Valve

1″ Stainless Steel Isolation Valve with Hand Point — Complete with Toro P220 AC Solenoid Valve

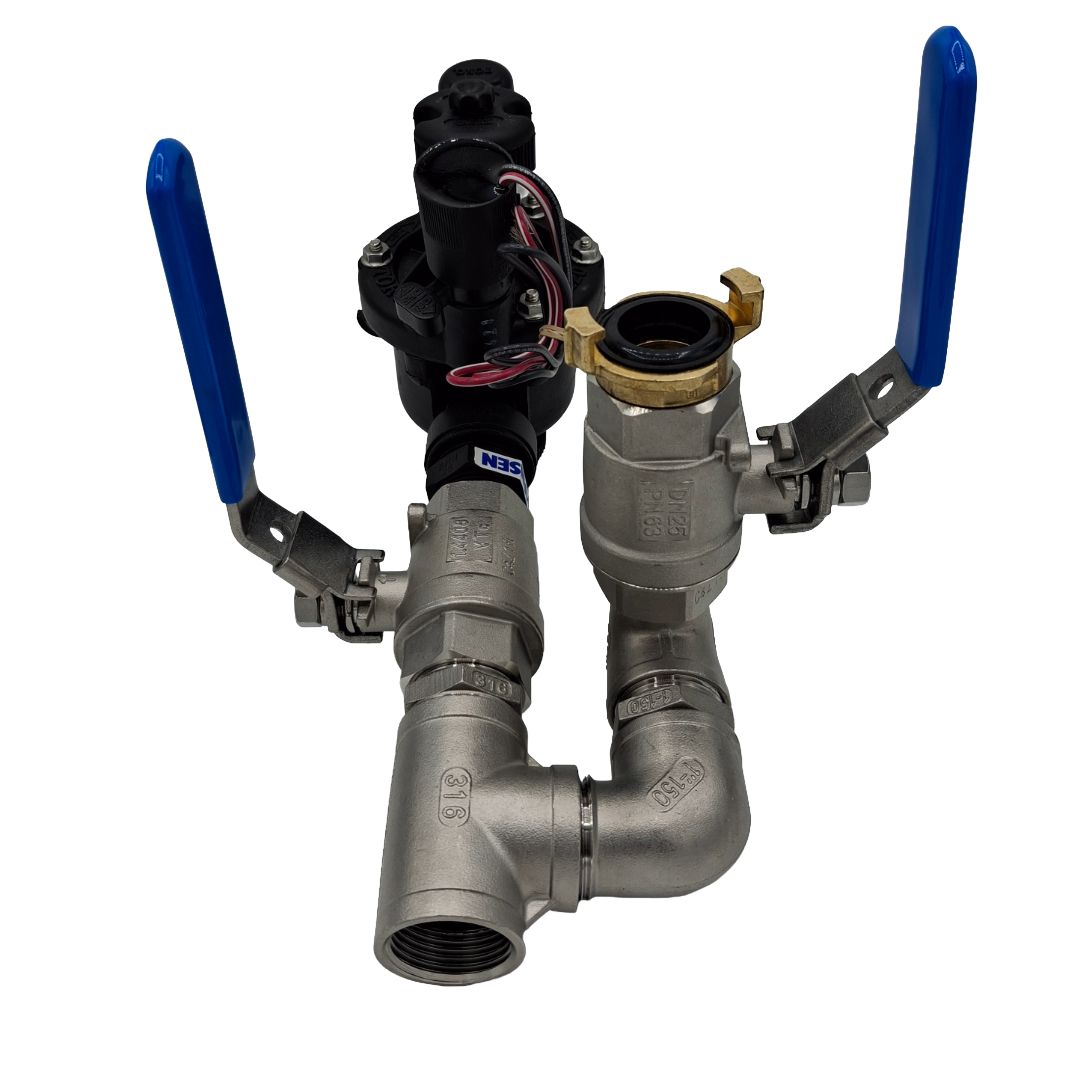

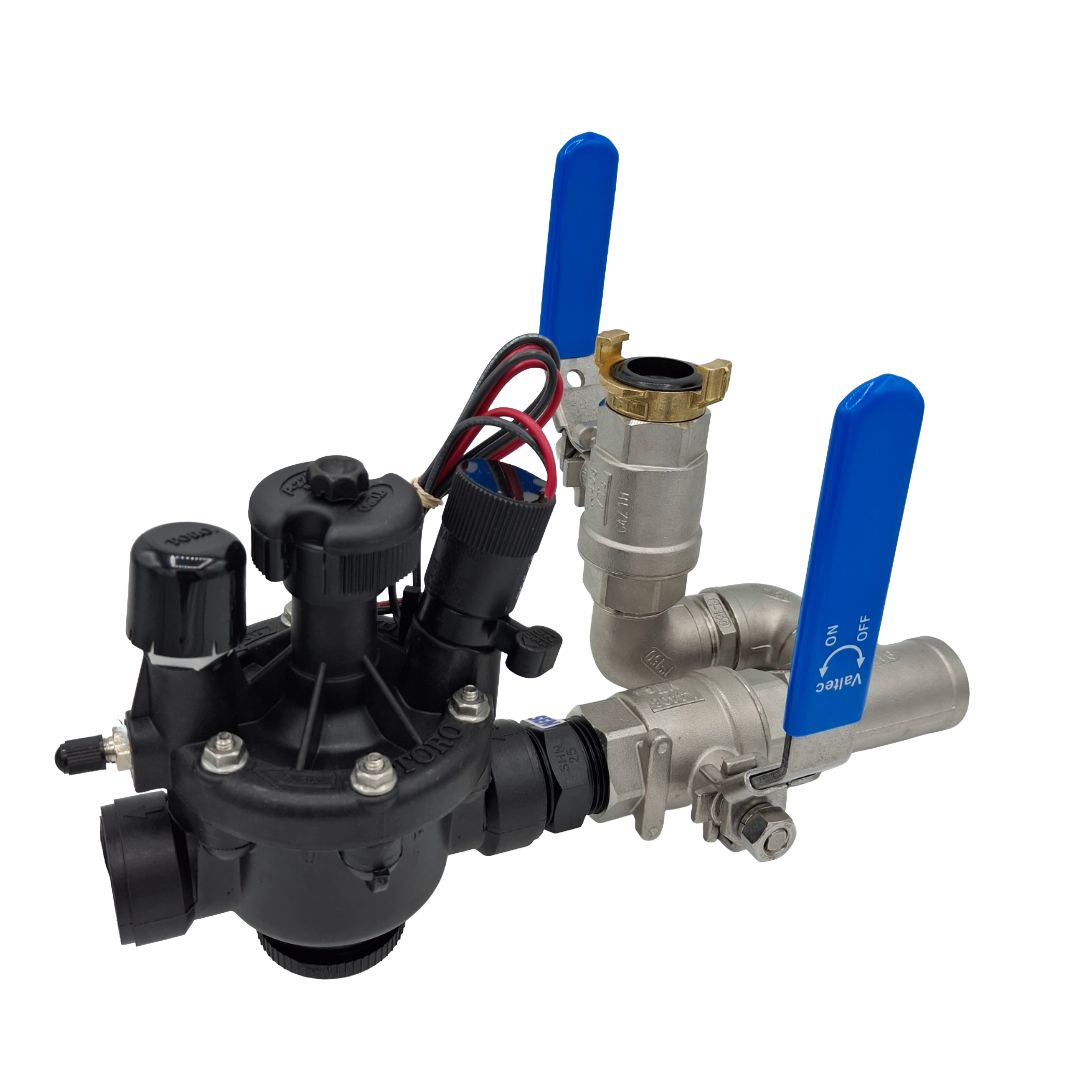

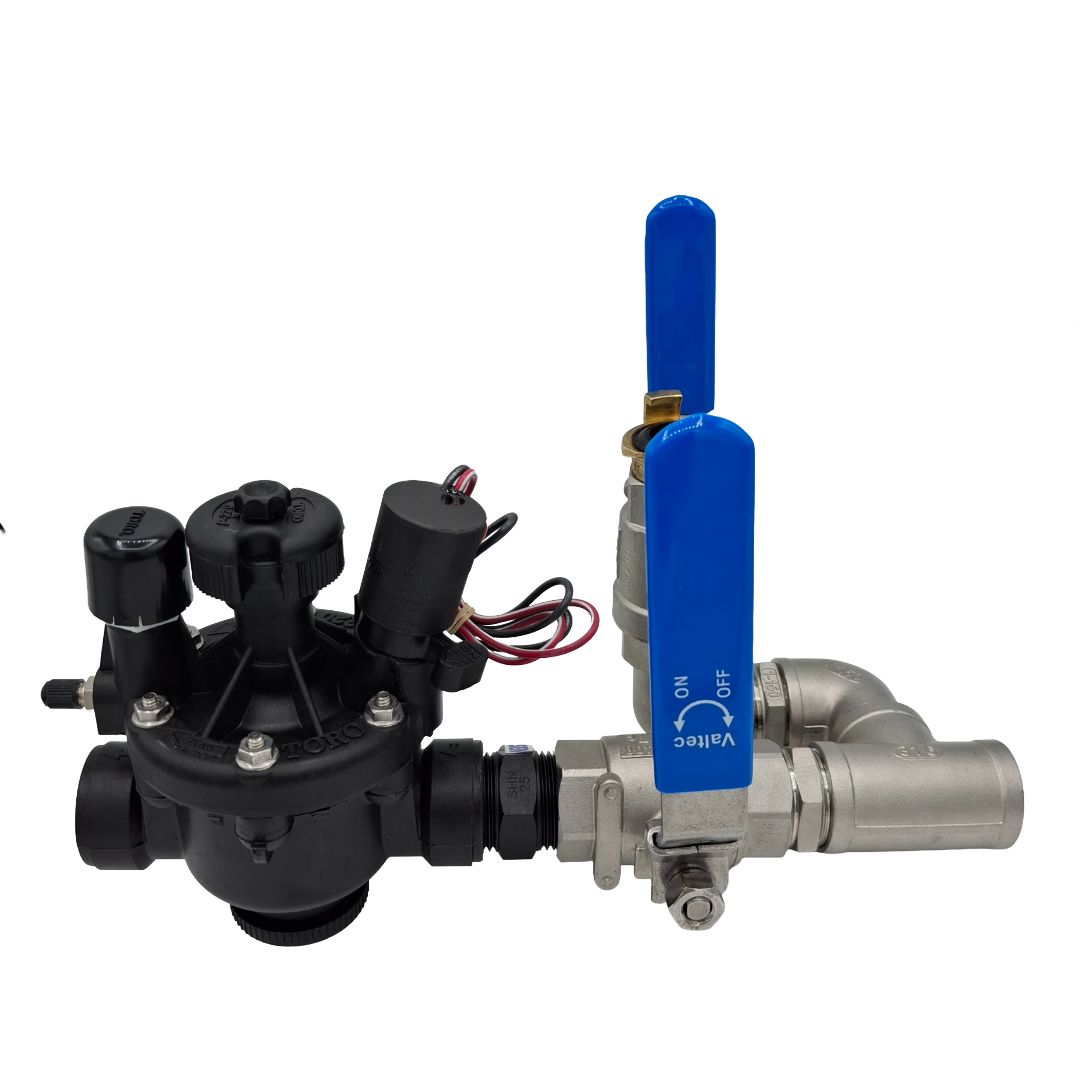

This assembly combines a 1″ stainless steel manual isolation valve (with a hand point for quick shut‑off) and a Toro P220 Series 1″ solenoid valve. It’s ideal for irrigation systems where you need both manual service control and automatic zone operation.

Key Features — Isolation Valve

• Stainless steel construction for durability and corrosion resistance
• 1″ hand point for manual shut‑off and Geka connection

Key Features — Toro P220 Solenoid Valve

• Constructed from glass‑filled nylon for strength under pressure
• Operates over a wide pressure range (approx. 0.7 to 15.2 bar)
• EZReg® pressure regulation option (adjustable from 0.34 to 6.9 bar)
• Internal and external manual bleed for system flushing and maintenance
• Spike‑Guard™ solenoid withstands high voltage surges, reducing lightning‑induced failures
• Low electrical draw (typical inrush 0.40 A, hold 0.2 A at 24 VAC)

Specifications

• Valve size: 1″ (≈ 25 mm) inlet / outlet
• Pressure rating: up to ~15.2 bar
• Flow range for 1″ model: approx. 19 to 151 L/min
• Minimum pressure differential for EZReg®: ~0.7 bar
• Optional EZReg® pressure regulation: 0.34 to 6.9 bar
• Operating temperature: suitable for typical irrigation environments (up to ~66 °C)
• Solenoid voltage: 24 V AC with built-in surge protection
