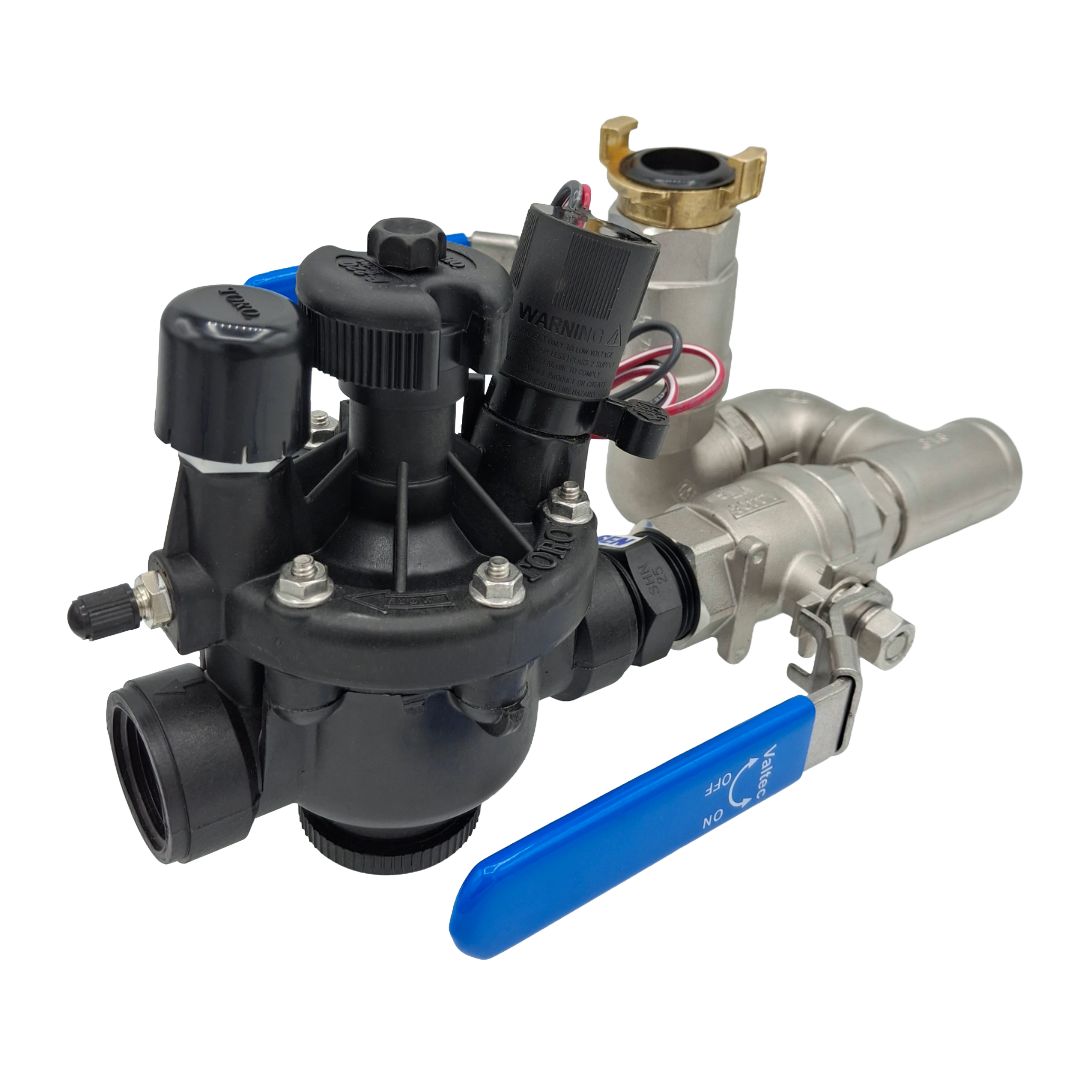

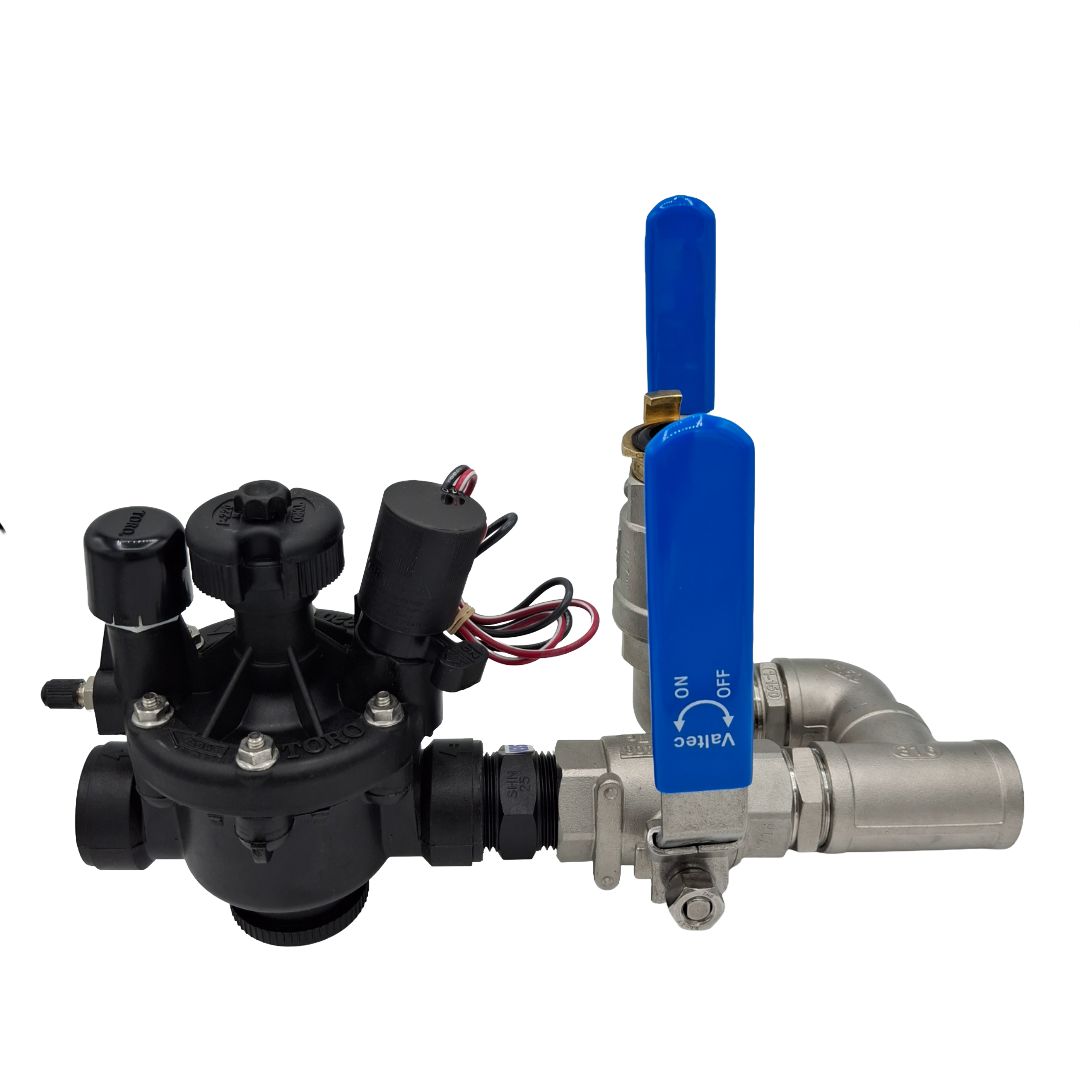

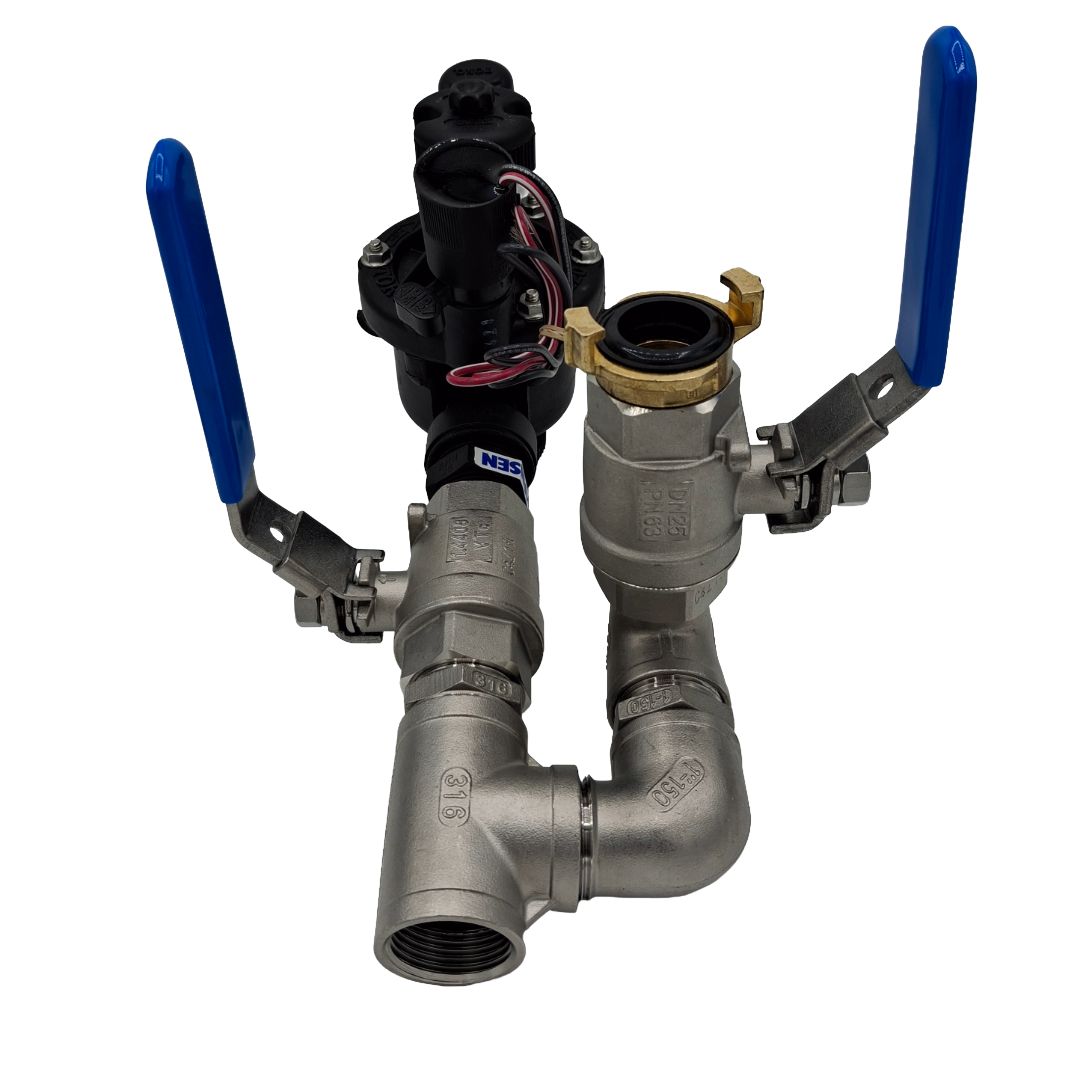

1-inch Stainless Steel Valve with 1-inch Hand Point and Toro P220 DC Solenoid Valve

Pre-assembled irrigation valve assembly combining a stainless-steel isolation manifold, a 1-inch GEKA hand-watering point and one Toro P220 1-inch solenoid valve. It provides automatic zone control, local isolation and a convenient hose or service connection for golf, sports-turf and commercial irrigation systems.

Valve and assembly features

• One controller-operated irrigation zone
• Union connection helps simplify valve removal and servicing
• 1-inch hand point with GEKA-compatible connection
• Glass-filled nylon valve with flow control, internal and external bleed, stainless-steel metering rod and downstream pressure test point
• DC-latching valve for compatible battery or DC-latching irrigation controllers; not interchangeable with a 24 V AC coil

Selection guidance

Toro lists the 1-inch P220 for 19–151 L/min and 0.7–15.2 bar. Pressure-regulating modules are separate options unless expressly stated. Confirm the controller output, connection arrangement, design flow, working pressure and available valve-box space before ordering.
