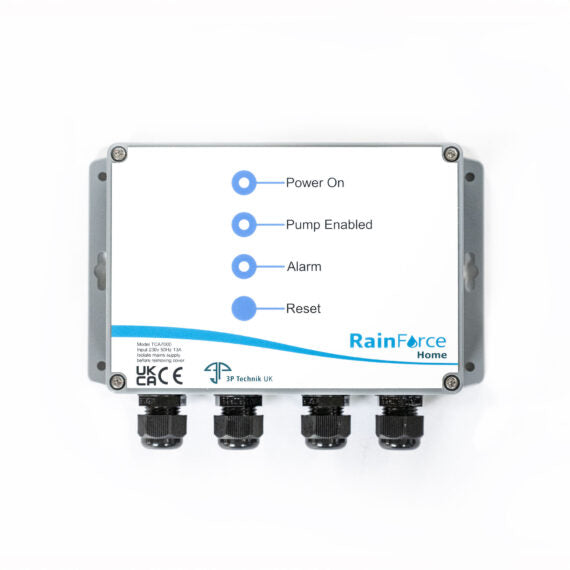

3P Compact Mains Water Top-Up with ½-inch 230 V Brass Valve, Tundish & Probe

Automatic mains water top-up controller kit for rainwater tanks. Incorporates electronic leak detection routine, preventing undue consumption of mains water. This is the top seller for domestic systems, thousands sold in the UK since 2003.

Electronic control of mains water top-up and pump for domestic-sized direct pressure rainwater harvesting installations.

Uses a solid-state conductivity sensor to sense low water level, avoiding the movement and accuracy issues of a float switch. Conductivity sensors experience no mechanical wear during use leading to a long service life and reliability.

Electronically timed top-up overrun alarm halts operation and alerts the user in the event that the tank level fails to be replenished by the top-up cycle. Prevents potential wastage of water due to tank or duct failure. Alerts the user to failure of the solenoid valve.

Pump isolation is optional using the front power socket, and allows the controller to isolate the pump during a top-up cycle to avoid water usage exceeding the rate of replenishment.

Water is topped up via a BS EN 13076 and BS 8515 compliant tundish.

Supplied with 15 metre conductivity probe, ½-inch solenoid valve, tundish, stainless steel braided mains water connection hose, and 50 mm tundish. It is the world-renowned 3P Tundish with its unique integrated overflow that ensures an unobstructed air gap to prevent pollution of potable water by backflow, so fully meeting the requirements of BS EN 13076.
