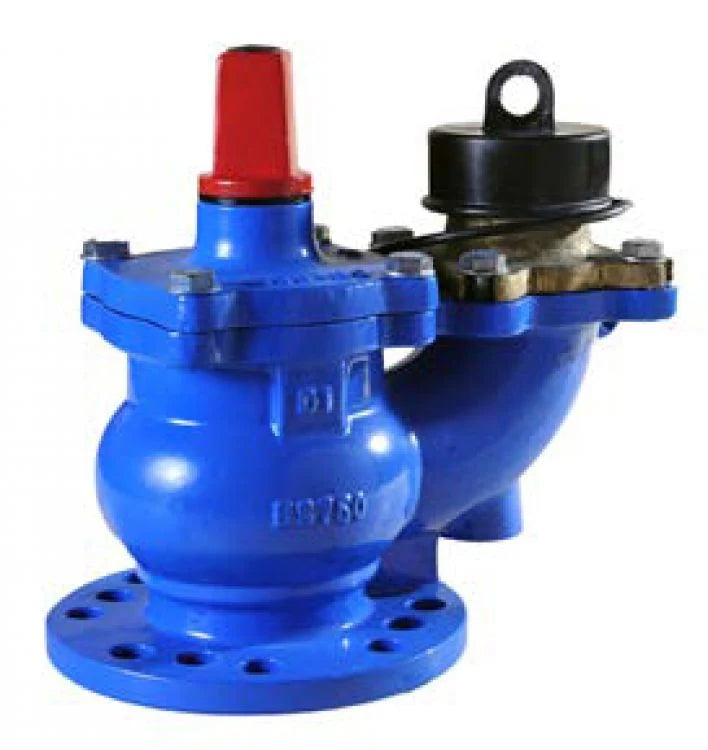

Aeon DN80 Type II Fire Hydrants PN16 SS outlet

The Aeon AP0015 is a DN80 Type II fire hydrant designed to provide fire authorities, contractors and utility operators with an underground connection point to a compatible water-supply network.

This PN16 model has a stainless-steel 2½-inch London Round Thread outlet manufactured to BS 750. Its DN80 inlet flange is drilled to PN16, with the manufacturer's multi-standard flange arrangement also covering compatible connection standards.

Key specifications

• Manufacturer: Aeon
• Product code: AP0015
• Hydrant type: BS 750 Type II
• Nominal diameter: DN80
• Maximum operating pressure: 16 bar / PN16
• Outlet: stainless-steel 2½-inch London Round Thread to BS 750
• Construction standard: BS 750 Type II and BS EN 14339
• Operating temperature: -10°C to +60°C

Fire hydrants form part of safety-critical infrastructure. Confirm the required flange standard, outlet specification, water-network approval and installation arrangement with the system designer or relevant authority before ordering. Installation and commissioning should be carried out by suitably competent personnel.
