Hansen Max-Flo 25/20 Short Trough & Tank Valve

Hansen Maxflo 25/20 High Flow Trough & Tank Valve

The Hansen Maxflo 25/20 is a high-performance diaphragm valve designed for rapid filling of water troughs and storage tanks. Its compact design delivers high flow rates while operating across a wide pressure range, making it suitable for agricultural, livestock, irrigation and general water storage applications.

The Maxflo incorporates Hansen’s self-cleaning pilot system, helping the valve operate reliably with both clean and dirty water. Its slow opening and closing diaphragm action also helps minimise valve bounce and water hammer, reducing unnecessary stress on pumps and pipework.

Key Features:

• High-performance trough and tank filling valve
• Delivers flow rates of up to 570 L/min at 2 bar
• Wide operating pressure range from 0.2 to 12 bar
• Suitable for top, side or bottom entry installations
• Self-cleaning pilot system suitable for clean and dirty water
• High-flow design allows tanks and troughs to refill quickly
• Low operating pressure helps maximise available flow
• Variable opening and closing action helps reduce water hammer
• Strong, compact valve body for easy installation
• Manufactured from non-corrosive, UV-stabilised materials
• Suitable for both high and low-pressure water supplies
• Multiple connection options provide excellent installation flexibility
• Ideal for livestock troughs, water storage tanks and agricultural applications

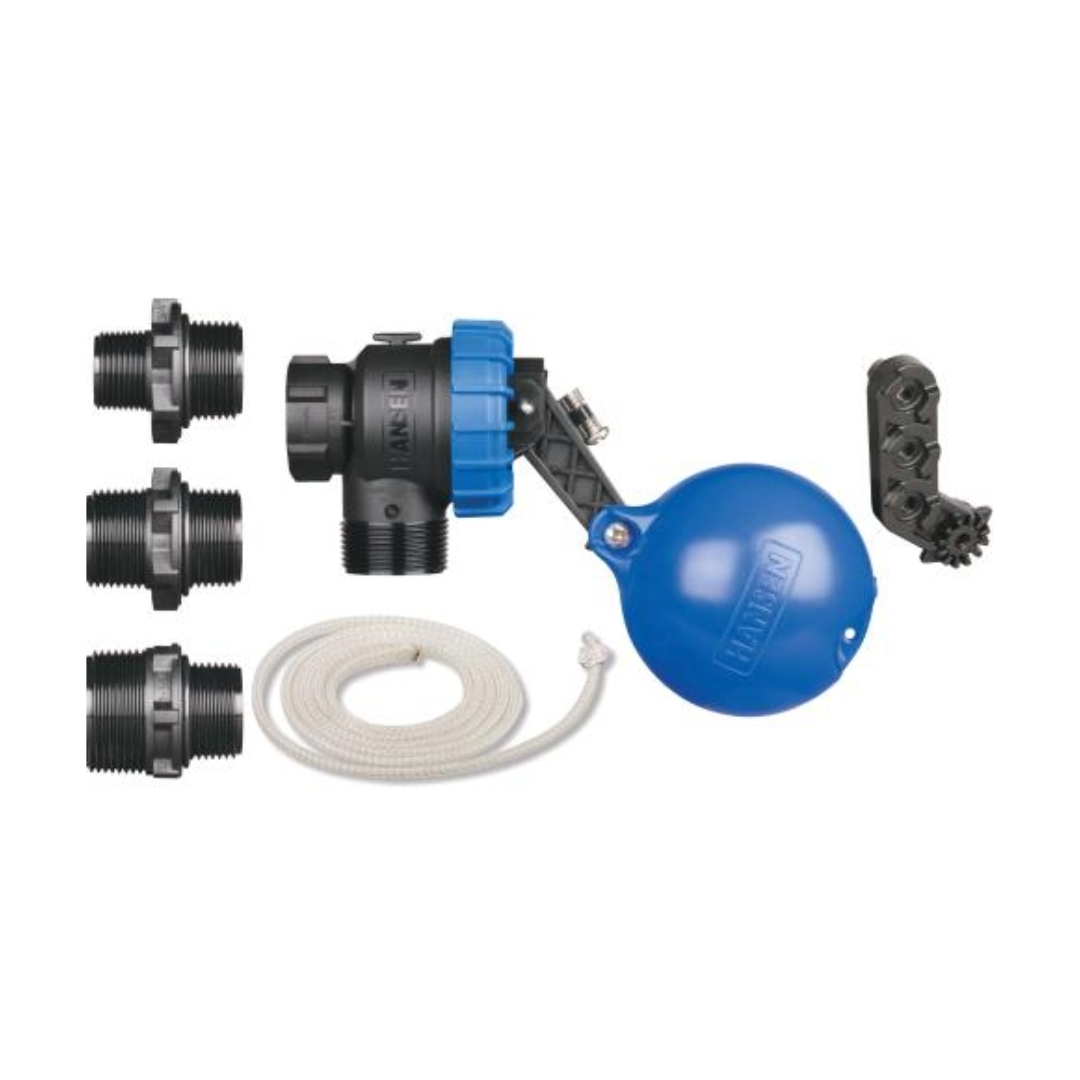

Supplied With:

• Maxflo valve body
• 20 mm standard adaptor
• 25 mm standard adaptor
• 32 mm standard adaptor
• Adjustable extension arm
• 100 mm blue flanged float
• 650 mm operating cord

Specifications:

• Manufacturer: Hansen
• Model: Maxflo 25/20
• Product code: HMFDV2520
• Product type: High-flow diaphragm trough/tank valve
• Operating pressure: 0.2–12 bar
• Maximum working pressure: 12 bar at 20°C
• Flow rate: Up to 570 L/min at 2 bar
• Installation position: Top, side or bottom entry
• Float diameter: 100 mm
• Cord length: 650 mm
• Construction: Non-corrosive UV-stabilised materials
• Application: Trough filling, tank filling, agriculture and water storage
