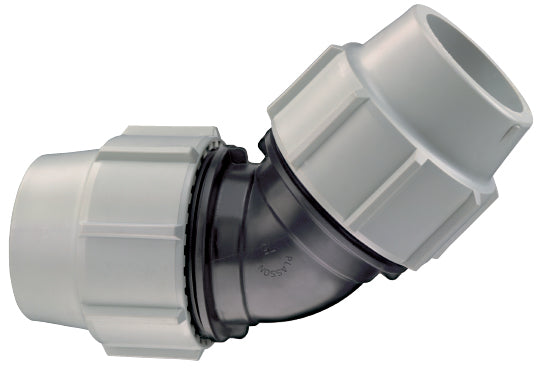

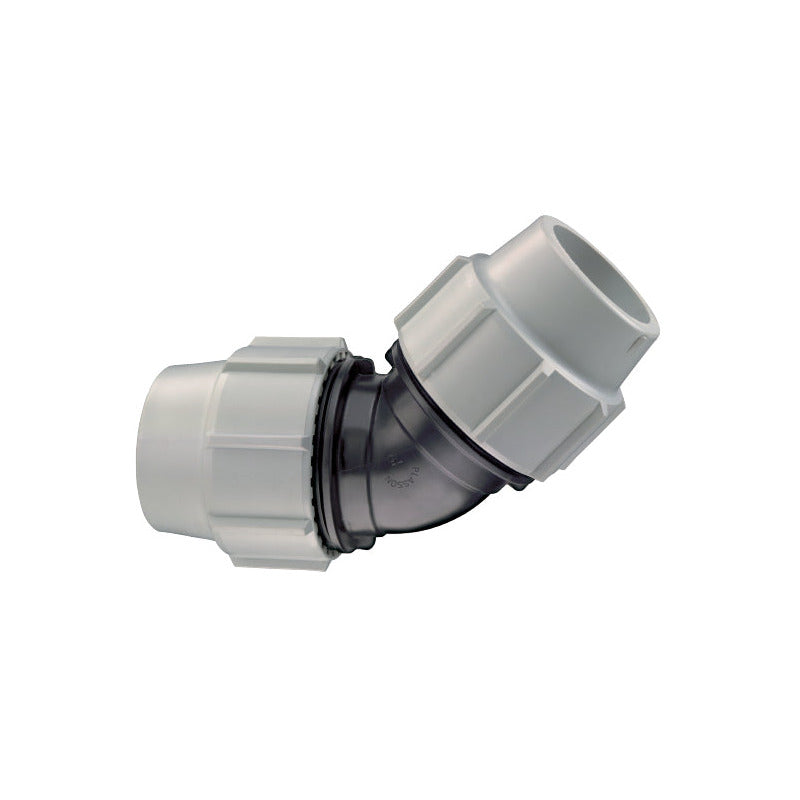

Plasson 45° Elbow

The Plasson 45° Elbow creates a 45-degree change of direction in polyethylene water pipework. Its equal-size compression connections are suited to water-distribution and irrigation installations where a shallower bend than a 90° elbow is required.

• Available for 32 mm, 40 mm, 50 mm, 63 mm, 90 mm and 110 mm PE pipe
• Equal-size compression connections at both ends
• High-grade polypropylene copolymer body and nuts
• Polyacetal split rings with elastomeric seals
• Manufactured to ISO 17885 for water applications

Select the fitting size to match the outside diameter of the PE pipe.

Body material: high-grade polypropylene copolymer.
