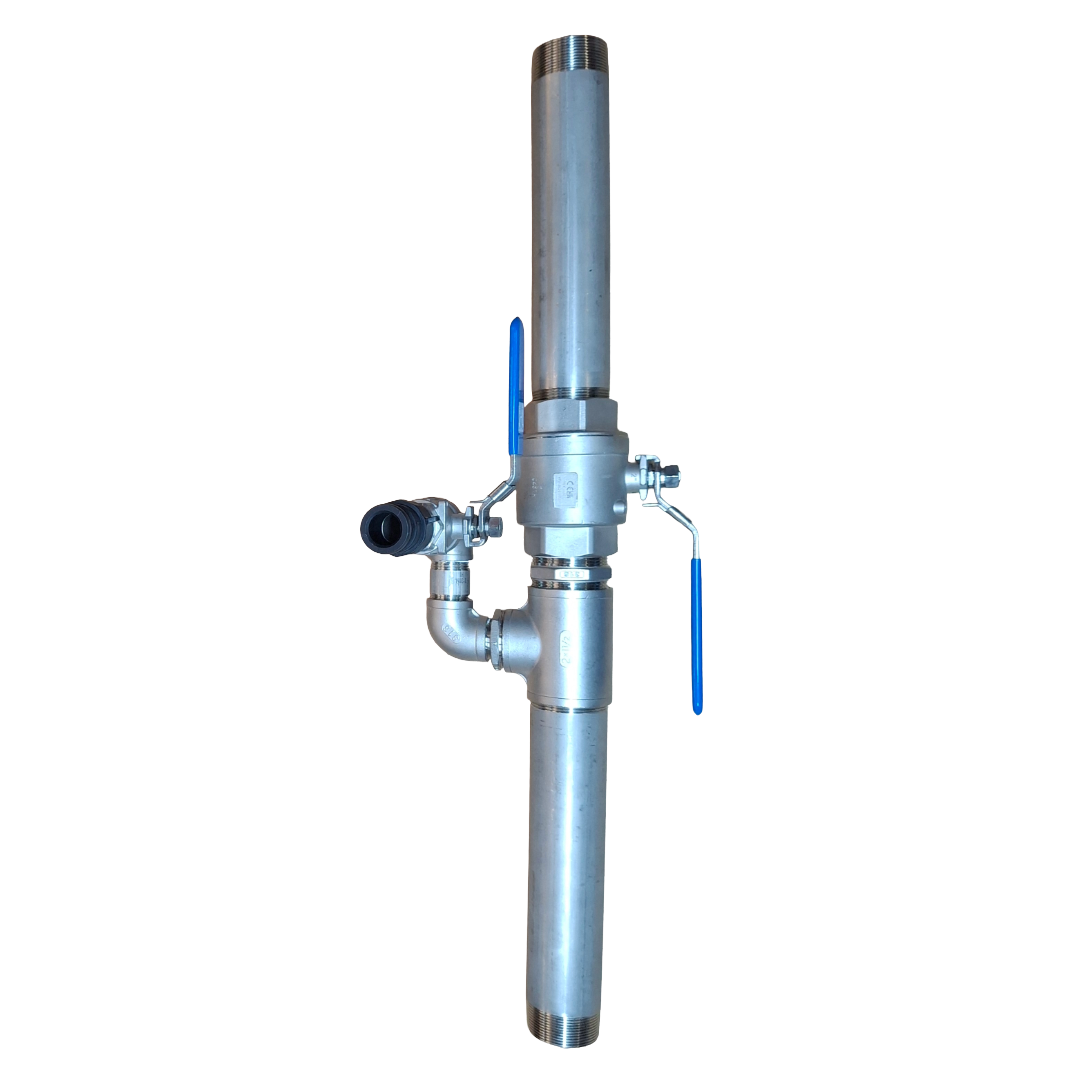

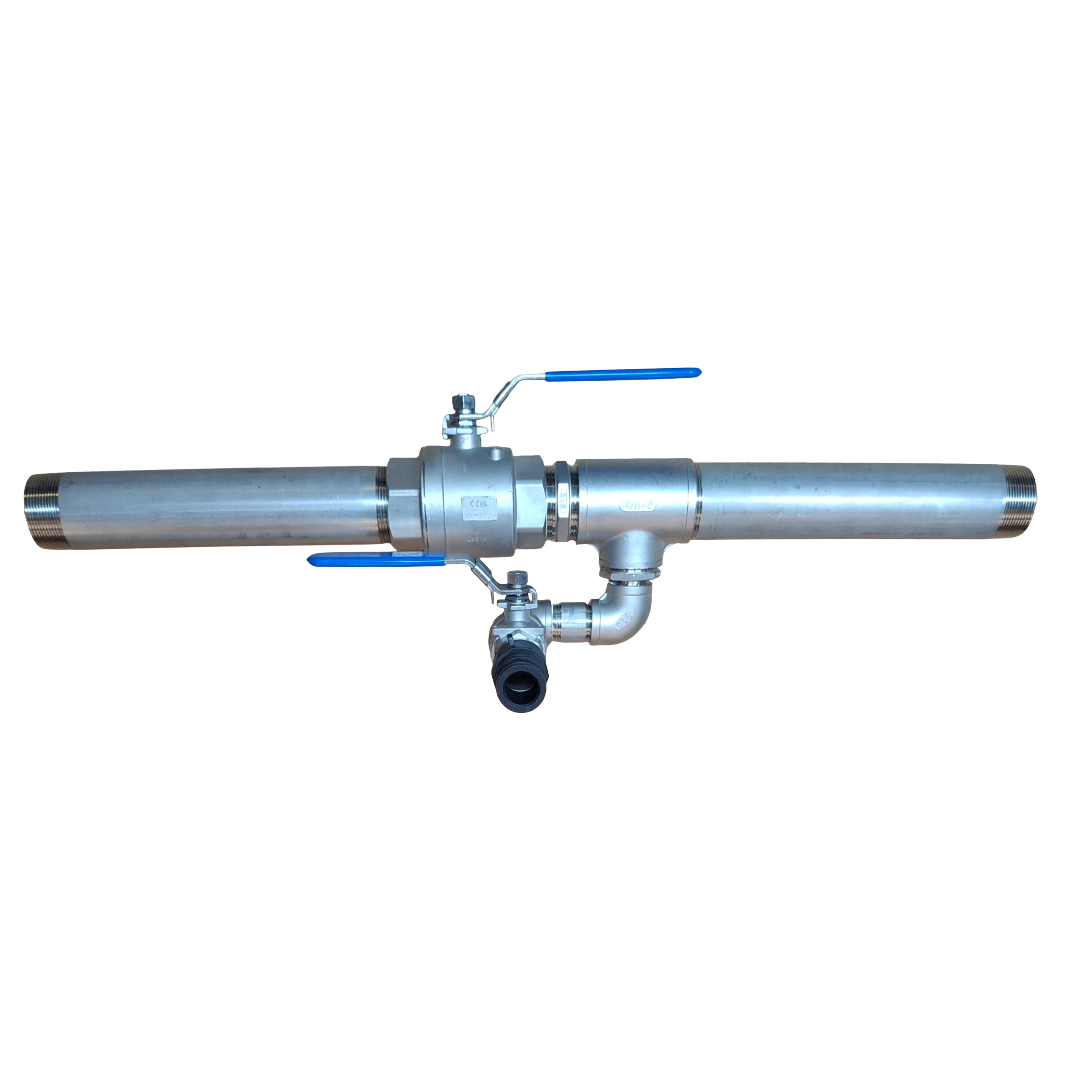

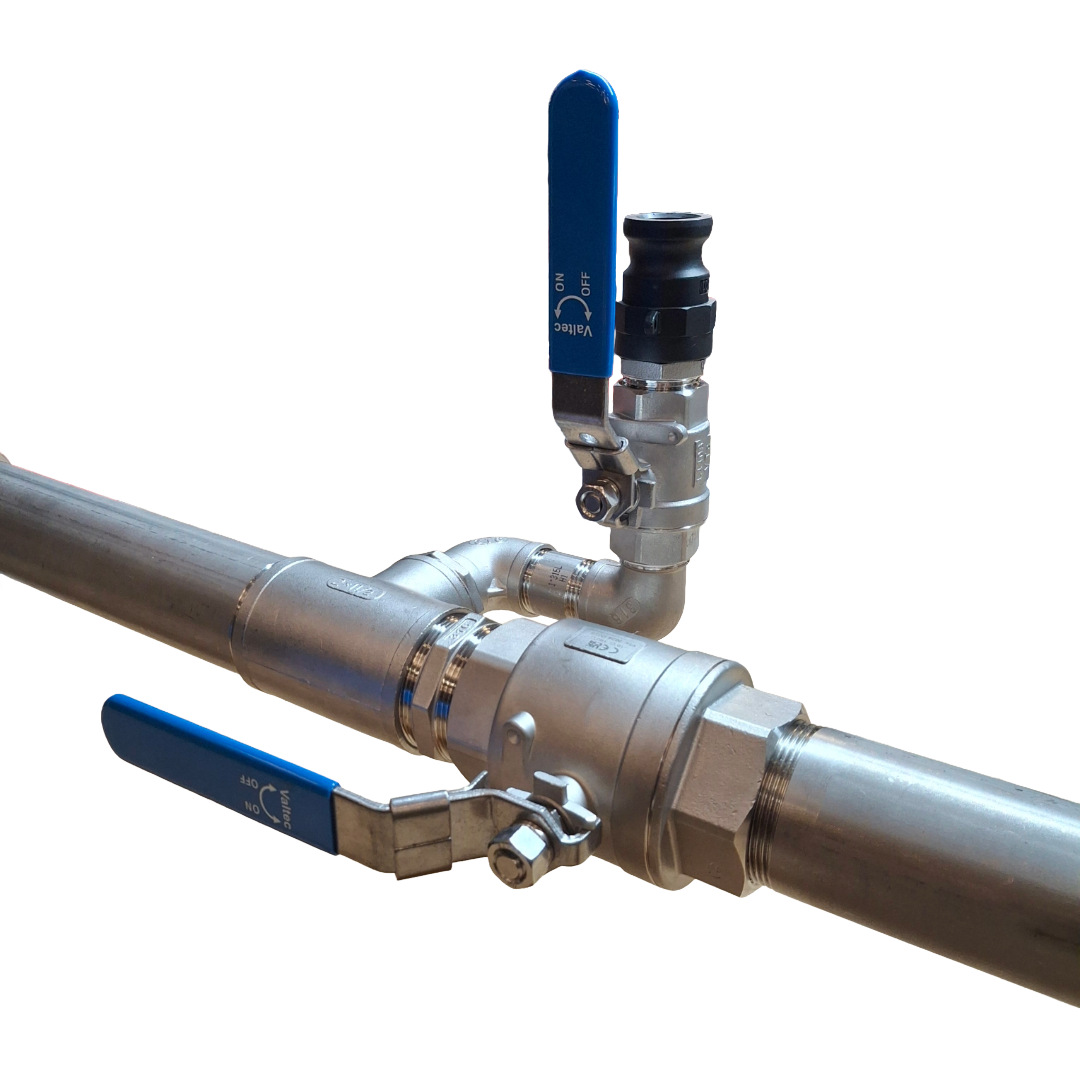

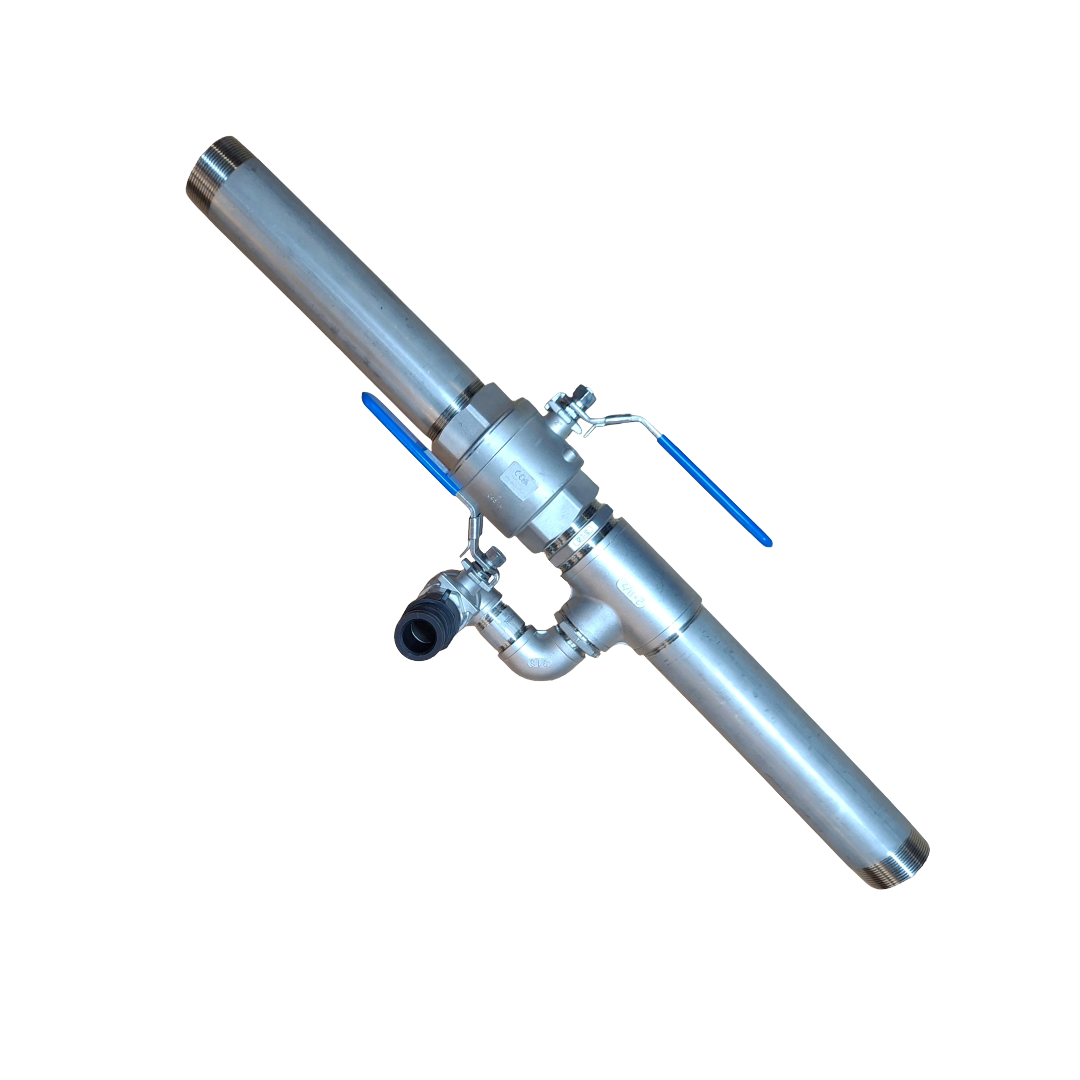

Pre-Made Replacement to Widely Used 2-inch Stainless Steel Isolation Valve with 1-inch Hand Point
Made-to-order golf irrigation isolation valve assembly
This pre-assembled 316 stainless-steel unit is designed as a practical replacement for a widely used underground golf-course isolation-valve arrangement. It combines a 2-inch isolation-valve connection with a 1-inch hand-watering point, reducing on-site assembly work.
Connection options

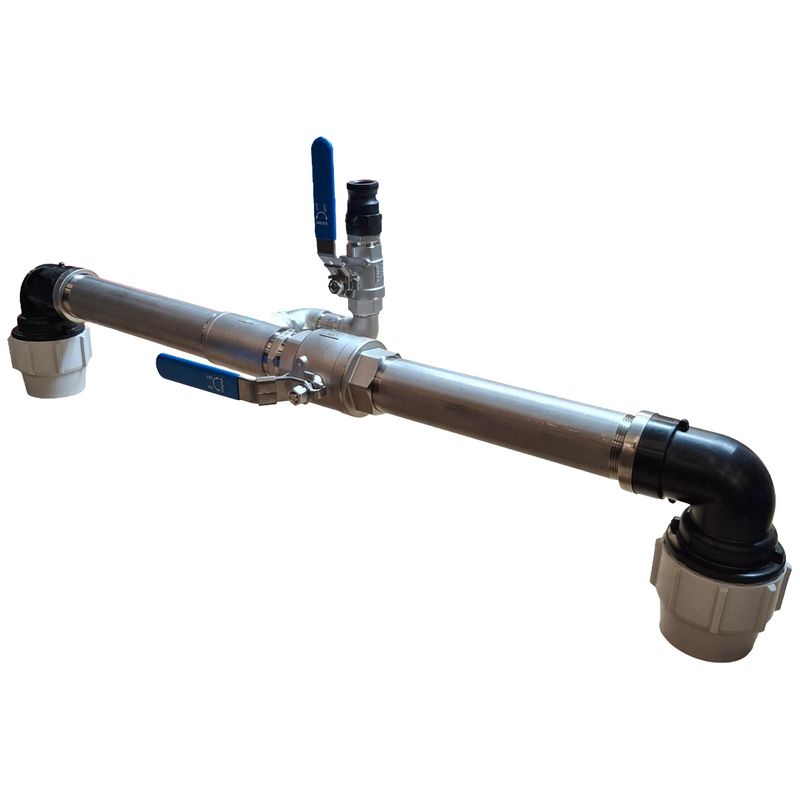

- 2-inch male threaded ends, or a version supplied with a 63 mm compression 90-degree elbow

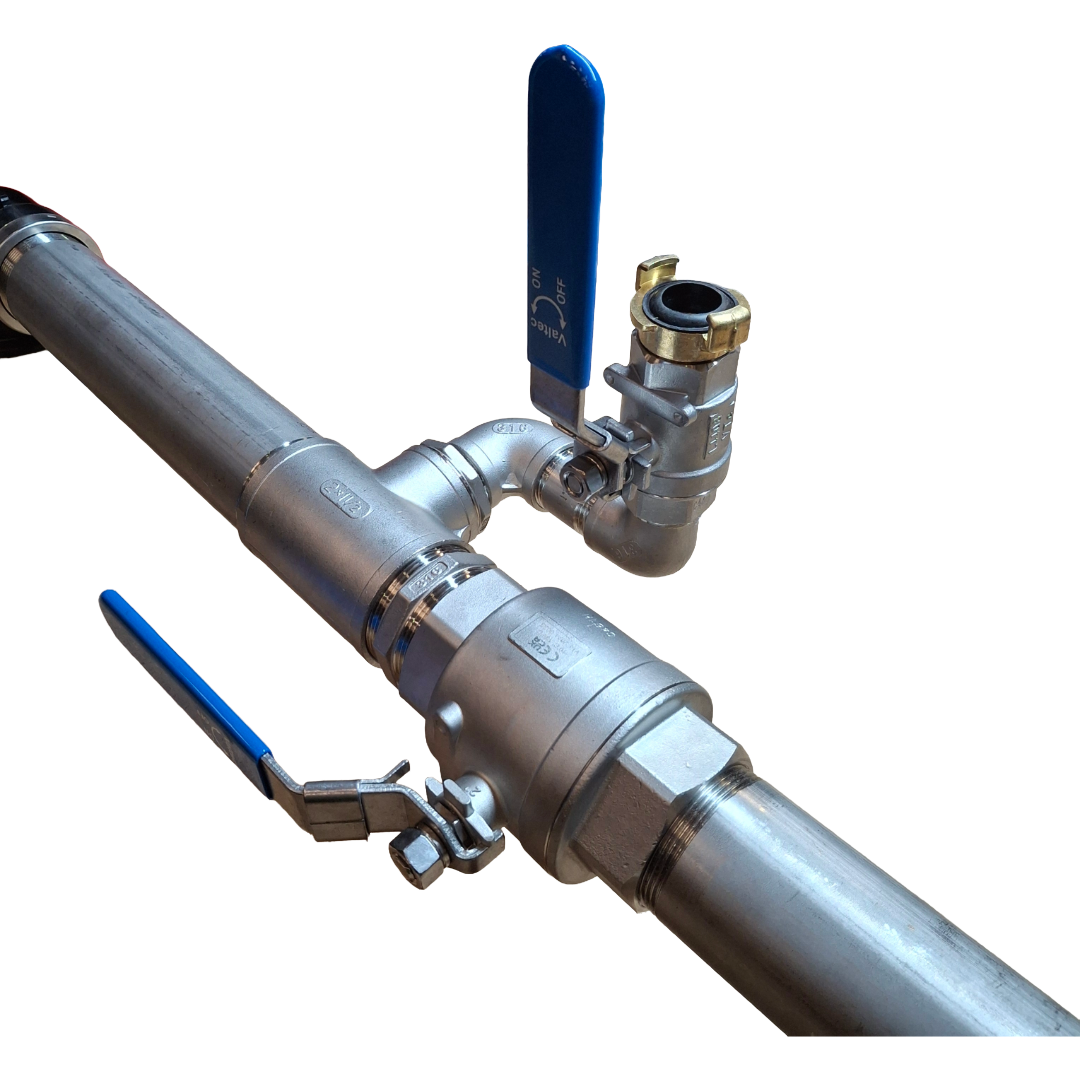

- 1-inch hand point ending in either a GEKA connection or Camlock Type A
- 316 stainless-steel valve assembly
- Made to order with a typical preparation time of 3-5 working days
Measure the existing installation
Existing assemblies have been found between approximately 93 and 97 cm centre to centre. The replacement is normally approximately 94-95 cm, with a stated tolerance of 1 cm. Measure between the compression-fitting centres and confirm the required connection option before ordering.
Underground pipework can vary between sites. Contact UK Flow Centre if a different end arrangement is required.
