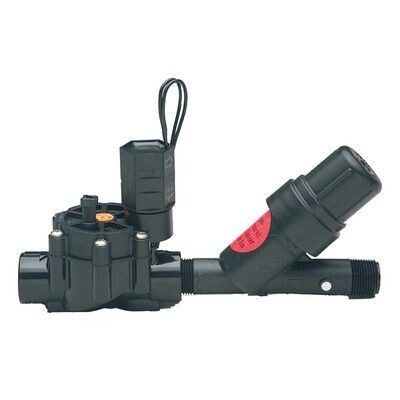

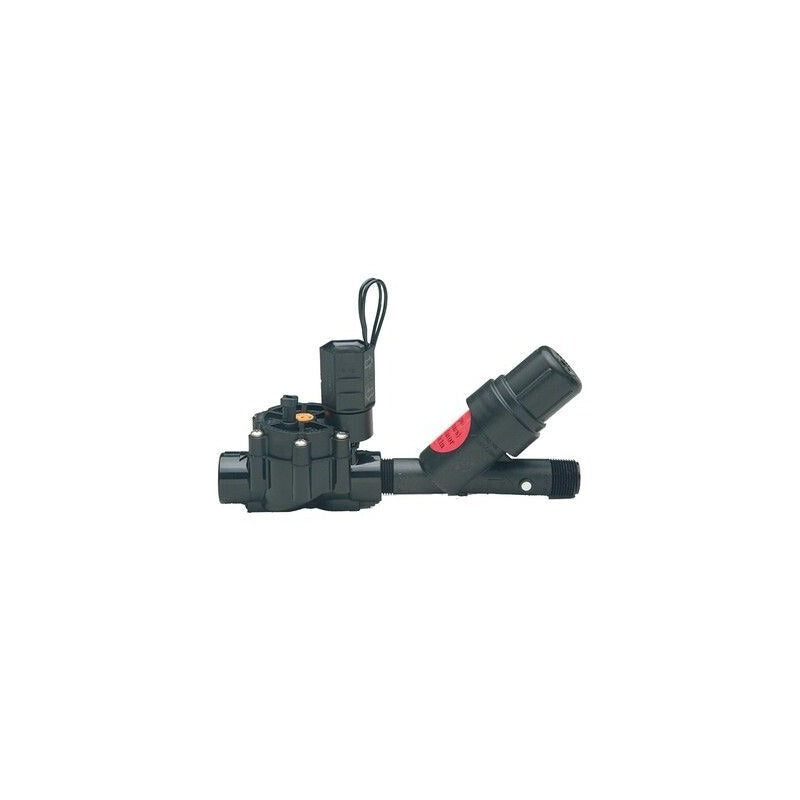

Rain Bird ¾-inch 24 V AC Low-Flow Control Zone Kit with RBY-PRF Filter

This assembled Rain Bird low-flow control-zone kit combines a ¾-inch 24 V AC Low Flow valve with a ¾-inch pressure-regulating RBY filter. It provides on/off control, filtration and pressure regulation for a compatible drip irrigation zone.

Specification

• Rain Bird model: XCZ075PRF
• Valve: ¾-inch Low Flow valve, 24 V AC
• Filter/regulator: ¾-inch PR RBY
• Flow range: 0.8 to 18.9 L/min
• Inlet pressure: 1.4 to 10.3 bar
• Regulated outlet pressure: 2.1 bar
• Filtration: 200 mesh stainless-steel screen, 75 micron

Installation

Install the pressure-regulating filter downstream of the valve and follow Rain Bird's control-zone installation instructions. The low-flow valve is intended for drip zones below the operating range of the standard 1-inch kit.

Selection note: confirm the ¾-inch connection standard, available flow and required 24 V AC control before ordering.
