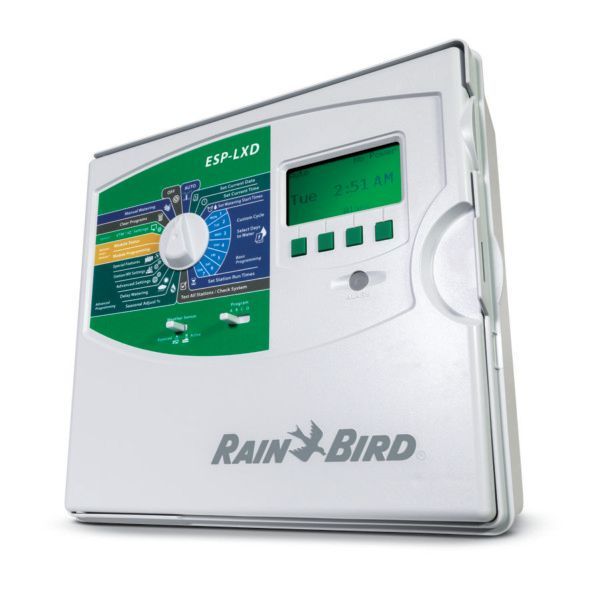

Rain Bird ESP-LXD Controller – Advanced Two-Wire Decoder Irrigation Control

The Rain Bird ESP-LXD Controller is a state-of-the-art irrigation management system designed for commercial applications. Utilizing a two-wire decoder interface, it offers efficient control of up to 50 stations, expandable to 200 stations with additional modules. This controller seamlessly integrates with various sensors and flow management tools, ensuring precise and reliable irrigation.

Key Features:

• Scalable Station Capacity: Manages up to 50 stations, expandable to 200 with optional 75-station modules.
• Integrated Flow Management: Built-in flow sensing and management capabilities enhance water efficiency.
• User-Friendly Interface: Features a large LCD display with simple dial and button controls for intuitive programming.
• Multiple Sensor Inputs: Supports up to four sensor inputs (one wired and three decoder-managed) for comprehensive environmental monitoring.
• Durable Construction: Housed in a weather-resistant, locking plastic case suitable for wall mounting, with optional metal and stainless steel enclosures available.

Advanced Programming Options:

• Four Independent Programs: Offers programs A, B, C, and D with customisable schedules to meet diverse irrigation needs.
• Seasonal Adjustments: Global and program-specific monthly adjustments from 0% to 300% accommodate varying climate conditions.
• Cycle+Soak™ Feature: Prevents runoff by allowing irrigation cycles to be split into soak periods.
• Programmable Rain Delay and Calendar Day Off: Provides flexibility to comply with local watering restrictions and conserve water.

Specifications:

• Power Supply: Operates on 120 V AC ± 10%, 60 Hz (international models available for 230 V AC ± 10%, 50 Hz).
• Station Timing: Adjustable from 0 minutes up to 12 hours per station.
• Certifications: cULus, CE, IPX4, RCM, and Smart Approved WaterMark.

The Rain Bird ESP-LXD Controller is ideal for large-scale irrigation systems requiring flexible, reliable, and efficient water management solutions.
