Socla 895 Check Valve

Vendor: Socla

SKU: 149B3003

£160.78 ~~£200.98~~

Shipping calculated at checkout.

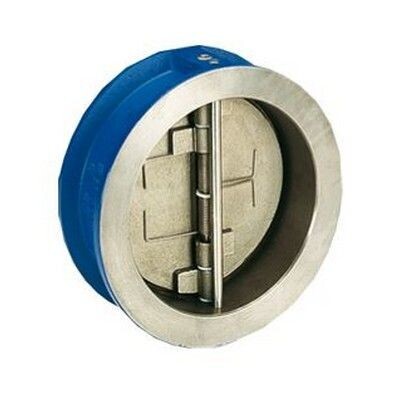

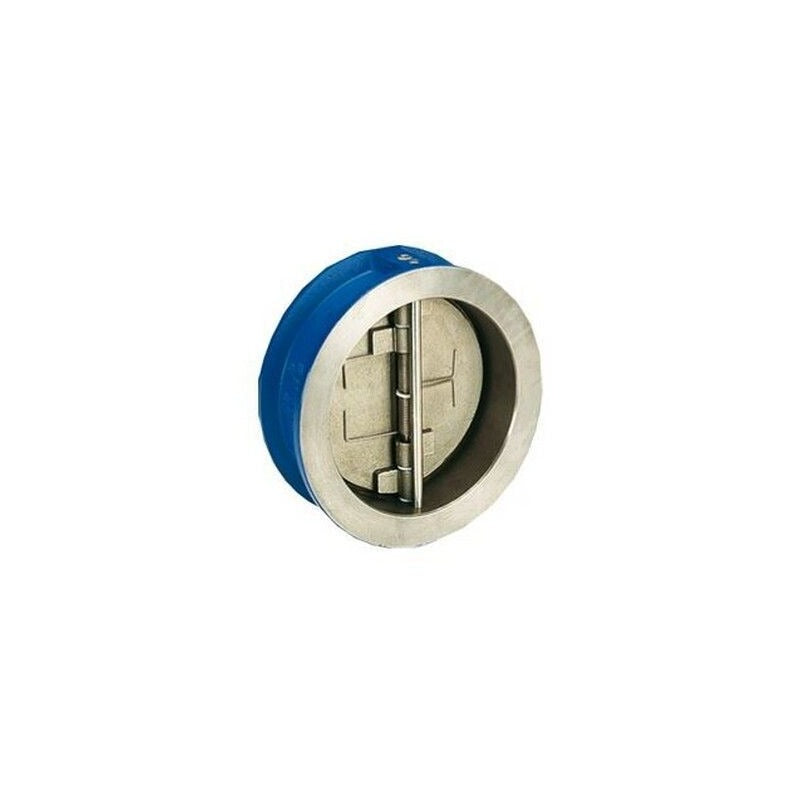

The Socla 895 is a compact, spring-assisted dual-plate non-return valve for preventing reverse flow in pumping, water-distribution and general industrial systems. It mounts between flanges rather than using threaded ends.

Construction and duty

PN10/16 wafer connection
Maximum water working pressure: 16 bar
Operating temperature: -10°C to 100°C
Epoxy-coated EN-GJL-250 cast-iron body for DN50 to DN100 listed sizes
AISI 304 stainless-steel plates, AISI 316 stainless-steel spring and EPDM seal
Suitable for horizontal flow and vertical ascending or descending flow, subject to the installation instructions

Available sizes

DN50 / 2-inch — 54 mm face-to-face
DN65 / 2½-inch — 54 mm face-to-face
DN80 / 3-inch — 57 mm face-to-face
DN100 / 4-inch — 64 mm face-to-face

Confirm flange compatibility, medium and operating conditions before ordering. Flush new or serviced pipework before commissioning and pressurise progressively. Where water hammer is possible, provide suitable system protection.

This is a non-stock item; lead time must be confirmed.

Size: DN100/4-inch Socla 895WRC PN16 Cast Non Double Plate Non-Return Valve F2F= 64 mm

DN100/4-inch Socla 895WRC PN16 Cast Non Double Plate Non-Return Valve F2F= 64 mm DN50/2-inch Socla 895WRC PN16 Cast Non Double Plate Non-Return Valve F2F=54 mm DN65/2½-inch Socla 895WRC PN16 Cast Non Double Plate Non-Return Valve F2F=54 mm DN80/3-inch Socla 895WRC PN16 Cast Non Double Plate Non-Return Valve F2F=57 mm
