Stainless Steel Ball Valves Female x Female
Regular price
Sale price
£8.61
Regular price
£11.48
Shipping calculated at checkout.

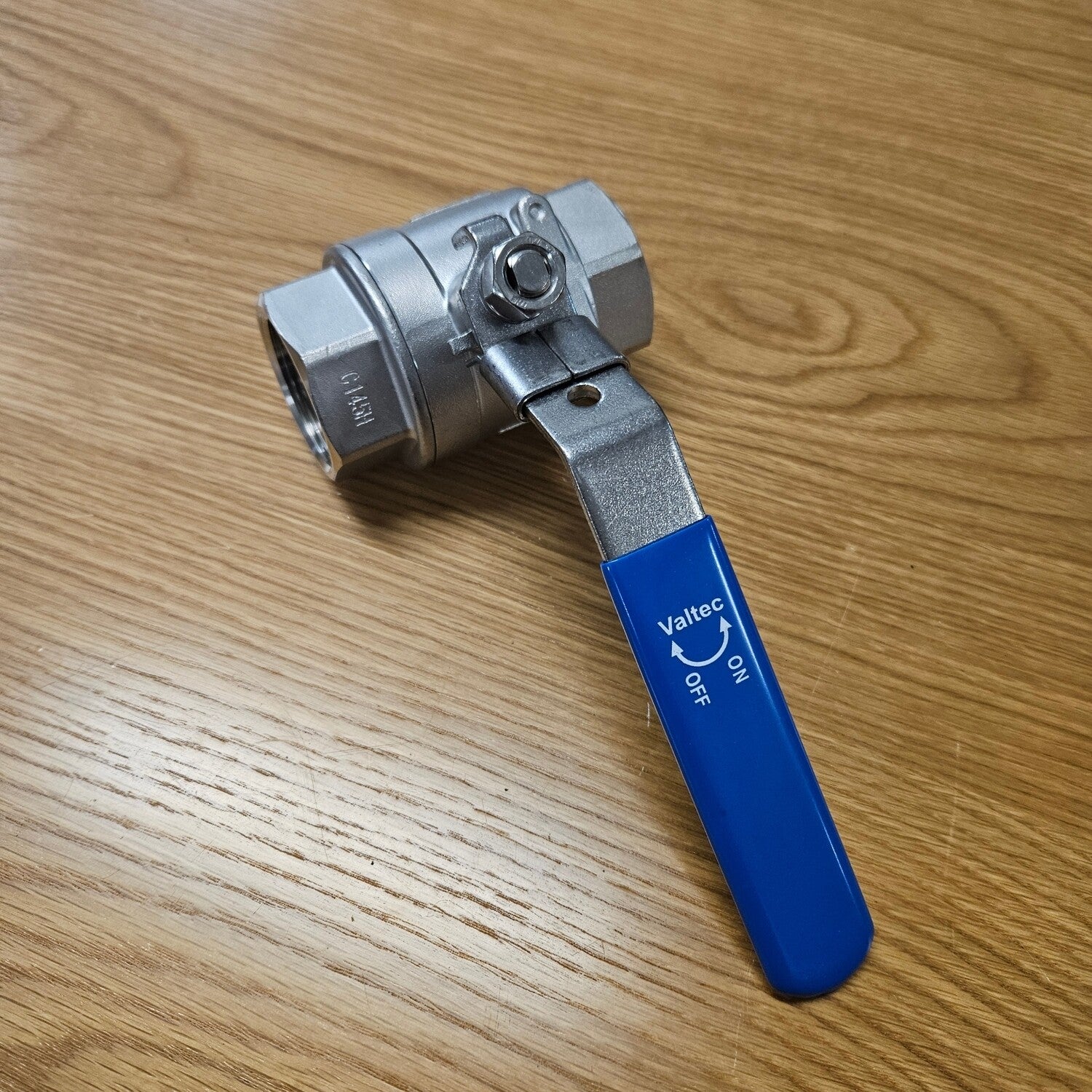

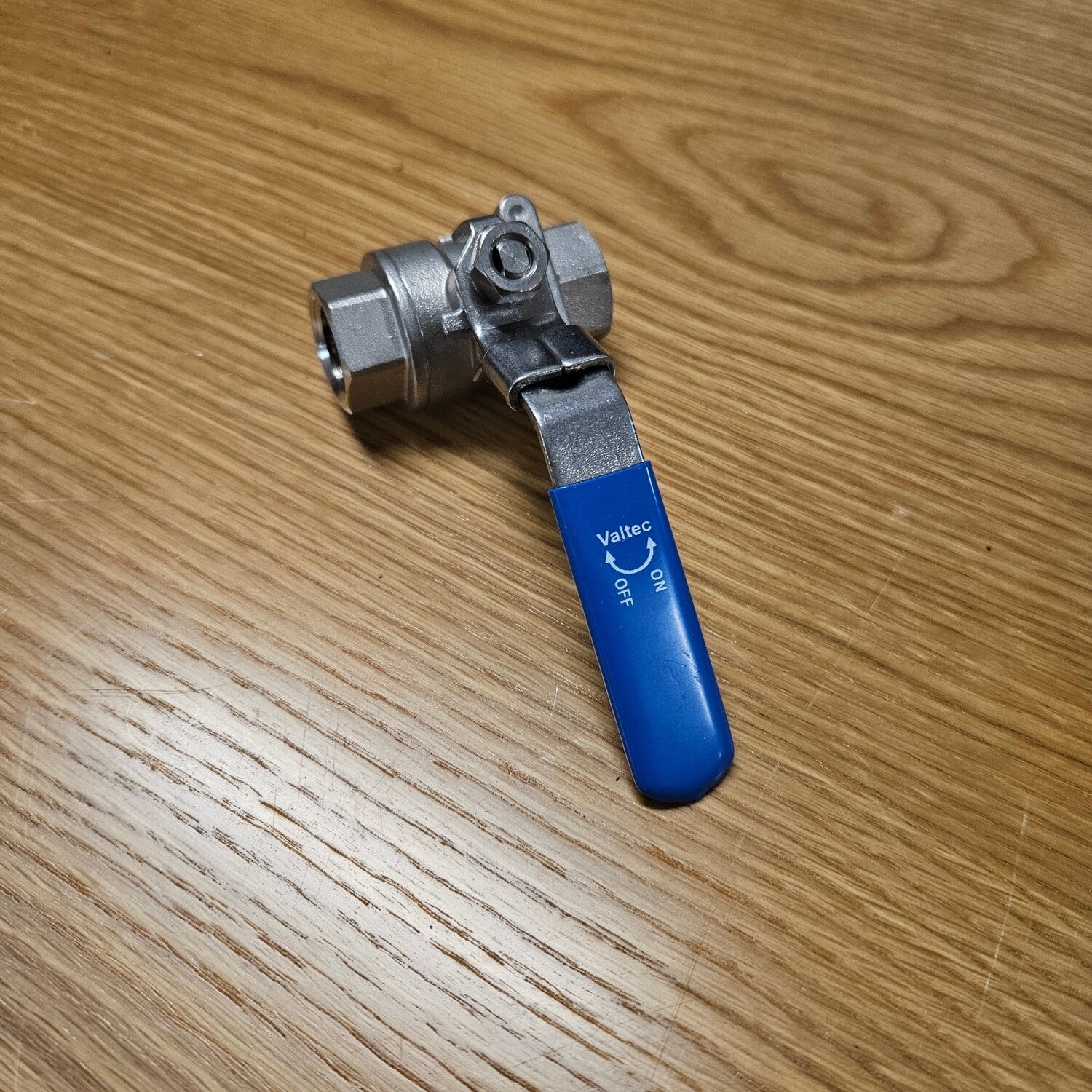

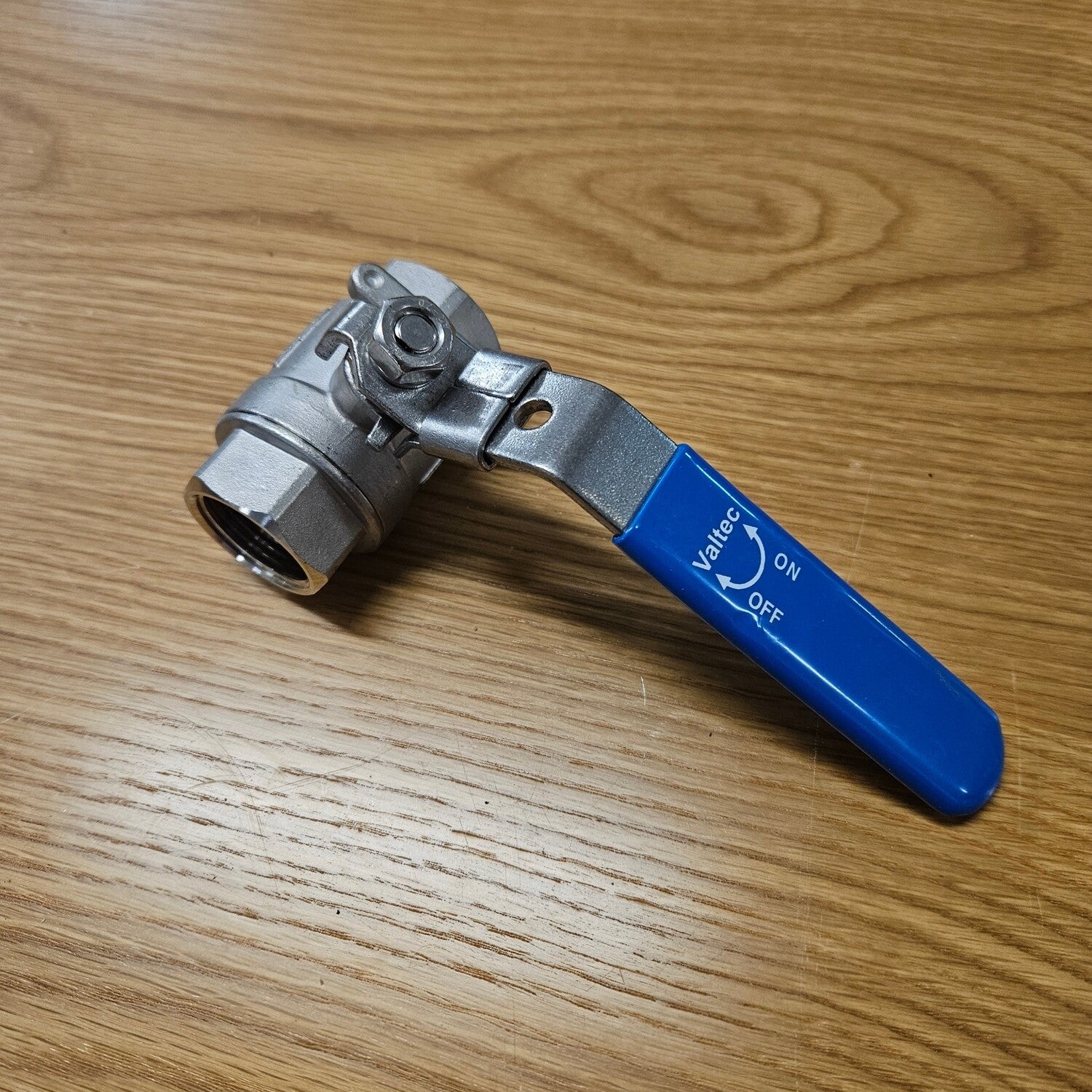

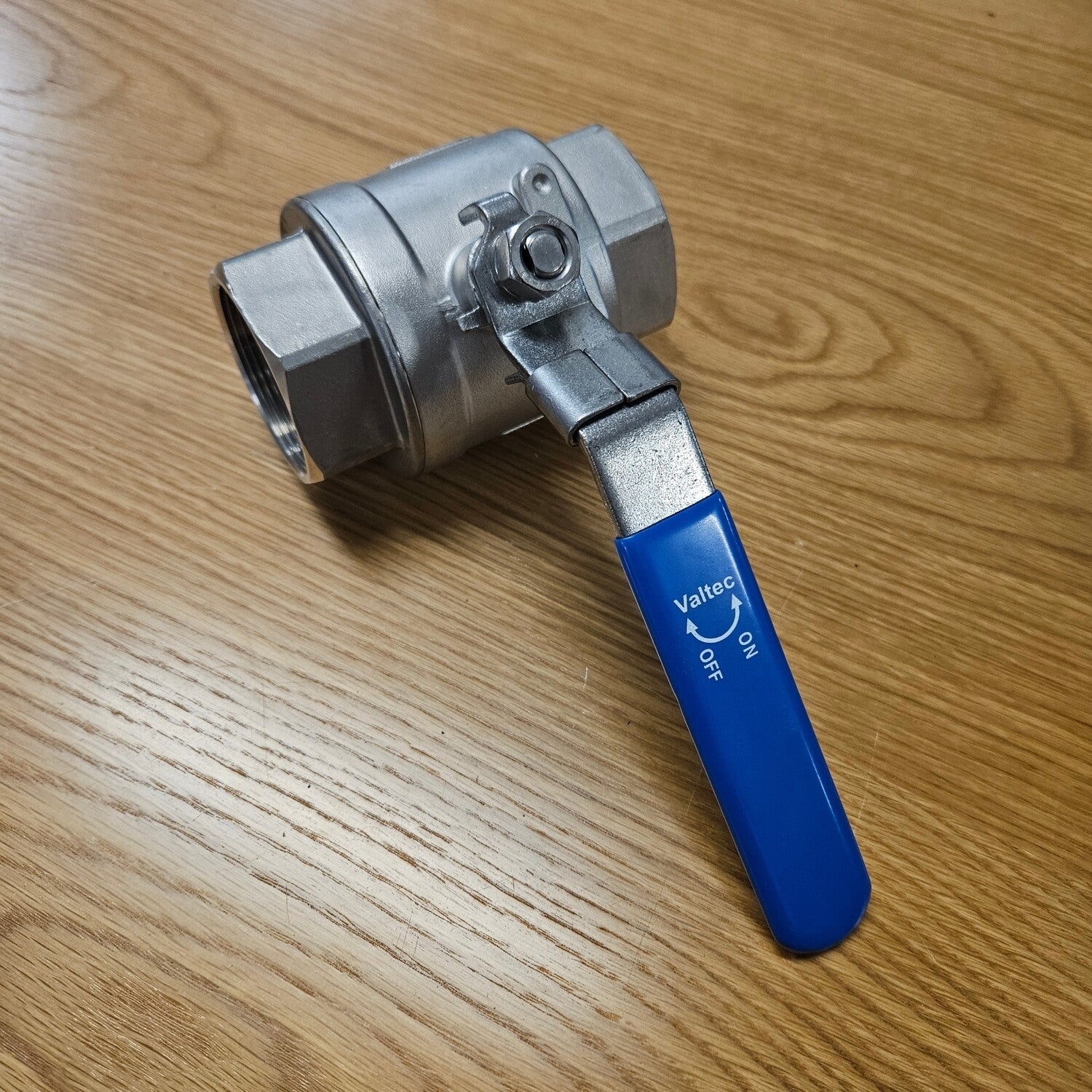

These LV6200A two-piece full-bore ball valves provide quarter-turn isolation through female BSPP connections. The stainless-steel body, ball and stem are paired with PTFE seats and seals.
Key specifications
- Sizes listed: ½-inch, ¾-inch, 1-inch, 1½-inch and 2-inch
- Female x female BSPP connections
- Full-bore, two-piece construction
- 1.4408 / CF8M stainless-steel body and ball, with AISI 316 stem
- PTFE seats and seals
- Anti-blowout stem and locking provision
- Pressure class: PN63
- Published temperature range: -29°C to 180°C
Select the same nominal size at both ends. Confirm fluid compatibility and the pressure rating at the intended temperature before installation. Isolate and depressurise the line, use a suitable thread-sealing method and hold the valve body correctly while tightening to avoid installation strain.
Unsure which thread you need?
Read our BSP, NPT & ACME thread buyer’s guideCheck the thread type, size and seal before ordering.
