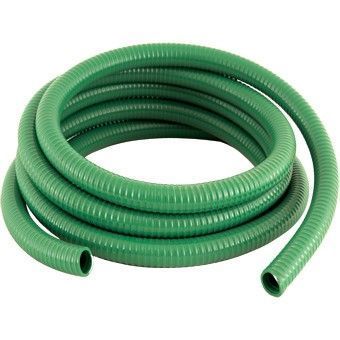

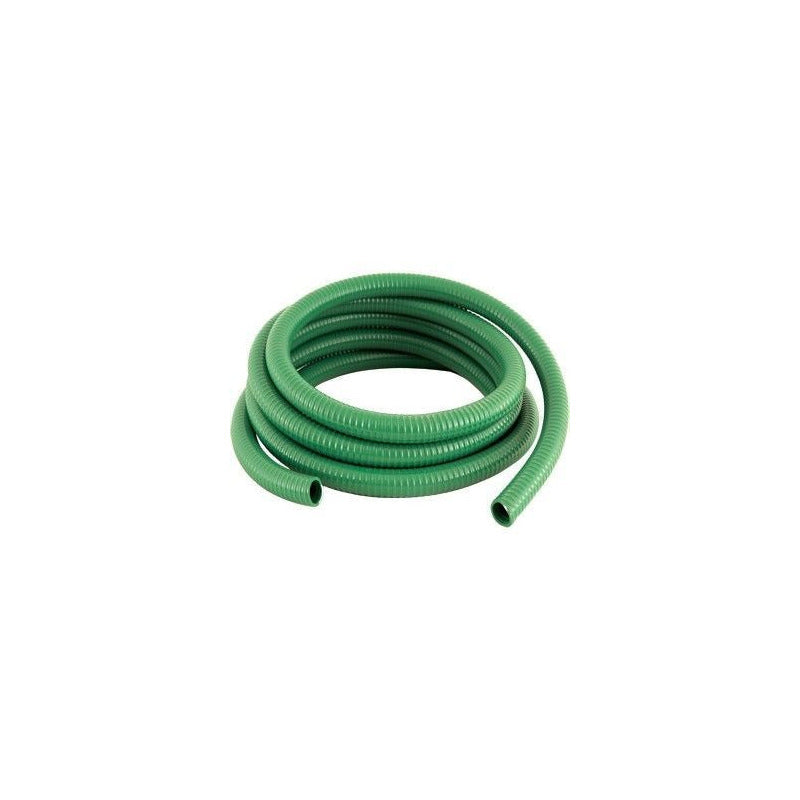

Suction & Delivery Hose

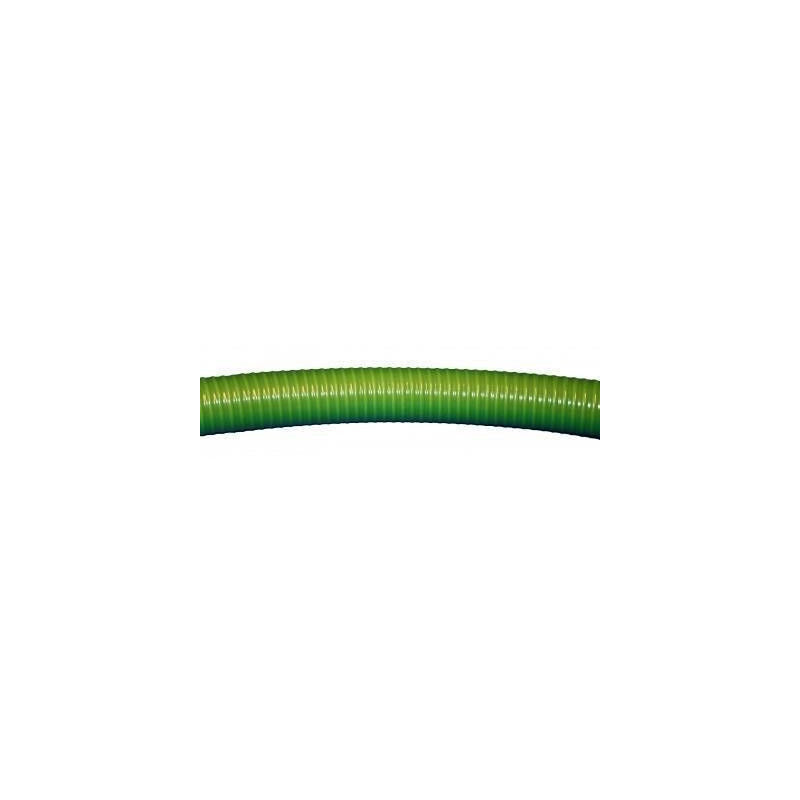

This medium-duty reinforced PVC hose is supplied in cut lengths for compatible pump suction and water-delivery applications. A rigid helix helps the hose resist collapse under suction while retaining flexibility for routing.

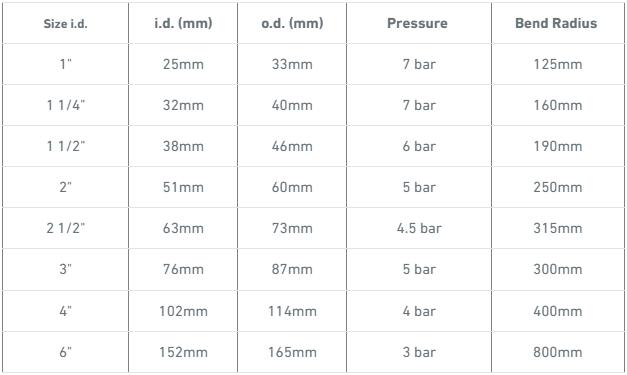

Sizes and lengths

• 25 mm (1-inch): 10 m, 20 m or 30 m
• 32 mm (1¼-inch): 10 m, 20 m or 30 m
• 38 mm (1½-inch): 10 m, 20 m or 30 m
• 51 mm (2-inch): 10 m, 20 m or 30 m

Select by internal diameter and length. Connections are not specified as included. Before ordering, confirm the hose working pressure, vacuum rating, bend radius, temperature range and compatibility with the liquid and pump duty. Secure each end with fittings and clamps rated for the application, then test for air leaks on suction installations.
