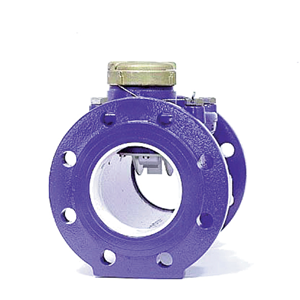

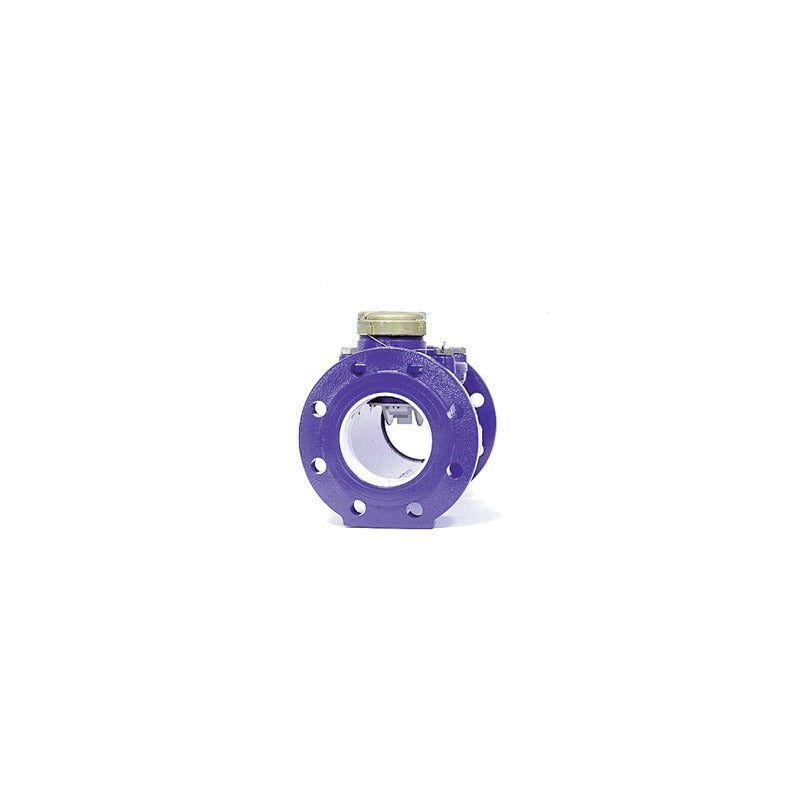

Water Meter Flanged Face DN80 and DN100
Regular price
Sale price
£379.28
Regular price
£448.00
Shipping calculated at checkout.
The Arad IRT is a flanged irrigation water meter designed for agricultural, irrigation and sewage-water applications. Its free water passage is intended to handle suspended impurities with low head loss.
Available sizes
- DN80 PN16 IRT/ISO: 230 mm body length, 16.5 kg, maximum flow 150 m³/h
- DN100 PN16 IRT/ISO: 250 mm body length, 19 kg, maximum flow 250 m³/h
Technical details
- Maximum working pressure: 16 bar
- Water temperature range: 0.1°C to 60°C
- Polyester-coated cast-iron body
- Hermetically sealed register with glass lens
- Field-replaceable measuring unit
Installation guidance
Select the DN size and PN16 ISO flange drilling to suit the pipeline. Arad permits installation in any position, provided the meter remains completely full of water. Flush the line before installation and provide straight pipe of the same diameter for at least 10 pipe diameters upstream and 5 downstream.
