Enduramaxx Large Vertical Water Tanks
Out of stock

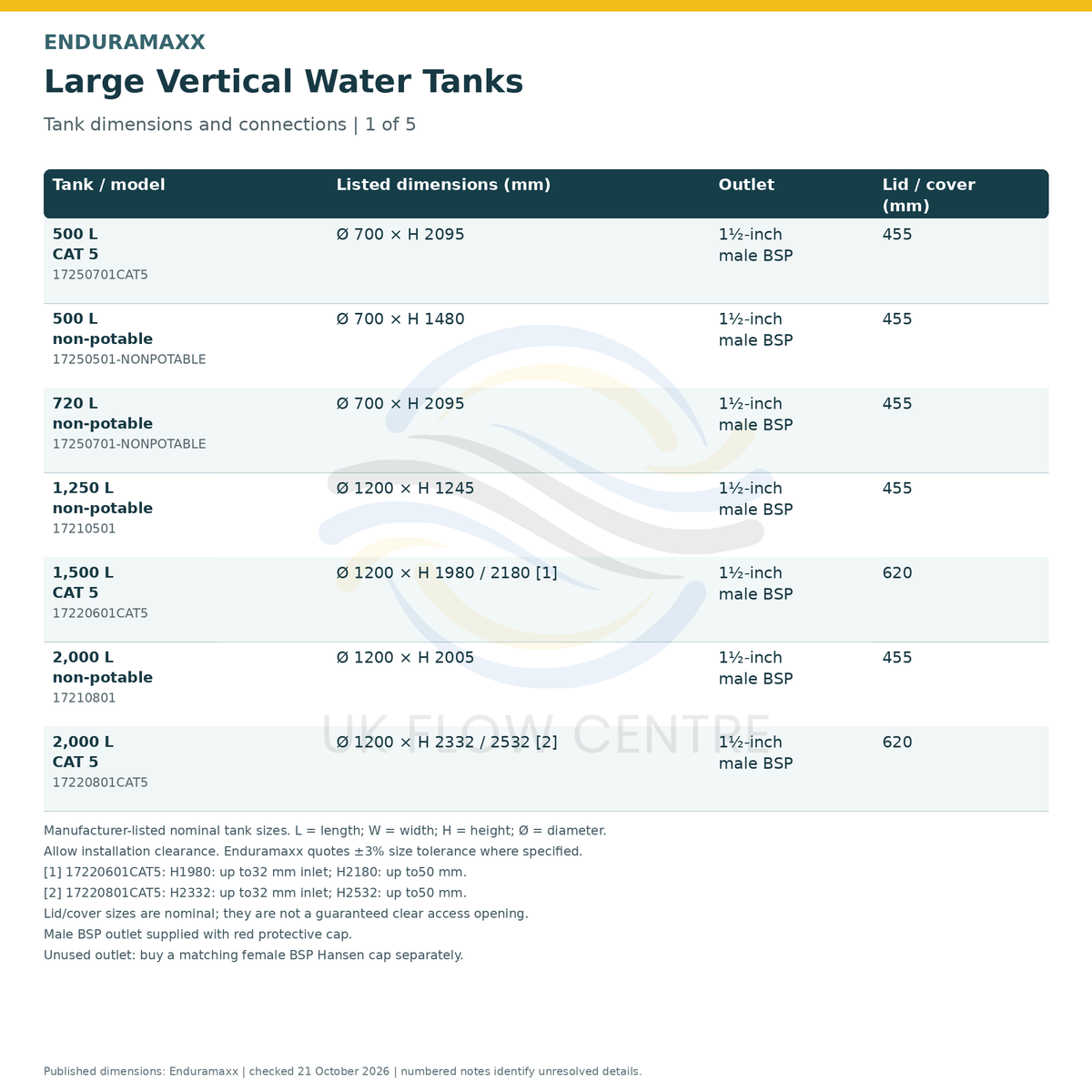

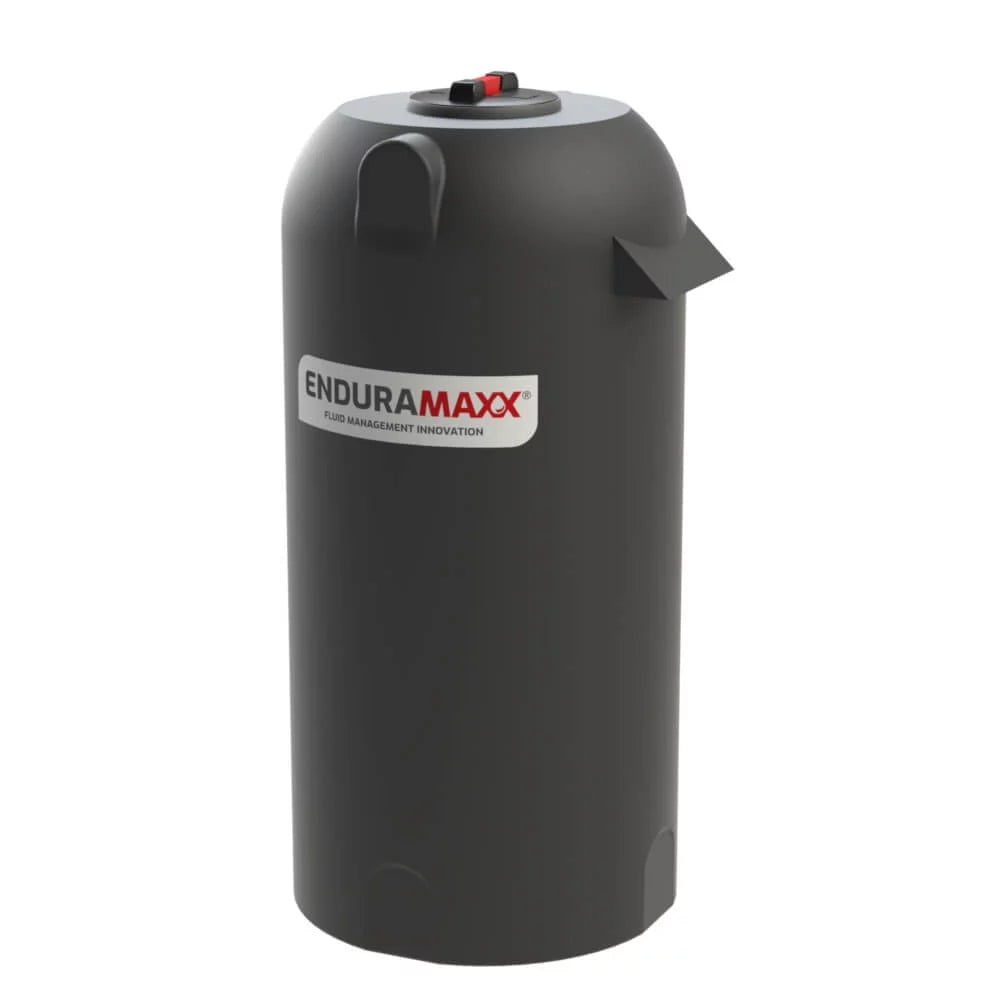

Selected tank: 500 L · CAT 5 · Ø700
- Model / SKU
- 17250701CAT5
- Nominal capacity
- 500 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 700 × H 2095 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 1½-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 455 mm nominal lid diameter; non-vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Up to 25 mm, manufacturer-listed; confirm complete inlet and overflow arrangement

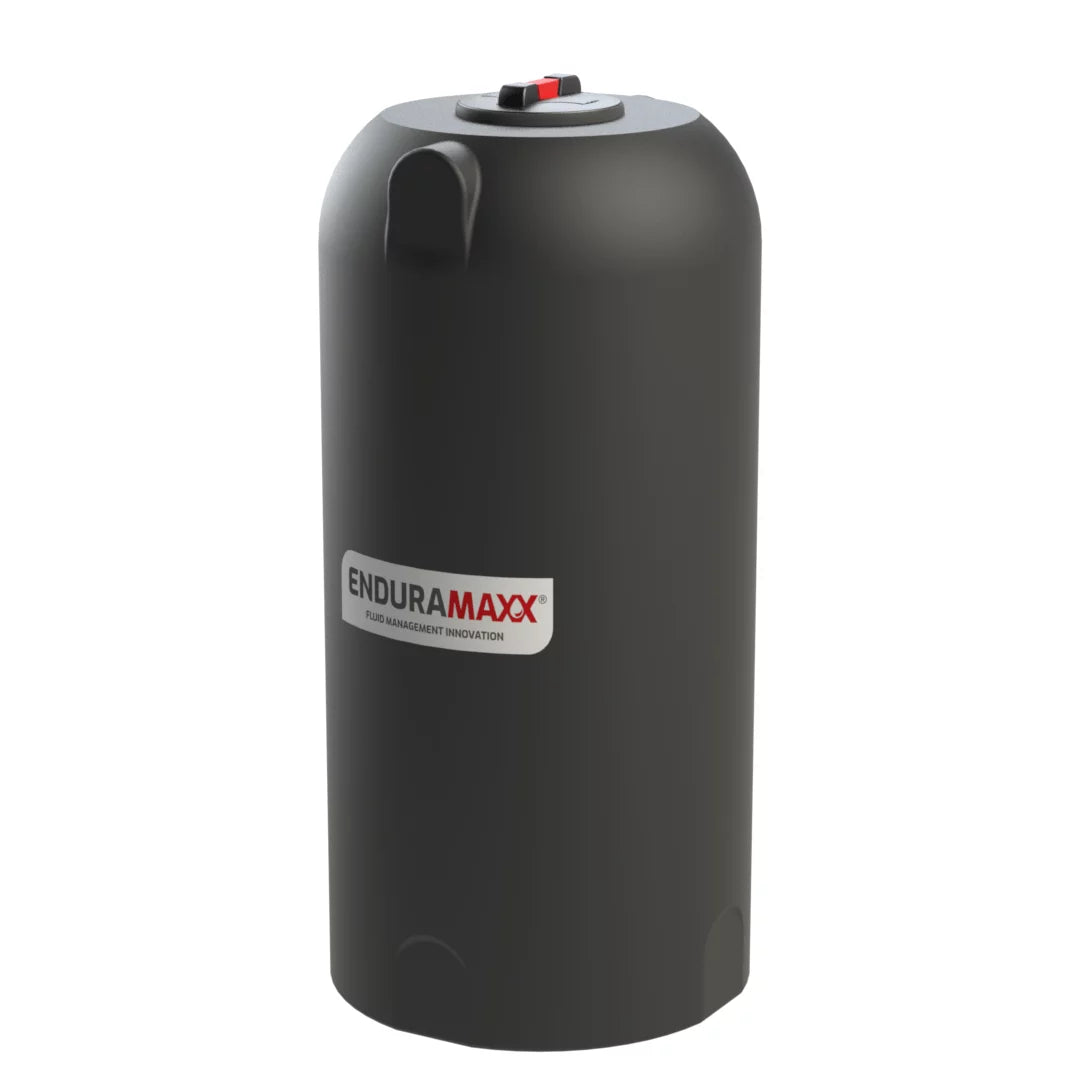

Selected tank: 500 L · non-potable · Ø700
- Model / SKU
- 17250501-NONPOTABLE
- Nominal capacity
- 500 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 700 × H 1480 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 1½-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 455 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

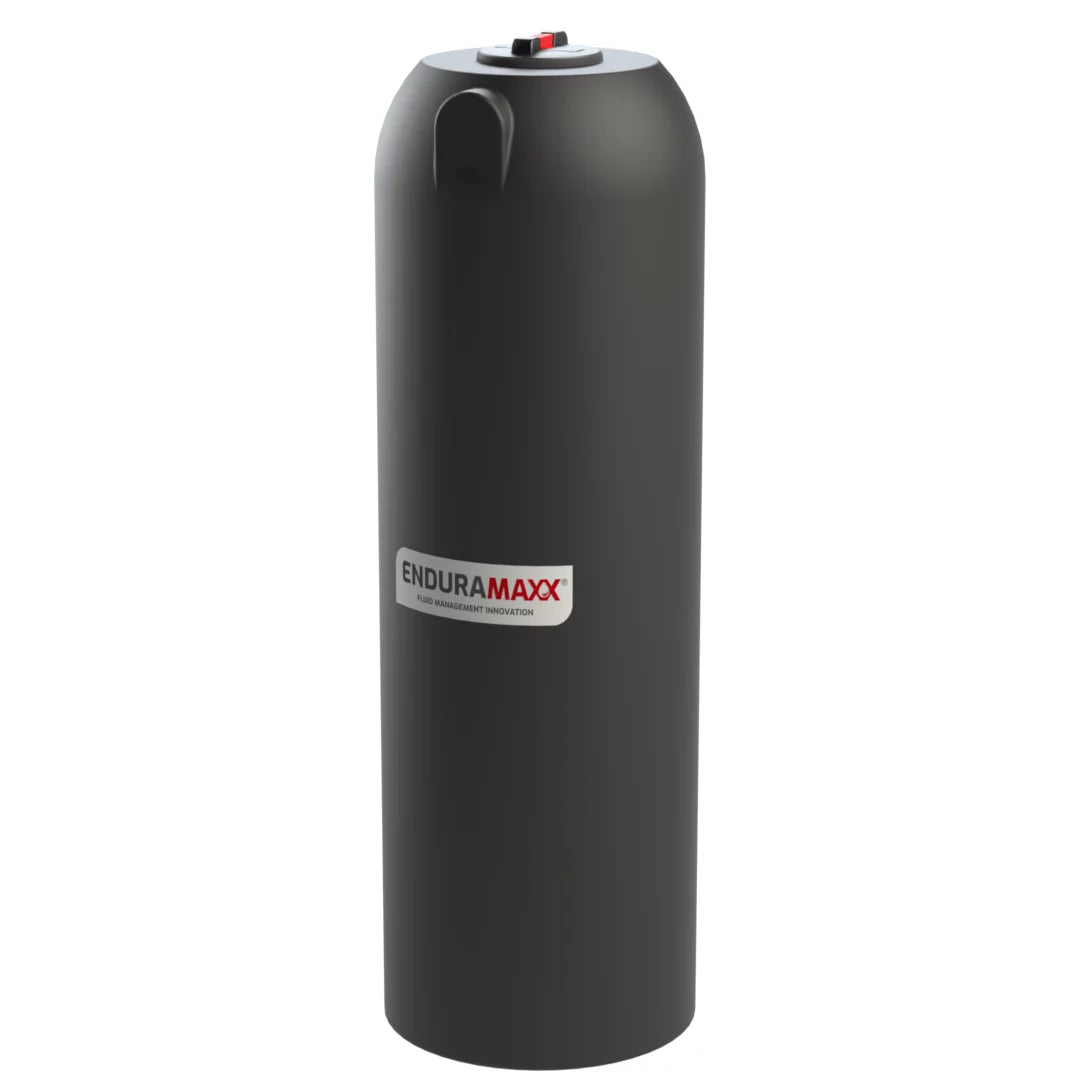

Selected tank: 720 L · non-potable · Ø700
- Model / SKU
- 17250701-NONPOTABLE
- Nominal capacity
- 720 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 700 × H 2095 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 1½-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 455 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

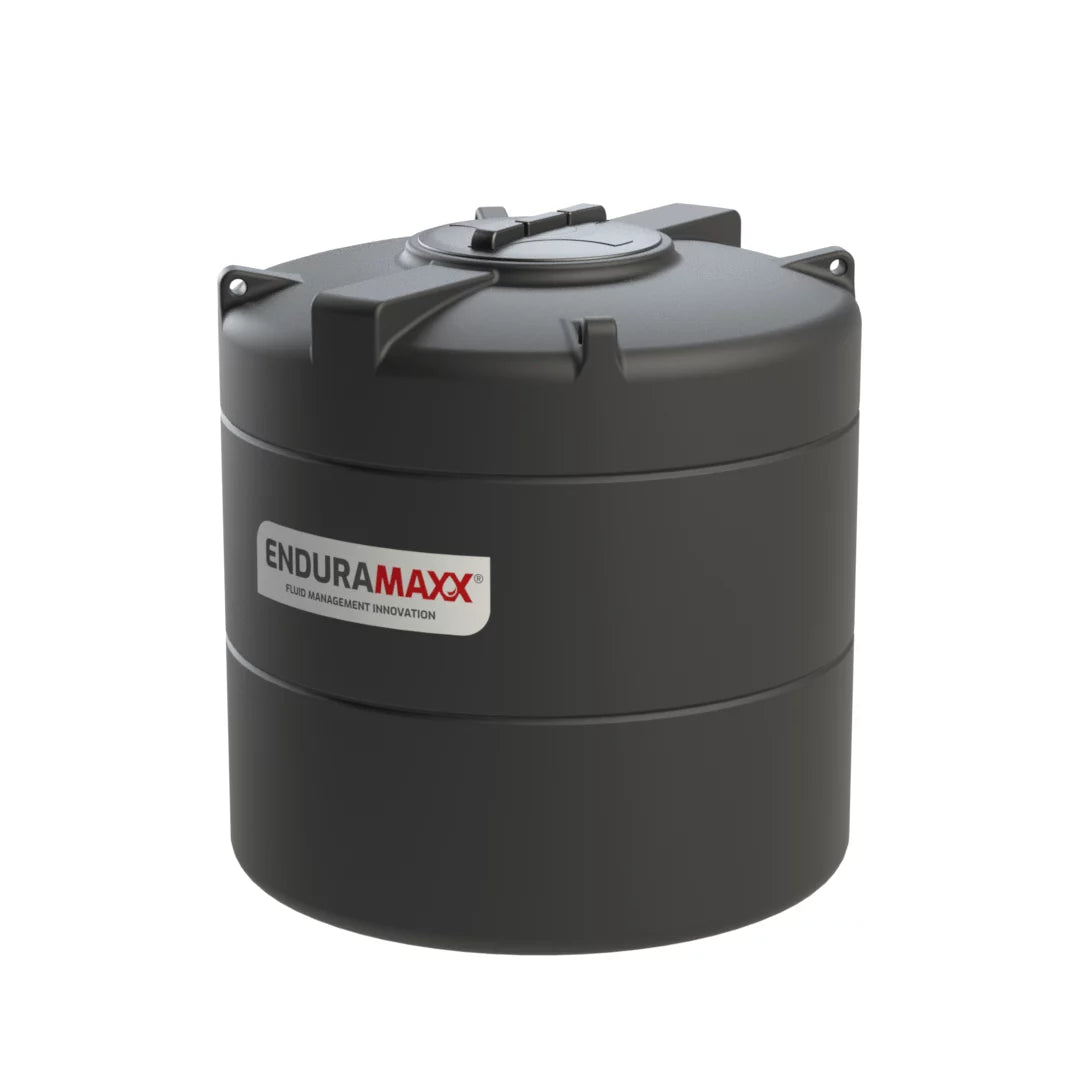

Selected tank: 1,250 L · non-potable · Ø1200
- Model / SKU
- 17210501
- Nominal capacity
- 1,250 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 1200 × H 1245 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 1½-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 455 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
Selected tank: 1,500 L · CAT 5 · Ø1200
- Model / SKU
- 17220601CAT5
- Nominal capacity
- 1,500 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 1200 × H 1980 / 2180 mm (height depends on inlet option)
- Discharge / outlet
- 1½-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Up to 32 mm or up to 50 mm; confirm supplied inlet option before ordering
H1980 mm for an inlet up to 32 mm; H2180 mm for an inlet up to 50 mm. Select the required inlet/weir configuration.

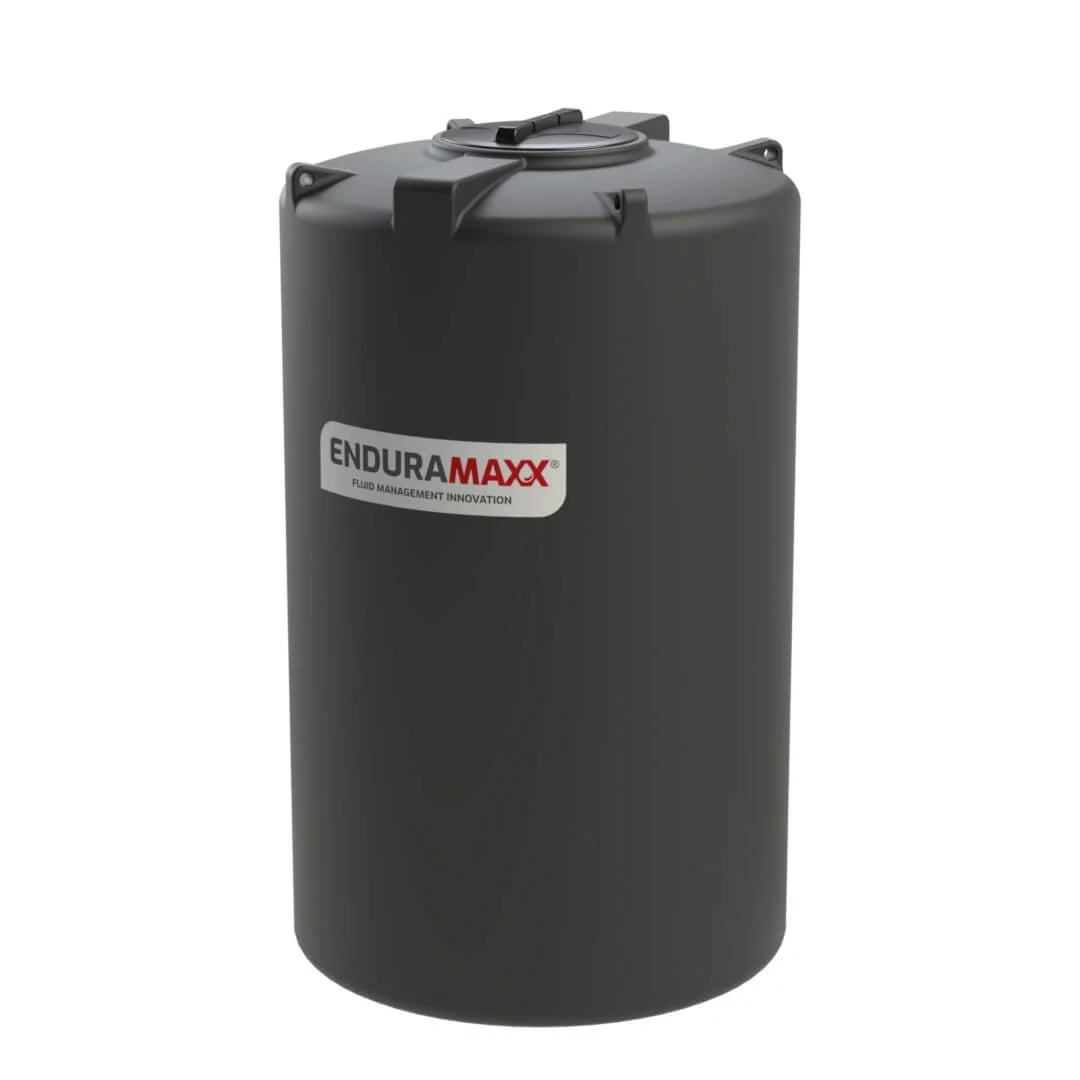

Selected tank: 2,000 L · non-potable · Ø1200
- Model / SKU
- 17210801
- Nominal capacity
- 2,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 1200 × H 2005 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 1½-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 455 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
Selected tank: 2,000 L · CAT 5 · Ø1200
- Model / SKU
- 17220801CAT5
- Nominal capacity
- 2,000 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 1200 × H 2332 / 2532 mm (height depends on inlet option)
- Discharge / outlet
- 1½-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Up to 32 mm or up to 50 mm; confirm supplied inlet option before ordering
H2332 mm for an inlet up to 32 mm; H2532 mm for an inlet up to 50 mm. Select the required inlet/weir configuration.

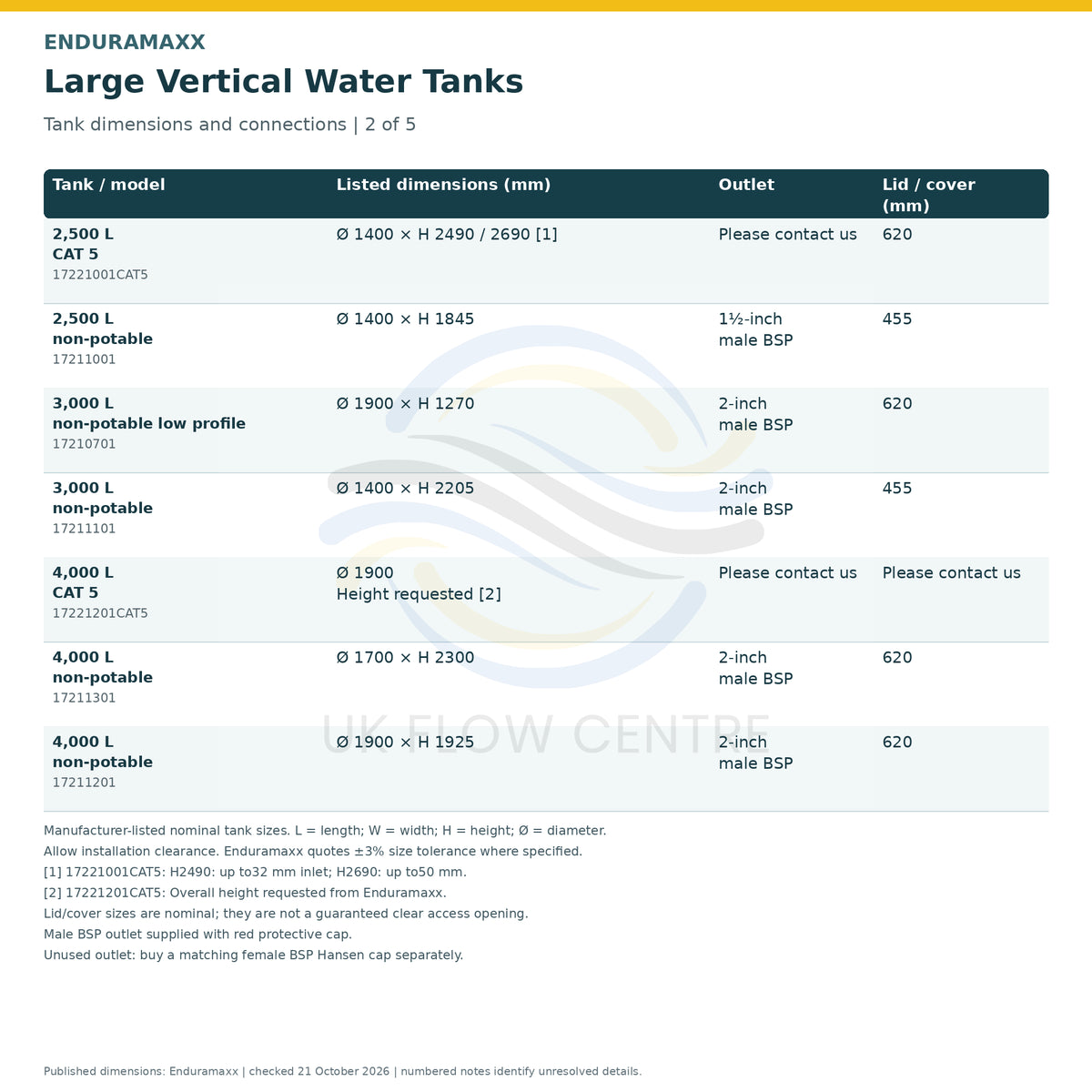

Selected tank: 2,500 L · CAT 5 · Ø1400
- Model / SKU
- 17221001CAT5
- Nominal capacity
- 2,500 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 1400 × H 2490 / 2690 mm (height depends on inlet option)
- Discharge / outlet
- Confirm before ordering: manufacturer page states both 1½-inch and 2-inch.
- Included lid
- 620 mm nominal lid diameter
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Confirm permitted inlet size and weir configuration for the supplied tank
H2490 mm for an inlet up to 32 mm; H2690 mm for an inlet up to 50 mm. Select the required inlet/weir configuration.
The manufacturer's feature list specifies a 1½-inch outlet, while its specification table specifies 2 inches. Please contact us to confirm the fitted connector before selecting pipework.

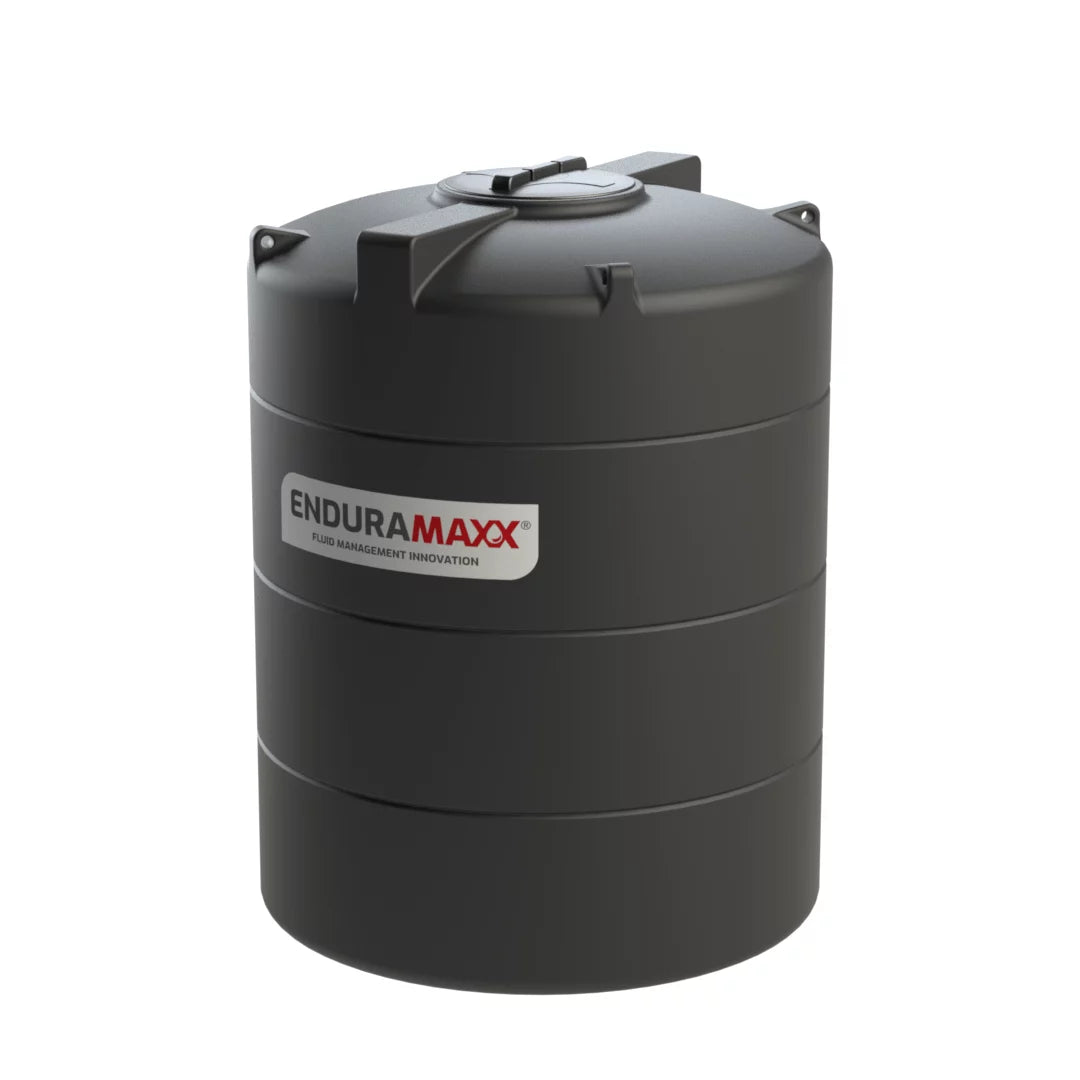

Selected tank: 2,500 L · non-potable · Ø1400
- Model / SKU
- 17211001
- Nominal capacity
- 2,500 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 1400 × H 1845 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 1½-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 455 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

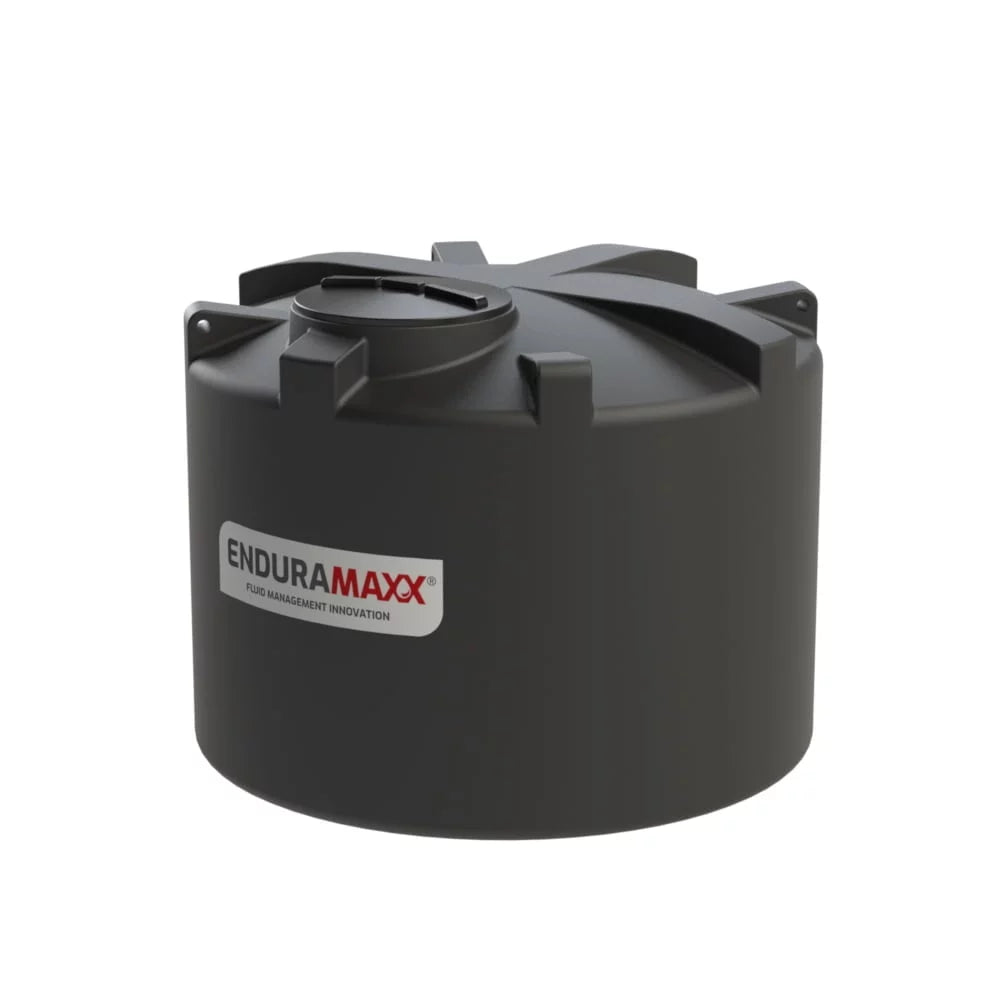

Selected tank: 3,000 L · non-potable low profile · Ø1900
- Model / SKU
- 17210701
- Nominal capacity
- 3,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 1900 × H 1270 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

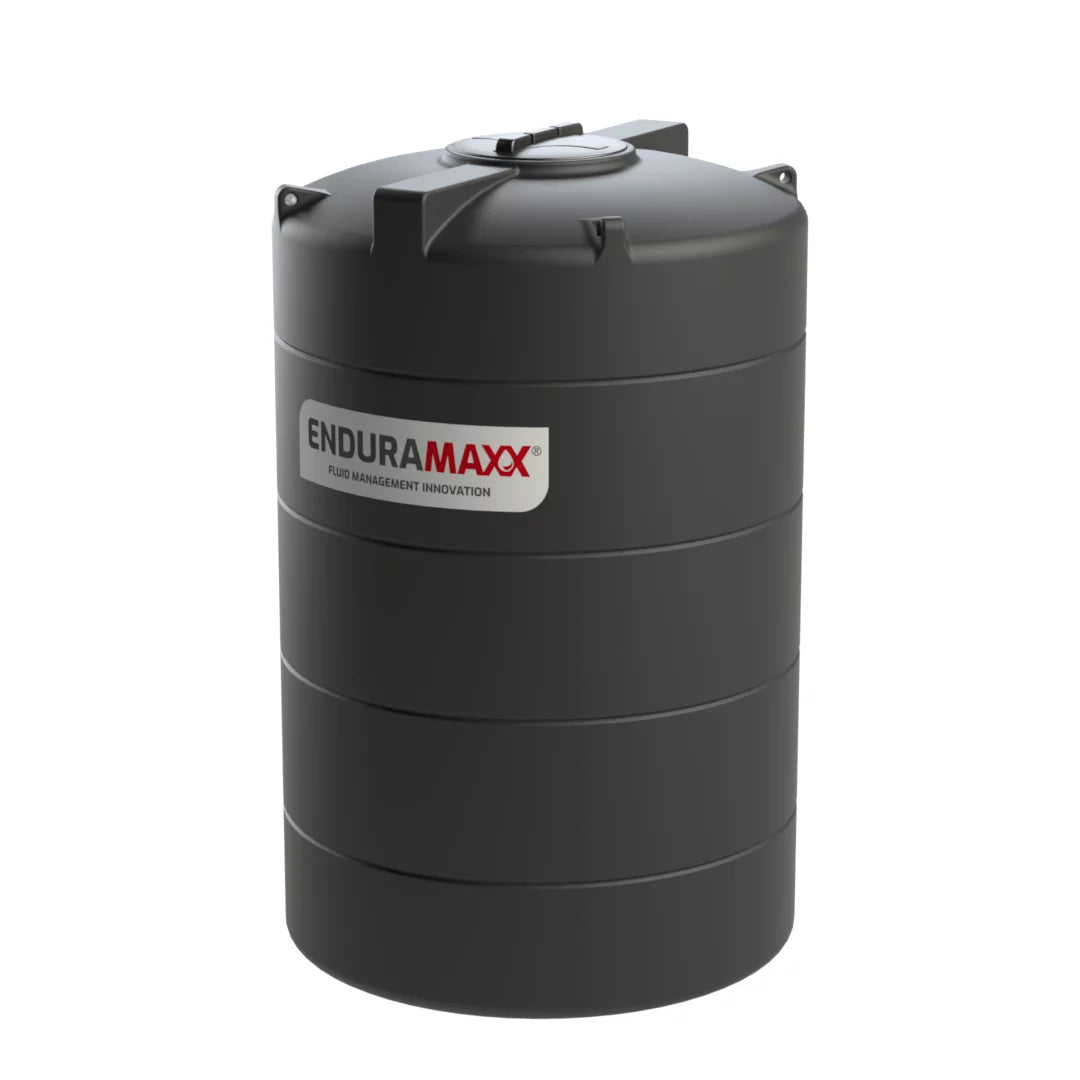

Selected tank: 3,000 L · non-potable · Ø1400
- Model / SKU
- 17211101
- Nominal capacity
- 3,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 1400 × H 2205 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 455 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
Selected tank: 4,000 L · CAT 5 · Ø1900
- Model / SKU
- 17221201CAT5
- Nominal capacity
- 4,000 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 1900 mm; overall height awaiting manufacturer
- Discharge / outlet
- 2-inch BSP outlet (existing catalogue; confirm supplied fitting)
- Included lid
- 620 mm nominal lid diameter
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Confirm permitted inlet size and weir configuration for the supplied tank
1900 mm diameter identifies the option in this listing. No exact current overall-height specification for 17221201CAT5 was found. Do not substitute the standard 4,000 L tank height for the CAT 5 tank.

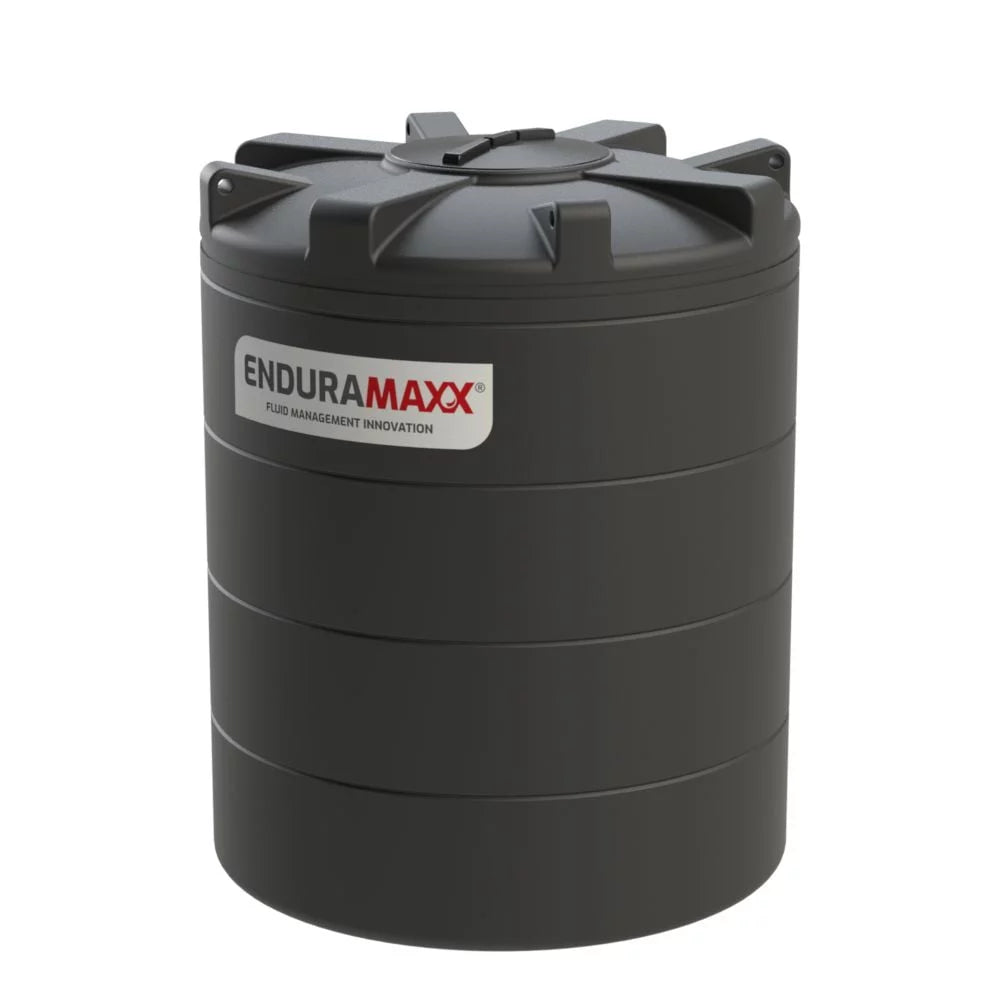

Selected tank: 4,000 L · non-potable · Ø1700
- Model / SKU
- 17211301
- Nominal capacity
- 4,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 1700 × H 2300 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

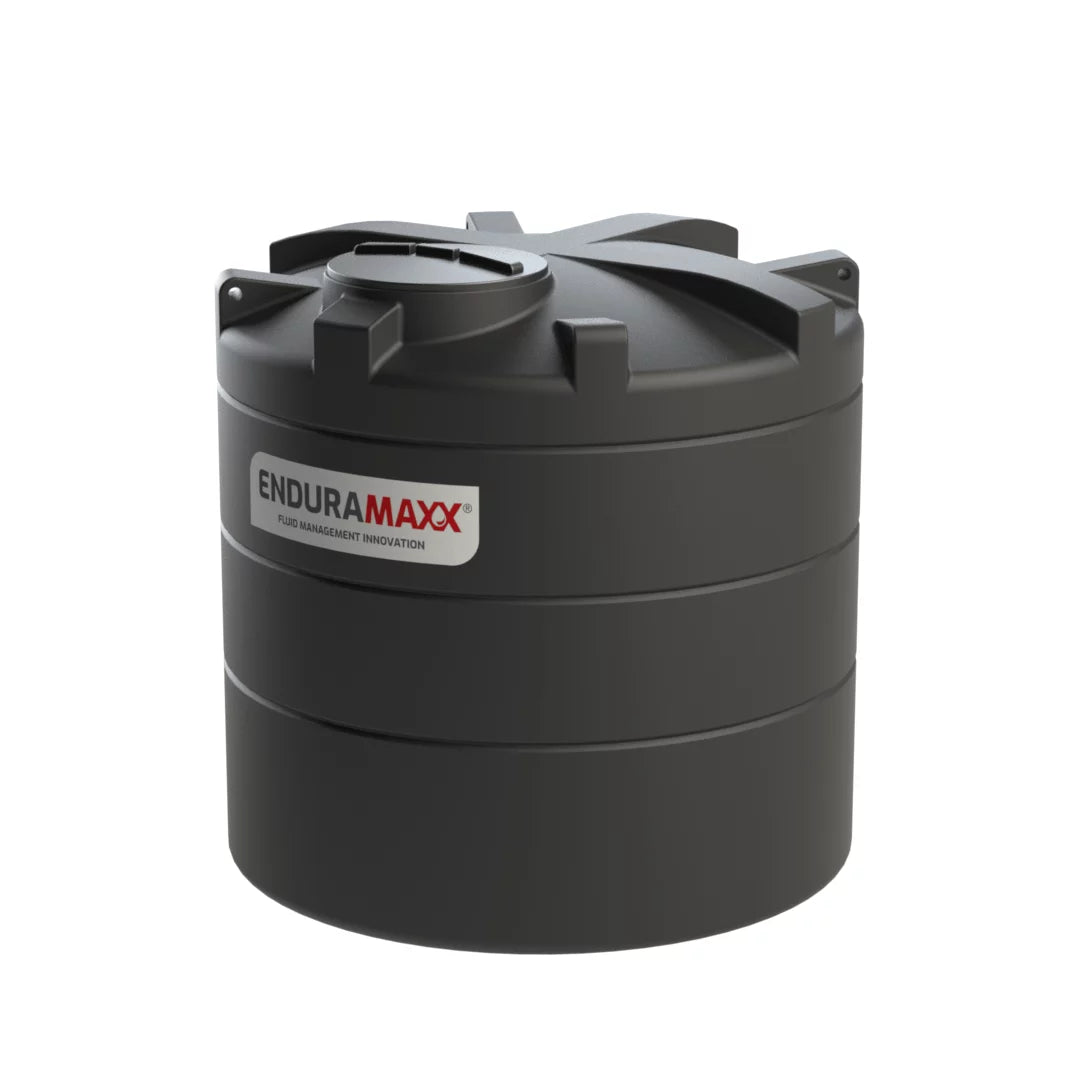

Selected tank: 4,000 L · non-potable · Ø1900
- Model / SKU
- 17211201
- Nominal capacity
- 4,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 1900 × H 1925 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

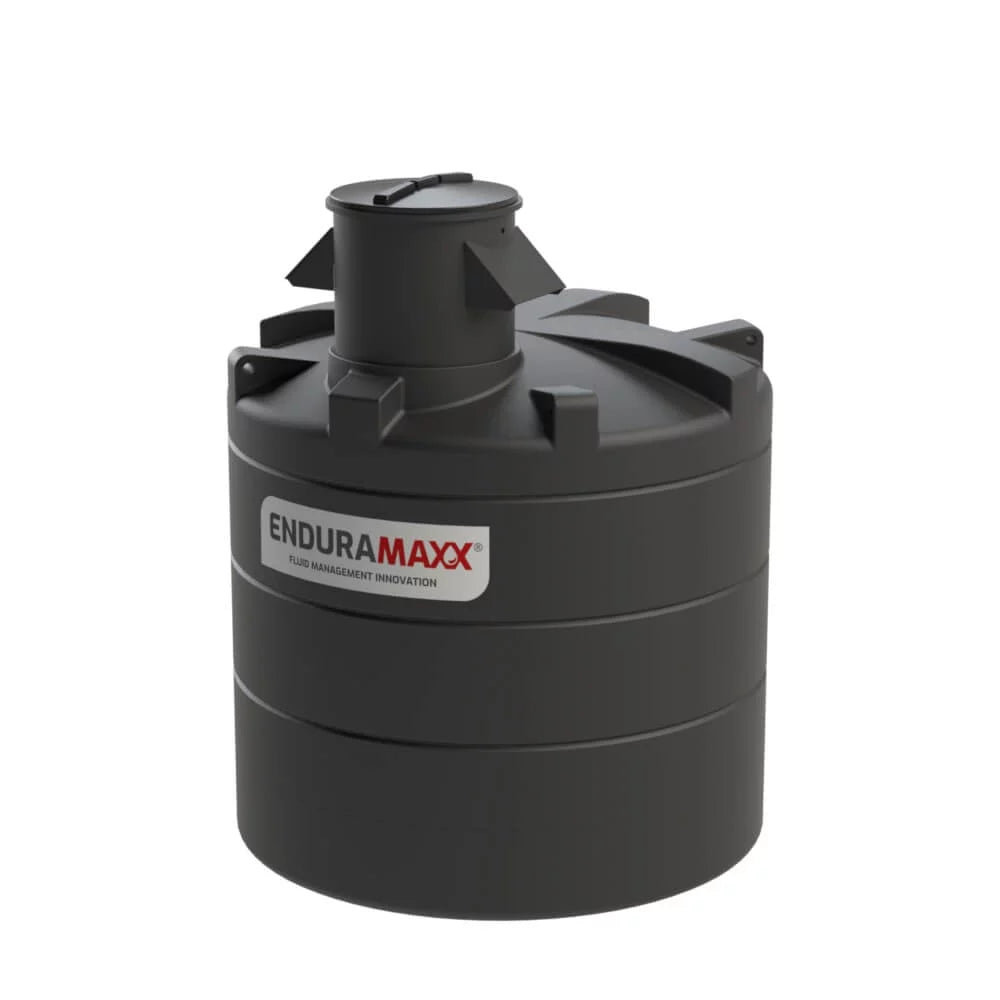

Selected tank: 5,000 L · CAT 5 · Ø1900
- Model / SKU
- 17221501CAT5
- Nominal capacity
- 5,000 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 1900 × H 2800 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; non-vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Confirm permitted inlet size and weir configuration for the supplied tank

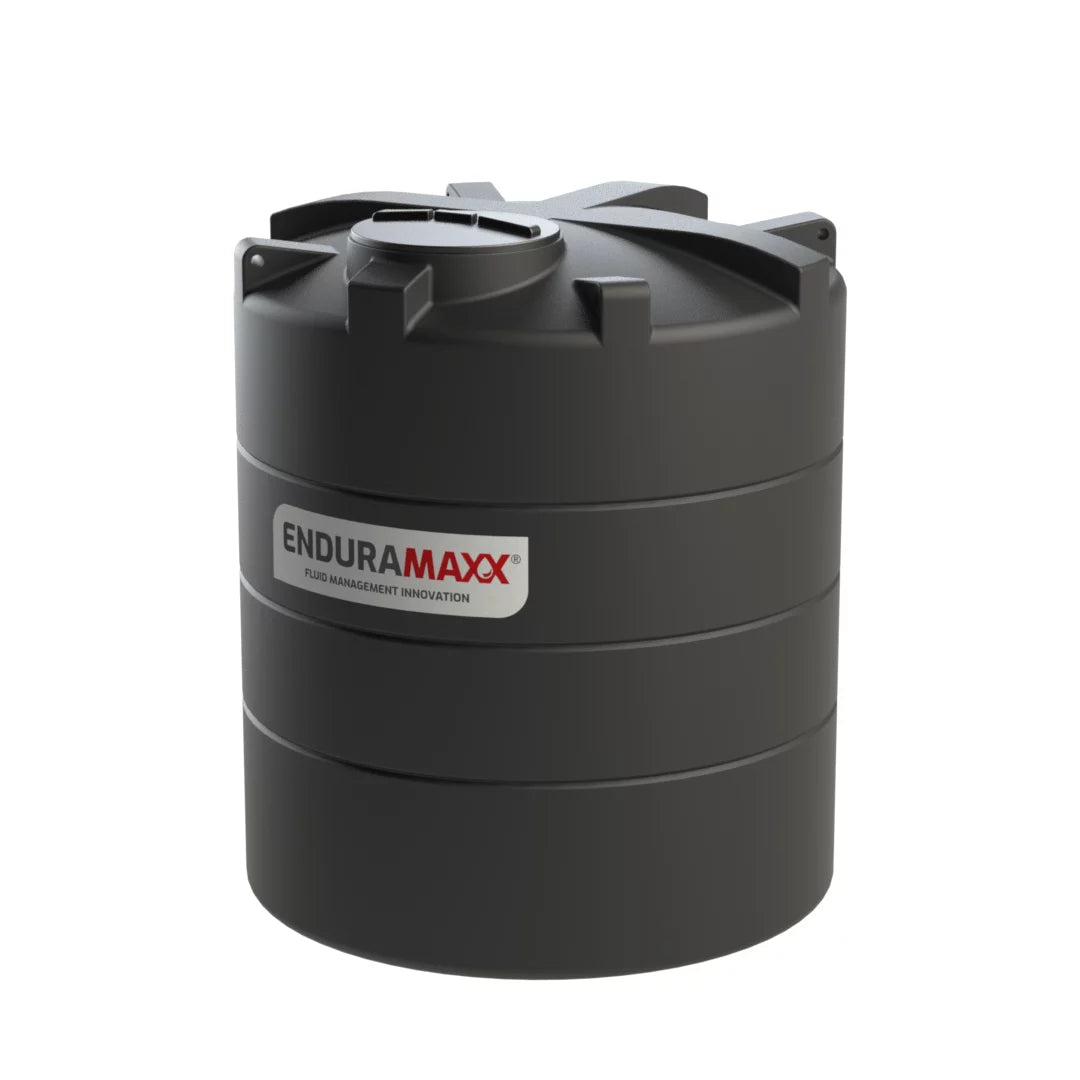

Selected tank: 5,000 L · non-potable · Ø1900
- Model / SKU
- 17211501
- Nominal capacity
- 5,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 1900 × H 2270 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

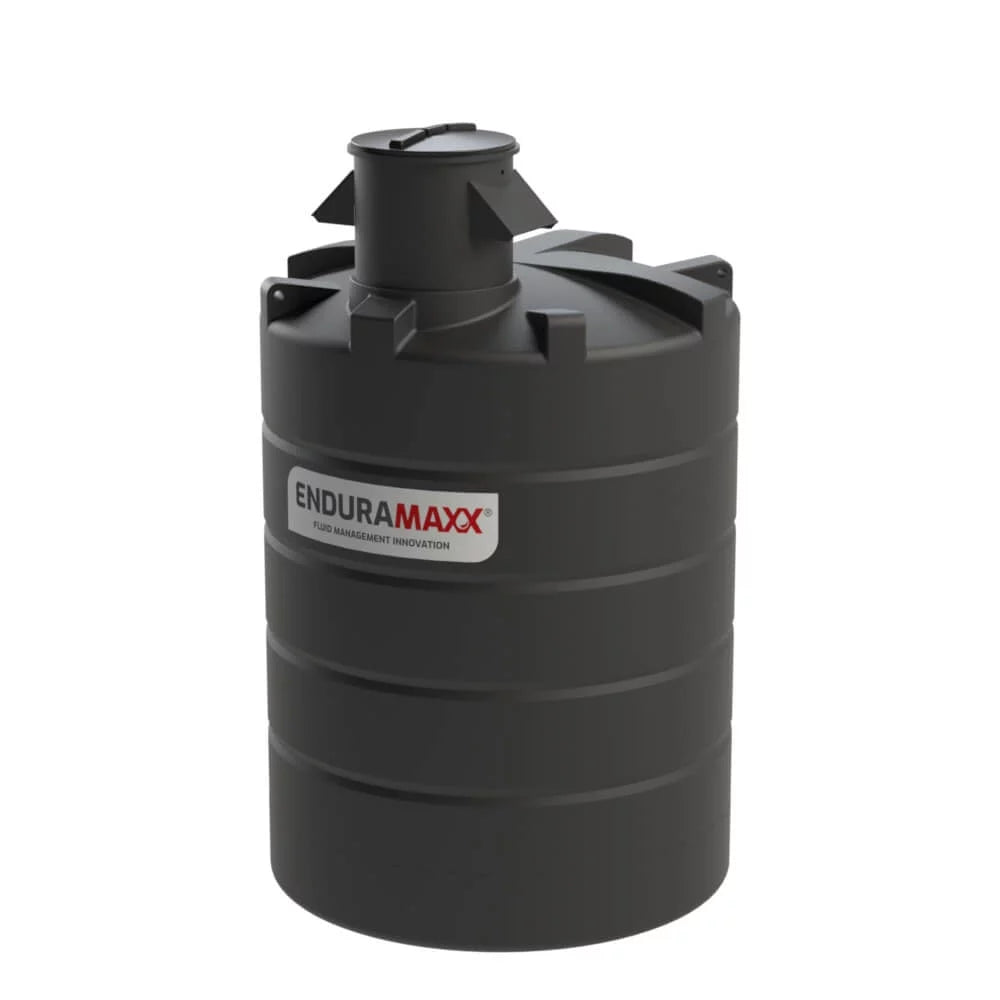

Selected tank: 6,000 L · CAT 5 · Ø1900
- Model / SKU
- 17221601CAT5
- Nominal capacity
- 6,000 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 1900 × H 3000 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; non-vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Confirm permitted inlet size and weir configuration for the supplied tank

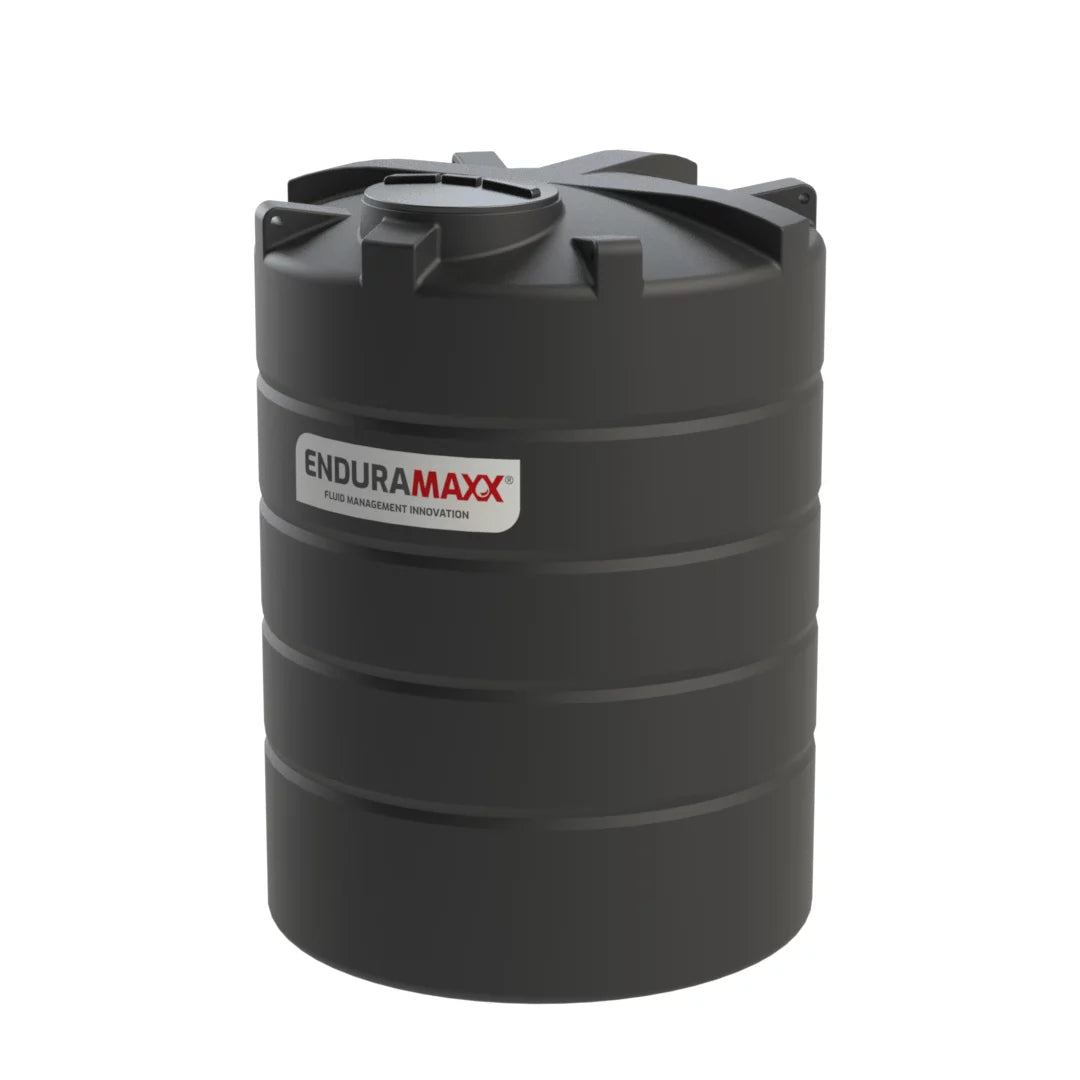

Selected tank: 6,000 L · non-potable · Ø1900
- Model / SKU
- 17211601
- Nominal capacity
- 6,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 1900 × H 2635 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

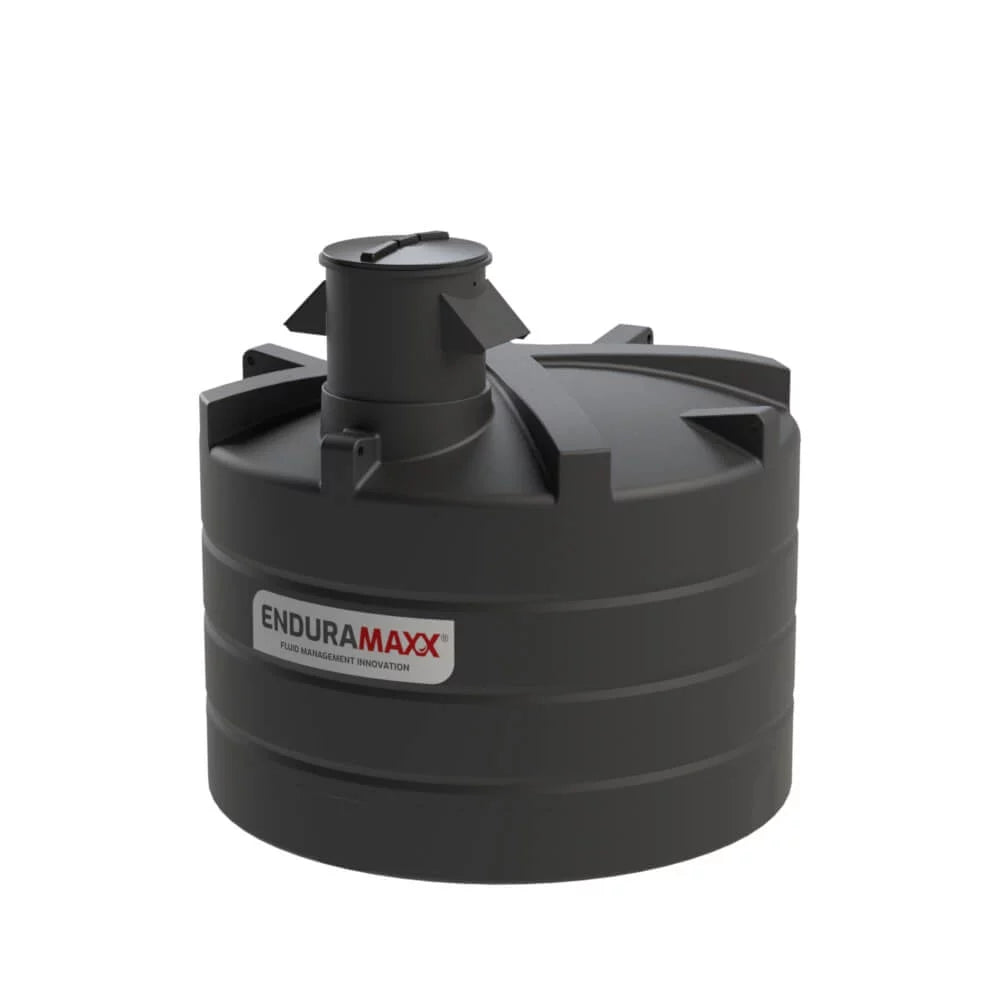

Selected tank: 7,000 L · CAT 5 · Ø2400
- Model / SKU
- 17221701CAT5
- Nominal capacity
- 7,000 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 2400 × H 2320 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; non-vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Confirm permitted inlet size and weir configuration for the supplied tank

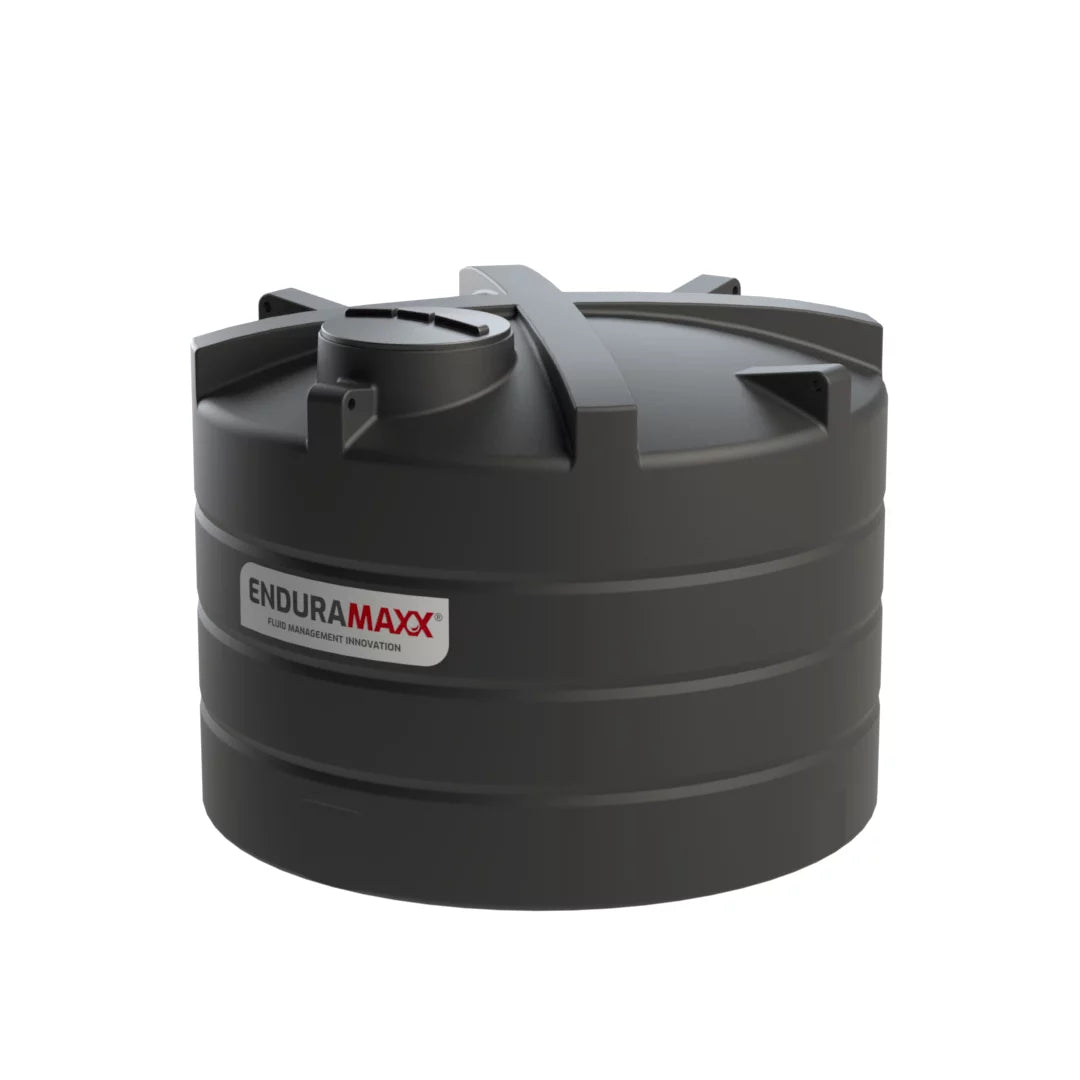

Selected tank: 7,000 L · non-potable · Ø2400
- Model / SKU
- 17211701
- Nominal capacity
- 7,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 2400 × H 1865 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

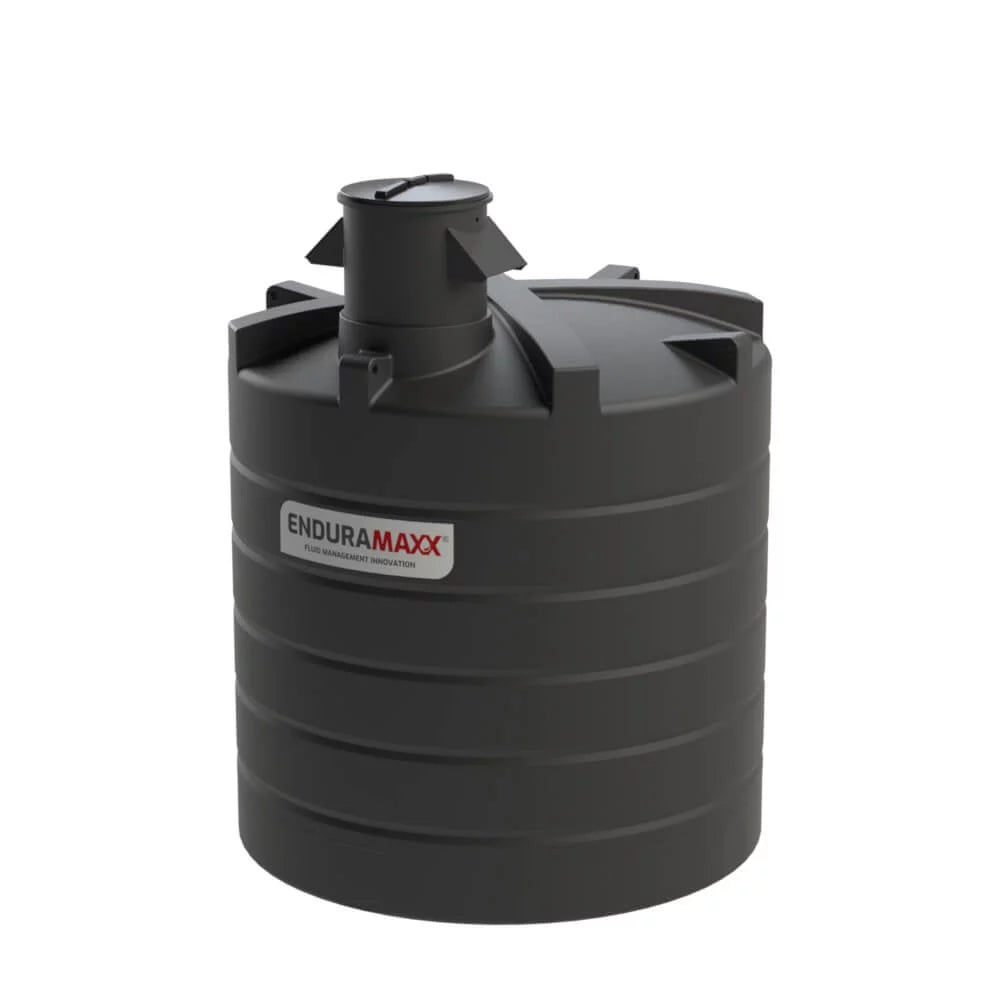

Selected tank: 10,000 L · CAT 5 · Ø2400
- Model / SKU
- 17222201CAT5
- Nominal capacity
- 10,000 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 2400 × H 3000 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; non-vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Confirm permitted inlet size and weir configuration for the supplied tank

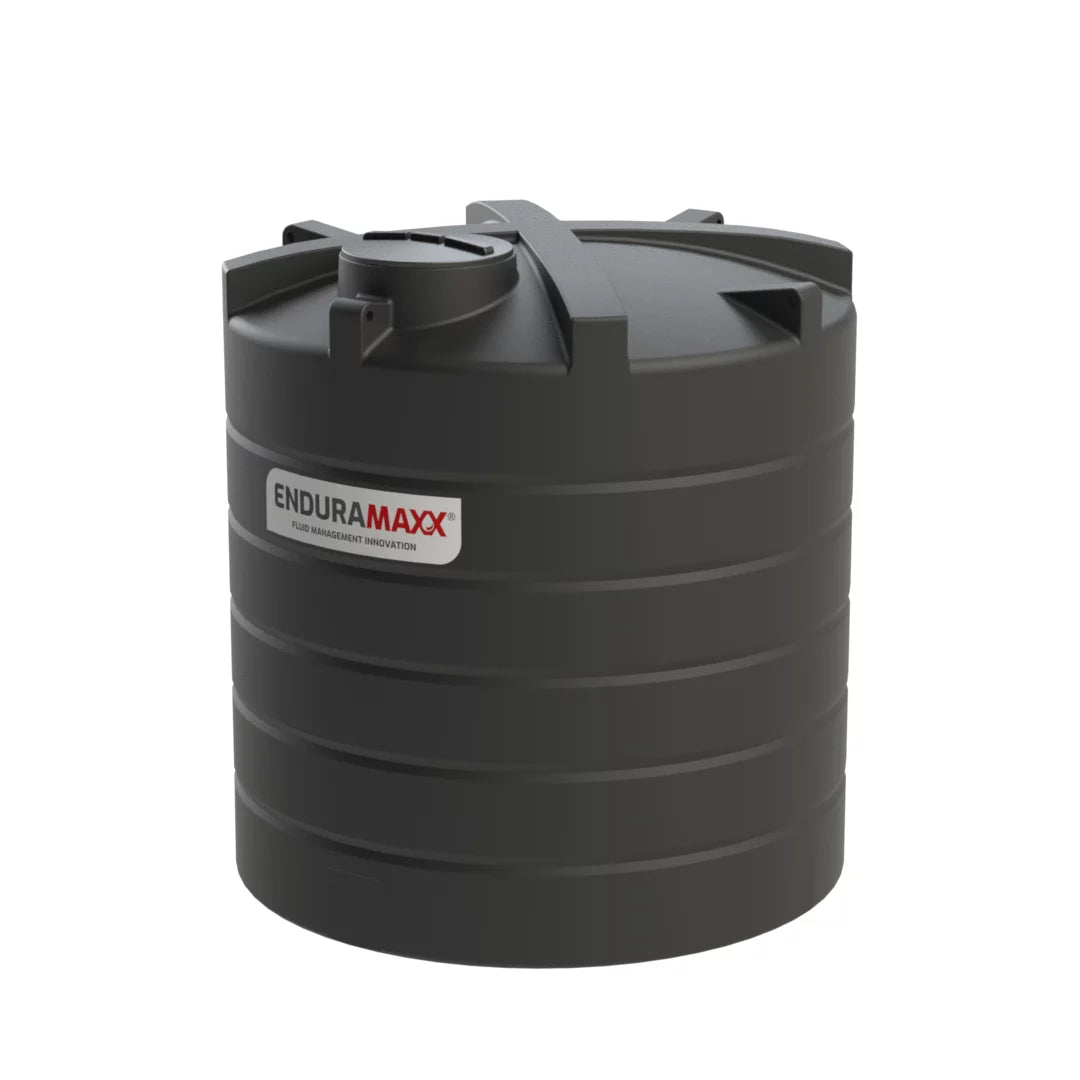

Selected tank: 10,000 L · non-potable · Ø2400
- Model / SKU
- 17212201
- Nominal capacity
- 10,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 2400 × H 2570 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
Selected tank: 12,000 L · CAT 5 · Ø2400
- Model / SKU
- 17222601CAT5
- Nominal capacity
- 12,000 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 2400 × H 3400 mm (manufacturer-listed; version confirmation required)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Confirm permitted inlet size and weir configuration for the supplied tank
The feature specification lists Ø2400 × H3400; the description table lists Ø2600 × H3350 and additional information lists 2600 × 2600 × 3400. Manufacturer confirmation is required before access/base design.

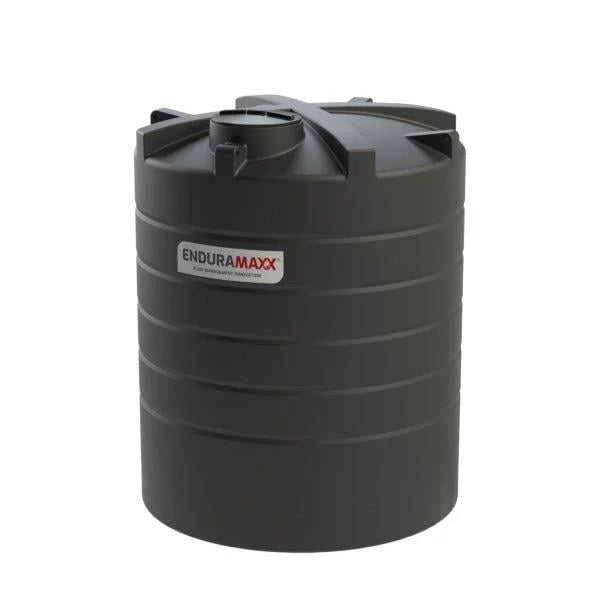

Selected tank: 12,000 L · non-potable · Ø2400
- Model / SKU
- 17212601
- Nominal capacity
- 12,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 2400 × H 2970 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

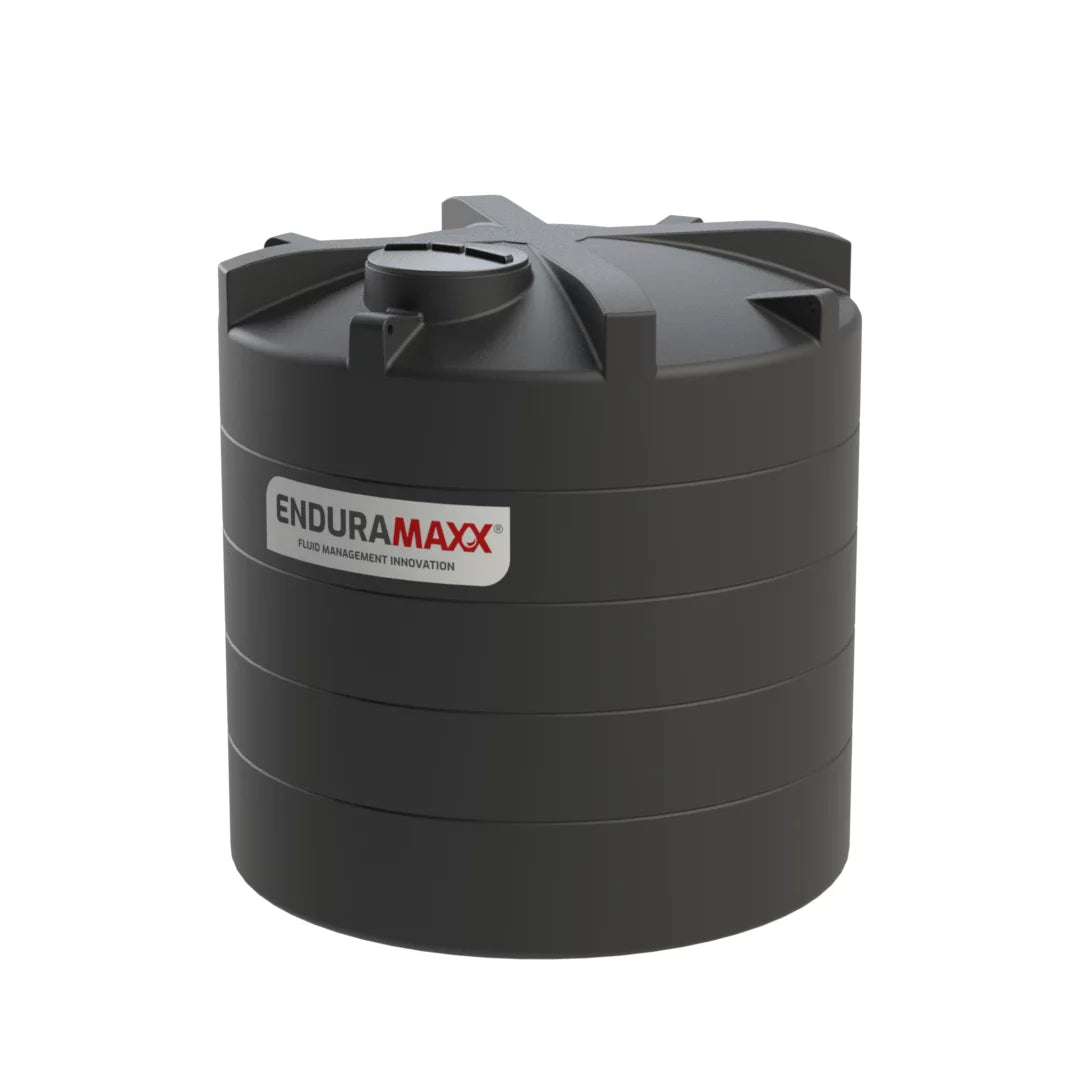

Selected tank: 12,500 L · non-potable · Ø2600
- Model / SKU
- 17212501
- Nominal capacity
- 12,500 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 2600 × H 2900 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

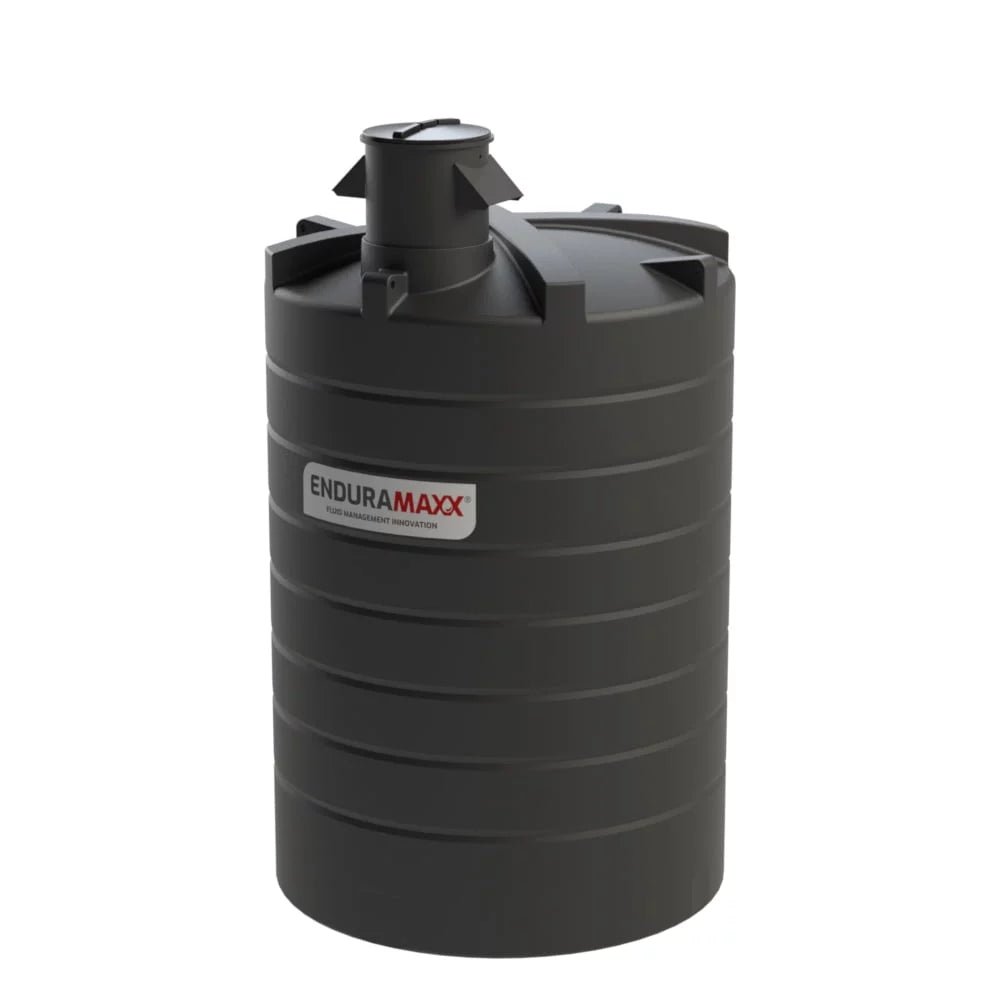

Selected tank: 15,000 L · CAT 5 · Ø2600
- Model / SKU
- 17223201CAT5
- Nominal capacity
- 15,000 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 2600 × H 3500 mm (manufacturer-listed; version confirmation required)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; non-vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Confirm permitted inlet size and weir configuration for the supplied tank
The feature specification and description list Ø2600 × H3500; the additional-information table lists 2400 × 2400 × 4050. Confirm current mould/version.

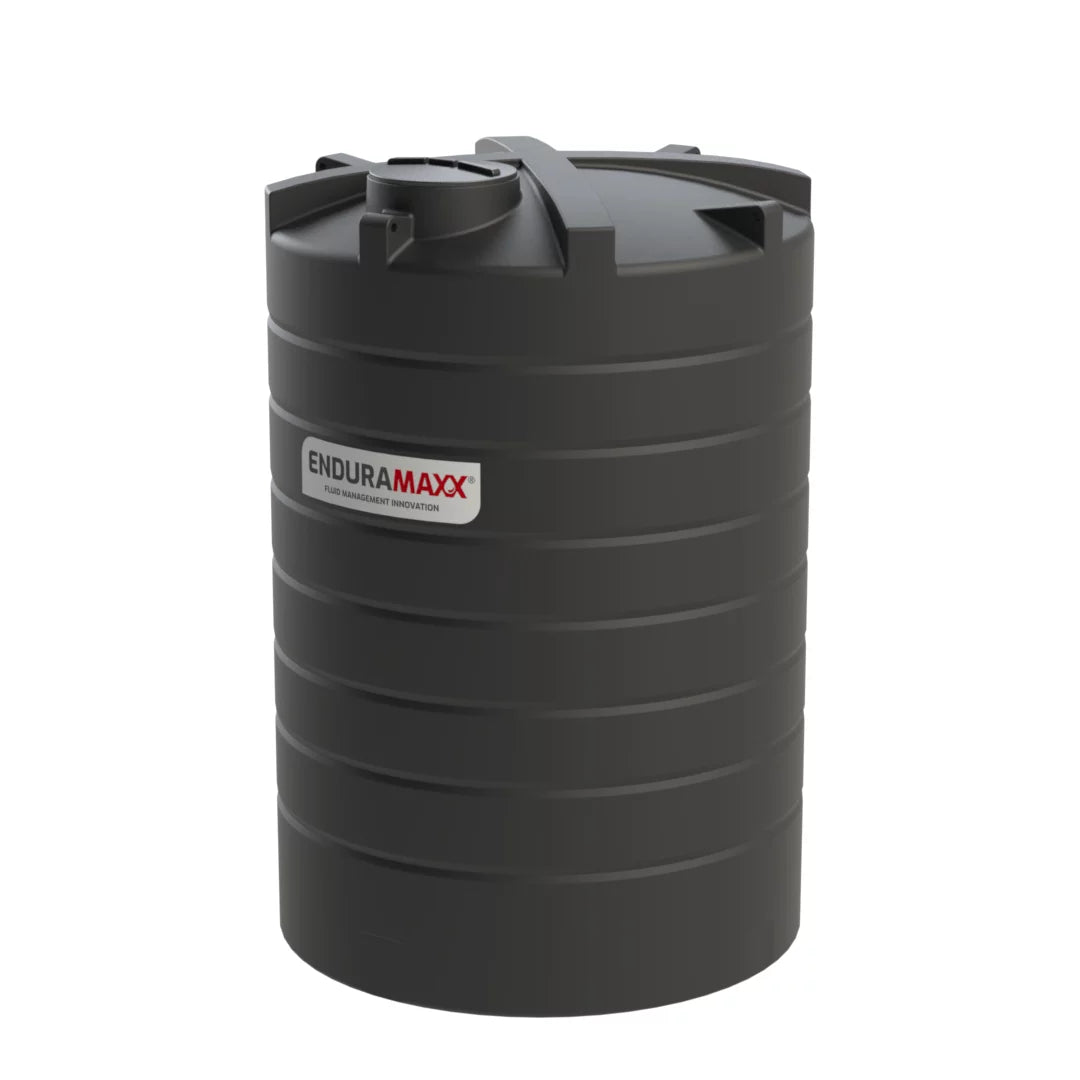

Selected tank: 15,000 L · non-potable · Ø2400
- Model / SKU
- 17212901
- Nominal capacity
- 15,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 2400 × H 3720 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
Selected tank: 15,000 L · non-potable · Ø2600
- Model / SKU
- 17213201
- Nominal capacity
- 15,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 2600 × H 3100 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

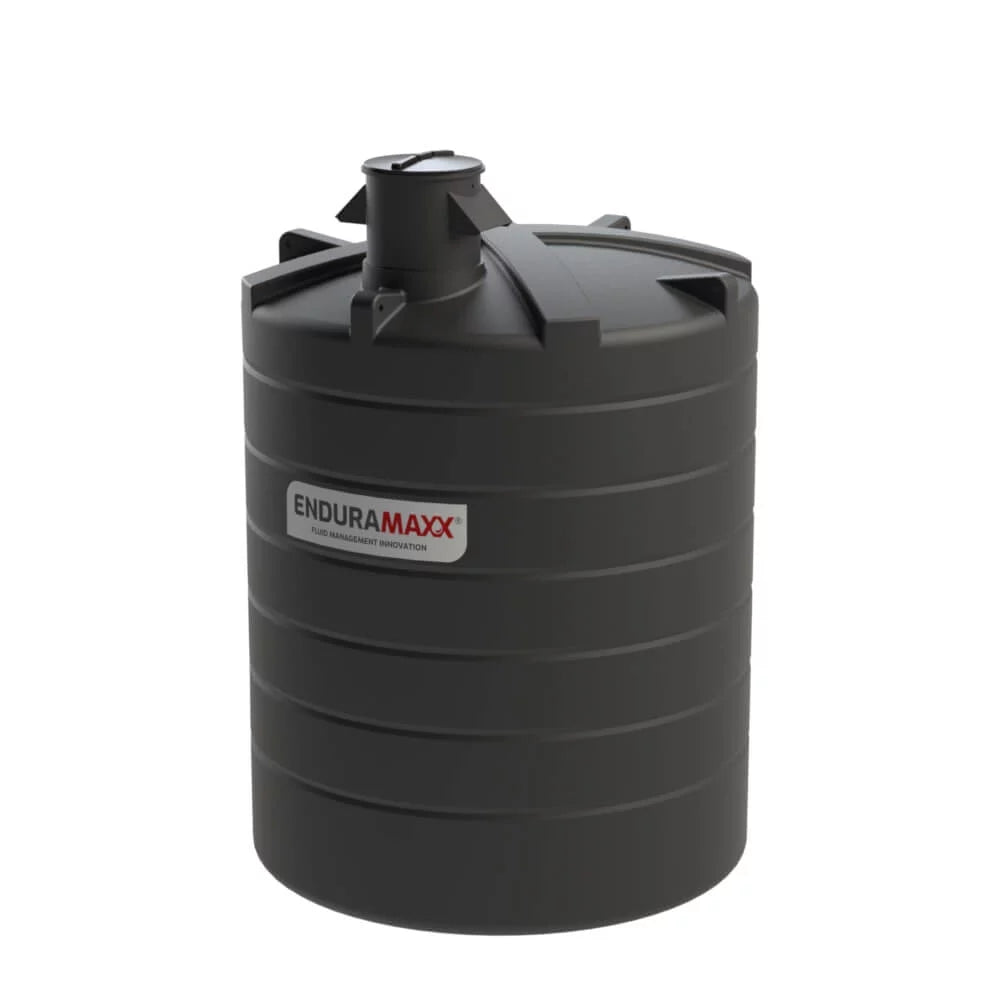

Selected tank: 20,000 L · CAT 5 · Ø2850
- Model / SKU
- 17223801CAT5
- Nominal capacity
- 20,000 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 2850 × H 4100 mm (manufacturer-listed; version confirmation required)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; non-vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Confirm permitted inlet size and weir configuration for the supplied tank
The feature specification and additional information list Ø2850 × H4100; another page table gives diameter3450. Confirm current diameter and overall height.

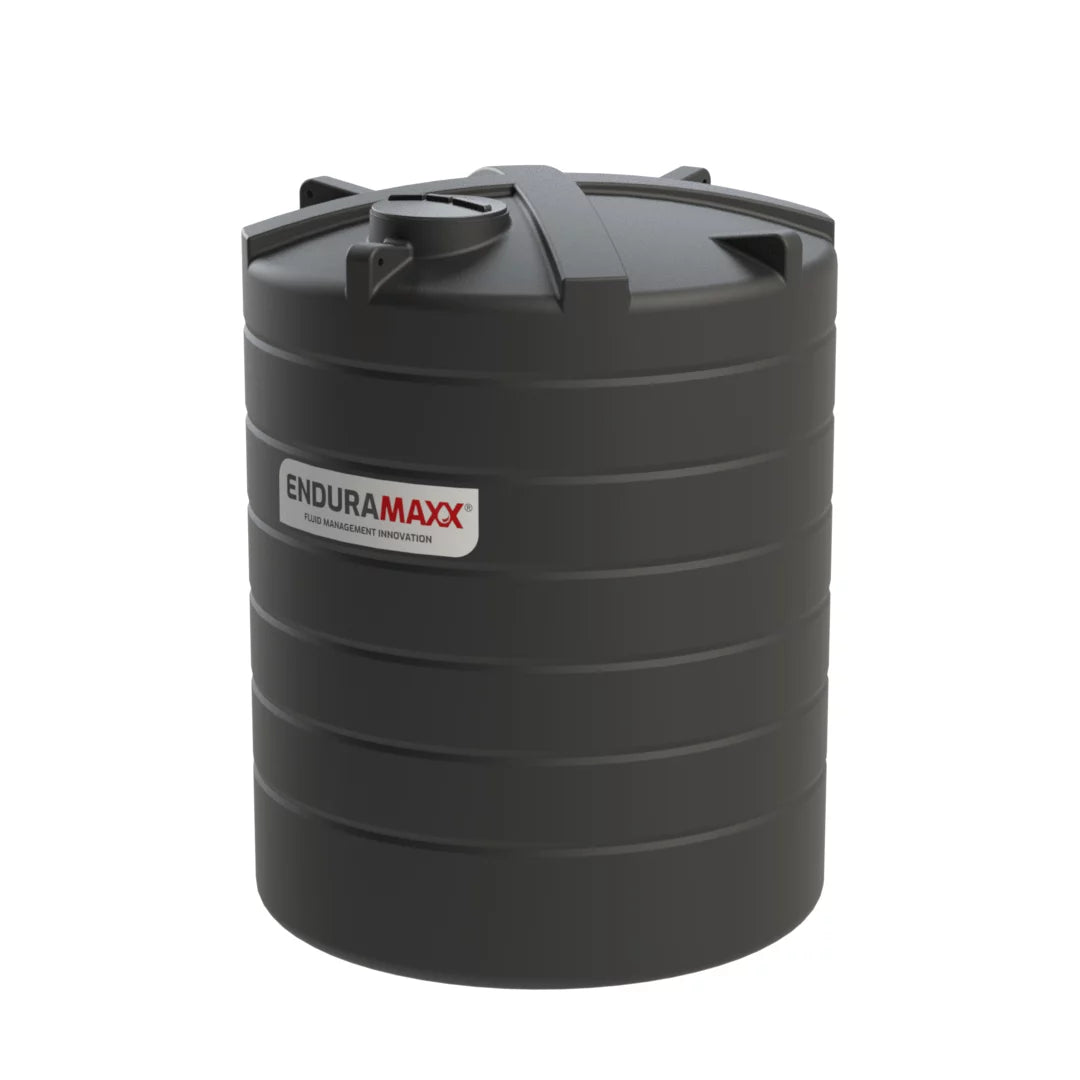

Selected tank: 20,000 L · non-potable · Ø2850
- Model / SKU
- 17213801
- Nominal capacity
- 20,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 2850 × H 3620 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.

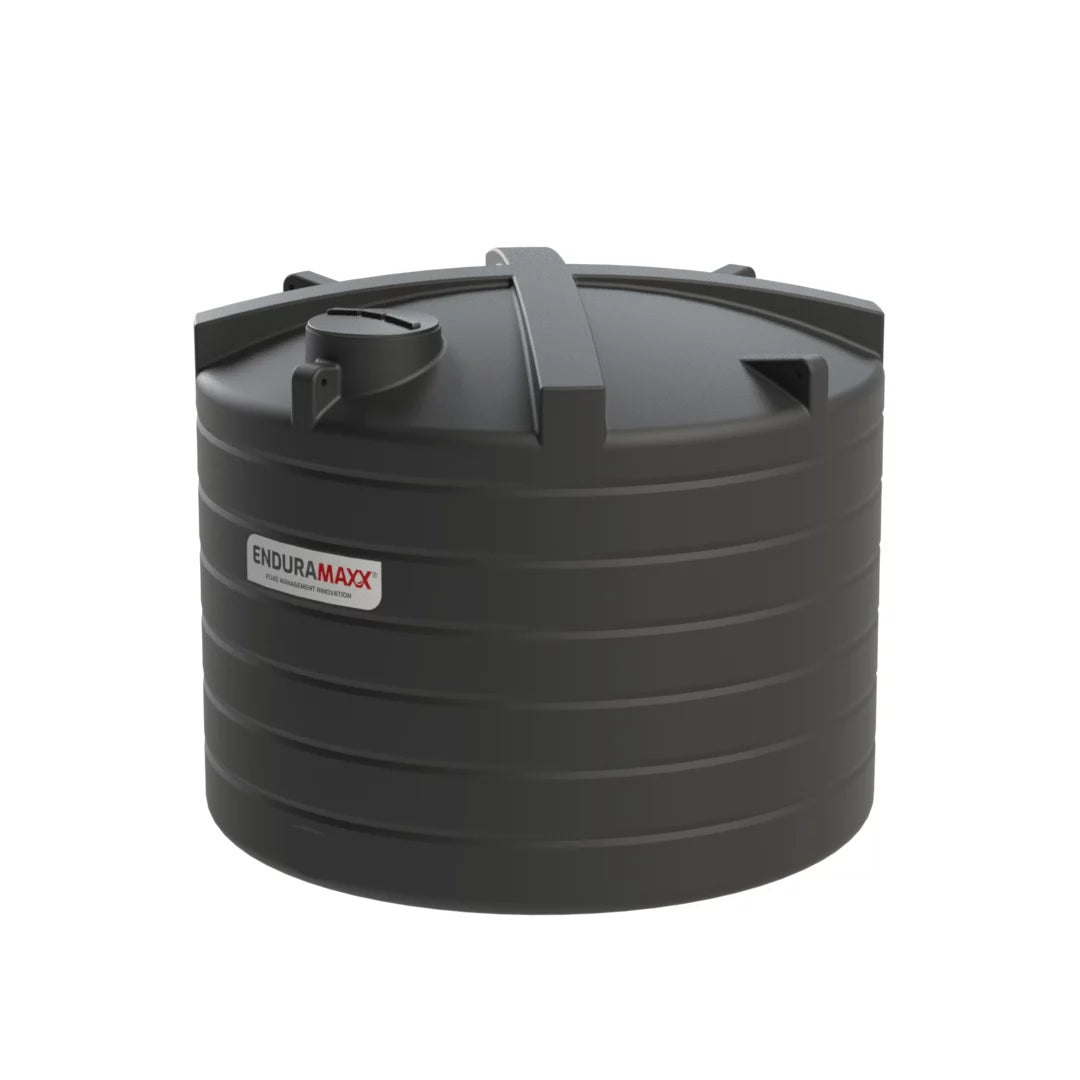

Selected tank: 22,000 L · non-potable · Ø3450
- Model / SKU
- 17215001
- Nominal capacity
- 22,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 3450 × H 2800 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
Selected tank: 25,000 L · CAT 5 · Ø2700
- Model / SKU
- 17224001CAT5
- Nominal capacity
- 25,000 litres
- Tank type
- CAT 5 Type AB air-gap break tank
- Dimensions
- Ø 2700 × H 5150 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
- Inlet / air gap
- Confirm permitted inlet size and weir configuration for the supplied tank

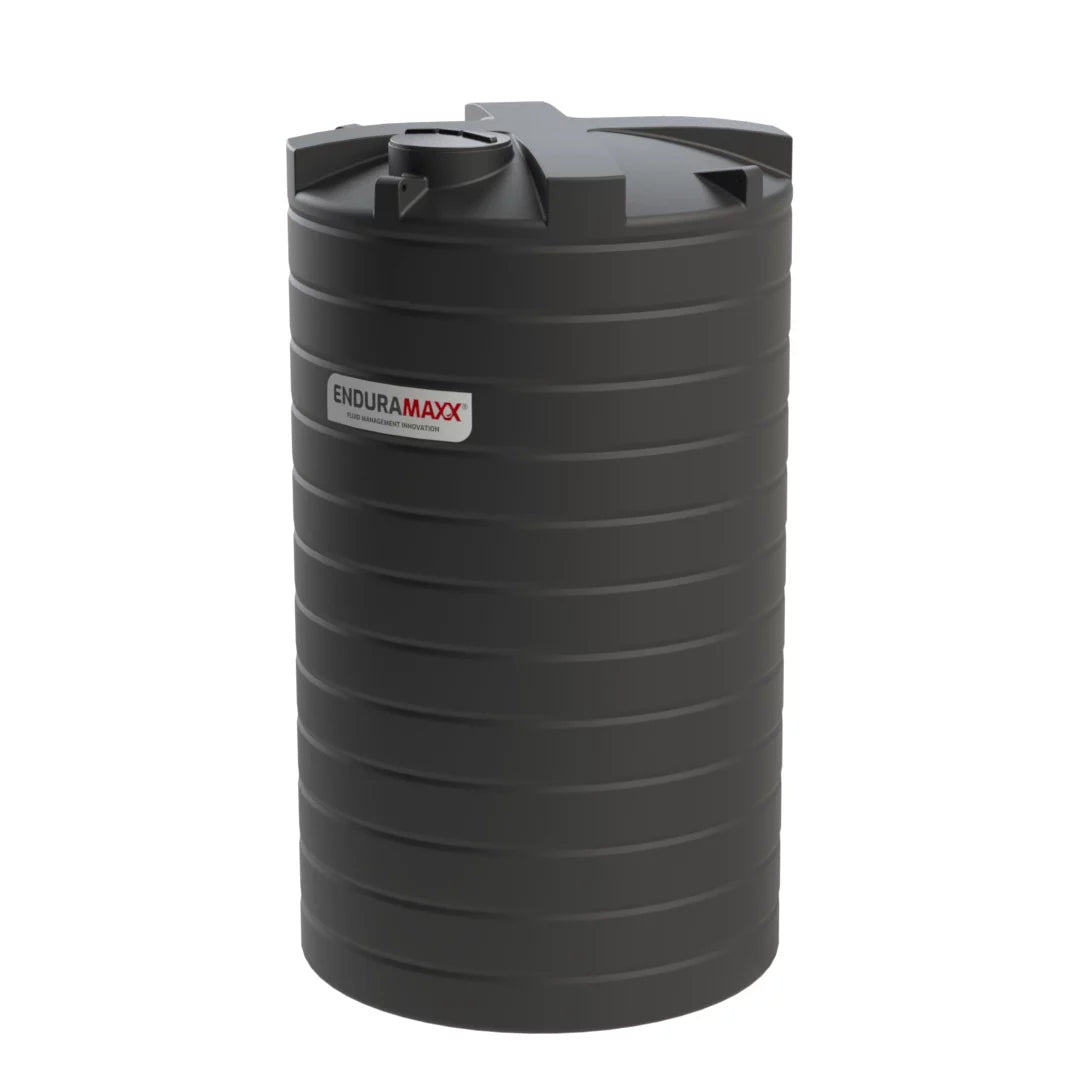

Selected tank: 25,000 L · non-potable · Ø2700
- Model / SKU
- 17214001
- Nominal capacity
- 25,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 2700 × H 4720 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
Selected tank: 25,000 L · non-potable · Ø3450
- Model / SKU
- 17215501
- Nominal capacity
- 25,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 3450 × H 3100 mm (manufacturer-listed; version confirmation required)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
The feature specification and description list Ø3450 × H3100; additional information lists 3450 × 3200 × 3200. Confirm current overall height.

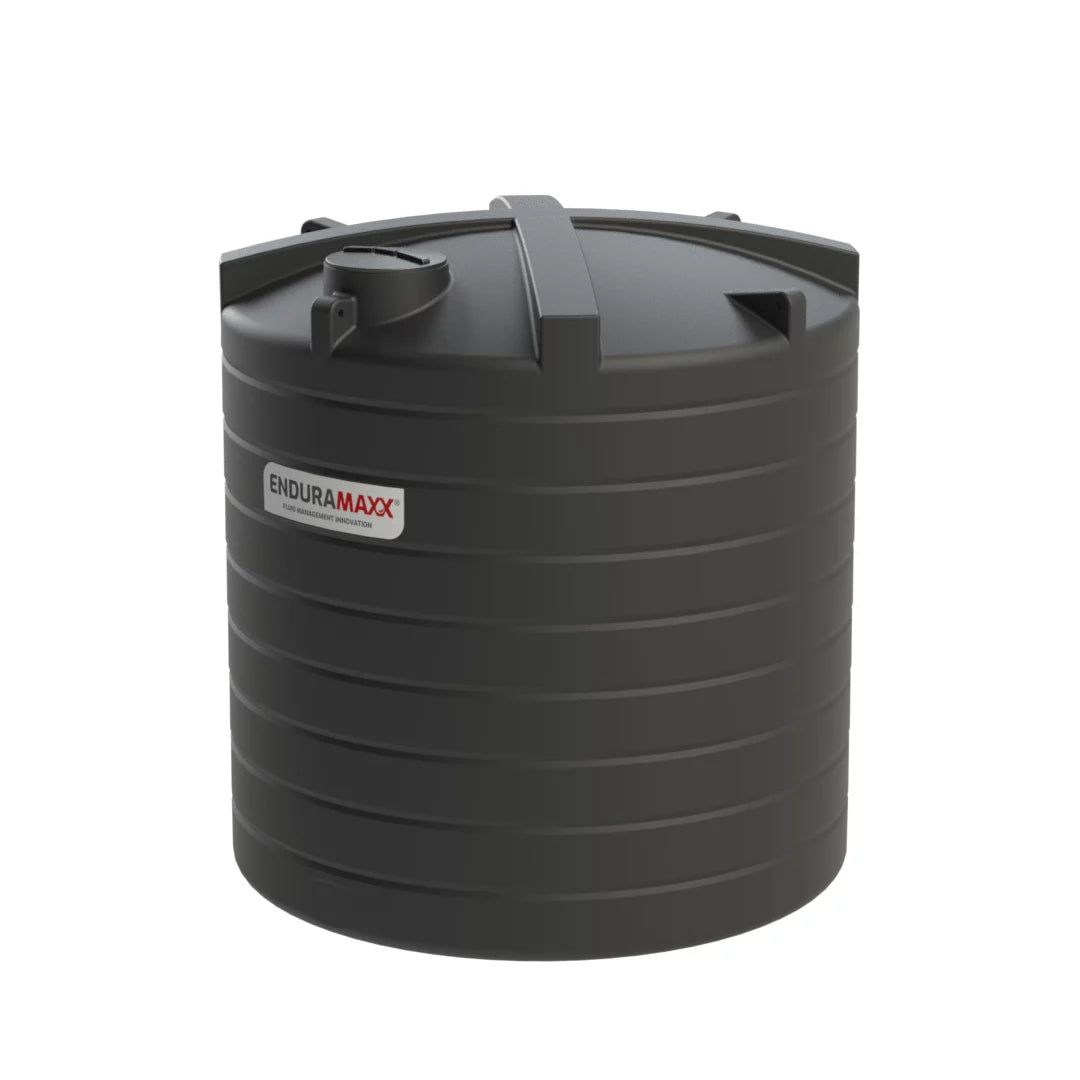

Selected tank: 30,000 L · non-potable · Ø3450
- Model / SKU
- 17216001
- Nominal capacity
- 30,000 litres
- Tank type
- Non-potable / confirm exact application
- Dimensions
- Ø 3450 × H 3650 mm (manufacturer-listed nominal size)
- Discharge / outlet
- 2-inch BSP outlet (standard manufacturer-listed size)
- Included lid
- 620 mm nominal lid diameter; vented
- Clear access opening
- Not separately confirmed. Lid/cover dimensions are not a guaranteed clear opening.
Need help choosing fittings for this tank? Contact us for advice on compatible valves and adaptors.
Price on application
Shipping calculated at checkout.
Secure checkout
This Enduramaxx range covers large, above-ground vertical water-storage tanks from 500 to 30,000 litres. The options include standard non-potable tanks and dedicated CAT 5 Type AB break tanks, so the full specification below must be checked before ordering.
5,000 litres and above: price on application
For tank options of 5,000 litres and above, please request a quote before ordering. We will confirm the tank price, delivery to your postcode, site access and offloading requirements. These sizes are not available to buy online. Smaller sizes remain available to order at the displayed price.

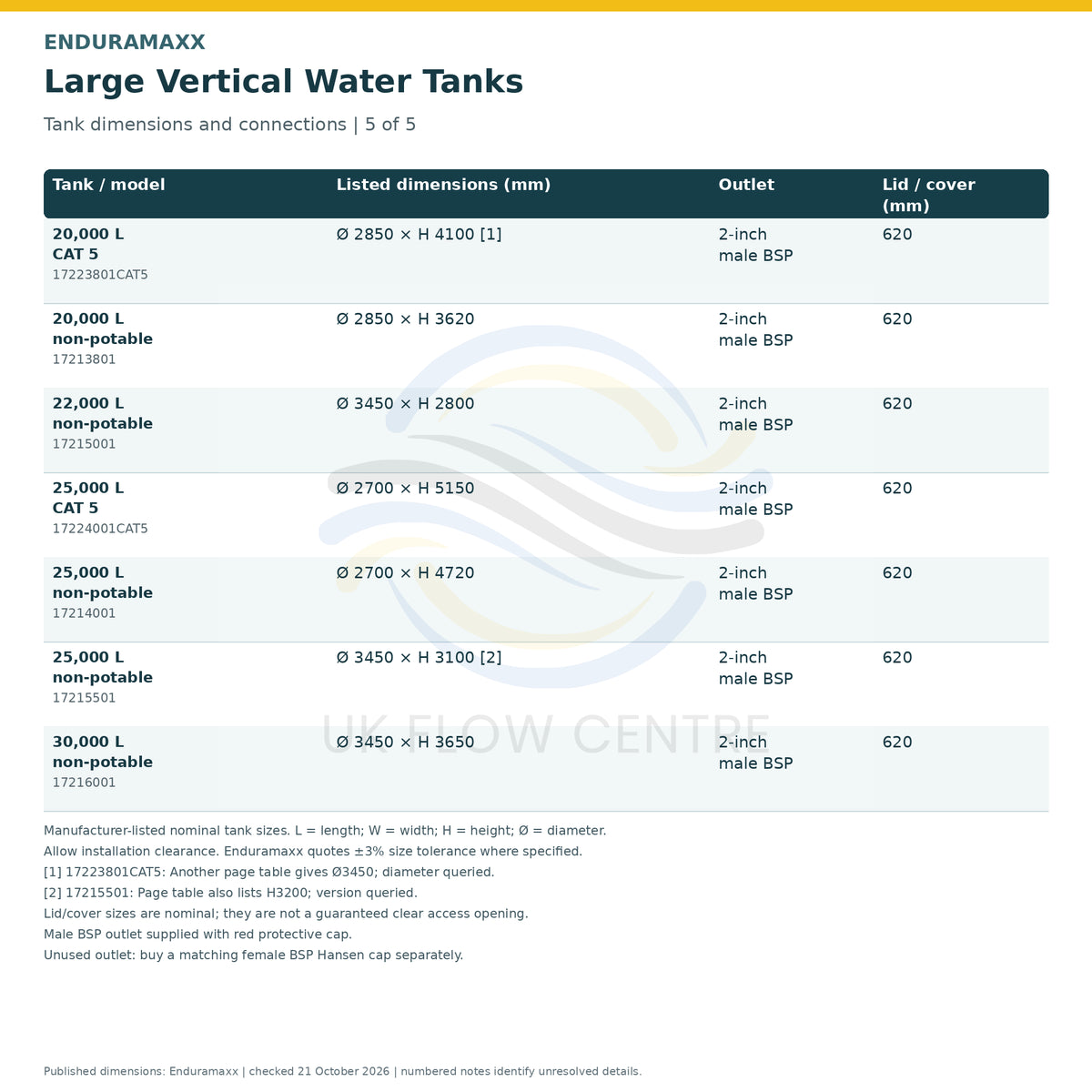

Tank dimensions by model
Manufacturer-listed nominal dimensions in millimetres. L = length, W = width, H = height, Ø = diameter. Allow space for pipework, installation and maintenance. Enduramaxx quotes a ±3% size tolerance where stated on the model page.
| Tank / model | Dimensions (mm) | Standard outlet | Lid / cover (mm) |
|---|---|---|---|
|
5,000 L · CAT 5 · Ø1900 17221501CAT5 |
Ø 1900 × H 2800 Manufacturer specifications |
2-inch male BSP | 620 |
|
5,000 L · non-potable · Ø1900 17211501 |
Ø 1900 × H 2270 Manufacturer specifications |
2-inch male BSP | 620 |
|
6,000 L · CAT 5 · Ø1900 17221601CAT5 |
Ø 1900 × H 3000 Manufacturer specifications |
2-inch male BSP | 620 |
|
6,000 L · non-potable · Ø1900 17211601 |
Ø 1900 × H 2635 Manufacturer specifications |
2-inch male BSP | 620 |
|
7,000 L · CAT 5 · Ø2400 17221701CAT5 |
Ø 2400 × H 2320 Manufacturer specifications |
2-inch male BSP | 620 |
|
7,000 L · non-potable · Ø2400 17211701 |
Ø 2400 × H 1865 Manufacturer specifications |
2-inch male BSP | 620 |
|
10,000 L · CAT 5 · Ø2400 17222201CAT5 |
Ø 2400 × H 3000 Manufacturer specifications |
2-inch male BSP | 620 |
|
500 L · CAT 5 · Ø700 17250701CAT5 |
Ø 700 × H 2095 Manufacturer specifications |
1½-inch male BSP | 455 |
|
500 L · non-potable · Ø700 17250501-NONPOTABLE |
Ø 700 × H 1480 Manufacturer specifications |
1½-inch male BSP | 455 |
|
720 L · non-potable · Ø700 17250701-NONPOTABLE |
Ø 700 × H 2095 Manufacturer specifications |
1½-inch male BSP | 455 |
|
1,250 L · non-potable · Ø1200 17210501 |
Ø 1200 × H 1245 Manufacturer specifications |
1½-inch male BSP | 455 |
|
1,500 L · CAT 5 · Ø1200 17220601CAT5 |
Ø 1200 × H 1980 / 2180 Inlet option: H1980 mm for an inlet up to 32 mm; H2180 mm for an inlet up to 50 mm. Select the required inlet/weir configuration. Manufacturer specifications |
1½-inch male BSP | 620 |
|
2,000 L · non-potable · Ø1200 17210801 |
Ø 1200 × H 2005 Manufacturer specifications |
1½-inch male BSP | 455 |
|
2,000 L · CAT 5 · Ø1200 17220801CAT5 |
Ø 1200 × H 2332 / 2532 Inlet option: H2332 mm for an inlet up to 32 mm; H2532 mm for an inlet up to 50 mm. Select the required inlet/weir configuration. Manufacturer specifications |
1½-inch male BSP | 620 |
|
20,000 L · CAT 5 · Ø2850 17223801CAT5 |
Ø 2850 × H 4100 Size information: The feature specification and additional information list Ø2850 × H4100; another page table gives diameter3450. Confirm current diameter and overall height. Manufacturer specifications |
2-inch male BSP | 620 |
|
20,000 L · non-potable · Ø2850 17213801 |
Ø 2850 × H 3620 Manufacturer specifications |
2-inch male BSP | 620 |
|
22,000 L · non-potable · Ø3450 17215001 |
Ø 3450 × H 2800 Manufacturer specifications |
2-inch male BSP | 620 |
|
25,000 L · CAT 5 · Ø2700 17224001CAT5 |
Ø 2700 × H 5150 Manufacturer specifications |
2-inch male BSP | 620 |
|
25,000 L · non-potable · Ø2700 17214001 |
Ø 2700 × H 4720 Manufacturer specifications |
2-inch male BSP | 620 |
|
25,000 L · non-potable · Ø3450 17215501 |
Ø 3450 × H 3100 Size information: The feature specification and description list Ø3450 × H3100; additional information lists 3450 × 3200 × 3200. Confirm current overall height. Manufacturer specifications |
2-inch male BSP | 620 |
|
30,000 L · non-potable · Ø3450 17216001 |
Ø 3450 × H 3650 Manufacturer specifications |
2-inch male BSP | 620 |
|
10,000 L · non-potable · Ø2400 17212201 |
Ø 2400 × H 2570 Manufacturer specifications |
2-inch male BSP | 620 |
|
12,000 L · CAT 5 · Ø2400 17222601CAT5 |
Ø 2400 × H 3400 Size information: The feature specification lists Ø2400 × H3400; the description table lists Ø2600 × H3350 and additional information lists 2600 × 2600 × 3400. Manufacturer confirmation is required before access/base design. Manufacturer specifications |
2-inch male BSP | 620 |
|
12,000 L · non-potable · Ø2400 17212601 |
Ø 2400 × H 2970 Manufacturer specifications |
2-inch male BSP | 620 |
|
12,500 L · non-potable · Ø2600 17212501 |
Ø 2600 × H 2900 Manufacturer specifications |
2-inch male BSP | 620 |
|
15,000 L · CAT 5 · Ø2600 17223201CAT5 |
Ø 2600 × H 3500 Size information: The feature specification and description list Ø2600 × H3500; the additional-information table lists 2400 × 2400 × 4050. Confirm current mould/version. Manufacturer specifications |
2-inch male BSP | 620 |
|
15,000 L · non-potable · Ø2400 17212901 |
Ø 2400 × H 3720 Manufacturer specifications |
2-inch male BSP | 620 |
|
15,000 L · non-potable · Ø2600 17213201 |
Ø 2600 × H 3100 Manufacturer specifications |
2-inch male BSP | 620 |
|
2,500 L · CAT 5 · Ø1400 17221001CAT5 |
Ø 1400 × H 2490 / 2690 Inlet option: H2490 mm for an inlet up to 32 mm; H2690 mm for an inlet up to 50 mm. Select the required inlet/weir configuration. Manufacturer specifications |
Please contact us | 620 |
|
2,500 L · non-potable · Ø1400 17211001 |
Ø 1400 × H 1845 Manufacturer specifications |
1½-inch male BSP | 455 |
|
3,000 L · non-potable low profile · Ø1900 17210701 |
Ø 1900 × H 1270 Manufacturer specifications |
2-inch male BSP | 620 |
|
3,000 L · non-potable · Ø1400 17211101 |
Ø 1400 × H 2205 Manufacturer specifications |
2-inch male BSP | 455 |
|
4,000 L · CAT 5 · Ø1900 17221201CAT5 |
Ø 1900; overall height awaiting manufacturer Size information: 1900 mm diameter identifies the option in this listing. No exact current overall-height specification for 17221201CAT5 was found. Do not substitute the standard 4,000 L tank height for the CAT 5 tank. |
Please contact us | Please contact us |
|
4,000 L · non-potable · Ø1700 17211301 |
Ø 1700 × H 2300 Manufacturer specifications |
2-inch male BSP | 620 |
|
4,000 L · non-potable · Ø1900 17211201 |
Ø 1900 × H 1925 Manufacturer specifications |
2-inch male BSP | 620 |
Choose the correct tank type
- Non-potable: for compatible irrigation, rainwater, process-water and wash-down applications where drinking-water certification is not required.
- CAT 5 Type AB: incorporates an air-gap weir for a correctly designed installation requiring Fluid Category 5 backflow protection.
Each tank is rotationally moulded from medium-density polyethylene. The full specifications below give capacity, dimensions, lid and BSP outlet by option. Several capacities have more than one footprint or height, so compare the full dimensions rather than capacity alone.
For the 1,500 L and 2,000 L CAT 5 options, Enduramaxx lists different overall heights for up-to-32 mm and up-to-50 mm inlet configurations; confirm which one will be supplied. Confirm usable volume, water classification, inlet and overflow requirements, outlet size, supporting base, access and offloading before ordering. CAT 5 compliance depends on the complete installed arrangement, while a non-potable variant must not be assumed suitable for drinking water.
Unsure which thread you need?
Read our BSP, NPT & ACME thread buyer’s guideCheck the thread type, size and seal before ordering.
Manufacturer guides and drawing
- Vertical above-ground tank installation guide (PDF) - base, handling and fittings for this vertical range.
- Fluid Category 5 air-gap guide (PDF) - relevant to the Type AB options only.
- 500 L CAT 5 tank drawing (PDF) - for SKU 17250701CAT5 only.
Tank outlet and blanking cap
The standard tank connector/outlet has a male BSP thread. See the specifications for the outlet size of your selected tank.
A red protective cap is supplied on the outlet. If you will not be using this outlet, a matching female BSP Hansen cap must be purchased separately to blank it off. Choose the same nominal BSP size as the tank outlet.
Couldn't load pickup availability
