1" Stainless Steel Dual Valve with 1" Hand Point inc Rain Bird PEB Solenoid Valves

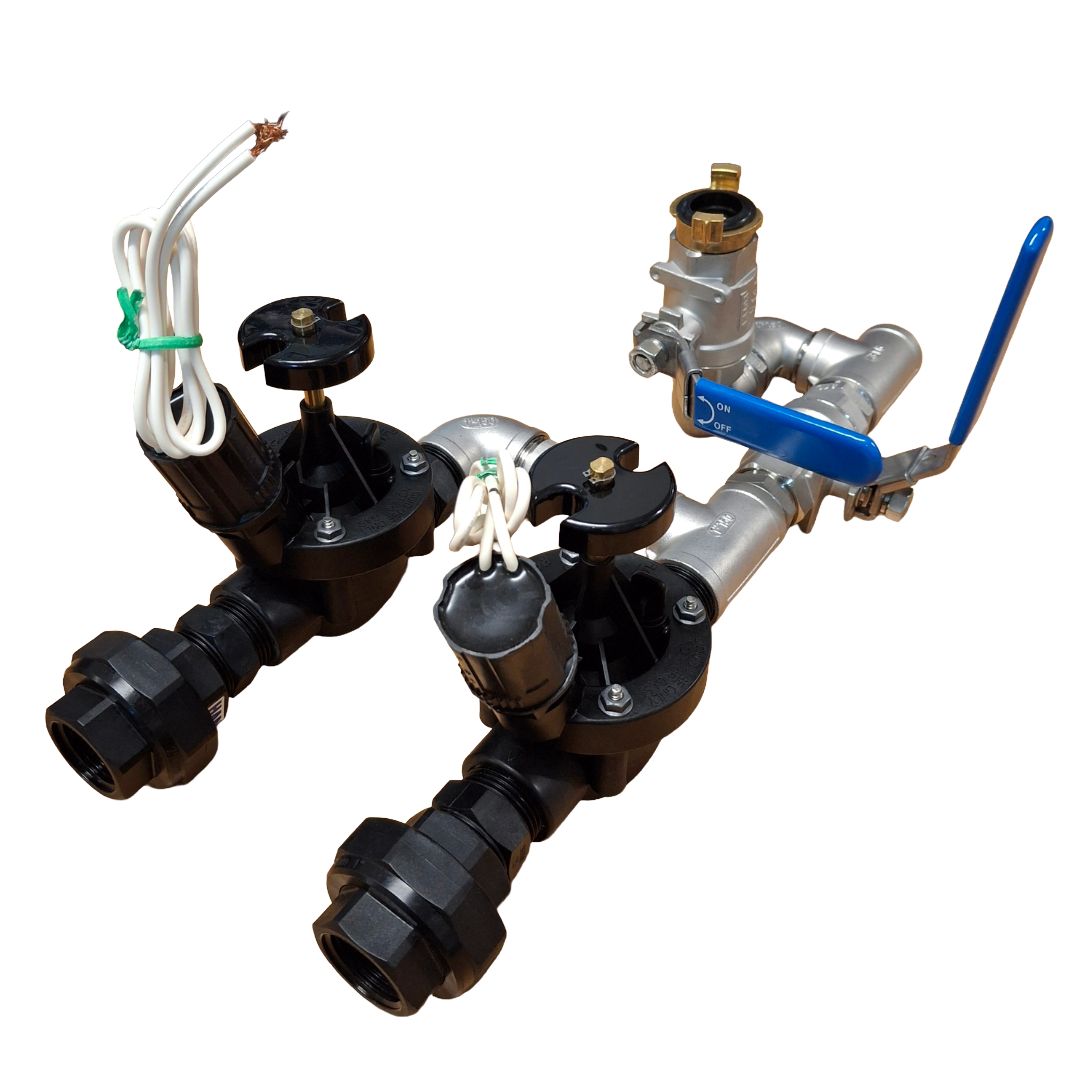

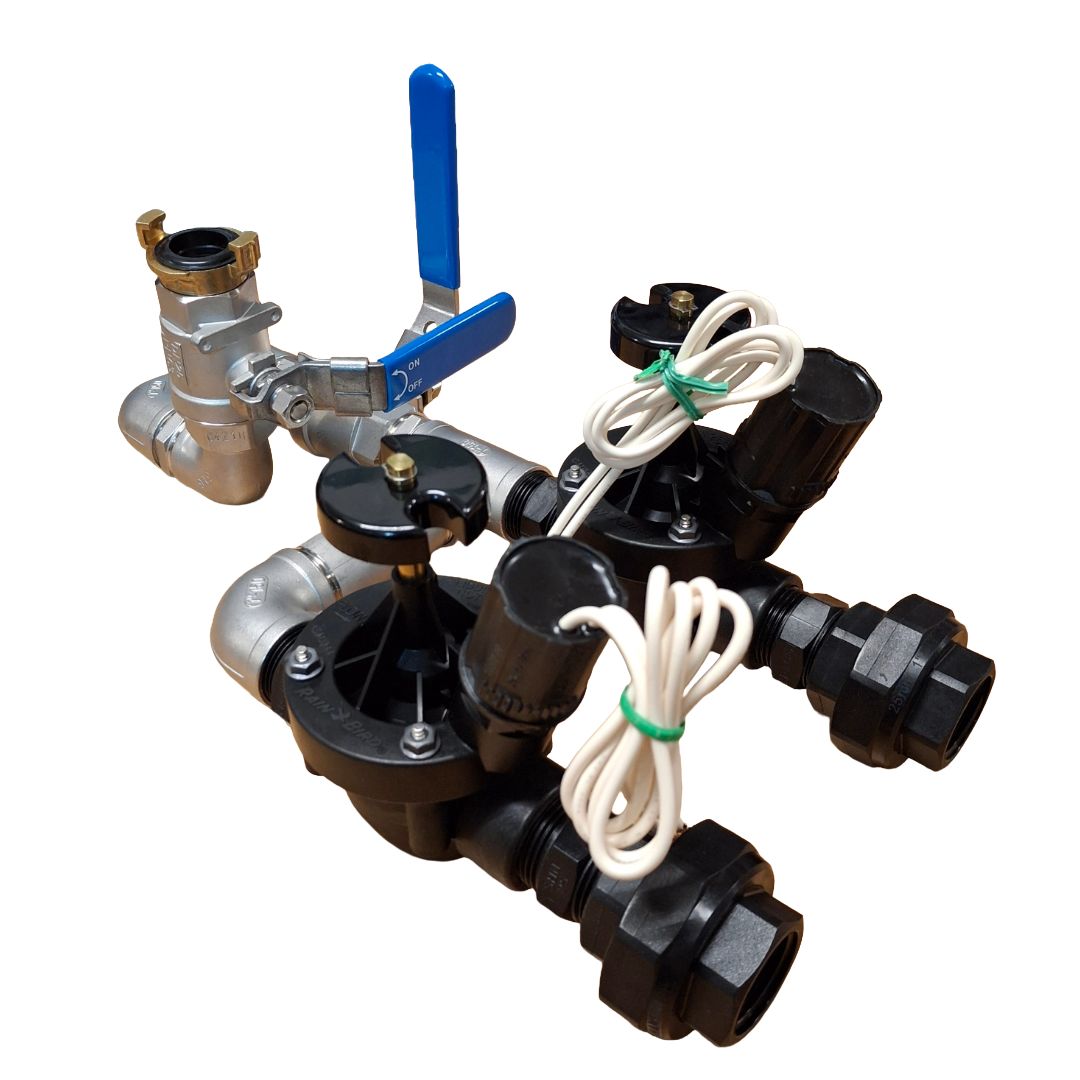

1″ Stainless Steel Dual Valve with 1″ Hand Point — Complete with Rain Bird PEB Solenoid Valve

This robust dual assembly combines a stainless steel dual valve with a 1″ hand point and a pre‑mounted Rain Bird PEB solenoid valves. It allows manual control via the hand point and reliable automatic zonal operation through the PEG — ideal for irrigation systems in commercial, sports, or high‑end residential installations.

Key Features — Stainless Steel Dual Valve:

• Dual 1″ isolation outlets with hand point outlet with Geka connection
• Stainless steel body for excellent corrosion resistance and strength
• Union connection for easy pipe work integration.

Key Features — Rain Bird PEB Solenoid Valves:

• Constructed of glass‑filled nylon for strength and long service life
• Fabric‑reinforced diaphragm ensures reliable sealing under varying flow and pressure
• Integrated flow control handle for precise adjustment of each irrigation zone
• Internal bleed function allows pressure regulation without full valve activation
• External bleed for system flushing and debris removal
• Rated for operation in commercial and high-demand irrigation environments

Specifications:

• Valve size: 1″ (≈ 25 mm) inlet / outlet
• Operating pressure range: approx. 1.4 to 13.8 bar
• Flow range (per valve): approx. 0.06 to 45.4 m³/h
• Maximum fluid temperature: up to 66 °C
• Solenoid: 24 V AC, inrush current approx. 0.41 A, holding current approx. 0.14 A
