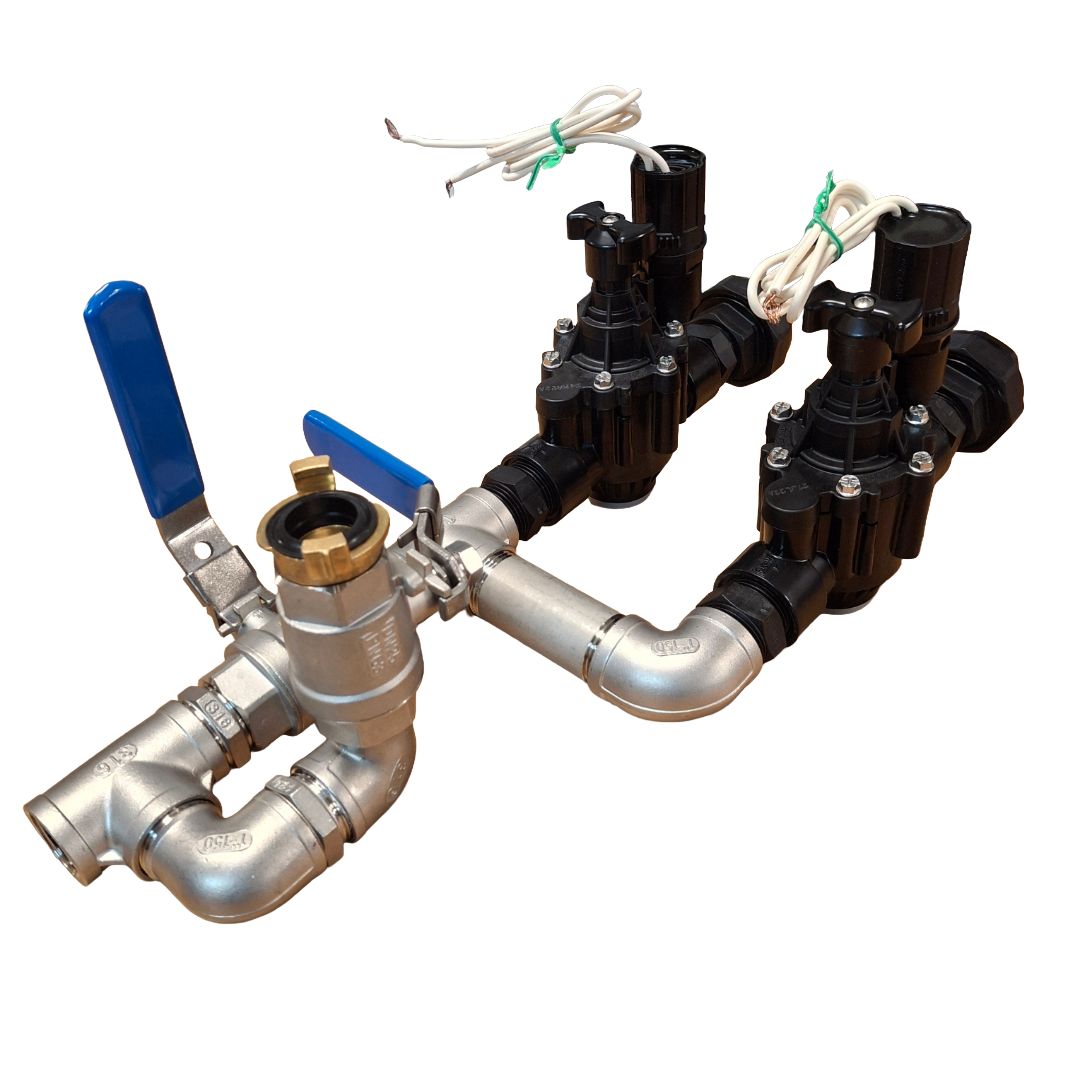

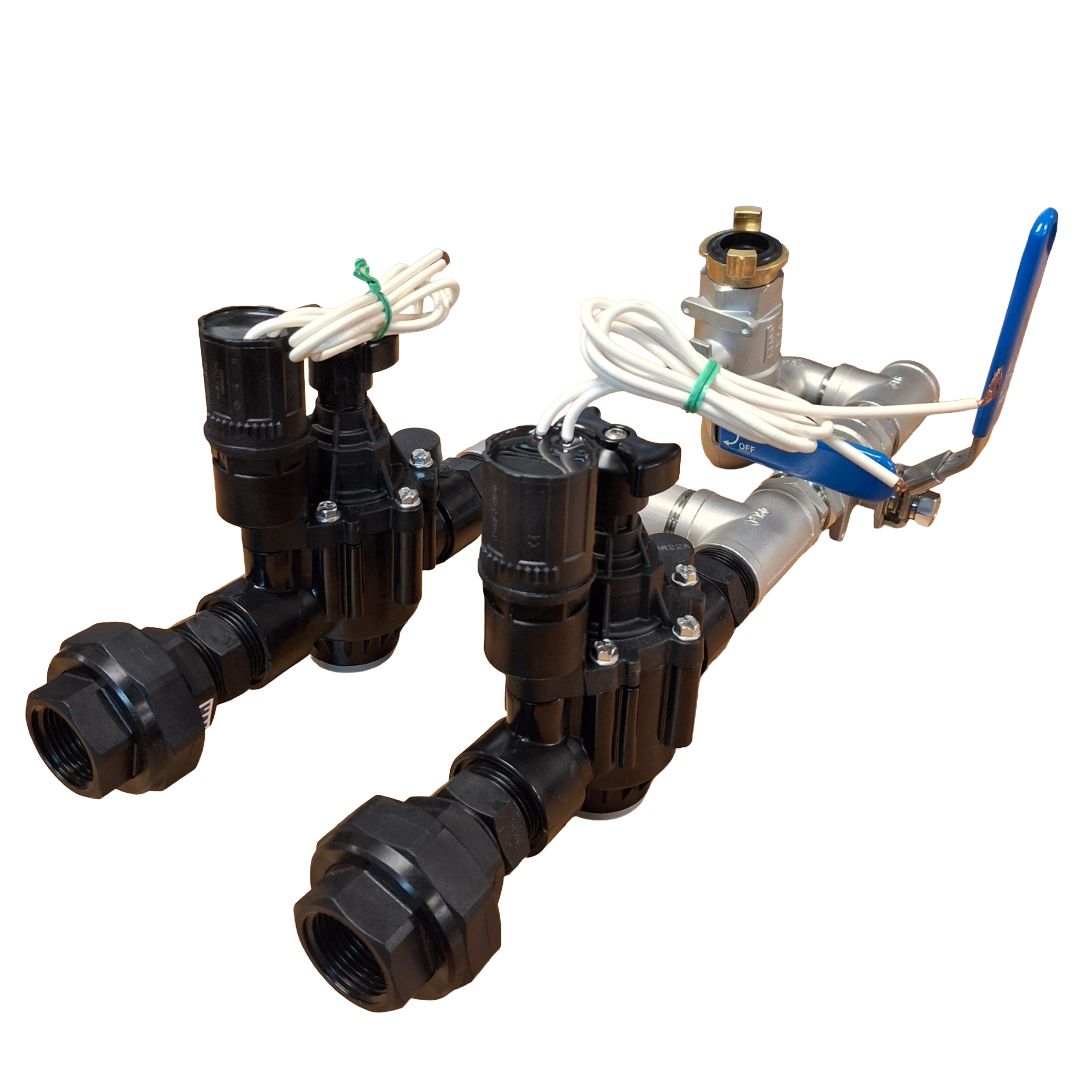

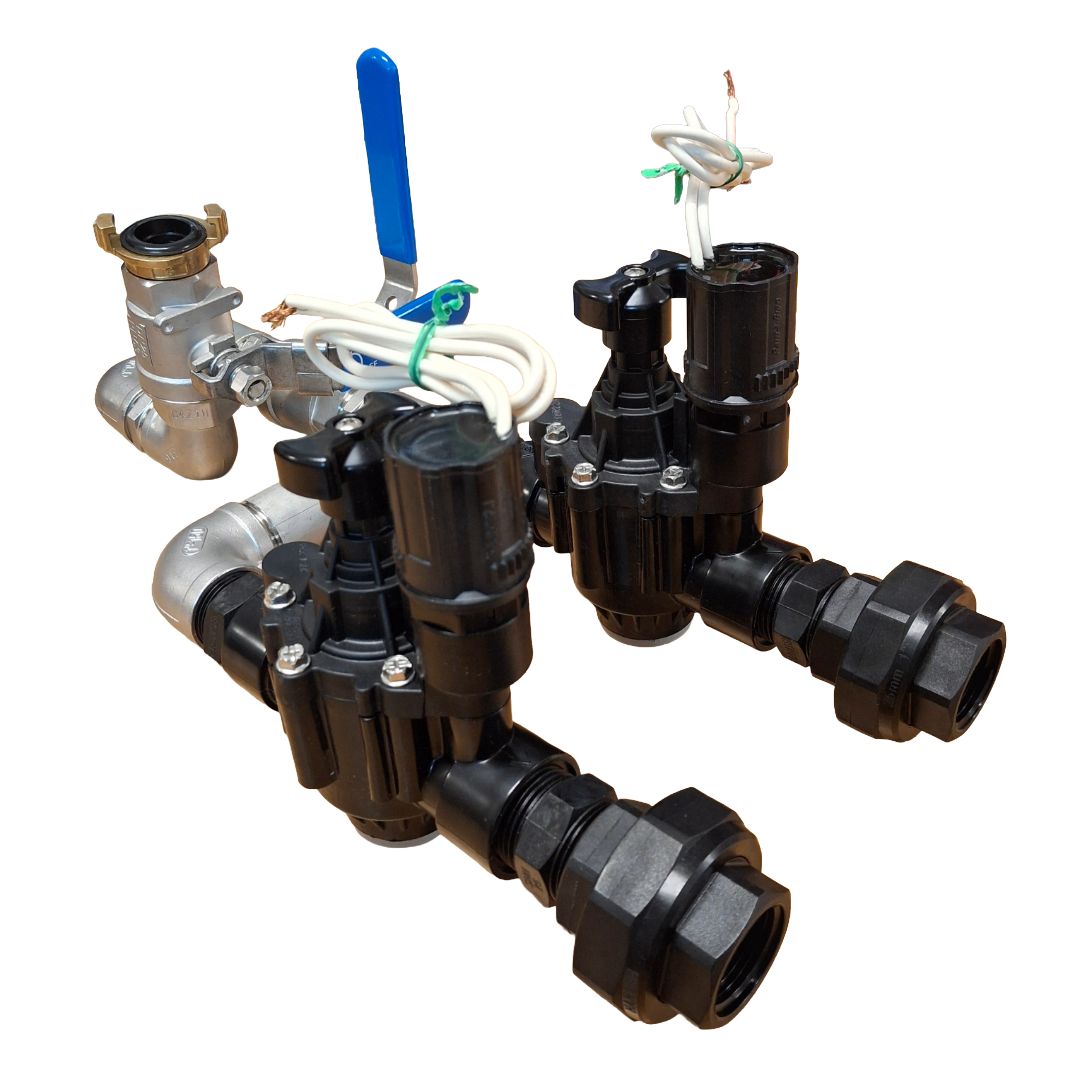

1-inch Stainless Steel Dual Valve with 1-inch Hand Point and Rain Bird PGA Solenoid Valves

Pre-assembled twin-zone irrigation valve assembly combining a stainless-steel manifold, a 1-inch GEKA hand-watering point and two Rain Bird PGA 1-inch solenoid valves. It provides two controller-operated irrigation zones and a convenient hose or service point in one compact arrangement for golf, sports-turf and commercial systems.

Valve and manifold features

• Two independently controlled solenoid-valve outlets
• Union connections help simplify valve removal and servicing
• 1-inch hand point with GEKA-compatible connection
• Globe/angle valves with flow control, filtered pilot flow, slow closing action and internal manual bleed
• 24 V AC valves for compatible mains-powered irrigation controllers

Selection guidance

Rain Bird specifies the PGA range for 1.04–10.35 bar. Confirm whether globe or angle configuration is required for the installation. Confirm the controller output, connection arrangement, design flow, working pressure and available valve-box space before ordering.
