1" Stainless Steel Valve with 1" Hand Point inc Rain Bird PEB Solenoid Valve

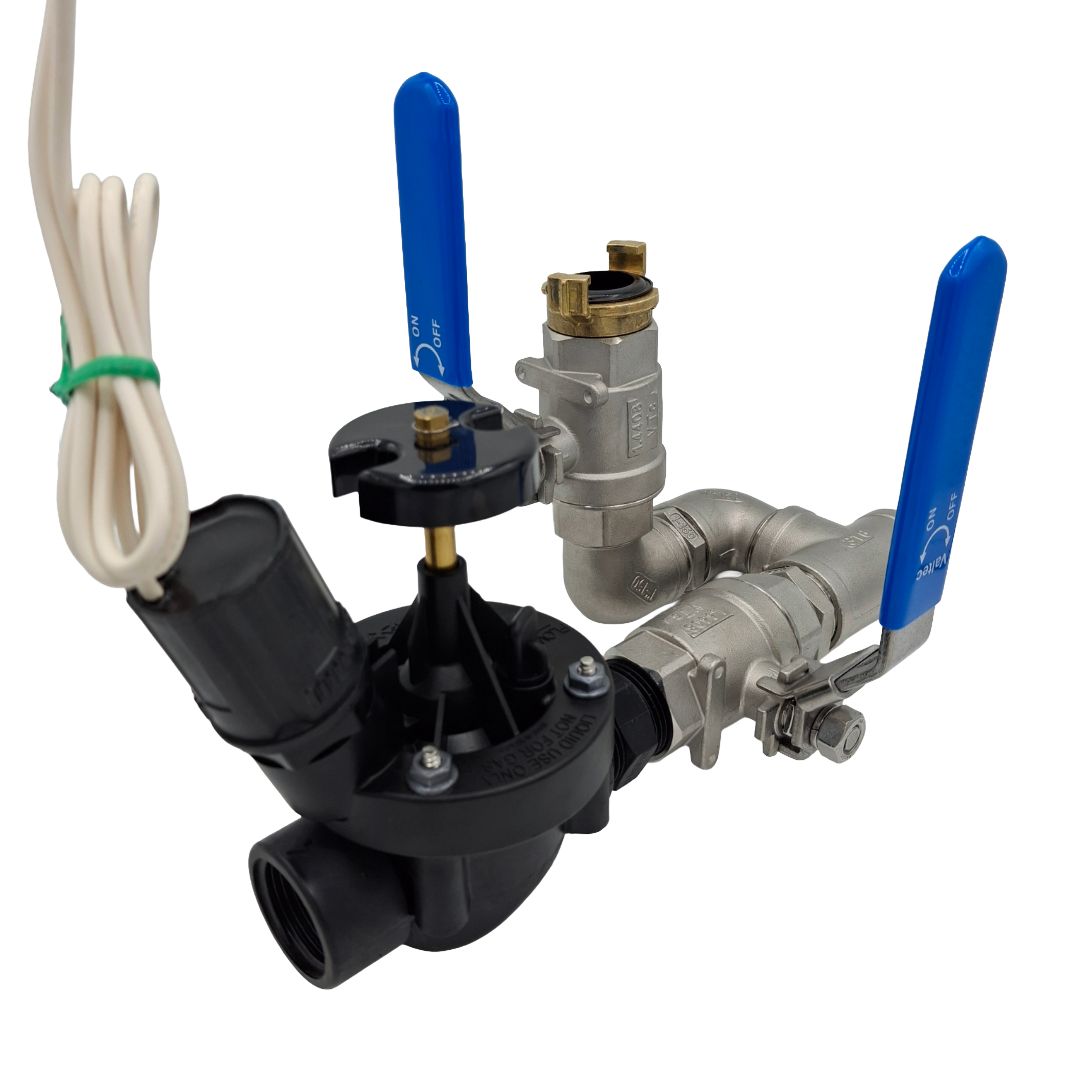

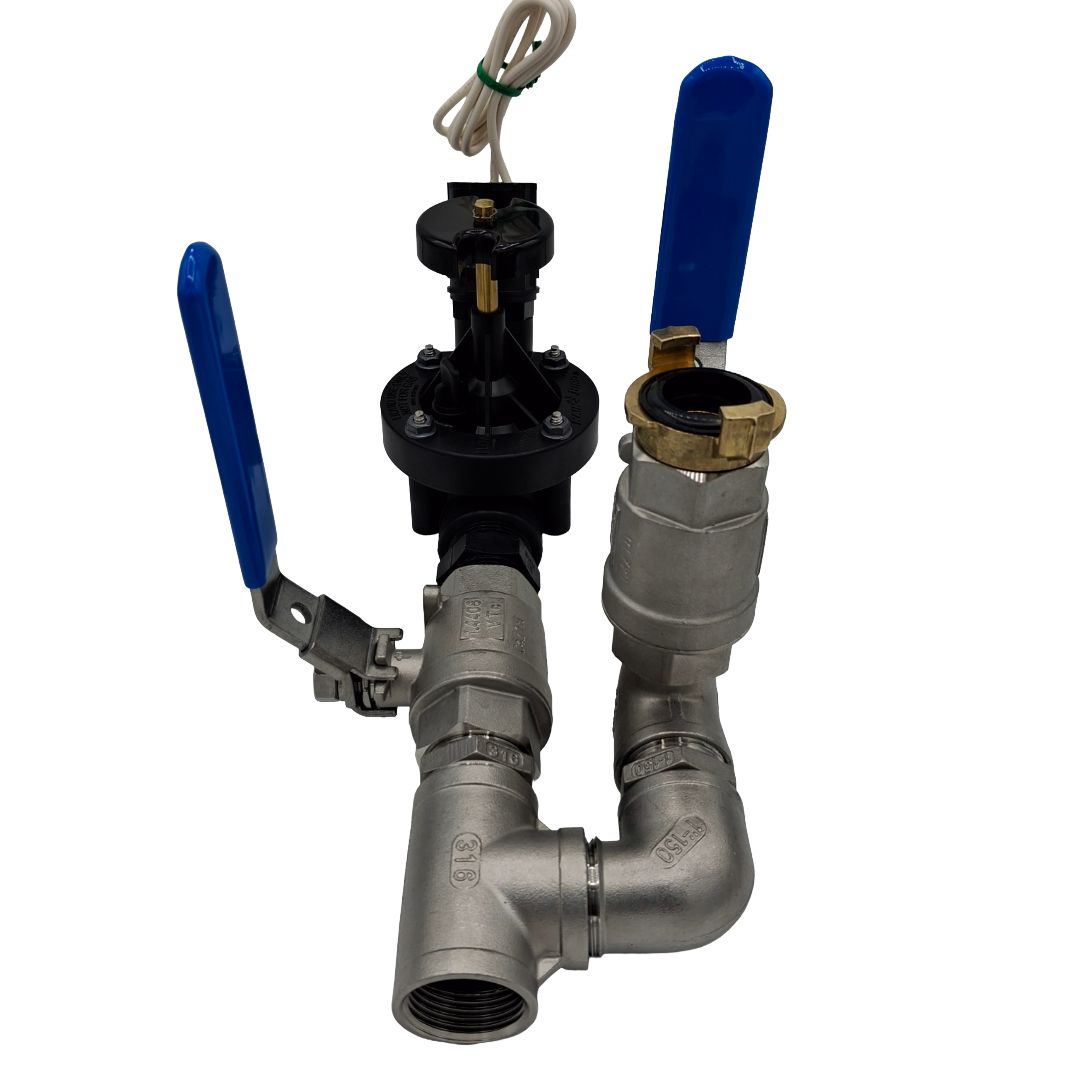

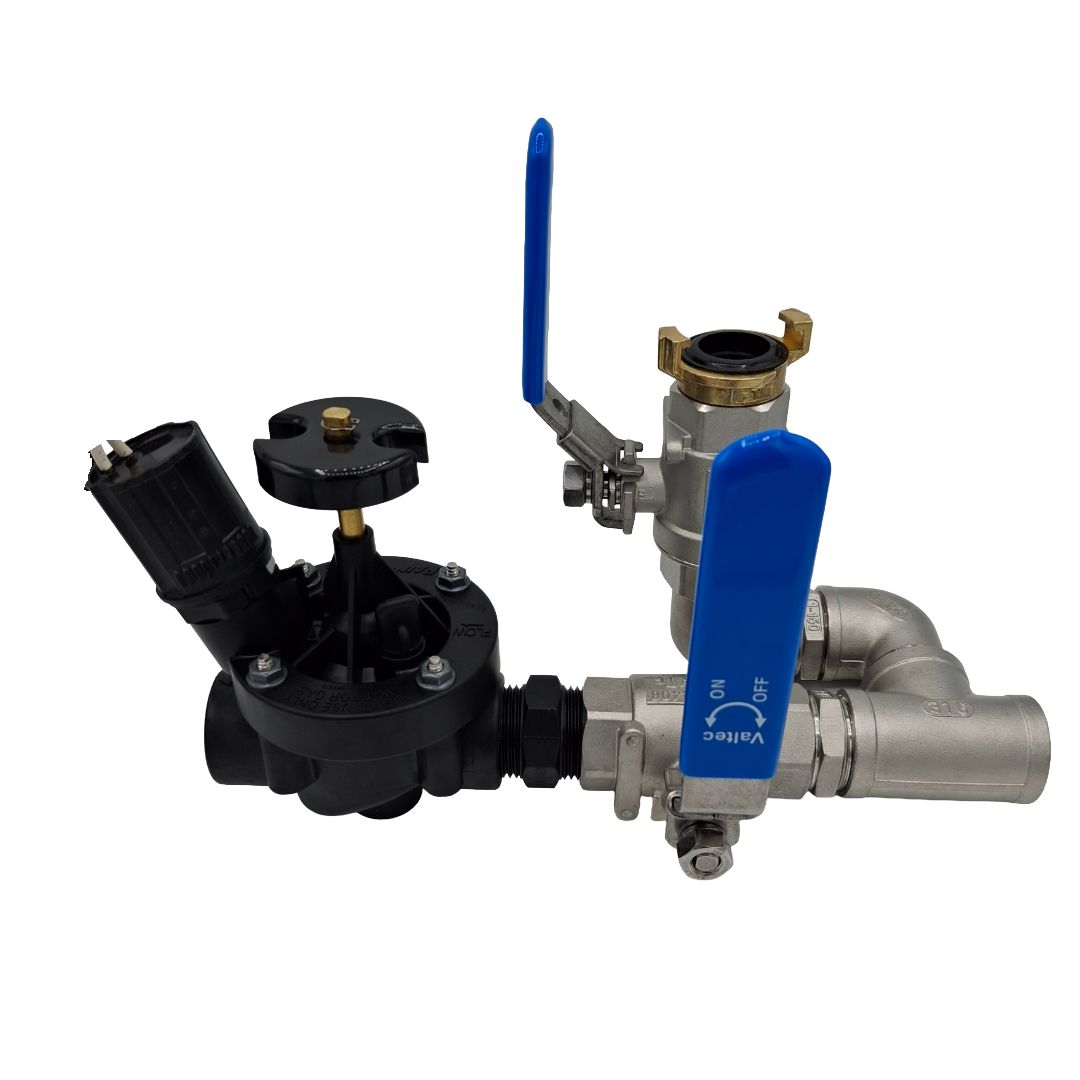

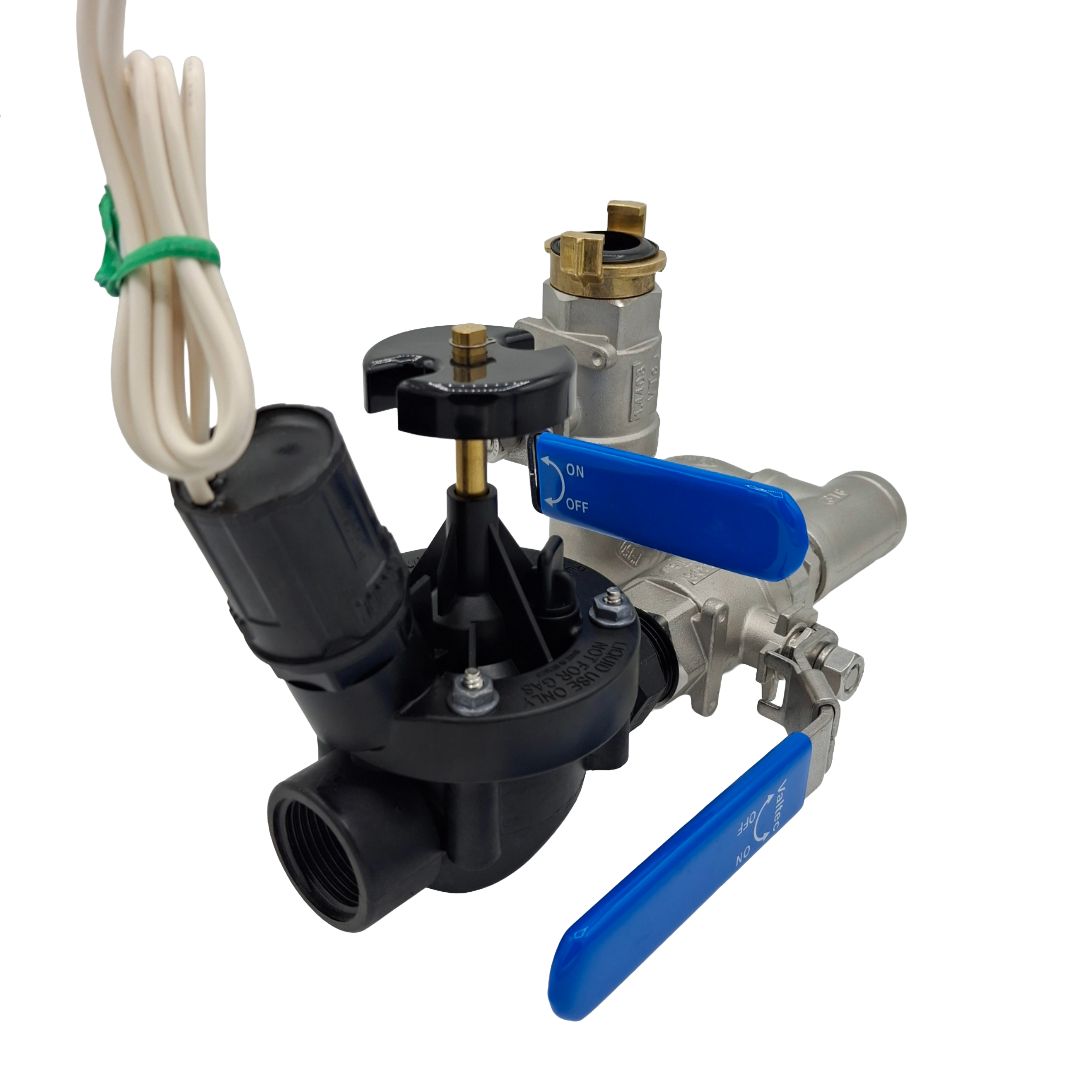

1″ Stainless Steel Isolation Valve with Hand Point — Complete with Rain Bird PEB Solenoid Valve

This assembly combines a 1″ stainless steel manual isolation valve, fitted with a hand shut‑off point, and the Rain Bird PEB series solenoid valve. It provides both manual control for service or maintenance and powerful automatic operation via the PEB valve — ideal for high‑spec irrigation, sports turf, or commercial installations.

Key Features:

• 1″ stainless steel isolation valve with hand point for manual shut‑off and Geka connection
• Rain Bird PEB solenoid valve in a durable glass‑filled nylon body for strength and long life
• Fabric‑reinforced rubber diaphragm designed for reliable sealing
• One‑piece solenoid with captured plunger for easy servicing and reduced parts loss
• Flow control handle to finely adjust zone output as required
• Internal and external bleeds: internal bleed allows pressure regulation without energising the valve; external bleed for flushing debris during system start up or maintenance

Specifications:

• Valve size: 1″ (≈ 25 mm) inlet/outlet
• Pressure rating: 1.38 to 13.80 bar
• Flow range: approx. 0.06 to 45.40 m³/h depending on conditions
• Maximum operating temperature: up to 66 °C
• Solenoid: 24 V AC, with standard inrush and holding currents for controller compatibility
