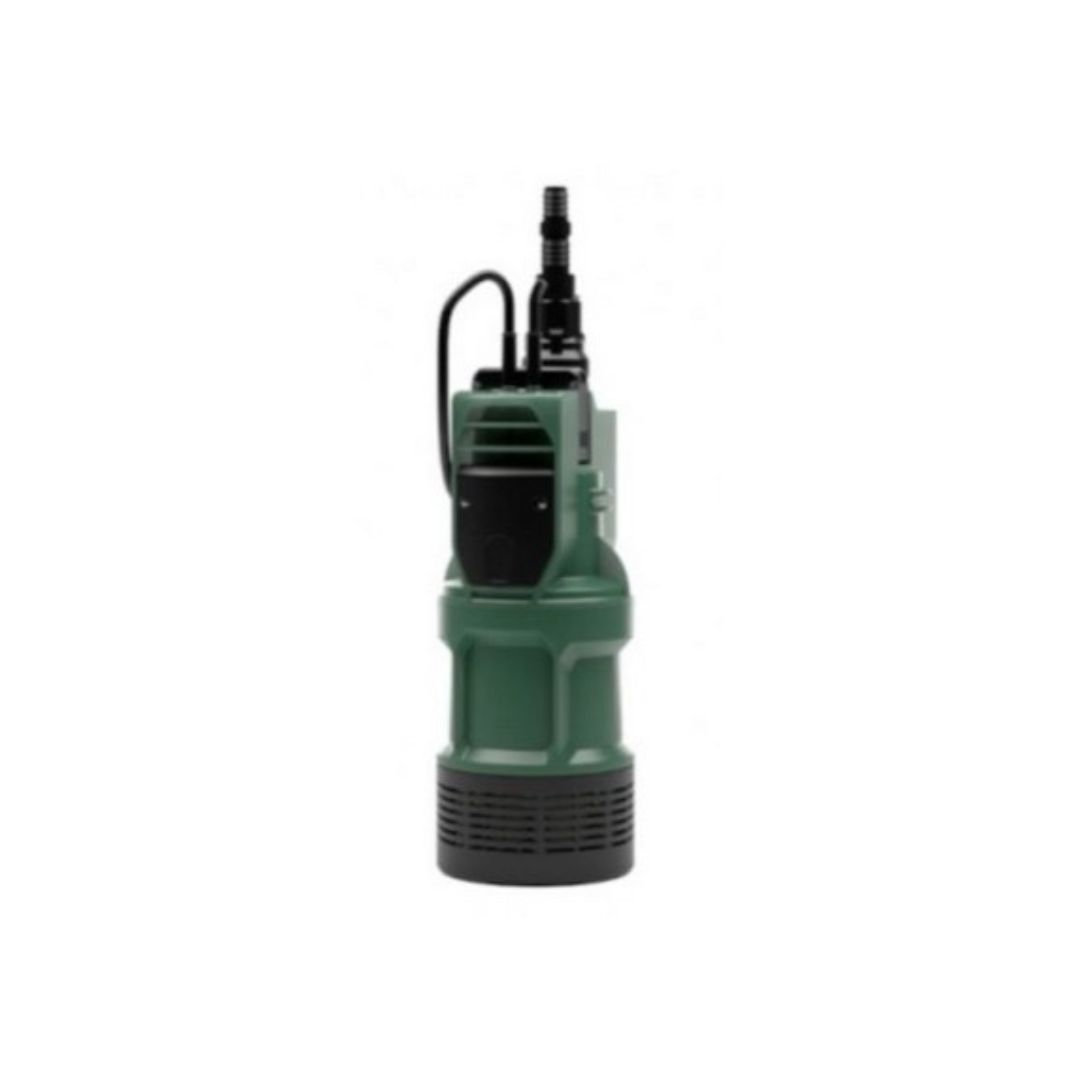

DAB Divertek 650 A 0.42 kW 230 V 6-inch Submersible Pump with Float Switch

The DAB Divertek 650 A is a compact 6-inch submersible multi-impeller pump for drawing clean water from a tank or cistern and supplying garden irrigation, rainwater-reuse or residential pressure-boosting systems. The automatic A version includes a float switch that stops the pump when the water level falls.

Key specifications

• Motor output: 0.42 kW
• Electrical supply: 230 V single phase, 50 Hz
• Maximum head for the 650 version: 30 m
• Maximum immersion depth: 12 m
• 1-inch outlet with four-section reducer supplied
• 15 m power cable with plug
• Integrated non-return valve, thermal protection and anti-debris filter
• Electrical input (P1): 630 W; the 0.42 kW motor output above is P2
• Pump diameter: 160 mm; liquid temperature range: 0°C to +40°C

The A-version float switch starts and stops the pump according to water level. It is not a pressure-demand controller; plan separate compatible control if automatic start on tap or irrigation demand is required.

For clean, chemically neutral water without solid or abrasive material. Install vertically and select the pump from the required flow and total dynamic head, not from motor power alone. Check the tank opening, minimum water level, pipework, electrical protection and irrigation demand before ordering.
