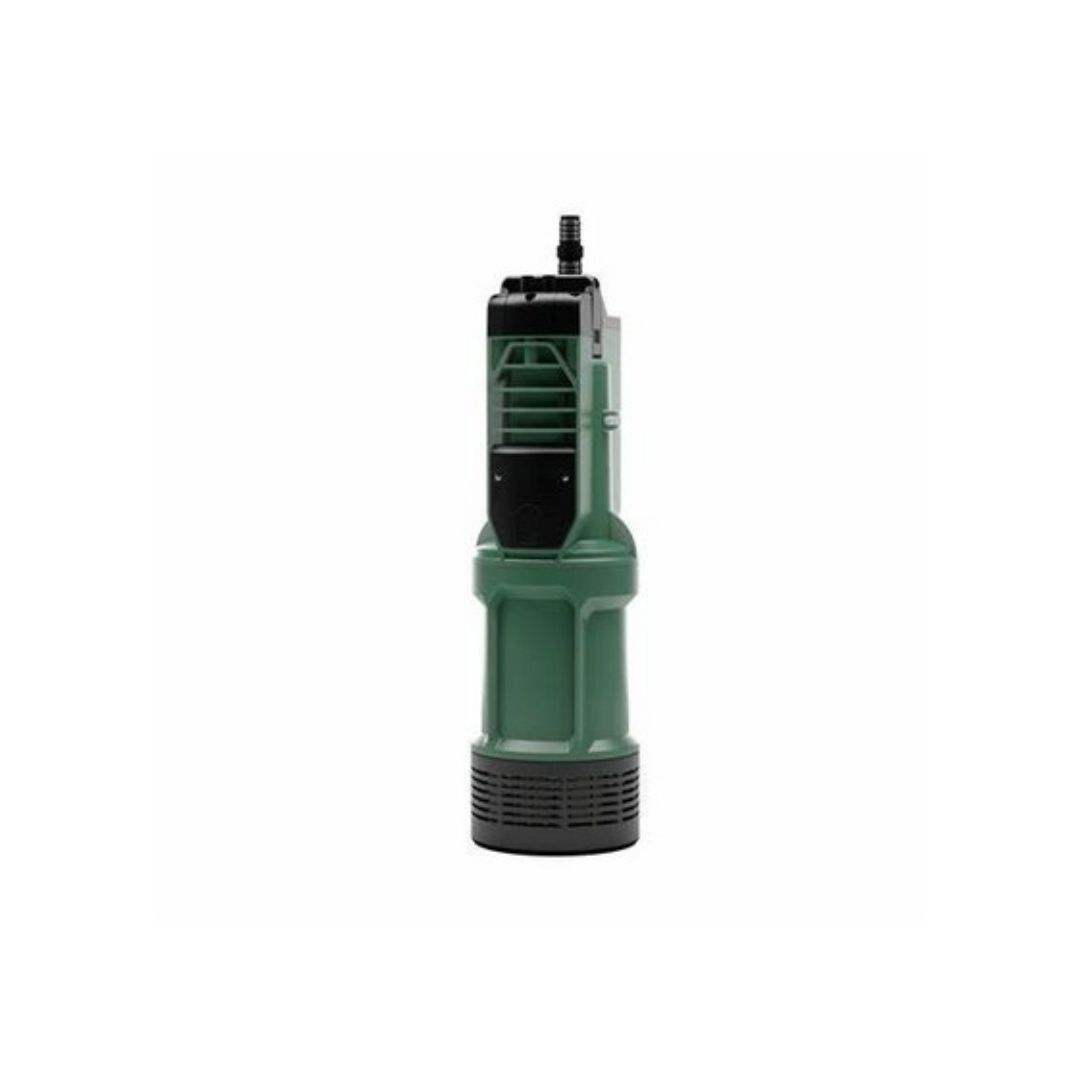

DAB Divertron 900 0.56 kW 230 V Automatic Submersible Pump

The DAB Divertron 900 is an automatic submersible multi-impeller pump for clean-water pressure boosting, rainwater reuse and garden irrigation from a tank or cistern. Its integrated pressure switch, flow sensor and control electronics start the pump when water is demanded and stop it when demand ends.

Key specifications

• Motor output (P2): 0.56 kW; electrical input (P1): 920 W
• Electrical supply: 230 V single phase, 50 Hz
• Divertron operating flow range: 1 to 5.4 m³/h; maximum head for the 900 version: 45 m
• Pump diameter: 160 mm; maximum immersion depth: 12 m
• Liquid temperature range: 0°C to +35°C
• 1-inch outlet with four-section reducer supplied
• 15 m power cable with plug
• Integrated non-return valve, anti-debris strainer, thermal protection and dry-running protection

For clean, chemically neutral water without solid or abrasive material. Install vertically and choose the pump from the required flow and total dynamic head: maximum head and maximum flow are separate limits, not a single operating point. DAB recommends a small auxiliary expansion tank in the system. Confirm the tank opening, water level, pipework, electrical protection and system demand before ordering.
