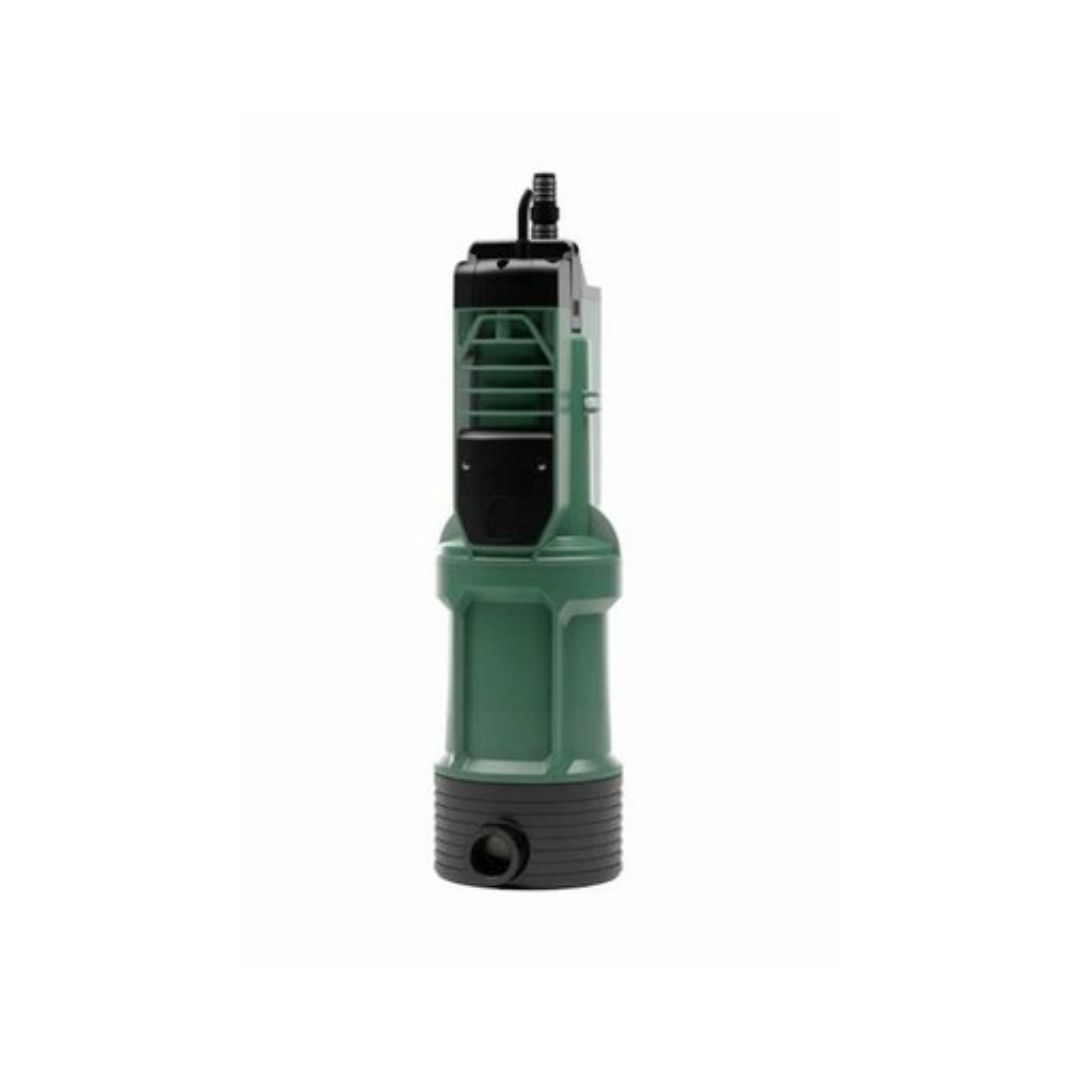

DAB Divertron X900 0.56 kW 230 V Automatic Submersible Pump

The DAB Divertron X900 is an automatic submersible multi-impeller pump for clean-water pressure boosting, rainwater reuse and garden irrigation from a tank or cistern. The X version replaces the standard bottom strainer arrangement with an inlet connection for a compatible floating-suction kit, helping draw water away from settled material at the bottom of the tank.

Key specifications

• Motor output (P2): 0.56 kW; electrical input (P1): 920 W
• Electrical supply: 230 V single phase, 50 Hz
• Divertron operating flow range: 1 to 5.4 m³/h; maximum head for the 900 version: 45 m
• Pump diameter: 160 mm; maximum immersion depth: 12 m
• Liquid temperature range: 0°C to +35°C
• 1-inch outlet and dedicated inlet connection for a compatible floating-suction arrangement
• 15 m power cable with plug
• Integrated pressure switch, flow sensor, non-return valve, thermal protection and dry-running protection

The floating-suction kit is a separate compatible accessory unless expressly stated. Use only with clean, chemically neutral water without solid or abrasive material. Install vertically and choose the pump from the required flow and total dynamic head: maximum head and maximum flow are separate limits, not a single operating point. DAB recommends a small auxiliary expansion tank in the system. Confirm the tank opening, water level, pipework and electrical protection before ordering.
