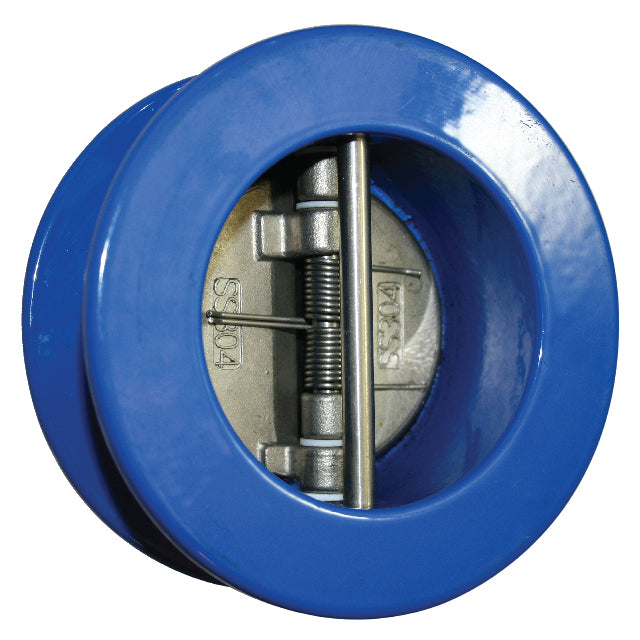

Dual Plate Check Valve – EPDM Seat – WRAS Approved

This dual-plate check valve allows flow in one direction and closes automatically when the flow reverses. It is designed for installation between compatible PN16 flanges in pump, water-transfer and distribution systems where a compact non-return valve is required.

Product details

• Sizes: DN50, DN65, DN80 and DN100
• Pressure rating: PN16
• Epoxy-coated cast-iron body
• Stainless-steel plates and springs
• EPDM seat
• Stated temperature range: 0°C to 120°C
• WRAS approved

Select the valve from the required flow, pressure loss and system duty. Confirm flange standard, face-to-face dimensions, orientation, fluid and temperature compatibility before ordering. WRAS approval does not remove the need to select the correct backflow protection arrangement under the applicable water regulations.
