Franklin ES3/4 0.55 kW 230 V 5-inch Submersible Pump with Float Switch

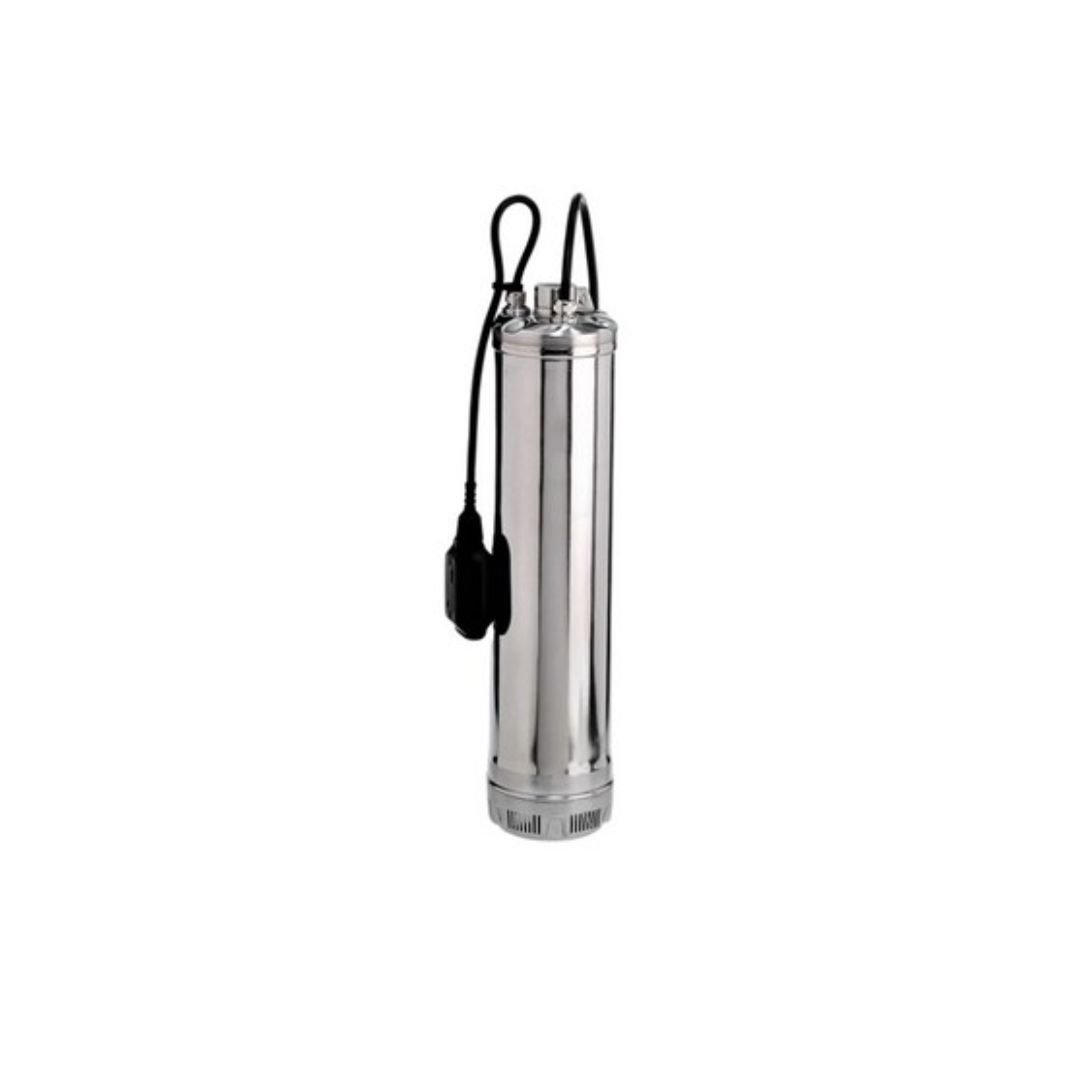

The Franklin Electric ES3/4 is a 5-inch close-coupled multistage submersible pump for clean-water transfer, pressure boosting, rainwater recovery, irrigation, sprinklers and wash-down systems. This version uses a 0.55 kW, 230 V single-phase motor and includes a float switch for automatic level control.

Verified ES Series features

• Nominal 3 m³/h hydraulic family with a stated operating range of 1.5 to 4.5 m³/h
• 1¼-inch Rp threaded discharge
• 20 m H07RN-F power cable
• Maximum immersion depth: 17 m with the supplied 20 m cable
• Liquid temperature range: -5°C to 40°C
• Maximum operating pressure: 10 bar
• Maximum stated solids size: 2 mm, with sand content up to 50 g/m³
• IP68 motor with internal capacitor and thermal protection on this single-phase version

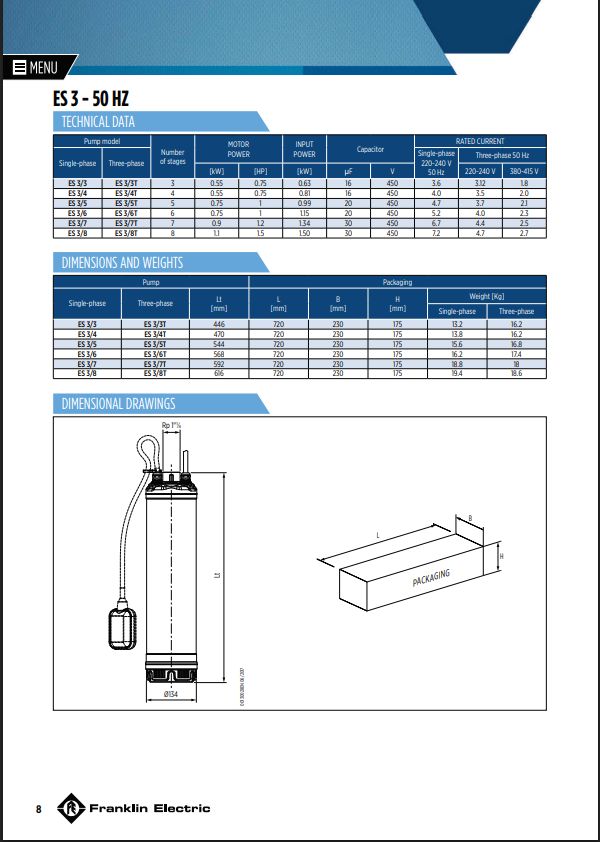

50 Hz duty point: Franklin’s table gives 27 m head at 3 m³/h for this exact model. The listed electrical input (P1) is 0.81 kW, distinct from the motor output in the title. Allow for pipe losses and required delivery pressure when selecting the pump.

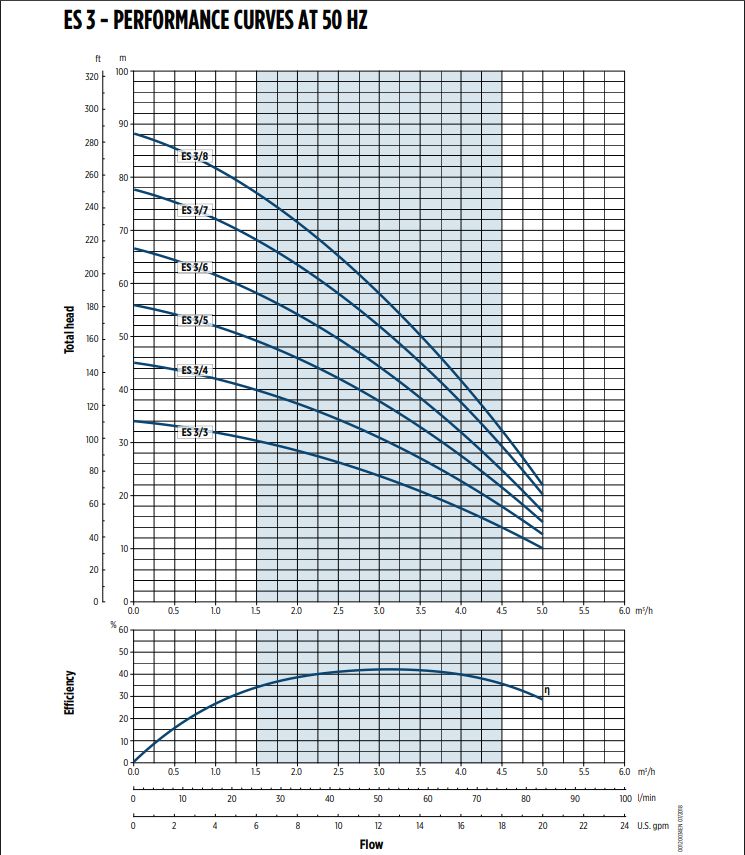

Select the pump from the required flow and total dynamic head using the ES3/4 performance curve, not from motor power alone. Confirm water quality, duty cycle, pipe size, cable route and electrical protection. Position the float so it can move freely and never suspend or retrieve the pump by its power cable.
