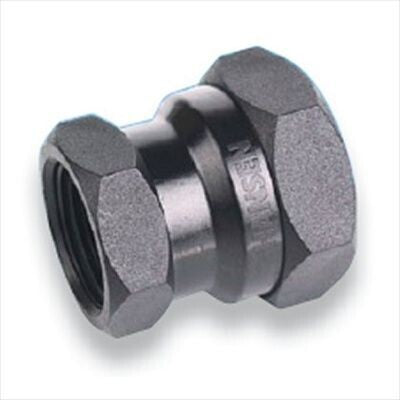

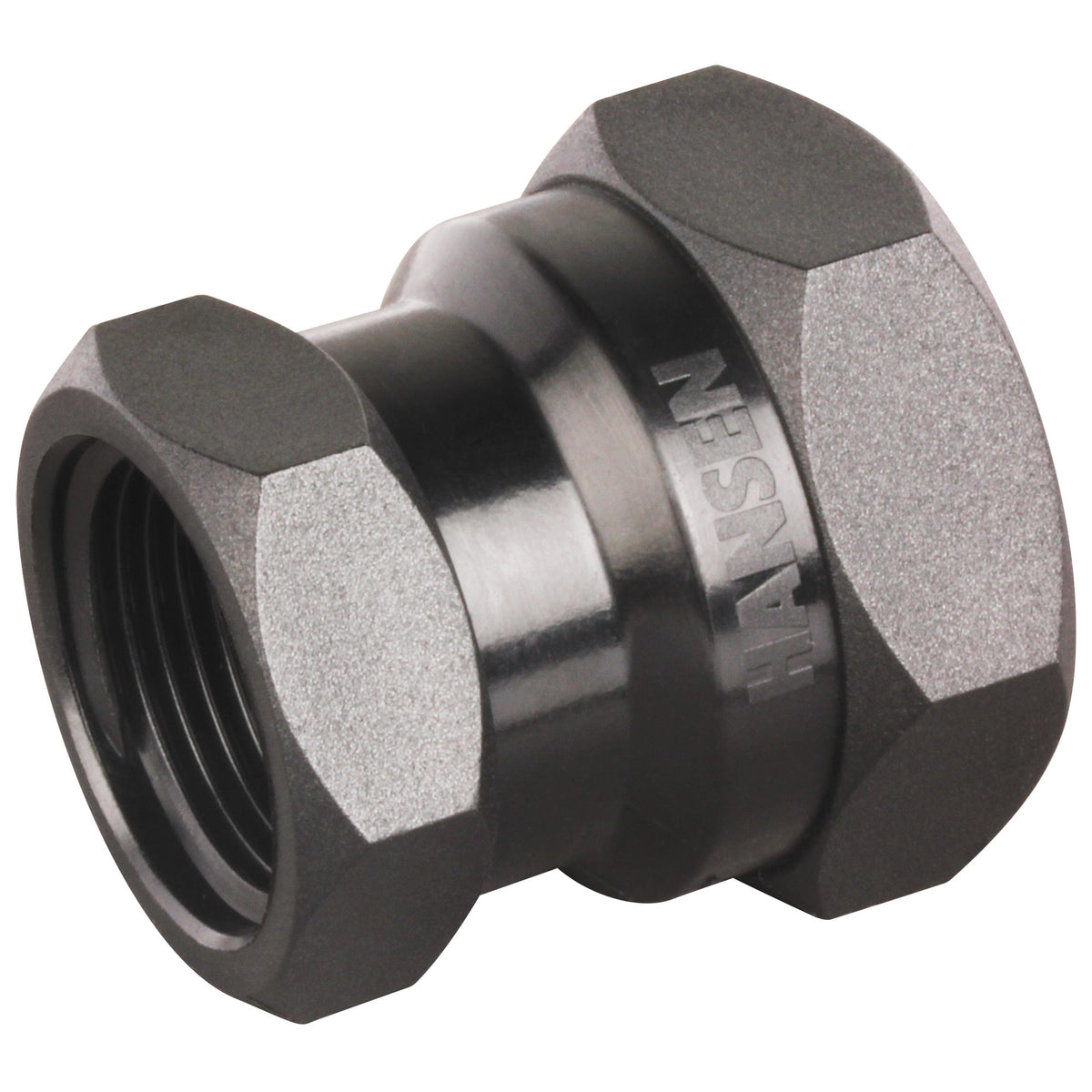

Hansen Reducing Hex Socket – BSPT

SKU: HANREDSOCK020015

£1.67 ~~£2.09~~

Shipping calculated at checkout.

Join two male BSPT threaded connections of different sizes.

The Hansen Reducing Hex Socket has female BSPT threads at both ends, in two different sizes. It connects a larger male-threaded fitting, valve or adaptor to a smaller compatible male-threaded component.

Choose the correct size

Sizes are listed as larger thread × smaller thread. Confirm both male BSPT thread sizes before ordering; this fitting is not for direct connection to plain pipe.

Technical information

Female BSPT × female BSPT reducing connection
16 bar rated variants are identified individually in the size selector.
Suitable for cold-water systems up to 60°C.

Hansen True Fit threaded fittings

UV-stabilised, glass-fibre-reinforced nylon construction
Heavy-duty tapered BSPT threads
Material approved for potable-water use
For water, irrigation, horticultural, agricultural, marine and plumbing installations

Installation guidance

Check the required BSPT thread size and connection gender before fitting.
Use a suitable thread sealant on threaded connections.
Do not overtighten: hand-tighten, then tighten a further one to two turns only.
Support connected pipework and do not install beneath driveways, paths or foundations.

Not suitable for swimming-pool or spa water with high chlorine concentrations.

Unsure which thread you need? Read our BSP, NPT & ACME thread buyer’s guideCheck the thread type, size and seal before ordering.

Size: ¾-inch x ½-inch GRN Threaded Reducing Socket 16 Bar Rated WRAS Approved

¾-inch x ½-inch GRN Threaded Reducing Socket 16 Bar Rated WRAS Approved 1-inch x ½-inch GRN Threaded Reducing Socket 16 Bar Rated WRAS Approved 1-inch x ¾-inch GRN Threaded Reducing Socket 16 Bar Rated WRAS Approved 1¼-inch x 1-inch GRN Threaded Reducing Socket 16 Bar Rated WRAS Approved 1½-inch x ¾-inch GRN Threaded Reducing Socket 16 Bar Rated WRAS Approved 1½-inch x 1-inch GRN Threaded Reducing Socket 16 Bar Rated WRAS Approved 1½-inch x 1¼-inch GRN Threaded Reducing Socket 16 Bar Rated WRAS Approved 2-inch x 1-inch GRN Threaded Reducing Socket 16 Bar Rated WRAS Approved 2-inch x 1½-inch GRN Threaded Reducing Socket 16 Bar Rated WRAS Approved
