Hunter 2-Station ICD Decoder

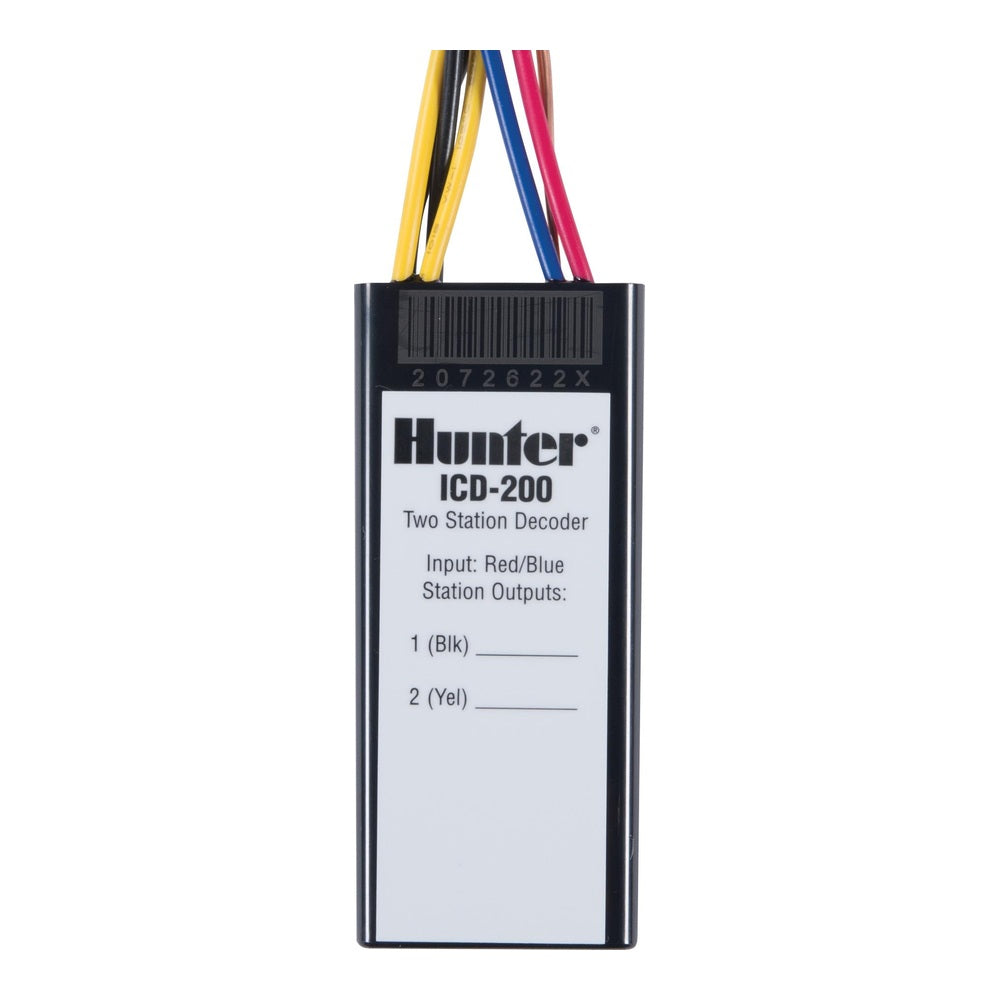

Hunter ICD-200 two-station decoder

The ICD-200 provides two separately addressed valve stations from one field decoder on a compatible Hunter two-wire system. It suits a valve-box position where two independently controlled irrigation valves are required.

Key details

• Two station outputs for standard 24 V AC irrigation solenoids.
• For ACC2 Decoder and legacy ACC-99D Decoder controllers. Hunter also confirms ICD-200 compatibility with an I-Core DUAL system.
• Field-programmable station addresses; the ICD-HP can reprogram an installed decoder by induction.
• Integrated surge protection and colour-coded station leads.
• Waterproof DBRY-6 connectors included for two-wire path splices.
• Hunter's recommended maximum decoder-to-solenoid distance is approximately 45 m.

Selection note: Match both station addresses to the valve plan. Check the controller and decoder output module before ordering; the ICD-200 belongs to the ICD family, not the EZ decoder family.

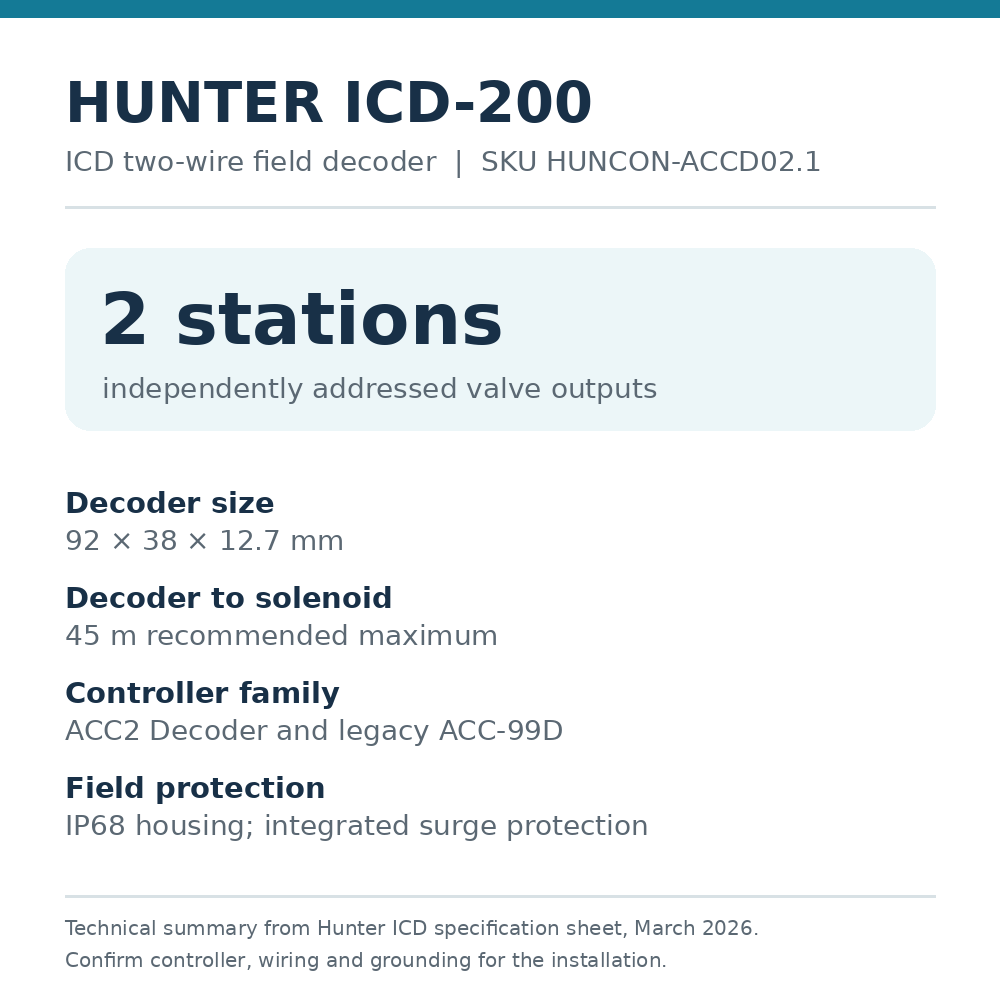

Two-wire path: Hunter lists maximum runs of 3 km with 2 mm² ID1 cable or 4.5 km with 4 mm² ID2 cable for ICD systems. See the model-specific technical summary in the product gallery; check the full cable and grounding design for the site.
