Hunter 4-Station ICD Decoder

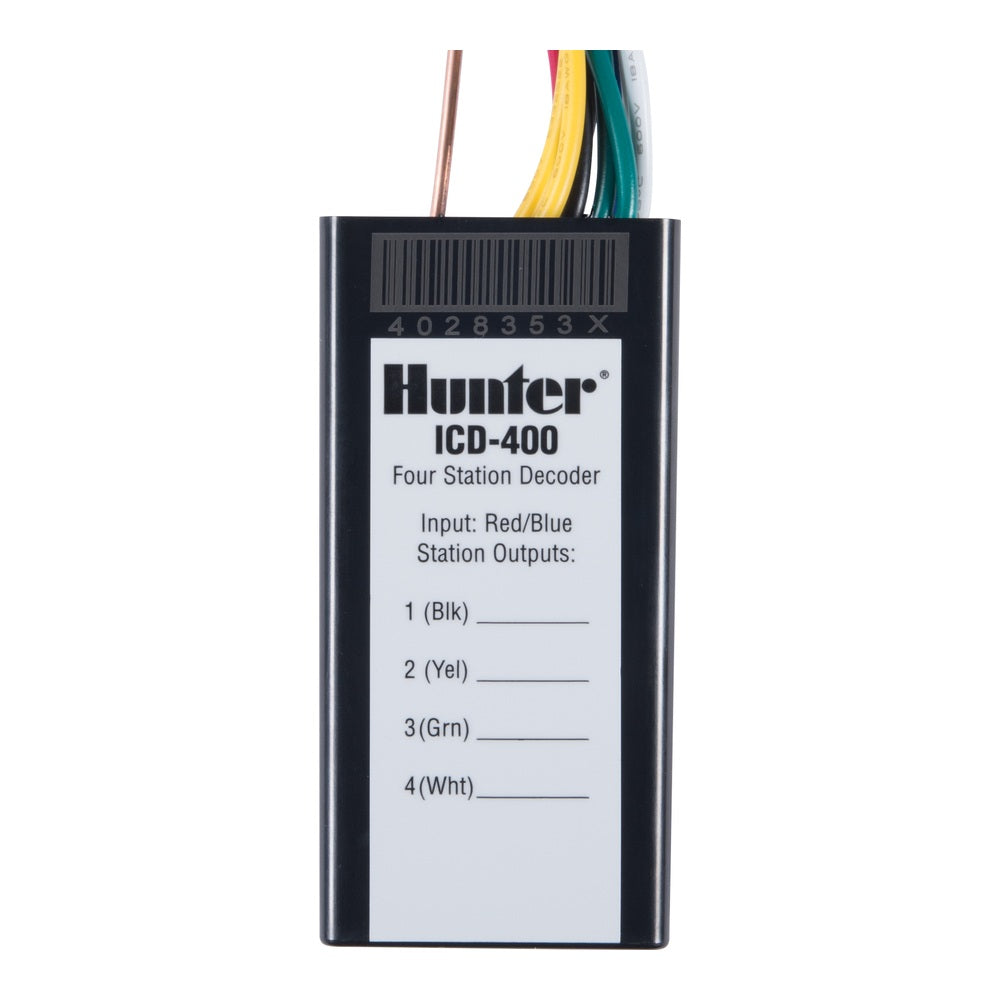

Hunter ICD-400 four-station decoder

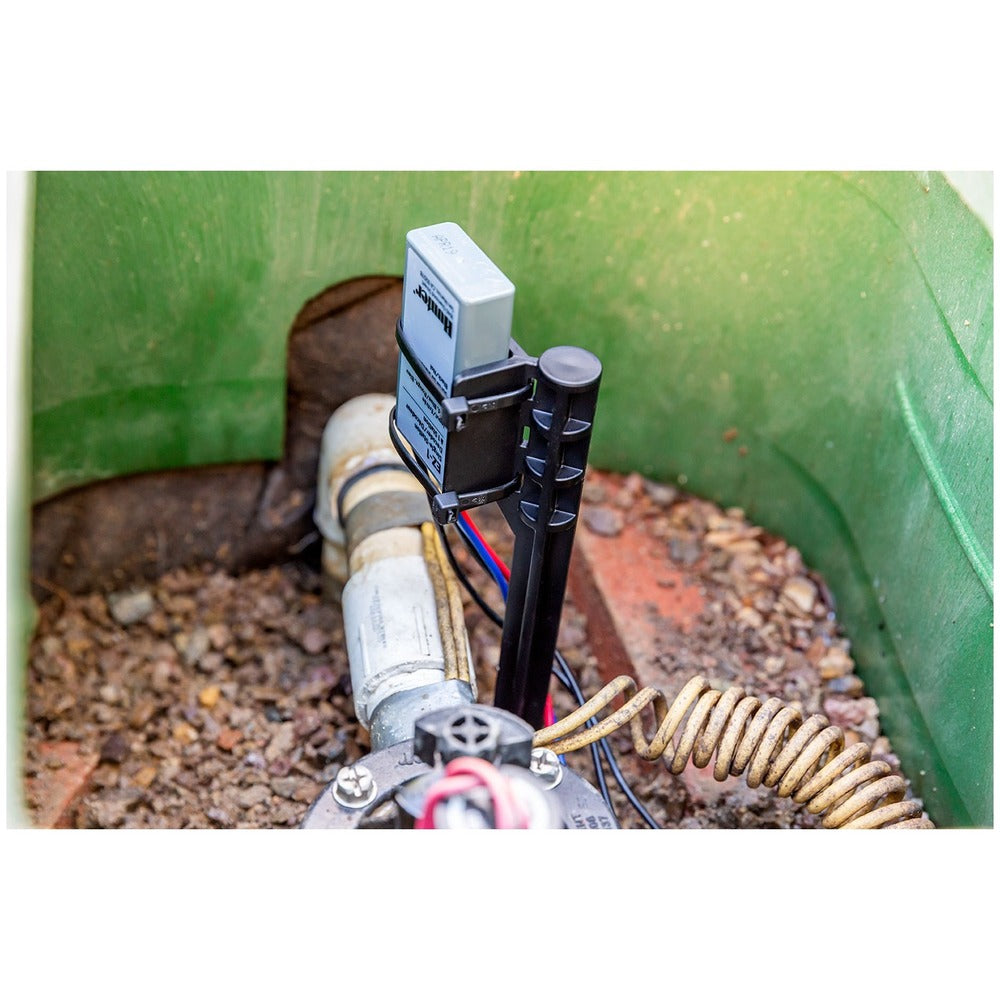

The ICD-400 provides four separately addressed valve stations from one field decoder on a compatible Hunter two-wire system. It suits a valve-box position serving up to four independently controlled irrigation valves.

Key details

• Four station outputs for standard 24 V AC irrigation solenoids.
• For ACC2 Decoder and legacy ACC-99D Decoder controllers. Hunter also confirms ICD-400 compatibility with an I-Core DUAL system.
• Field-programmable station addresses; the ICD-HP can reprogram an installed decoder by induction.
• Integrated surge protection and colour-coded station leads.
• Waterproof DBRY-6 connectors included for two-wire path splices.
• IP68 submersible decoder housing.
• Hunter's recommended maximum decoder-to-solenoid distance is approximately 45 m.

Selection note: Match all four station outputs to the valve plan and confirm the controller and decoder module before ordering. This is an ICD decoder, not a DUAL-1 or EZ-1.

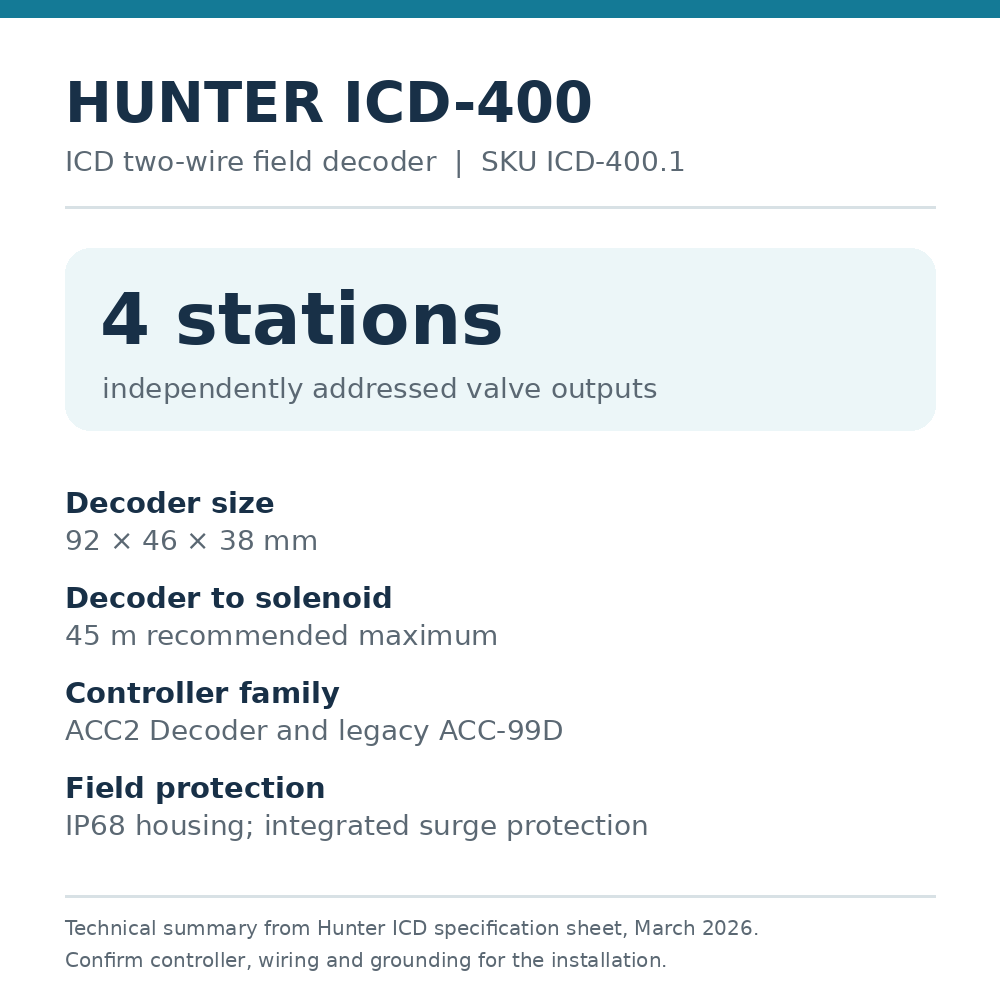

Two-wire path: Hunter lists maximum runs of 3 km with 2 mm² ID1 cable or 4.5 km with 4 mm² ID2 cable for ICD systems. See the model-specific technical summary in the product gallery; check the full cable and grounding design for the site.
