Hunter Pilot Decoder

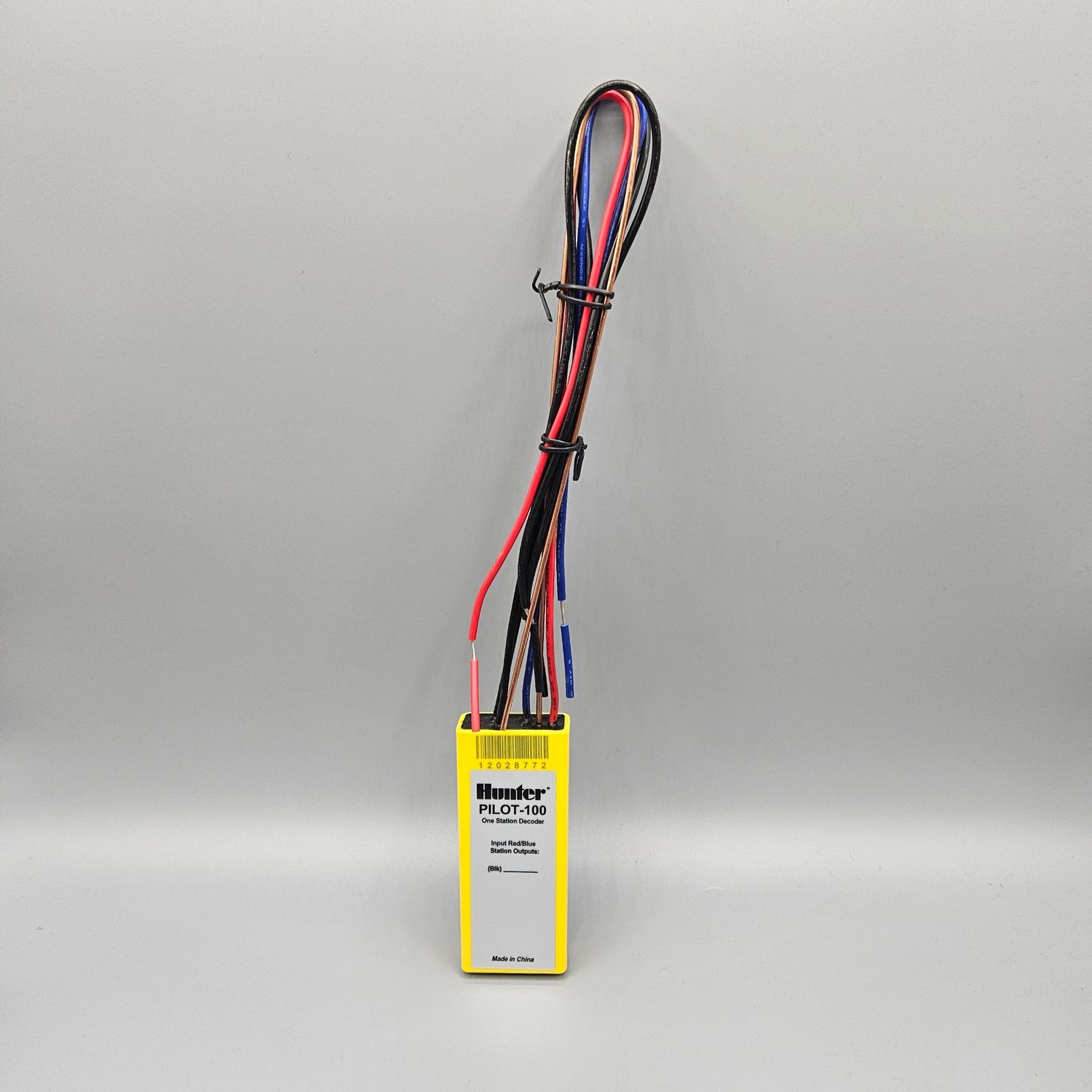

Hunter Pilot-100 one-station decoder

A one-station, two-way field module for a Hunter Pilot Integrated Hub golf irrigation system. It connects a valve station to the Pilot two-wire path and supports communication with the Pilot hub.

Choosing this decoder

• Hunter model: Pilot-100; one independently controlled station.
• For a compatible Pilot Integrated Hub system. Confirm the existing hub and decoder design before ordering.

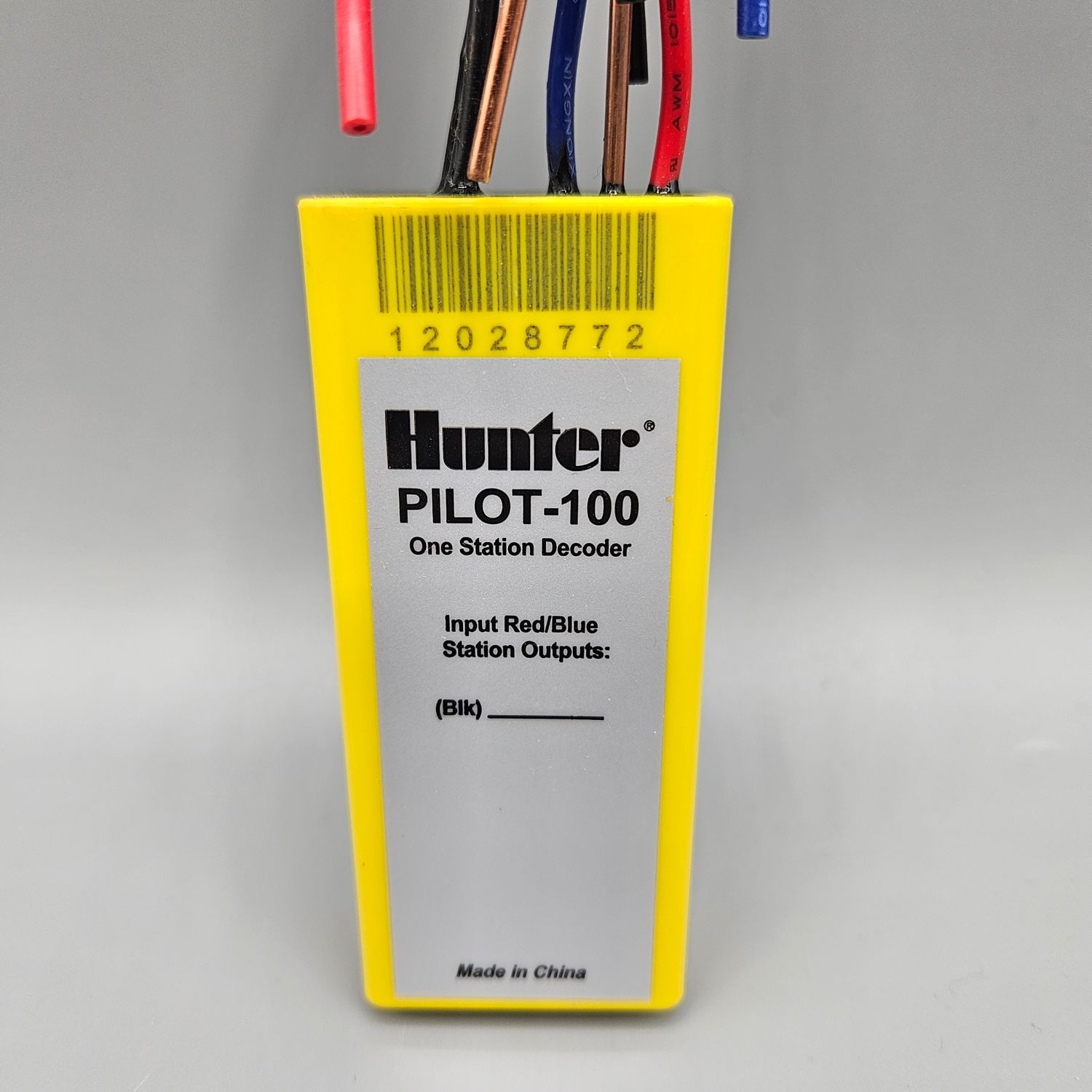

• Hunter Pilot decoders are yellow for identification in field valve boxes and include surge protection.

Compatibility: A Pilot decoder is not an ICD decoder for an ACC2 Decoder controller. The Pilot hub, cable, valve solenoid and installation components must be specified for the system.

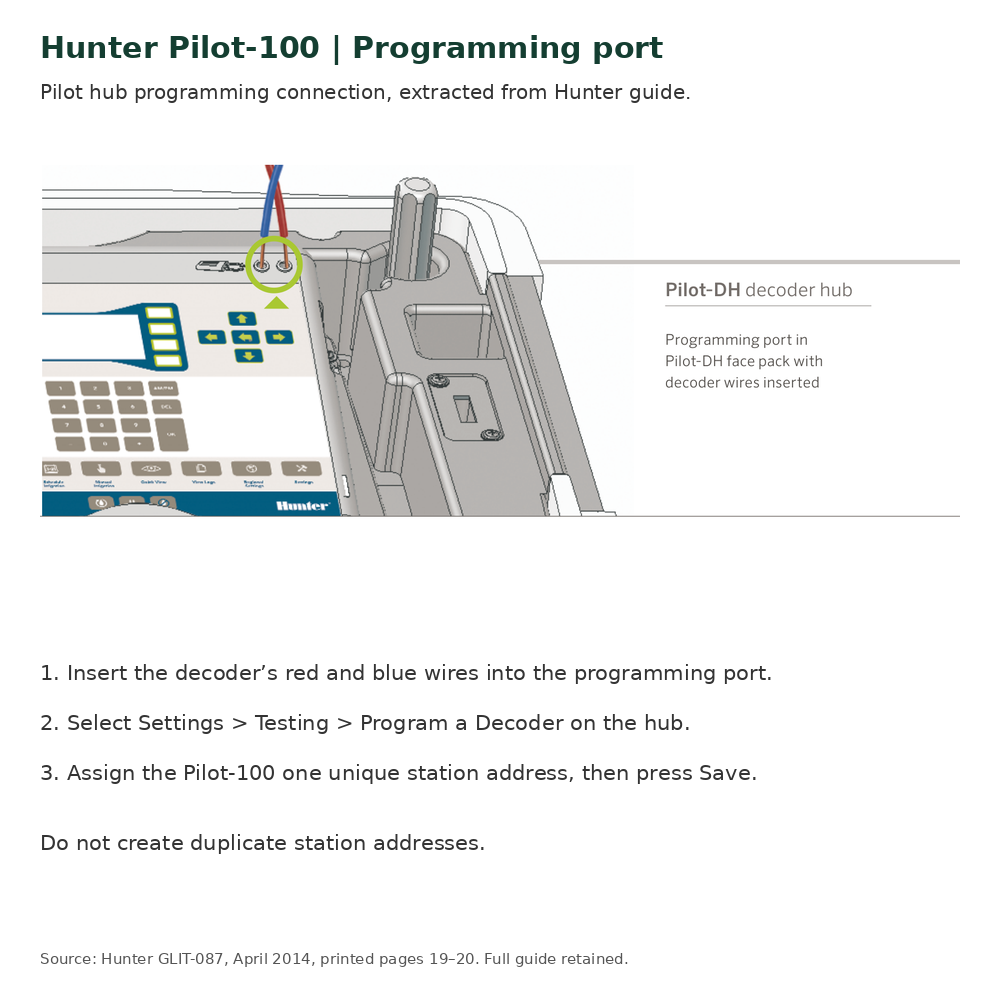

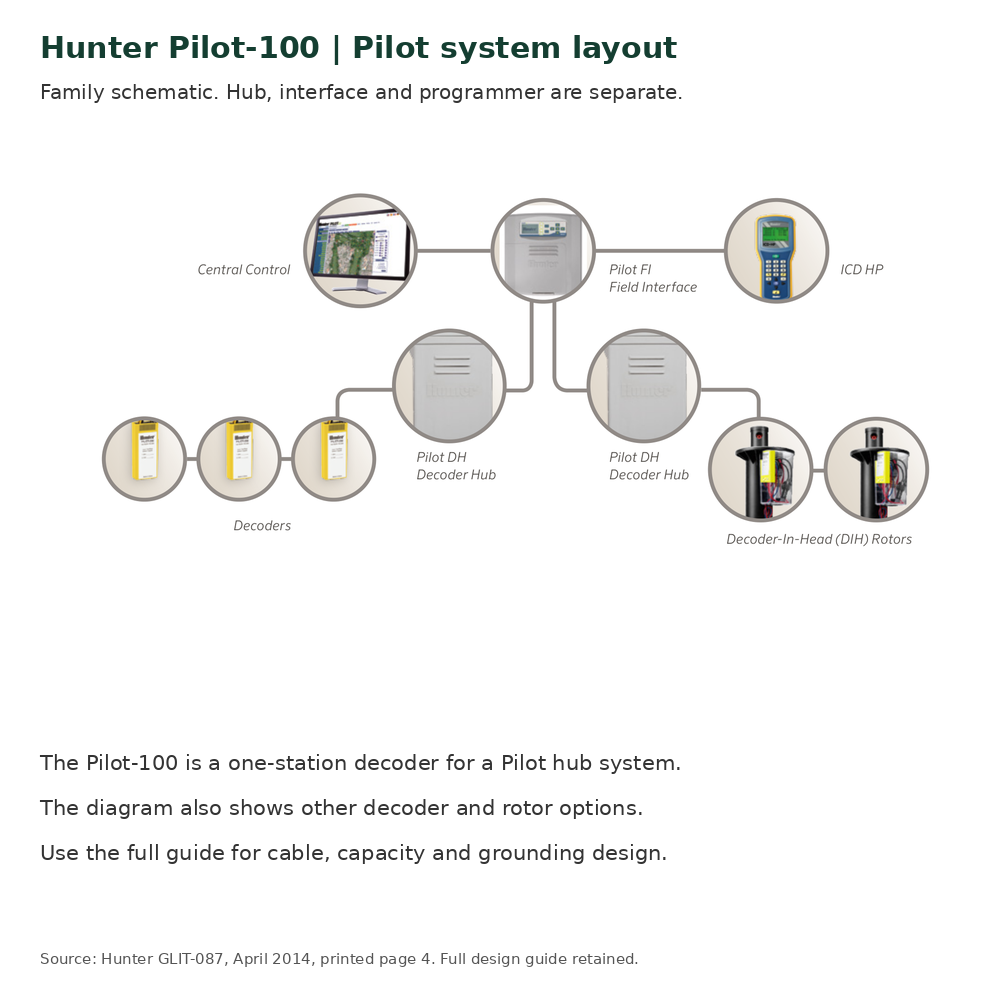

View the product gallery for Hunter’s Pilot system-layout and decoder programming-port diagrams. The schematic shows the wider Pilot family; hubs, interface, programmer and rotors are separate equipment. Assign the Pilot-100 one unique station address and do not duplicate decoder addresses. The full design guide remains available for cable sizing, electrical limits, connectors and grounding.

Hunter Pilot Decoder System Design Guide (PDF) explains the hub, field wiring and decoder layout.
