Jason PE Compression Female BSP Adaptor

Jason Compression Female Adaptor

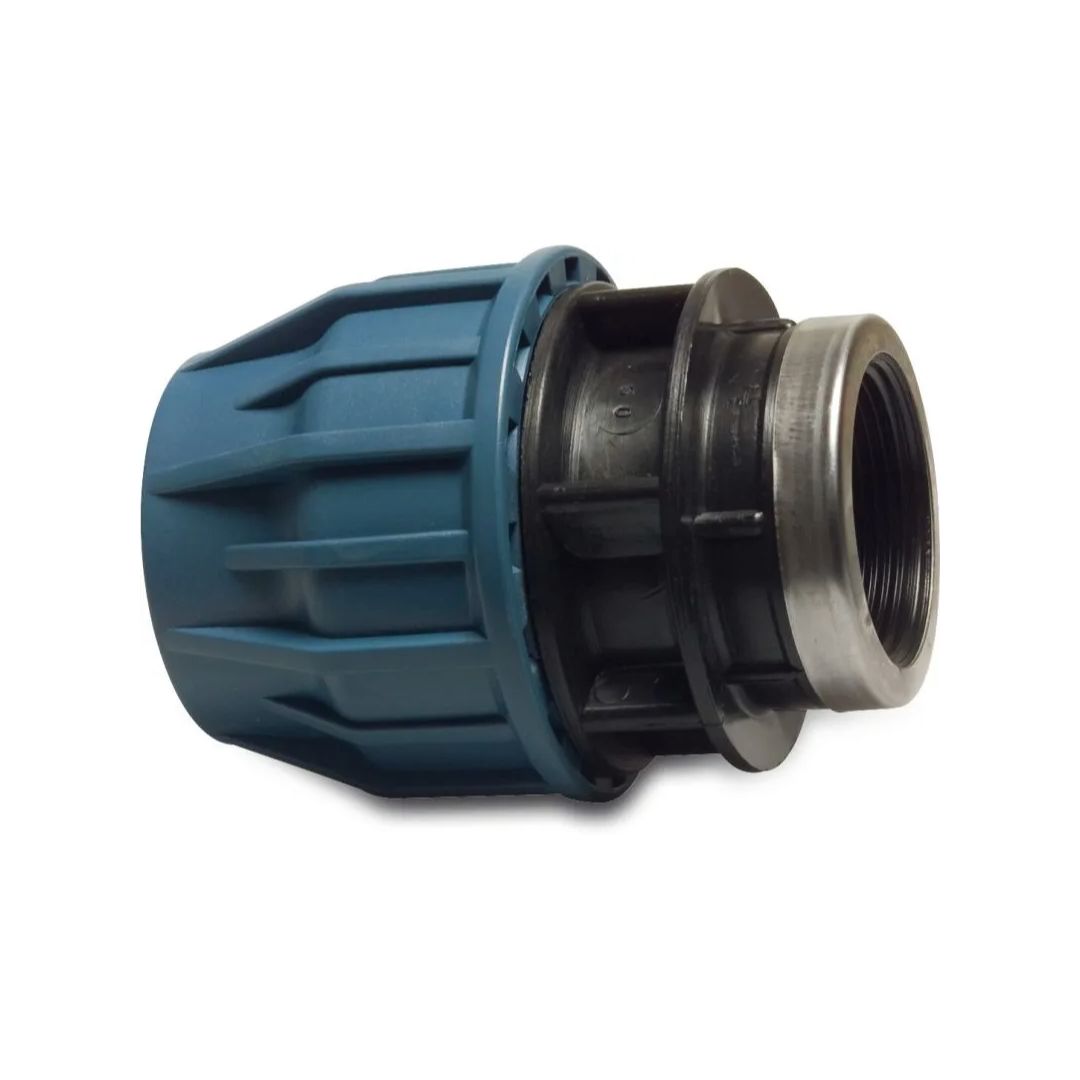

The Jason Compression Female Adaptor is a high-quality polypropylene fitting designed to connect polyethylene pipes to BSP-threaded male fittings. Ideal for irrigation, plumbing, and potable water systems, this adaptor is certified by DVGW, KIWA, WRAS, and SVGW. Its PN16 pressure rating and durable design make it suitable for both underground and above-ground applications in residential, commercial, and agricultural settings.

Key Features:

• Compression adaptor with female BSP thread
• Connects PE pipe to threaded male fittings or valves
• Fully certified by DVGW, KIWA, WRAS, and SVGW
• PN16 pressure rating for high-performance applications
• Durable polypropylene construction with easy-grip blue nut
• Simple and secure compression installation

Specifications:

• Connection type: Compression x Female BSP
• Material: Polypropylene (PP)
• Colour: Black body with blue compression nut
• Pressure rating: PN16 (16 bar)
• Certifications: DVGW, KIWA, WRAS, SVGW
• Application: Potable water, irrigation, and plumbing systems
• Size range: Available in various PE pipe and BSP thread sizes

Choose the correct pipe and thread size

A size such as 25 mm × ¾-inch means 25 mm PE pipe outside diameter at the compression end and a nominal ¾-inch female BSP connection at the threaded end. The inch value is the thread size, not the pipe outside diameter. Choose the exact combination in the size selector.

Match the pipe material, outside diameter and pressure rating, as well as the thread at the other end. If your connection requires a specific BSPP/BSPT form or sealing arrangement, ask us to confirm the selected part before ordering. Do not assume BSP and NPT are interchangeable.

Preparation and installation

Cut PE pipe square, remove burrs and prepare the pipe end to the fitting instructions. Confirm whether your pipe specification requires an internal support insert; inserts are selected by pipe size and wall thickness. Follow the insertion depth, nut-tightening and thread-sealing instructions for the exact fitting and pipe combination. Do not overtighten plastic threaded parts.

Jason compression fitting preparation guidance from BEVO
