Jason PE Compression Male BSP Adaptor

Jason Compression Male Adaptor

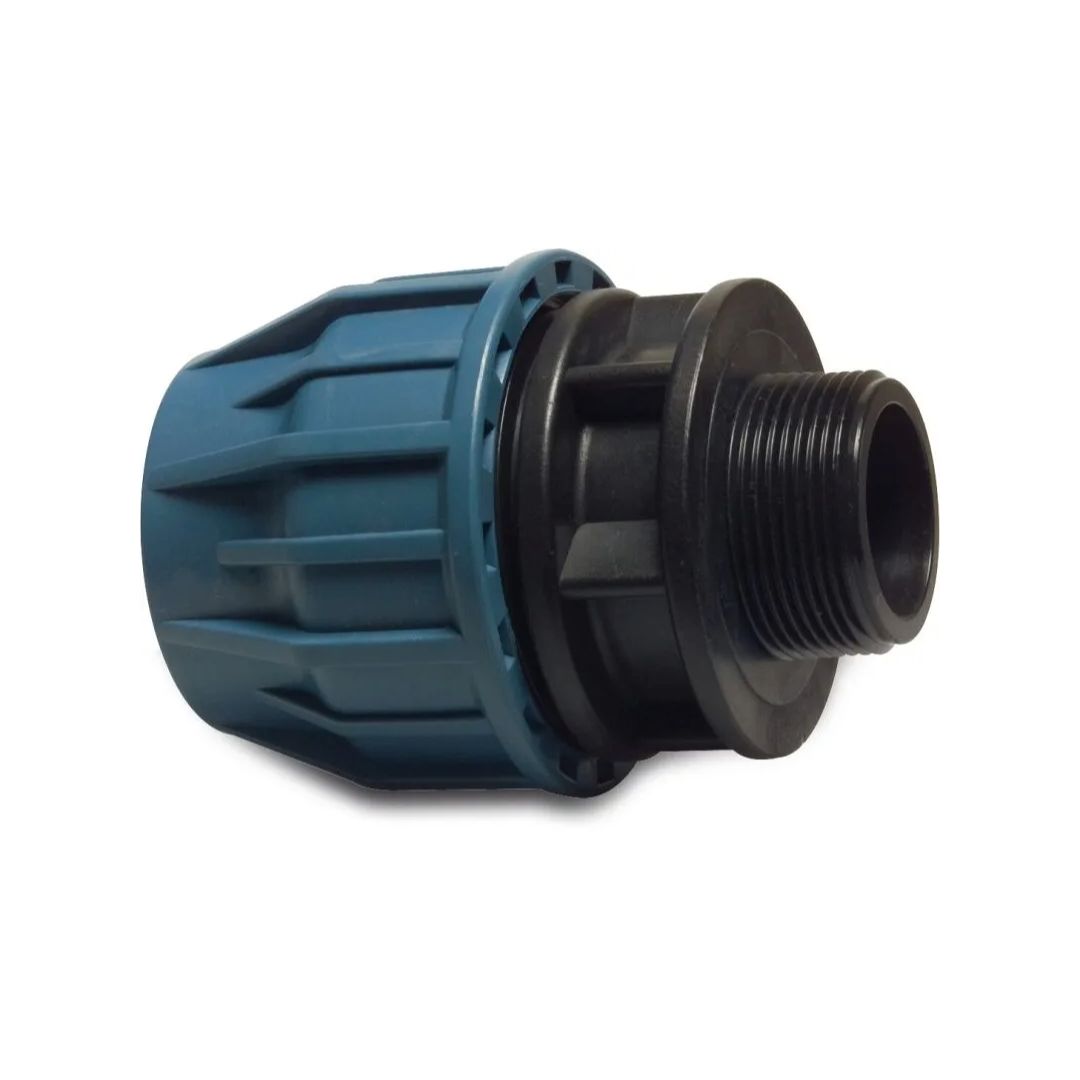

The Jason Compression Male Adaptor is a high-quality polypropylene fitting used to connect polyethylene pipes to BSP-threaded female fittings in irrigation and water supply systems. With its PN16 pressure rating and certification from DVGW, KIWA, WRAS, and SVGW, this adaptor is suitable for potable water and demanding irrigation applications. Its durable design and easy-grip compression nut ensure quick, tool-free installation.

Key Features:

• Compression adaptor with male BSP thread
• Connects PE pipes to threaded female fittings or valves
• Certified by DVGW, KIWA, WRAS, and SVGW
• PN16 pressure rating for high-pressure systems
• Durable polypropylene construction with blue compression nut
• Easy and secure installation without specialist tools

Specifications:

• Connection type: Compression x Male BSP
• Material: Polypropylene (PP)
• Colour: Black body with blue compression nut
• Pressure rating: PN16 (16 bar)
• Certifications: DVGW, KIWA, WRAS, SVGW
• Application: Potable water, irrigation, and plumbing systems
• Size range: Available in various PE pipe and BSP thread sizes

Choose the correct pipe and thread size

A size such as 25 mm × ¾-inch means 25 mm PE pipe outside diameter at the compression end and a nominal ¾-inch male BSP connection at the threaded end. The inch value is the thread size, not the pipe outside diameter. Choose the exact combination in the size selector.

Match the pipe material, outside diameter and pressure rating, as well as the thread at the other end. If your connection requires a specific BSPP/BSPT form or sealing arrangement, ask us to confirm the selected part before ordering. Do not assume BSP and NPT are interchangeable.

Preparation and installation

Cut PE pipe square, remove burrs and prepare the pipe end to the fitting instructions. Confirm whether your pipe specification requires an internal support insert; inserts are selected by pipe size and wall thickness. Follow the insertion depth, nut-tightening and thread-sealing instructions for the exact fitting and pipe combination. Do not overtighten plastic threaded parts.

Jason compression fitting preparation guidance from BEVO

Help choosing compatible parts

Which poly pipe do I need? · Ask our technical team
